Sniper - 838232

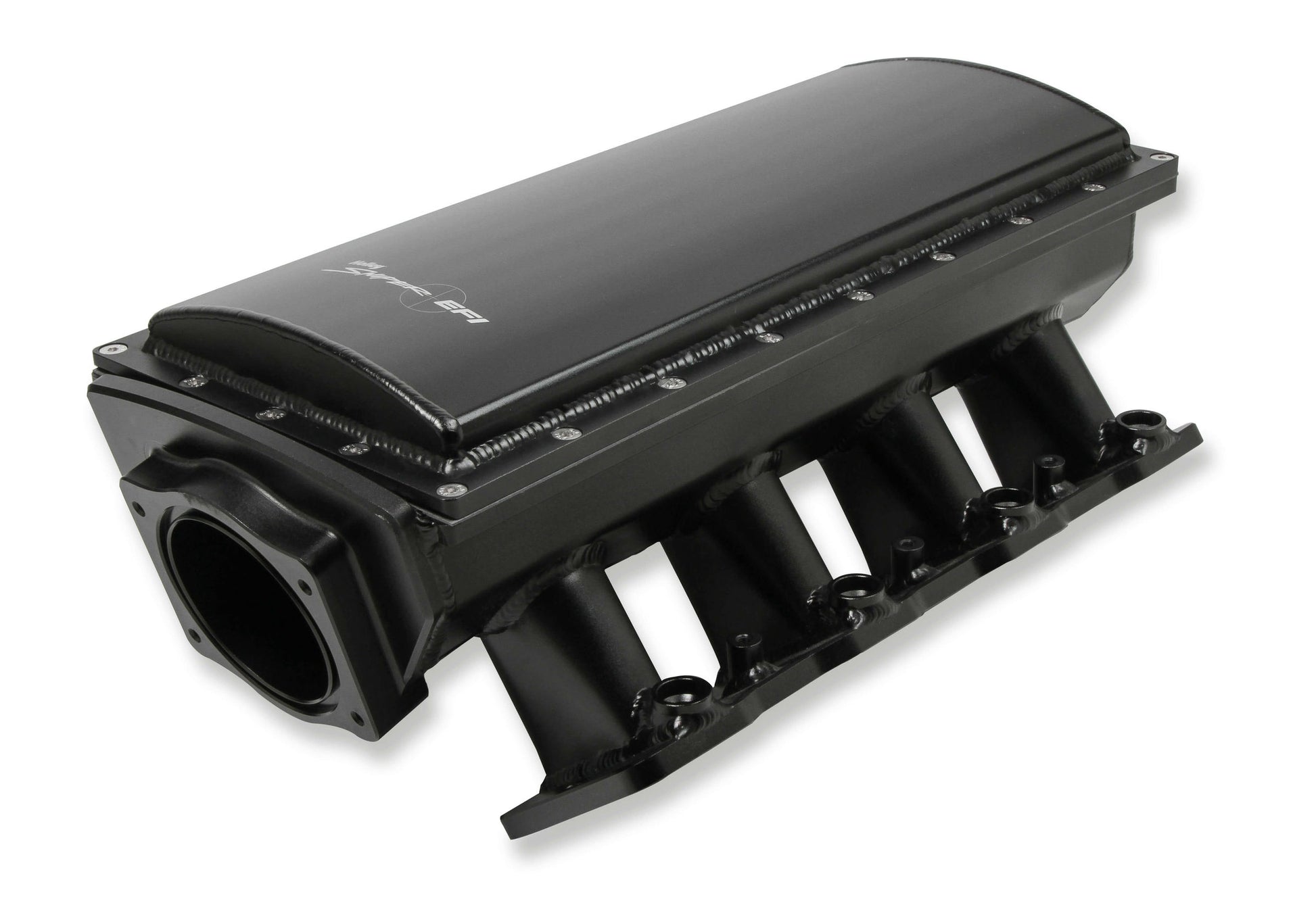

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Black
Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.
- Black Finish creates stealthy under-hood styling
- 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability

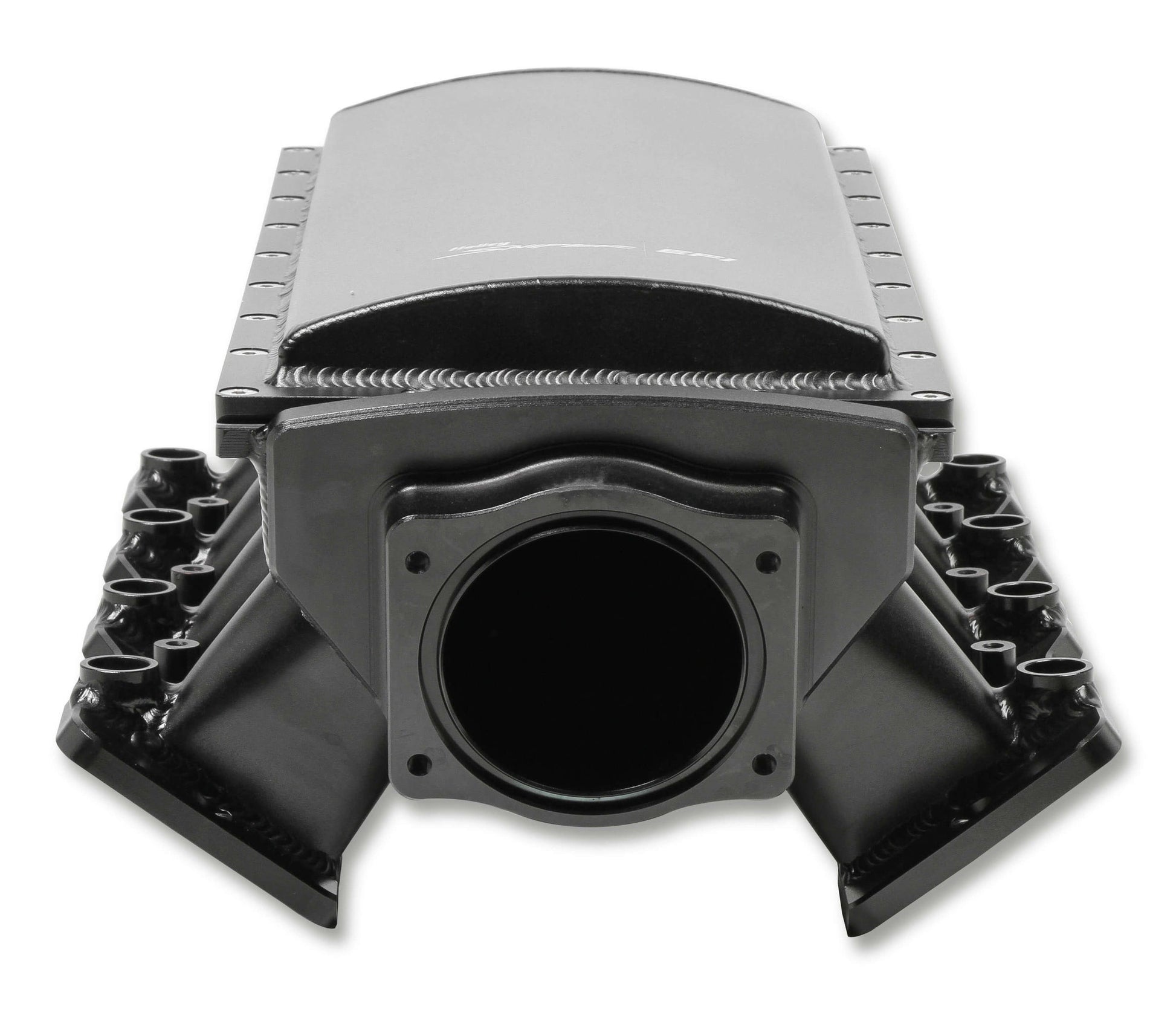

- 90mm throttle bore opening for increased air flow

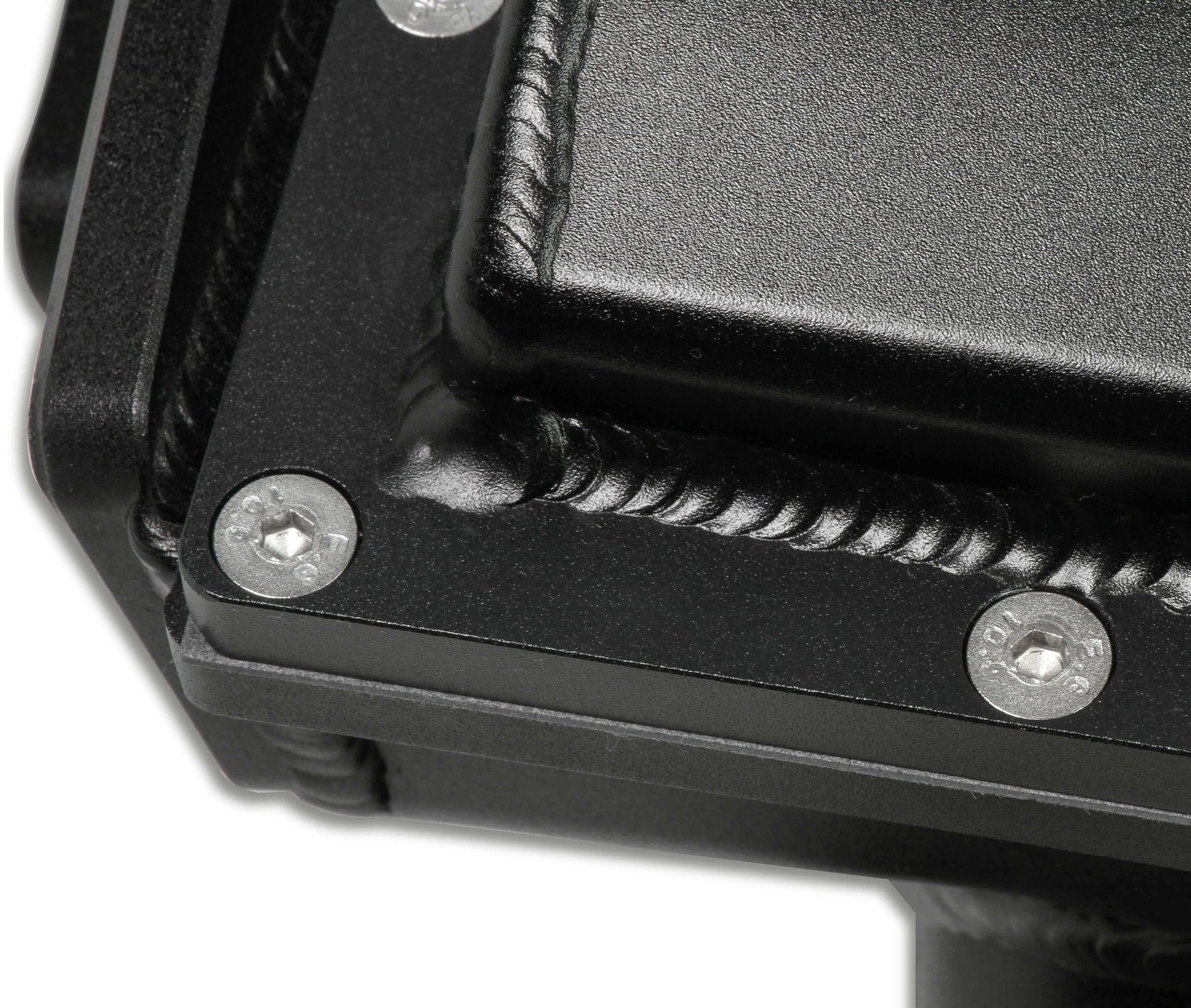

- 100% TIG welded for strength and durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

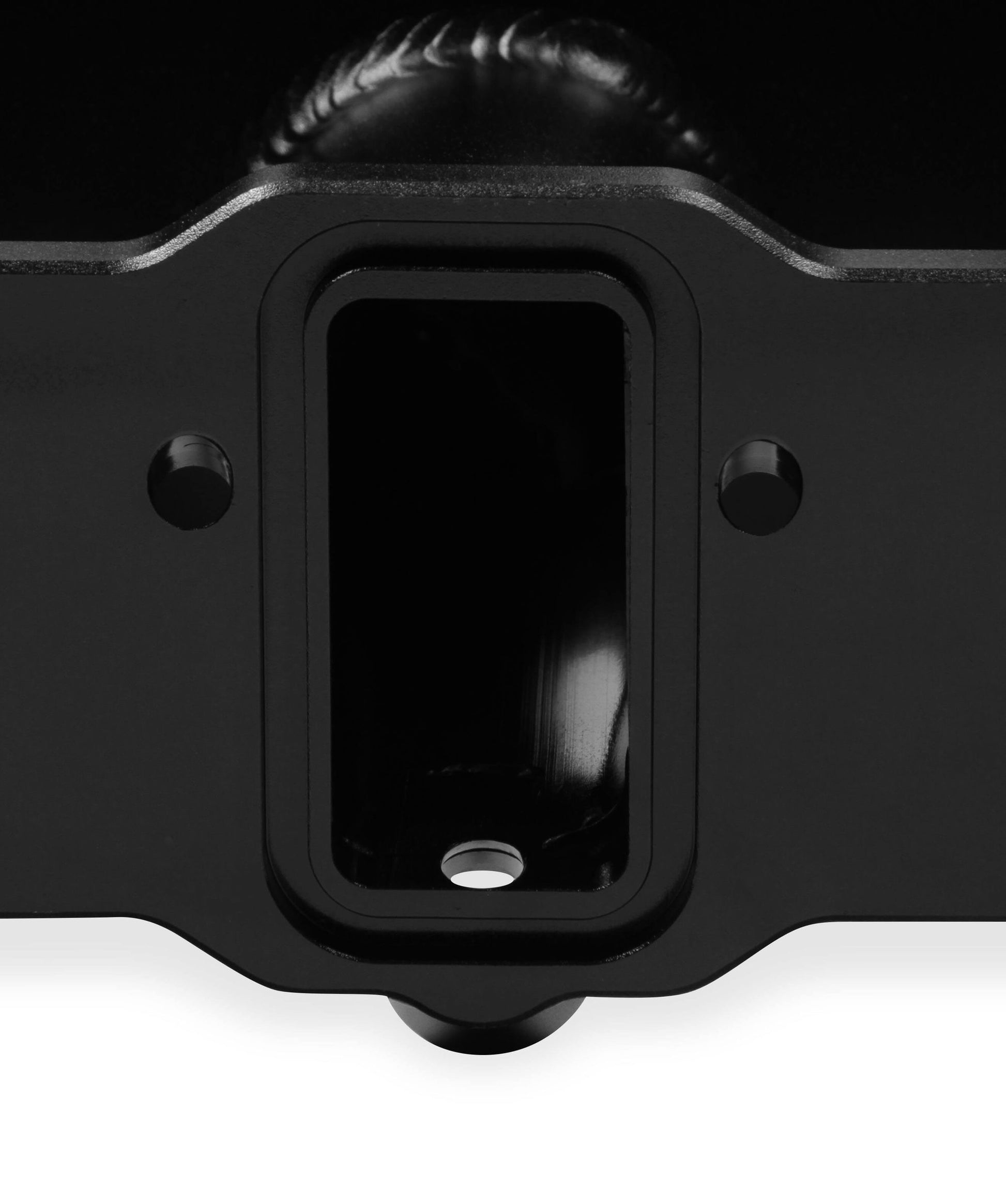

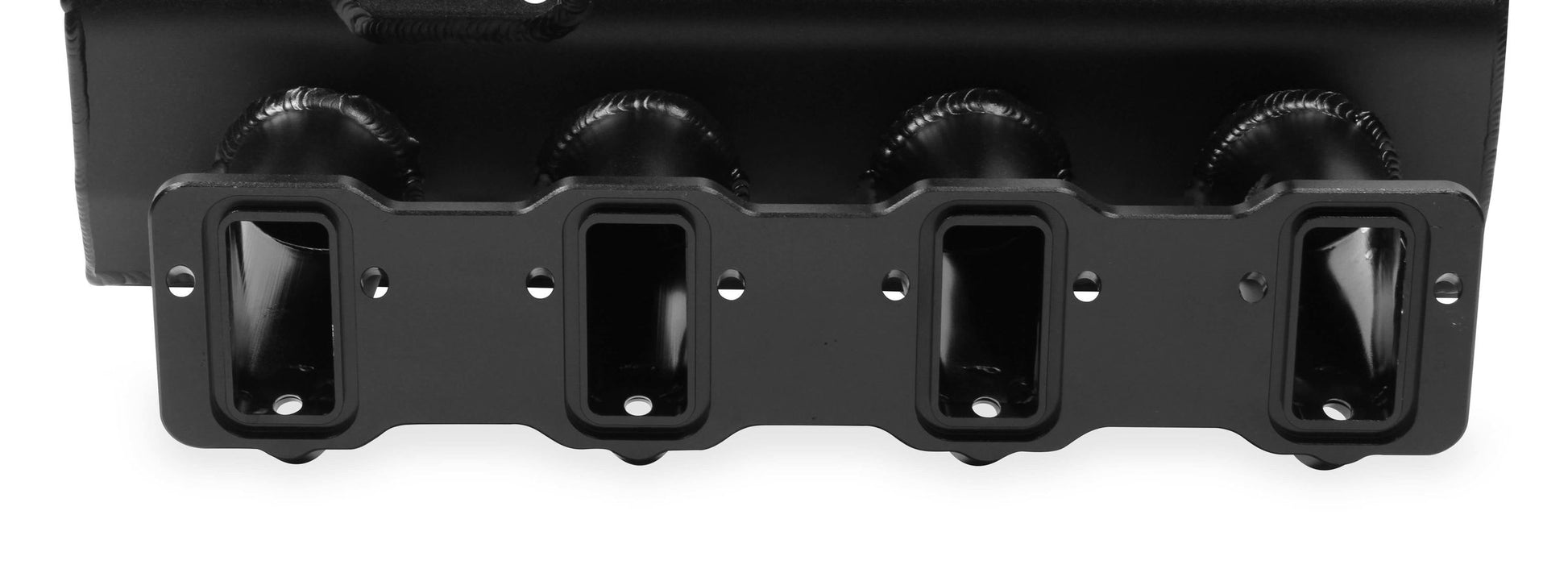

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

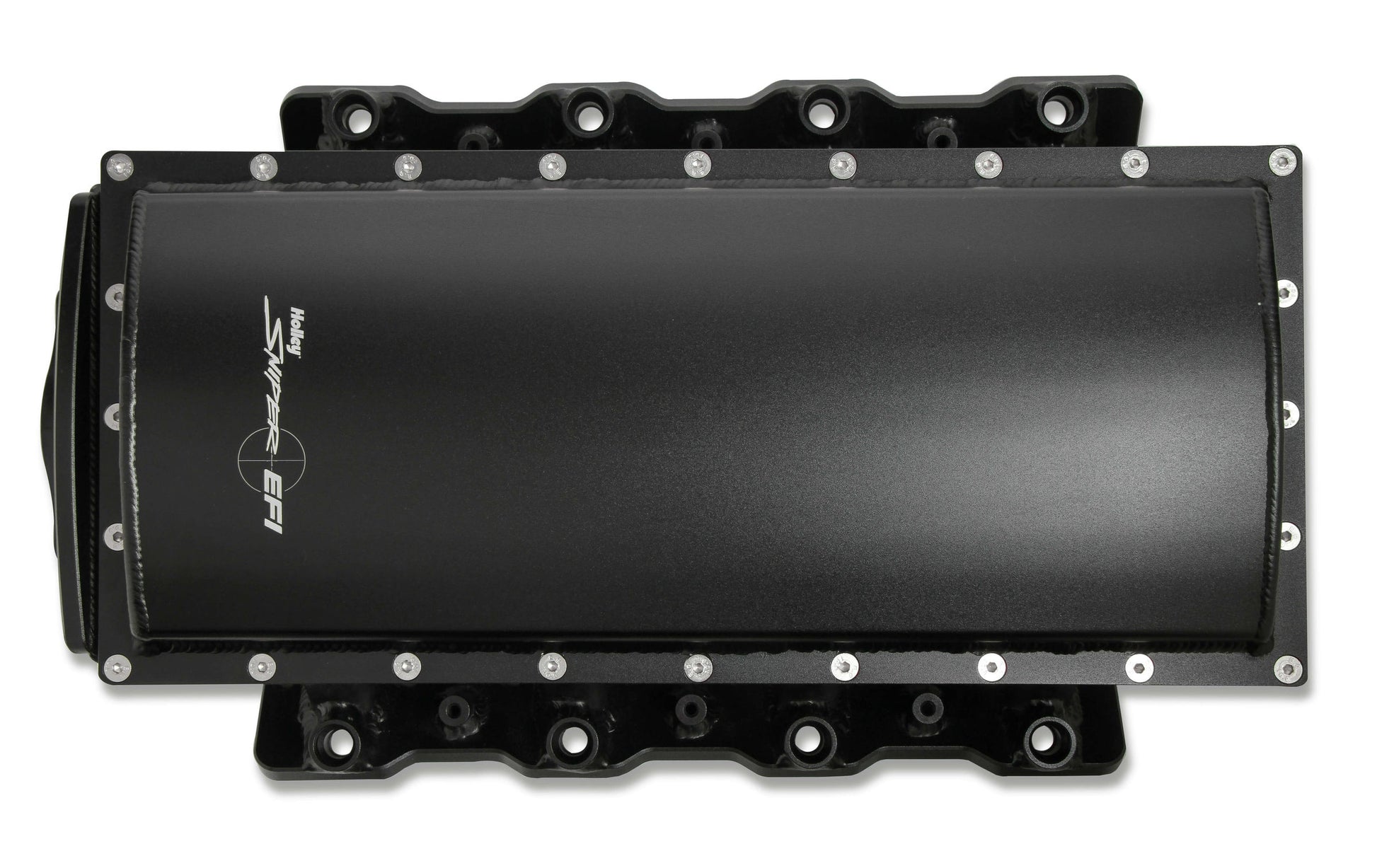

- Removable top for ease of inspection, modification, and addition of sensors

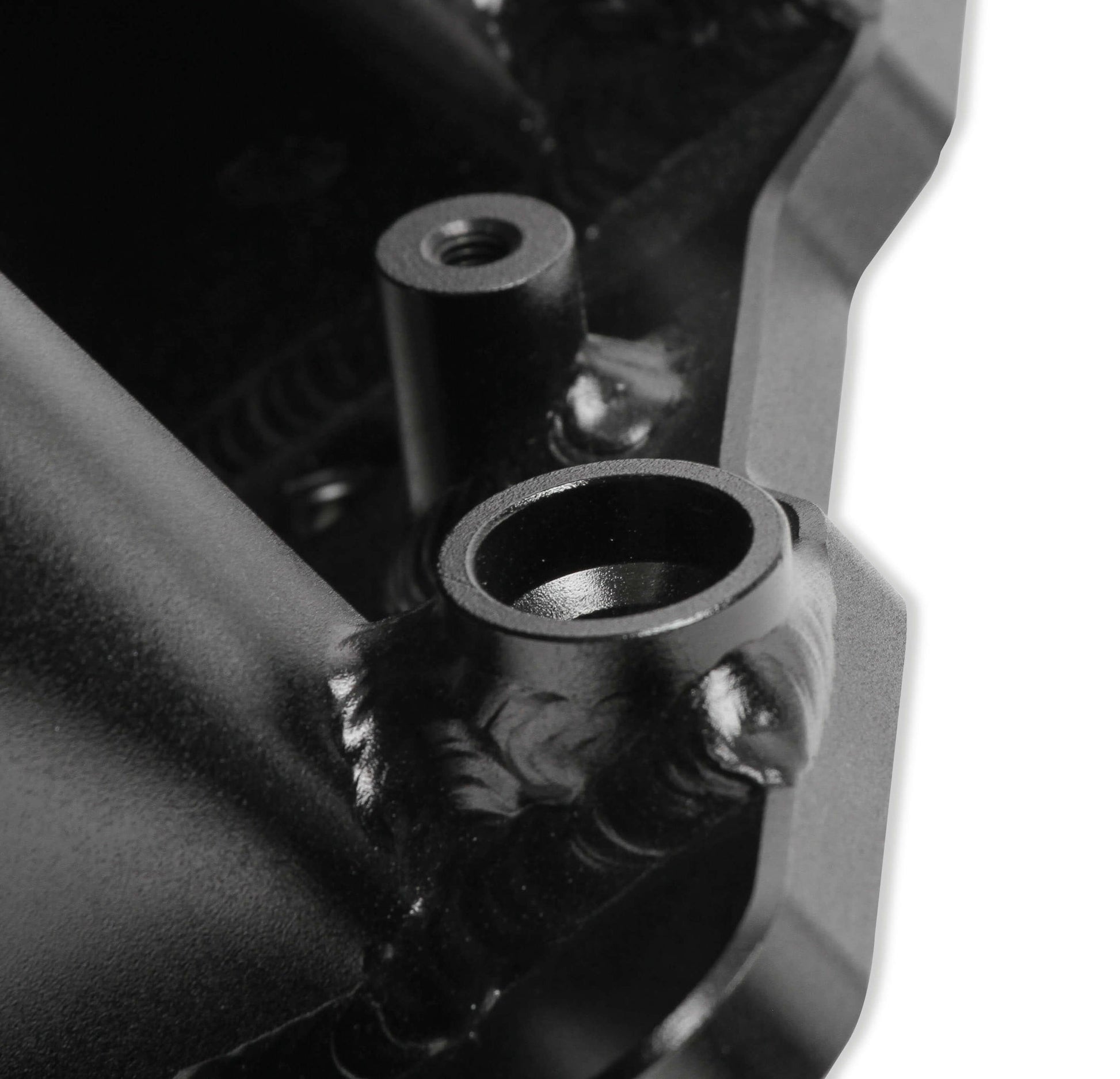

- Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications

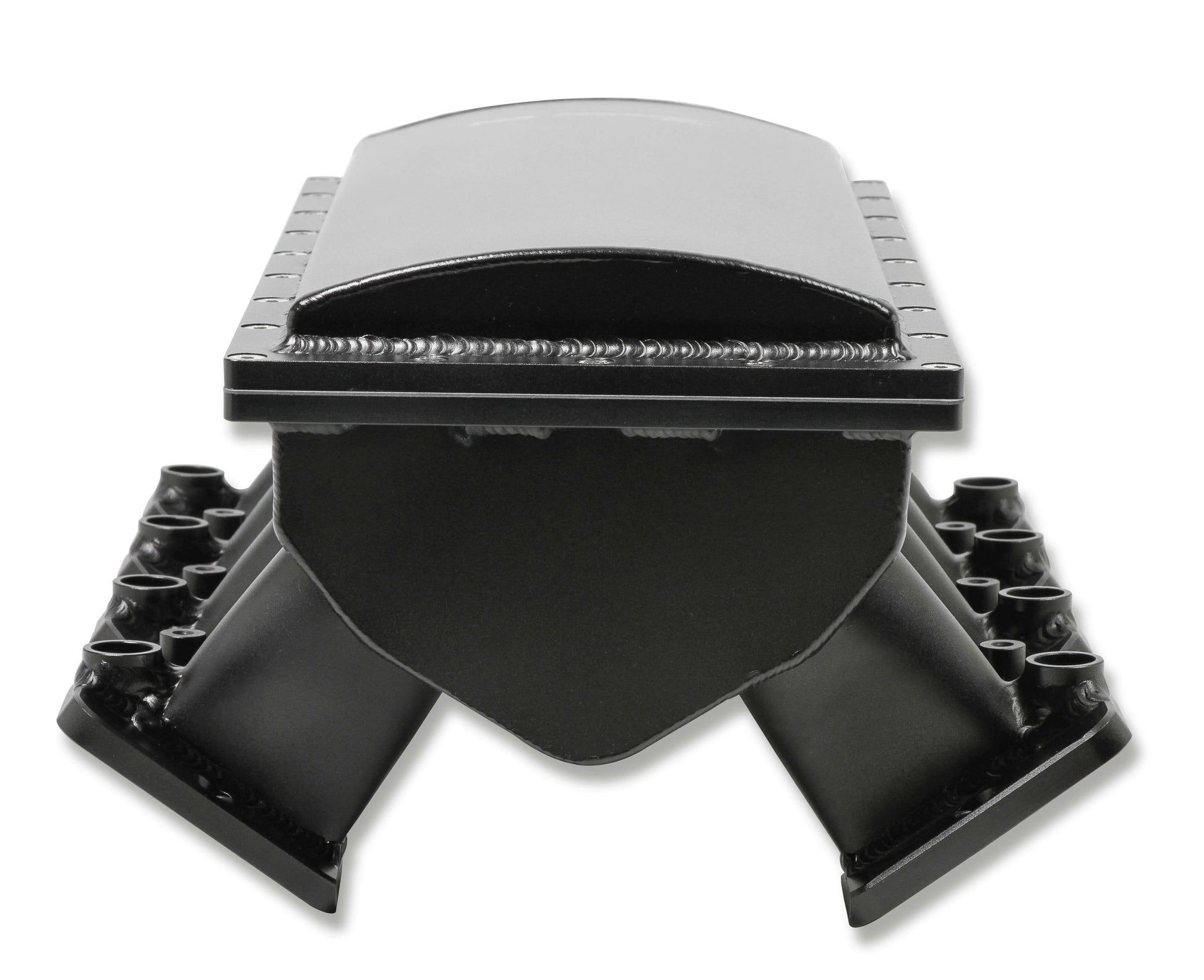

- Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
- Longer Intake runner lengths offering a wider RPM operating range of 2400-8200 RPM

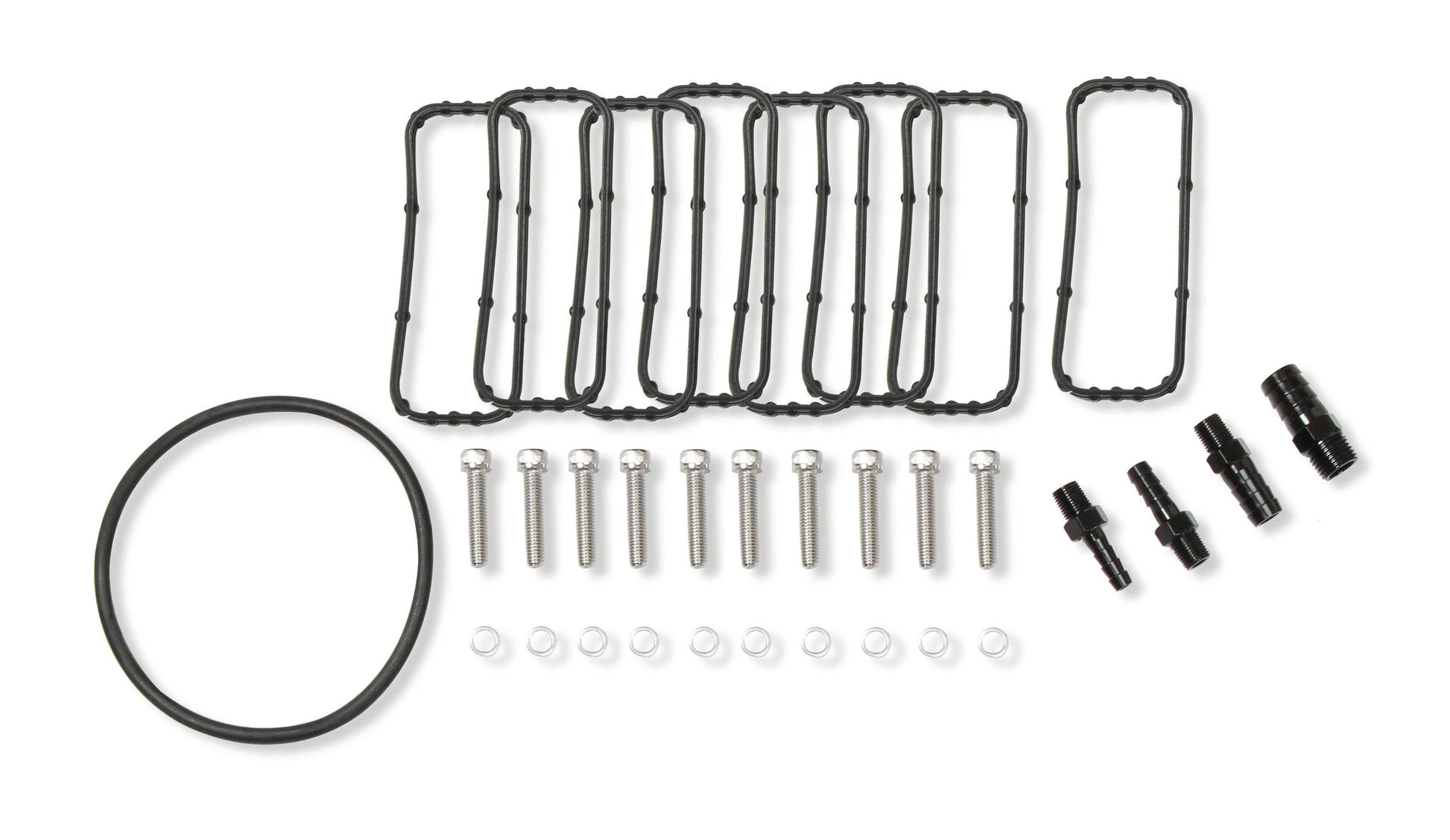

- Product includes all gaskets and hardware for a hassle-free installation
Brand: Holley Sniper EFI
Category: Sniper EFI Intakes
Color: Black
Construction: Fabricated
Emission Code: 4
Engine: GM LS3/L92
Finish: Black
Front Height: 9.62 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Style Provision: LS3/L92 EV6 USCAR
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Product Type: Intake Manifold
Rear Height: 9.015 inch
Recommended Use: Forced Induction
RPM Power Band: 3500-8000 RPM
Runner Length: 5.512" (140mm)
Style: EFI
Throttle Body Included: No
Throttle Bore: 90mm

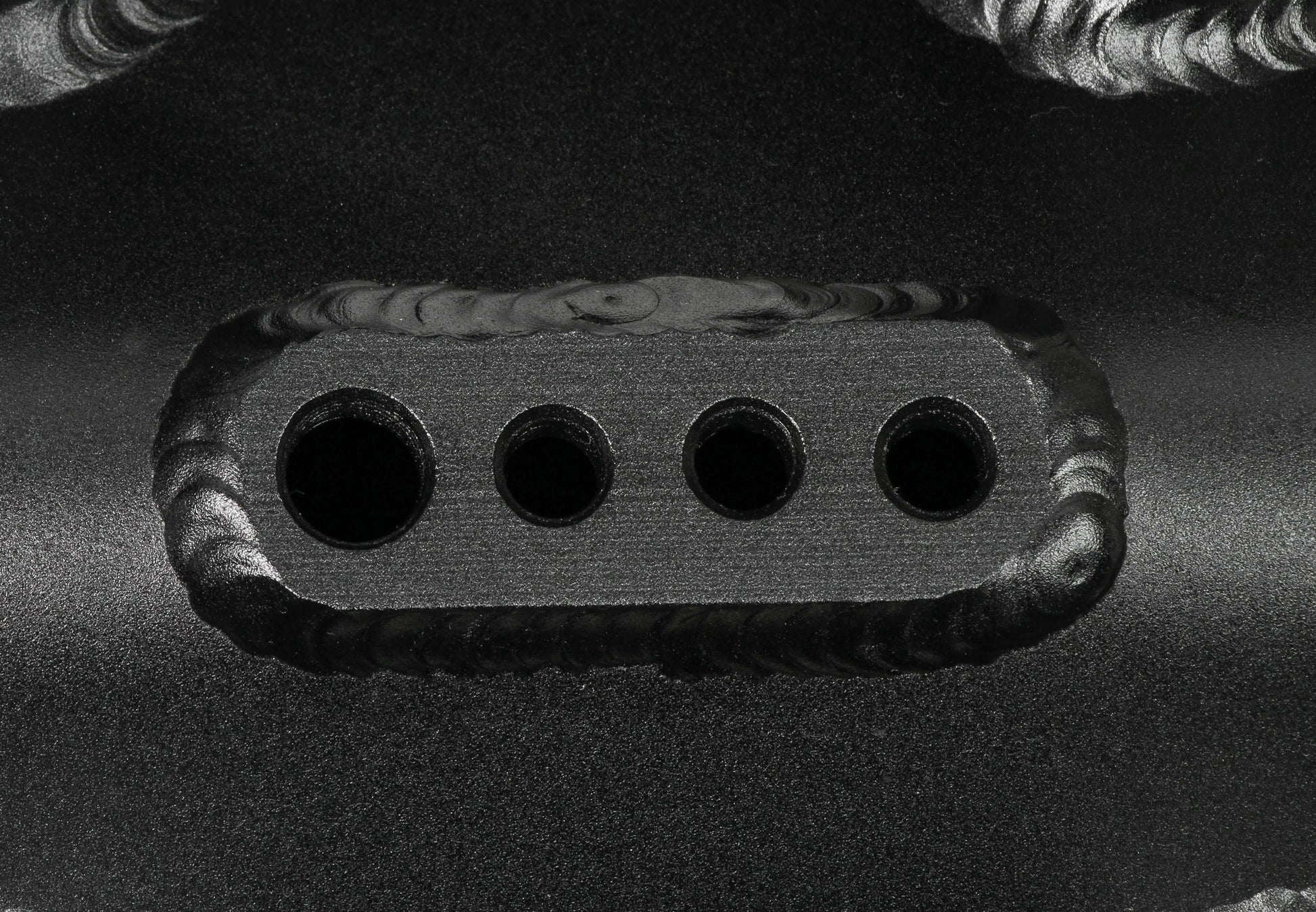

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
