Sniper 830041-1 - EFI LS7 FABRICATED IM 102MM
Sniper 830041-1 - EFI LS7 FABRICATED IM 102MM
SKU: SNIP-830041-1
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Sniper 830041-1 - EFI LS7 FABRICATED IM 102MM

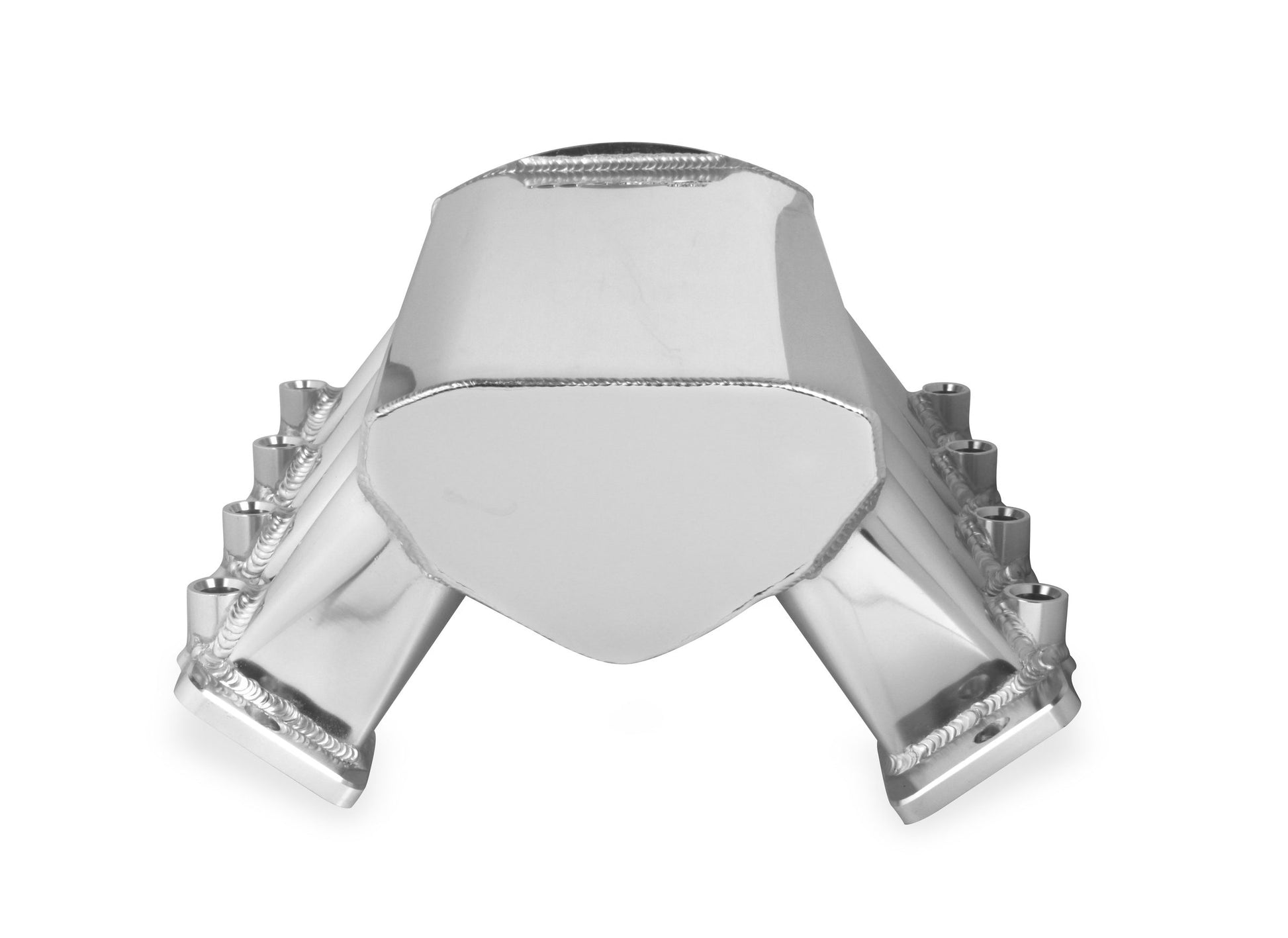

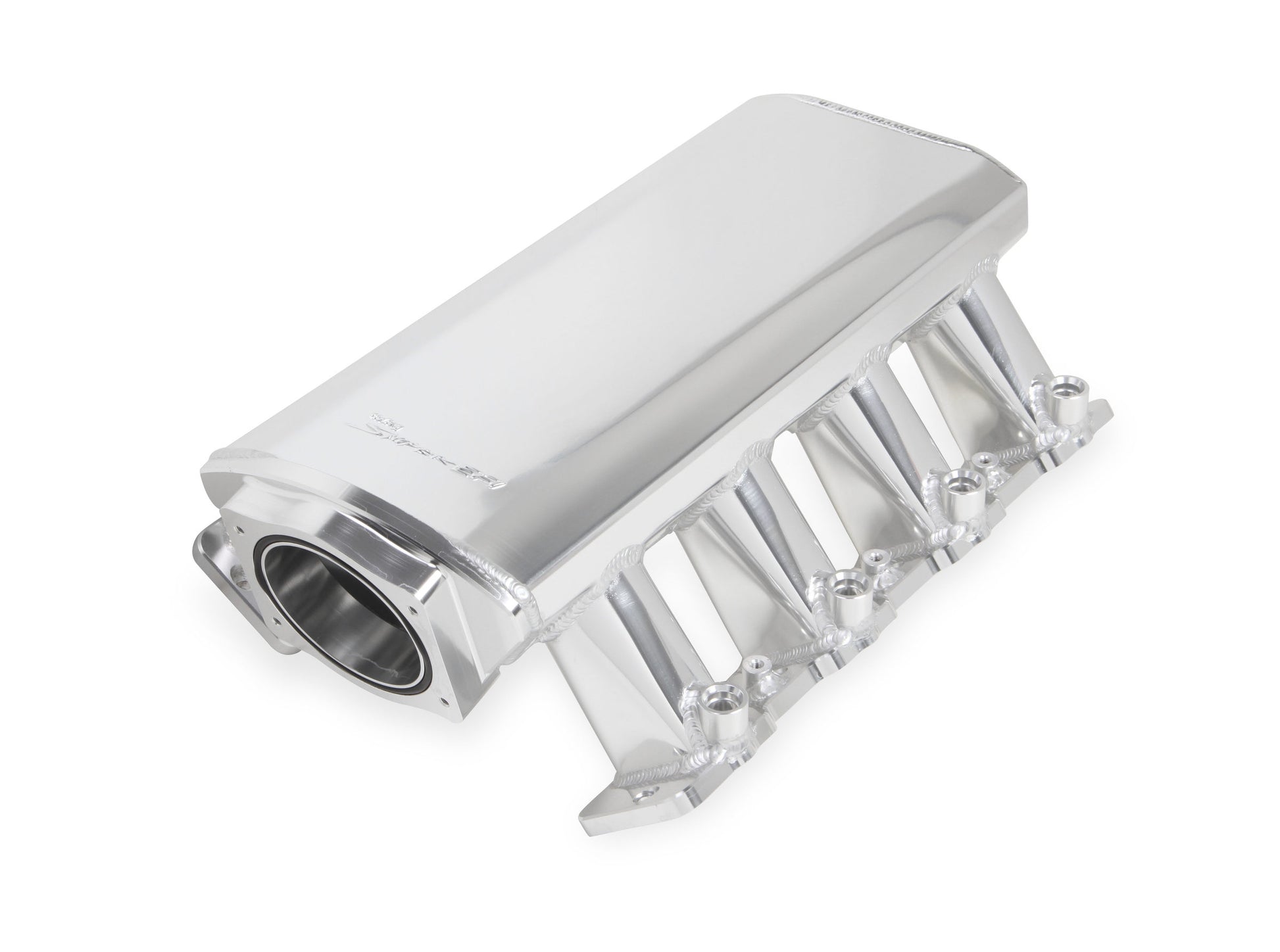

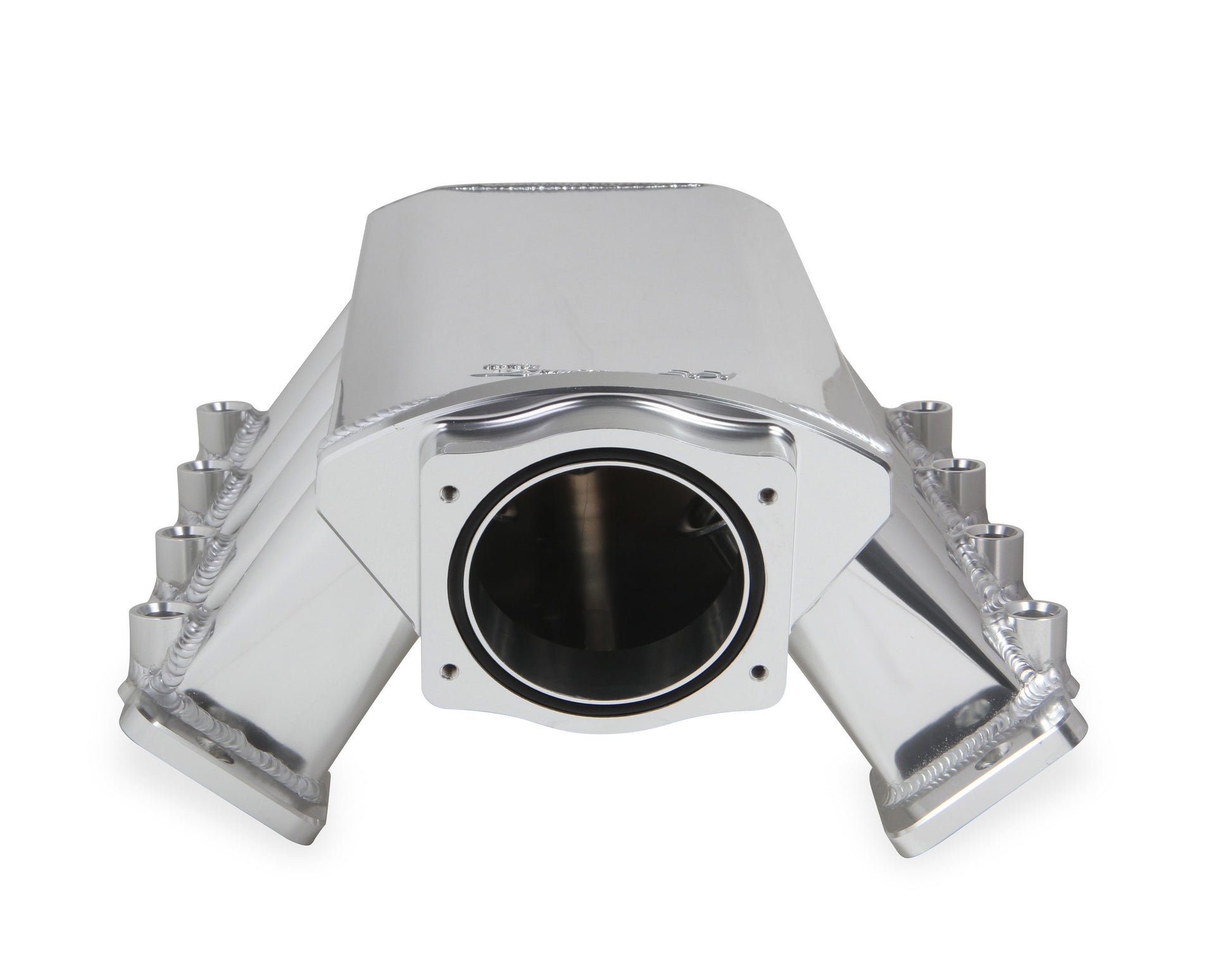

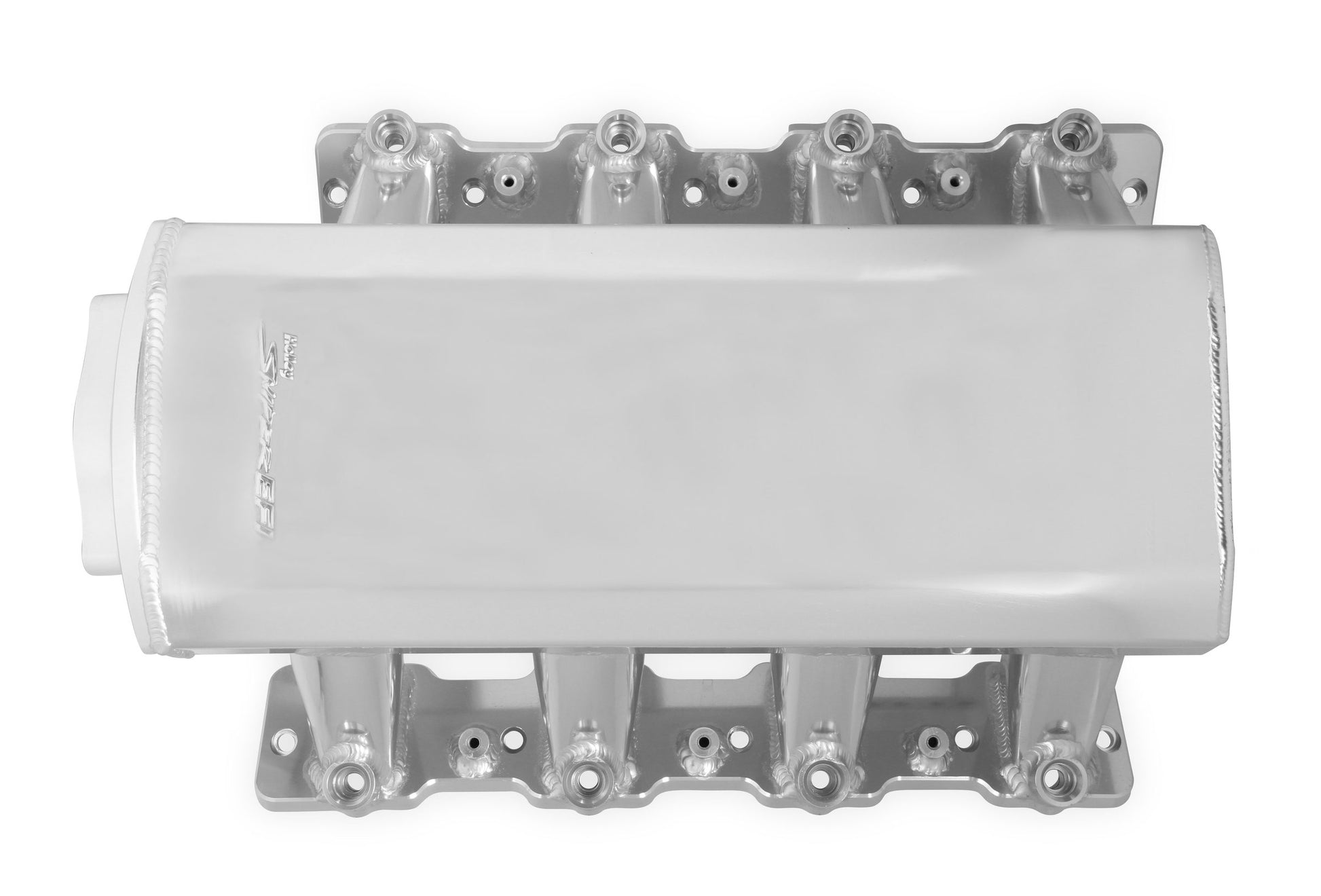

Sheet Metal Fabricated Intake Manifold LS7 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
- Silver finish creates high impact under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

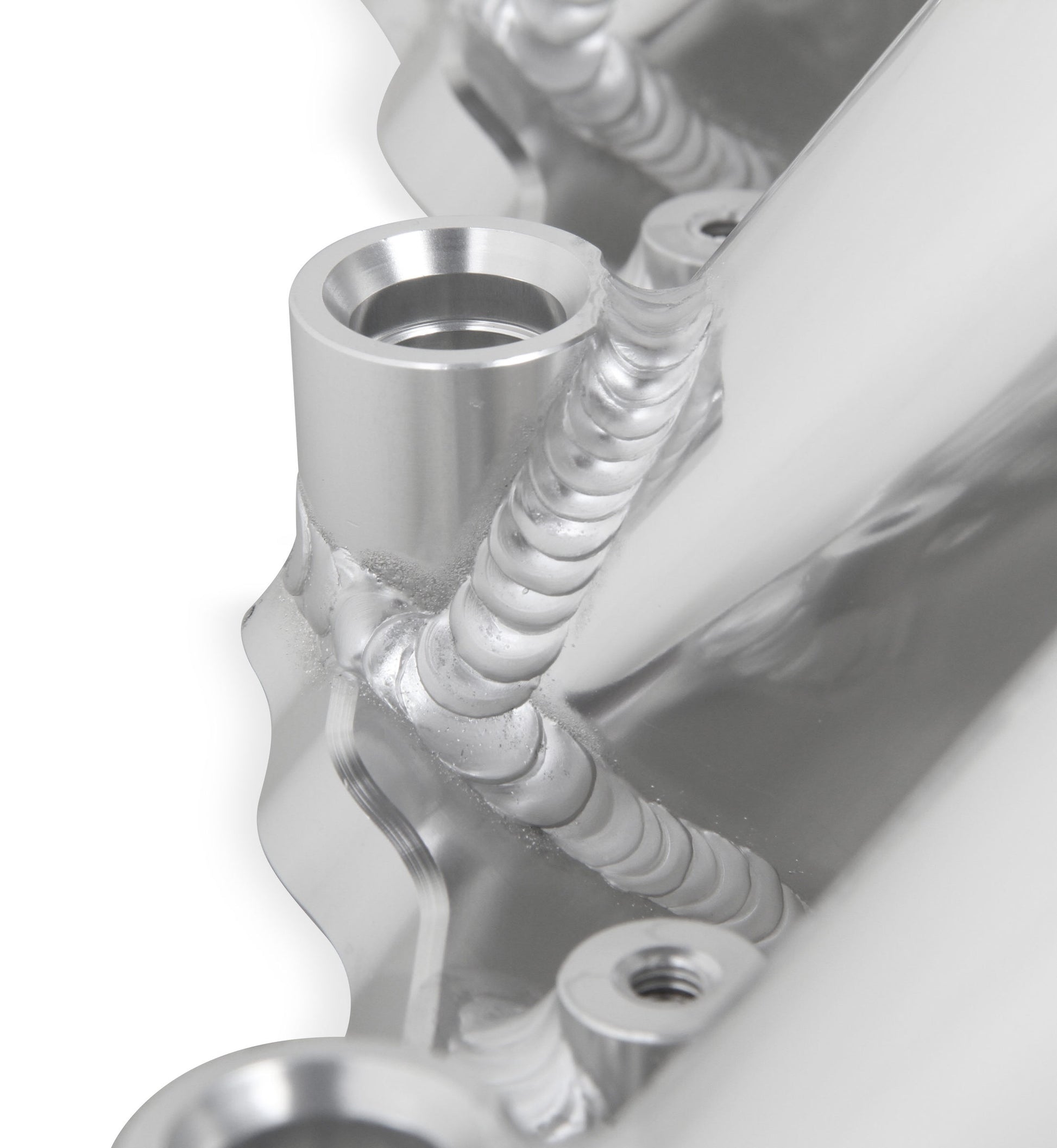

- 100% TIG welded for strength and durability

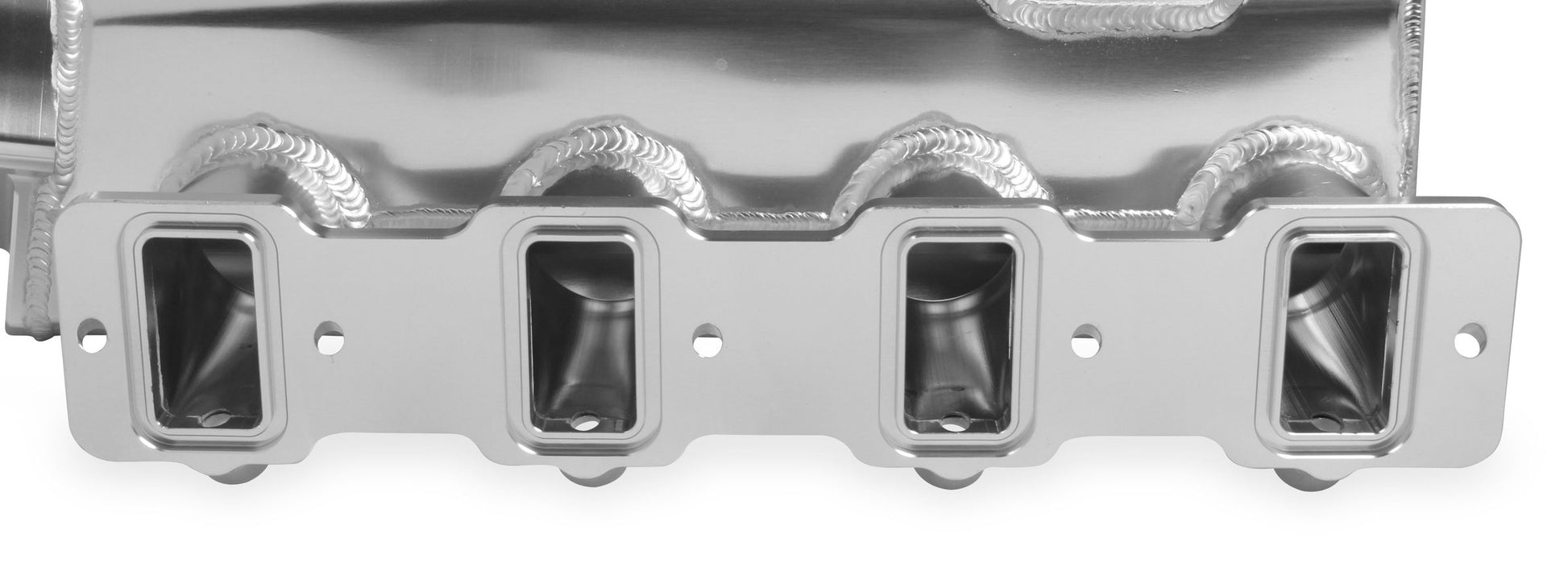

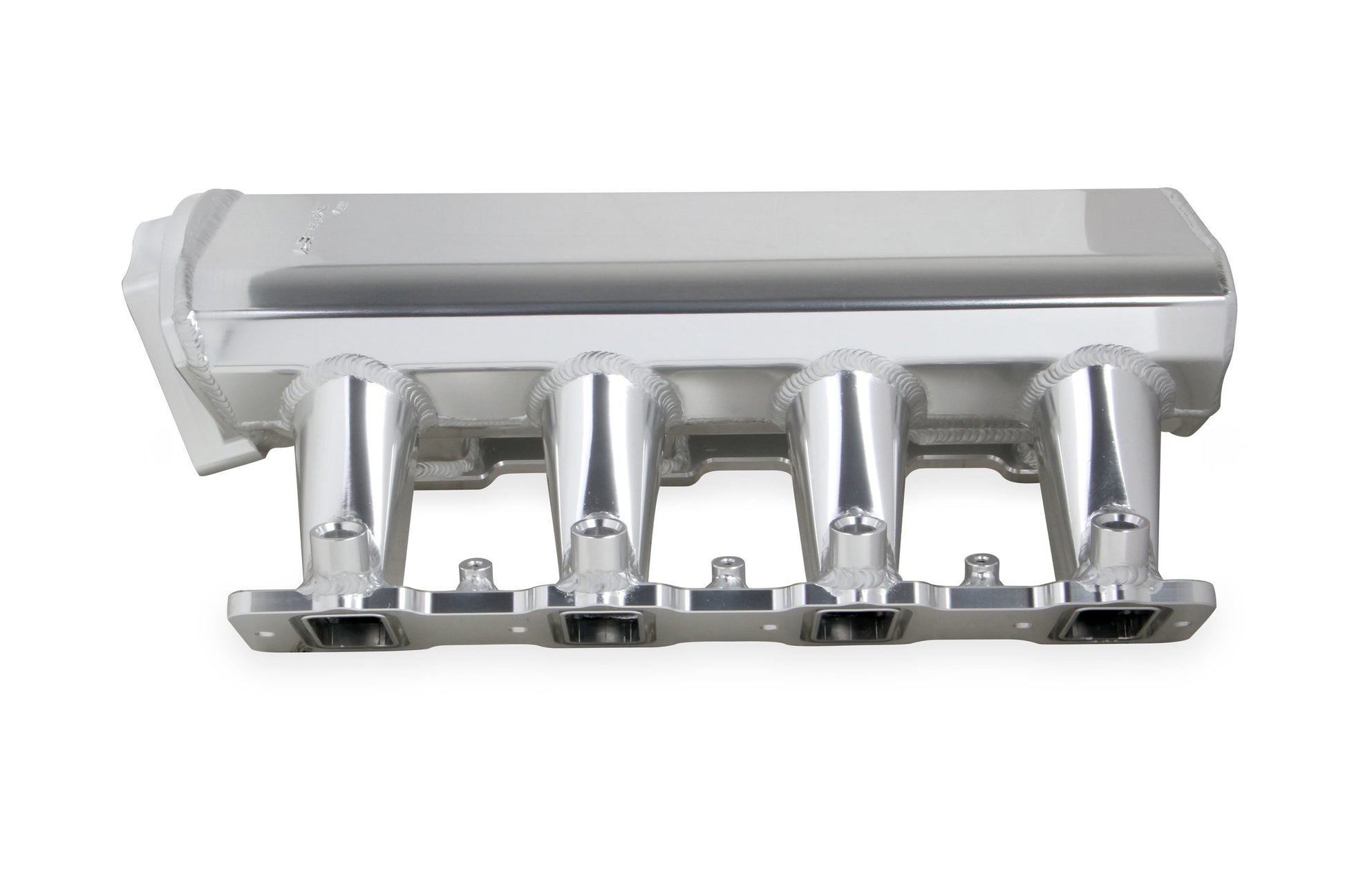

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- The Sniper intake will only accept EV1 style injectors.
- Provision for MAP sensor located on rear of plenum

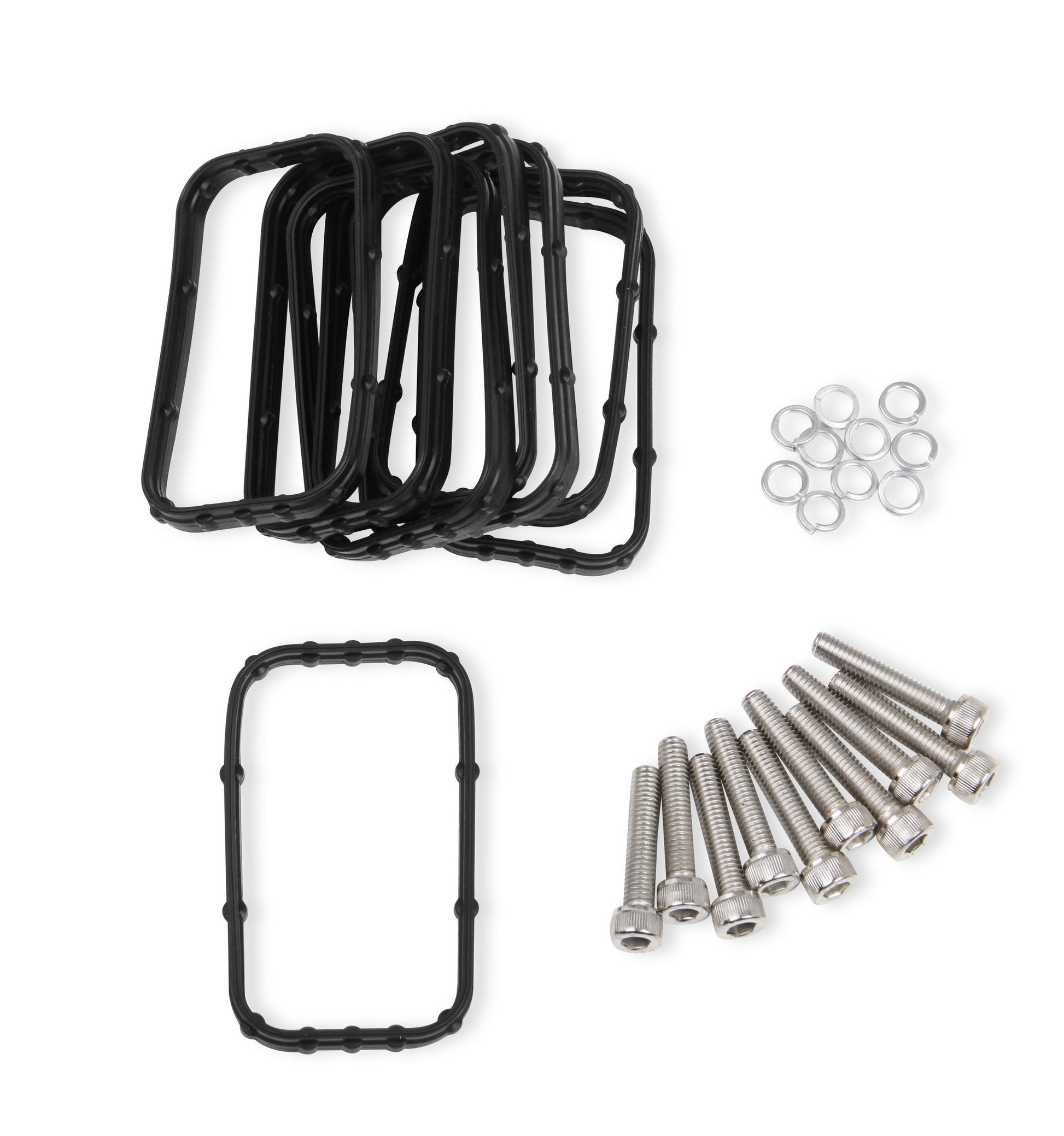

- Product includes all gaskets and hardware for a hassle-free installation
- 102mm throttle bore opening for increased air flow
Basic Operating RPM Range: 2500-7000
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Engine
CNC Ported: No
Color: Silver
Construction: Fabricated

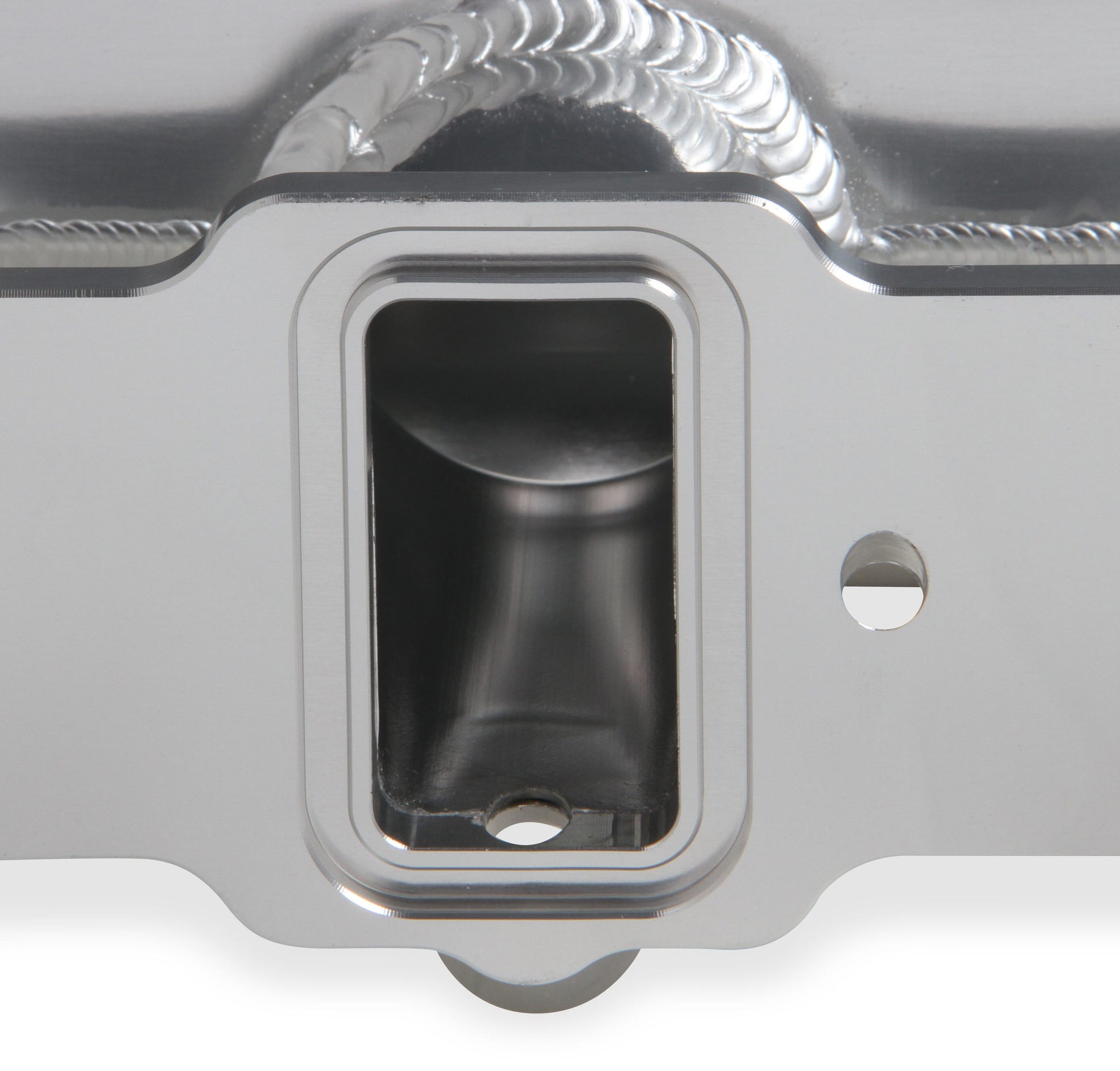

Cylinder Head Port Shape: Raised Rectangle
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS7
Flange Style: N/A
Front Maximum Height: 7.362
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: No
Grade Type: Performance

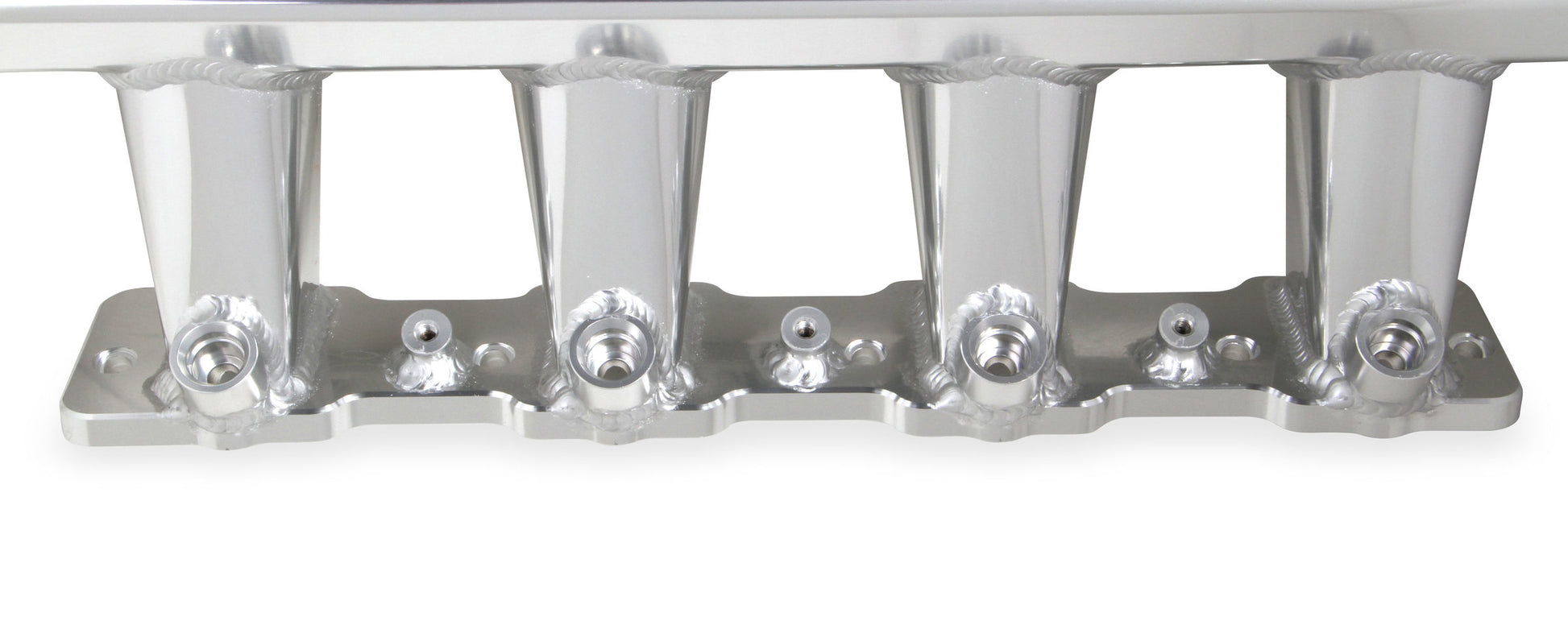

Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Polished
Product Type: Intake Manifold
Rear Maximum Height: 6.85
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Runner Length: 4.921" (125mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 102
Throttle Body Gasket Included: Yes
Throttle Body Included: No
Throttle Bore: 102mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
