Sniper - 825131
Sniper Sheet Metal Fabricated Intake Manifold Small Block Chevy

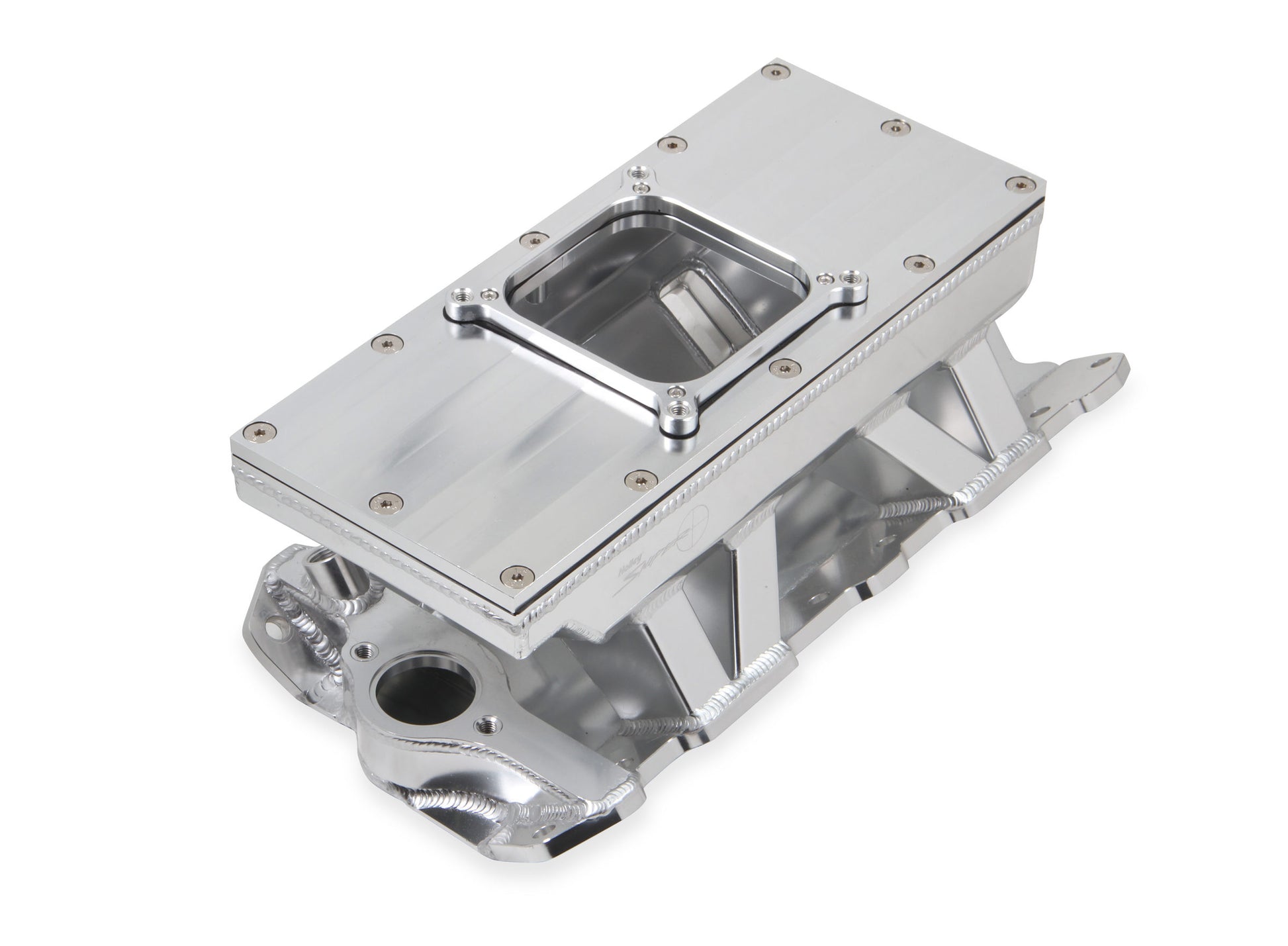

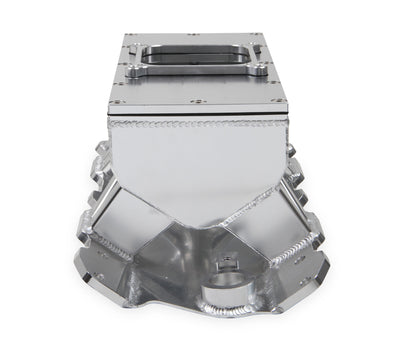

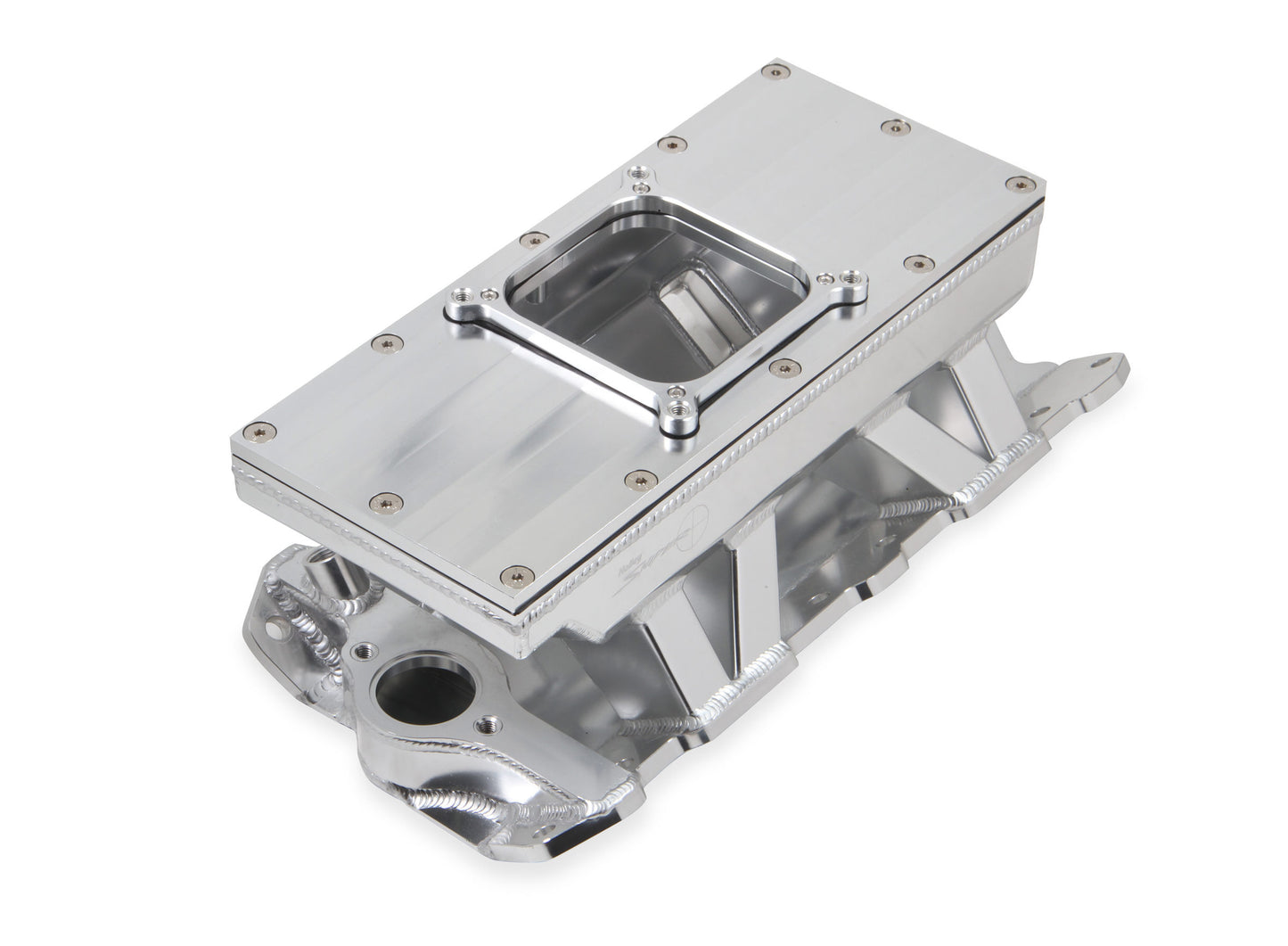

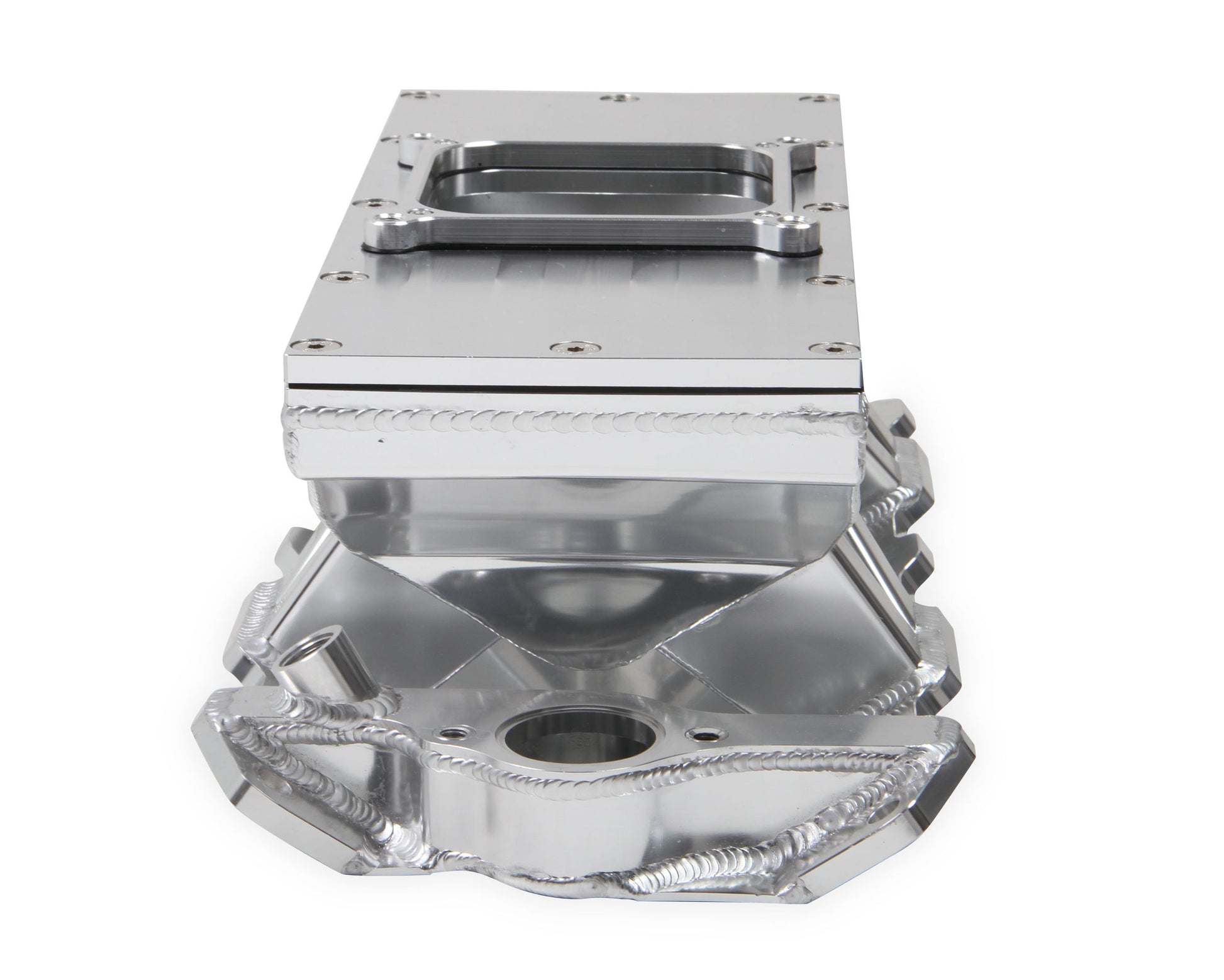

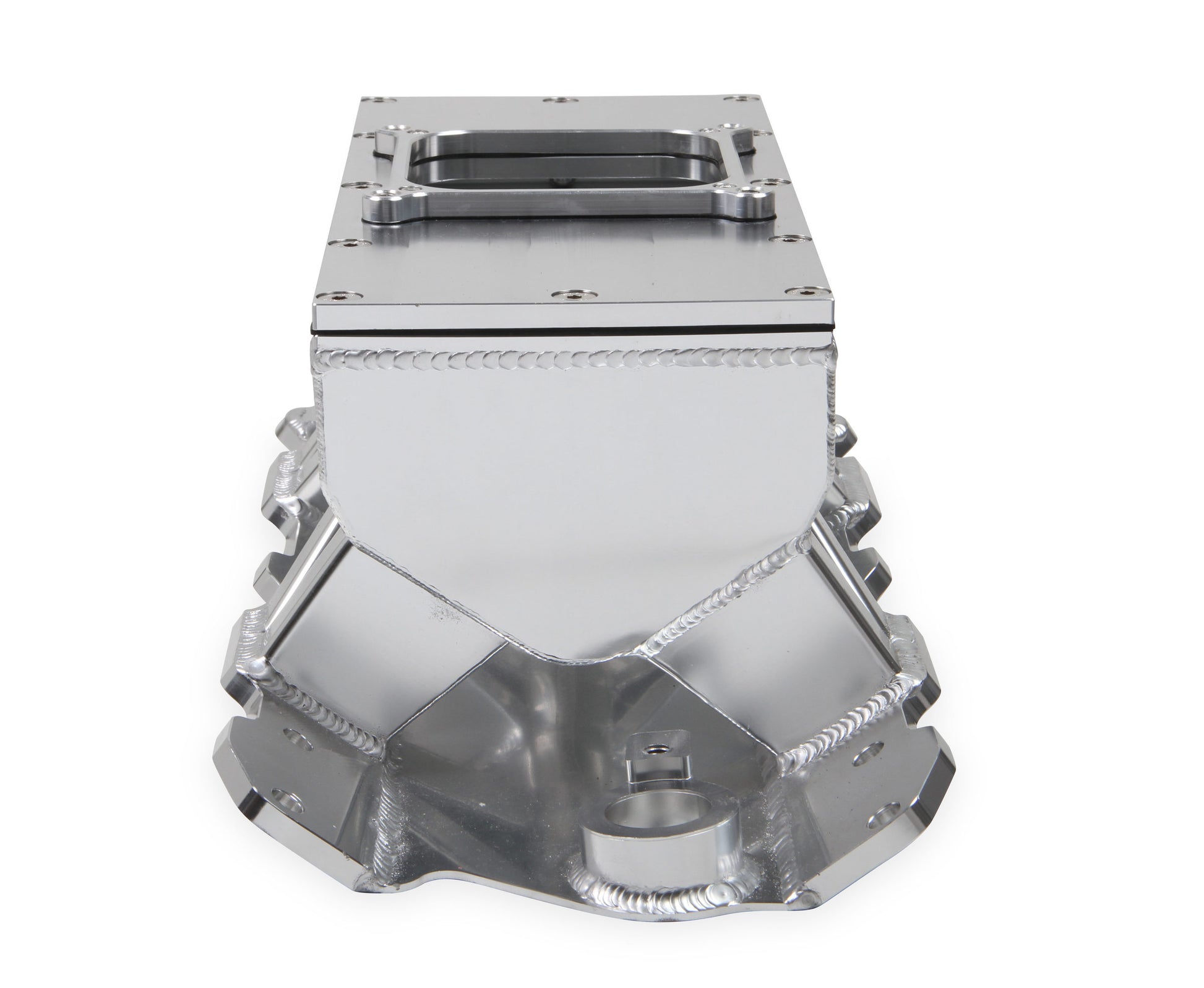

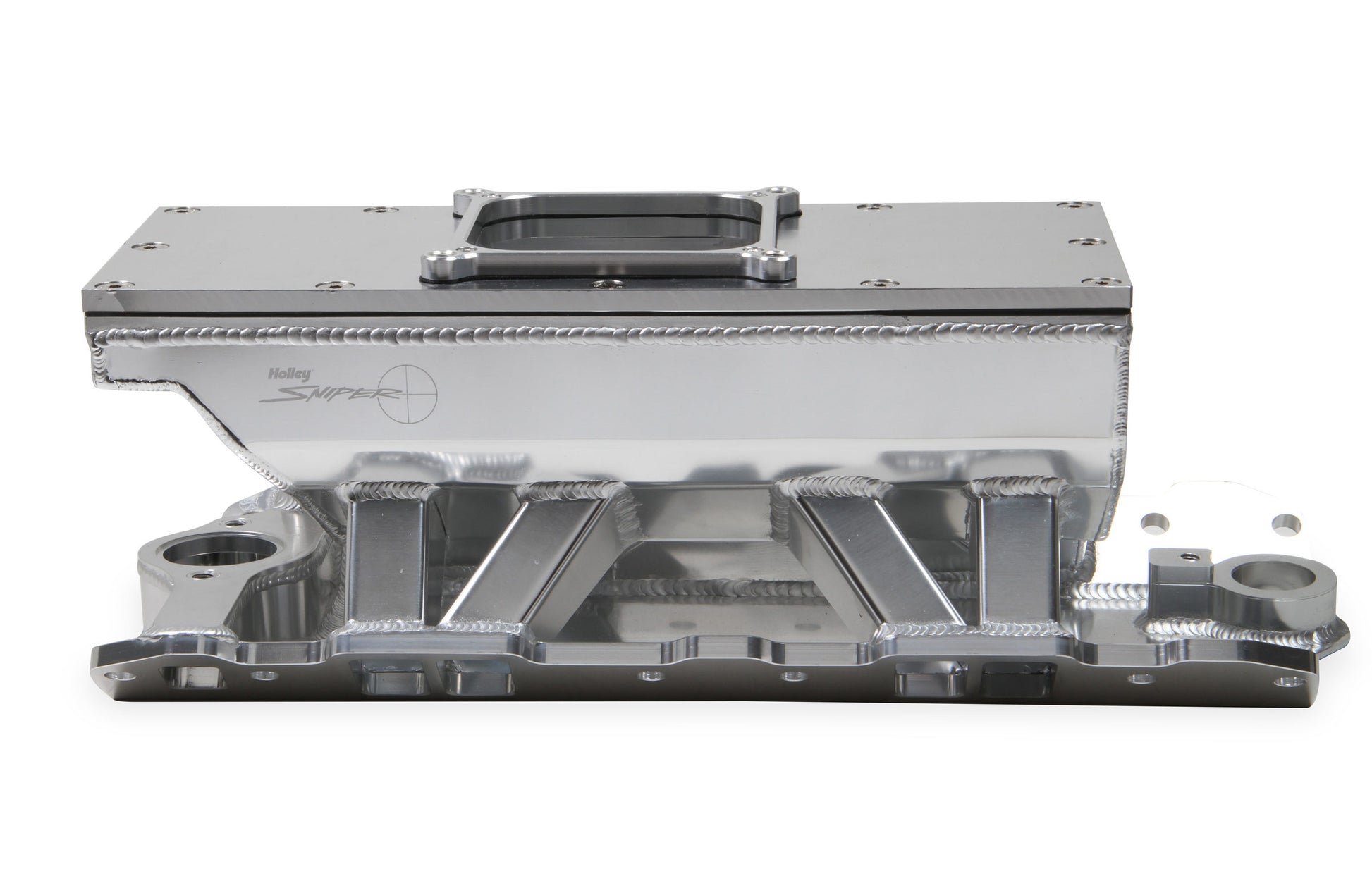

Fabricated Intake Manifold SBC Single Plane Carbureted (4500 style flange changeable plate) Silver with Sniper logo
Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity.
- Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms
- NEW “Modular” Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options)
- 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
- 100% TIG welded
- EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo)
- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
- Available in Silver and Black Finishes
Basic Operating RPM Range: 1800-7000
Brand: Holley Sniper EFI
Carburetor Flange: Dominator/4500
Category: Sniper Intake Manifolds SP
Color: Polished
Construction: Fabricated
EGR Port: No
Emission Code: 4
Engine: Chevrolet Small Block Gen I
Finish: Silver
Flange Size: 4500
Front Height: 8.503 inch
Front Maximum Height: 8.503
Fuel Injectors Included: No
Fuel Rail(s) Included: No
Gasket Or Seal Included: No
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Polished

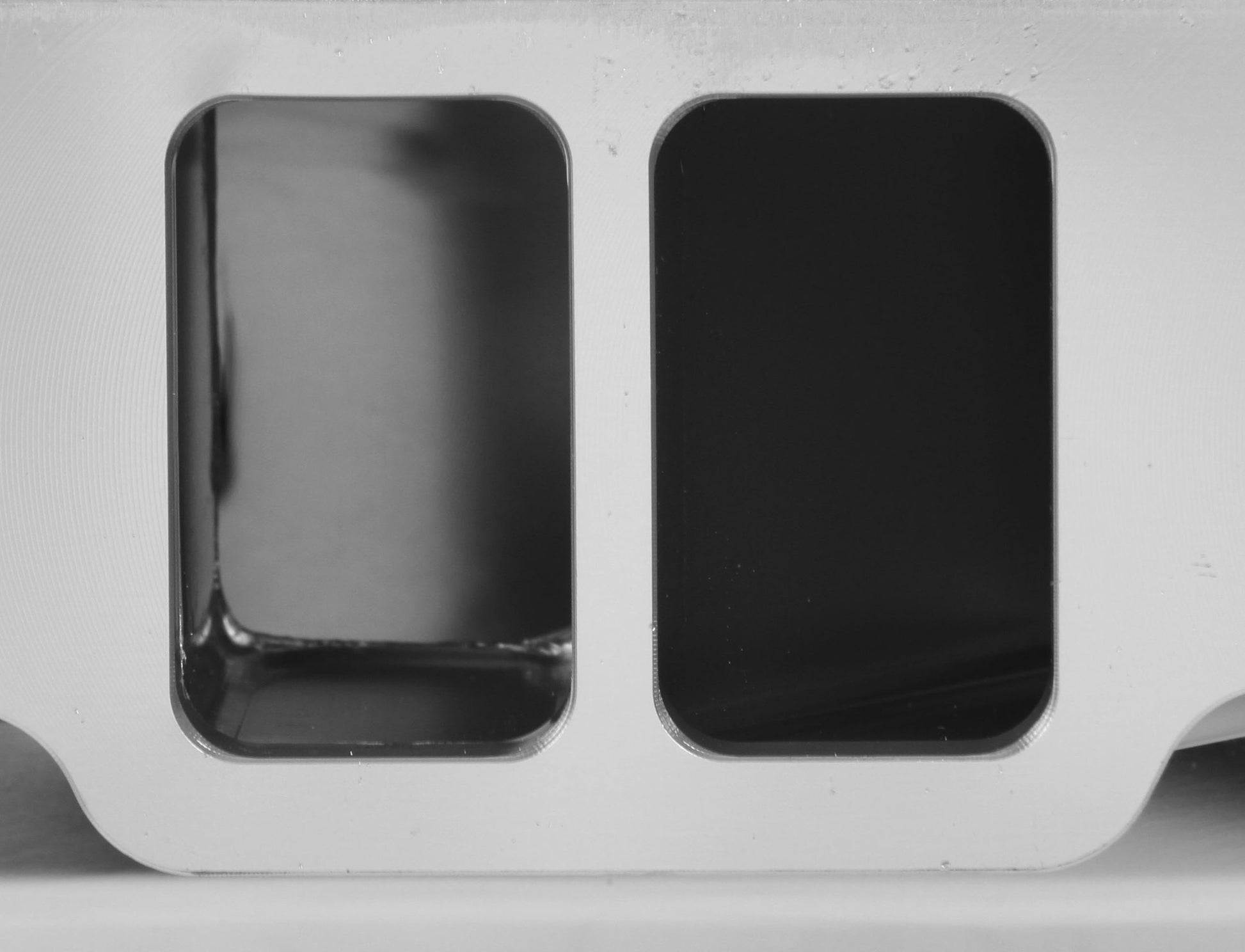

Port Size: 1.90" x 1.15"
Product Type: Intake Manifold
Rear Height: 8.503 inch
Rear Maximum Height: 8.503
Removable Runners: No
Removable Top/Lid: Yes
RPM Power Band: 1800-7000 RPM
Single Or Dual Plane Type: Single Plane
Style: Carbureted
Throttle Body Included: No
Vacuum Ports: None
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
