Sniper - 825124
Sniper Sheet Metal Fabricated Intake Manifold Small Block Chevy

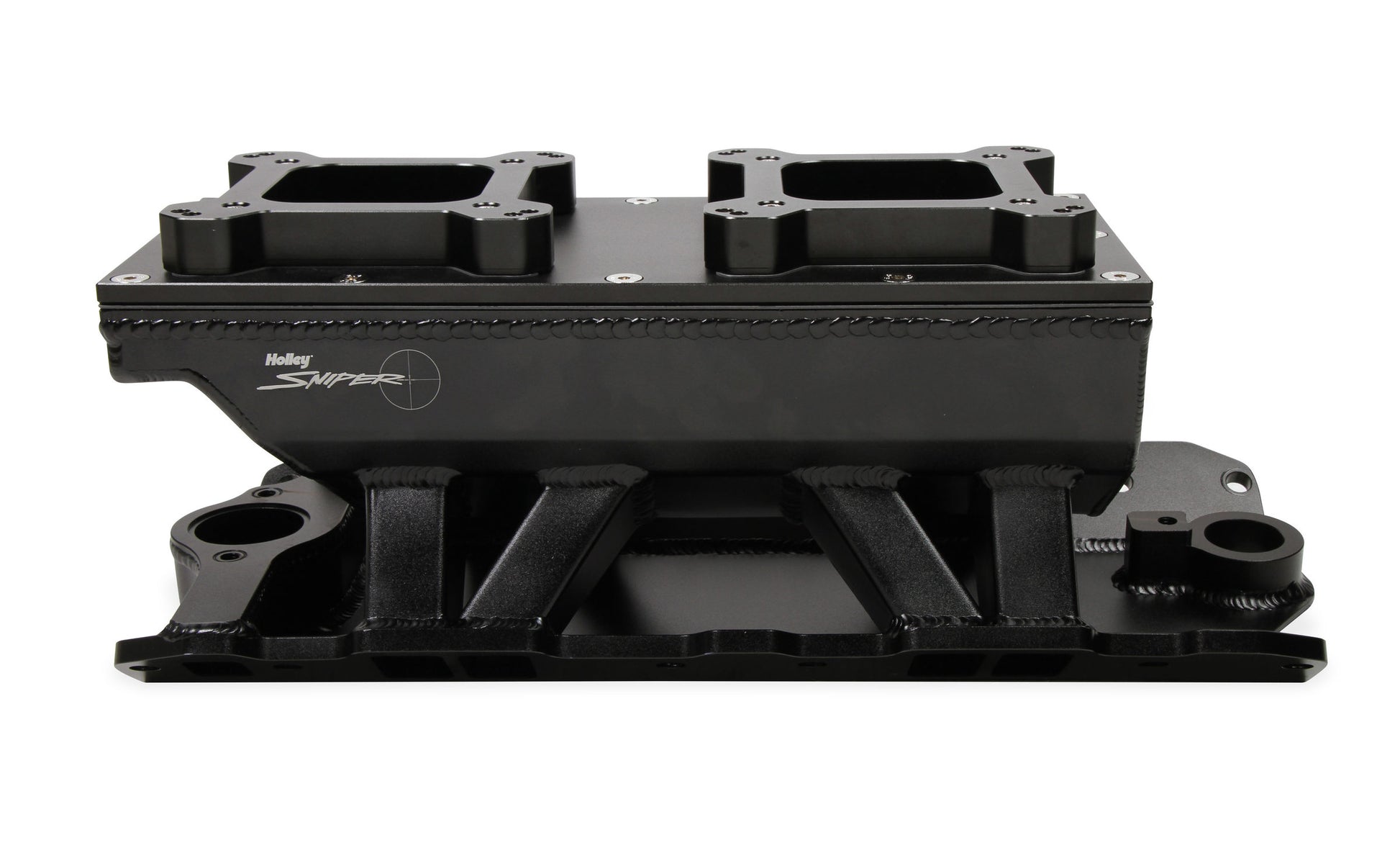

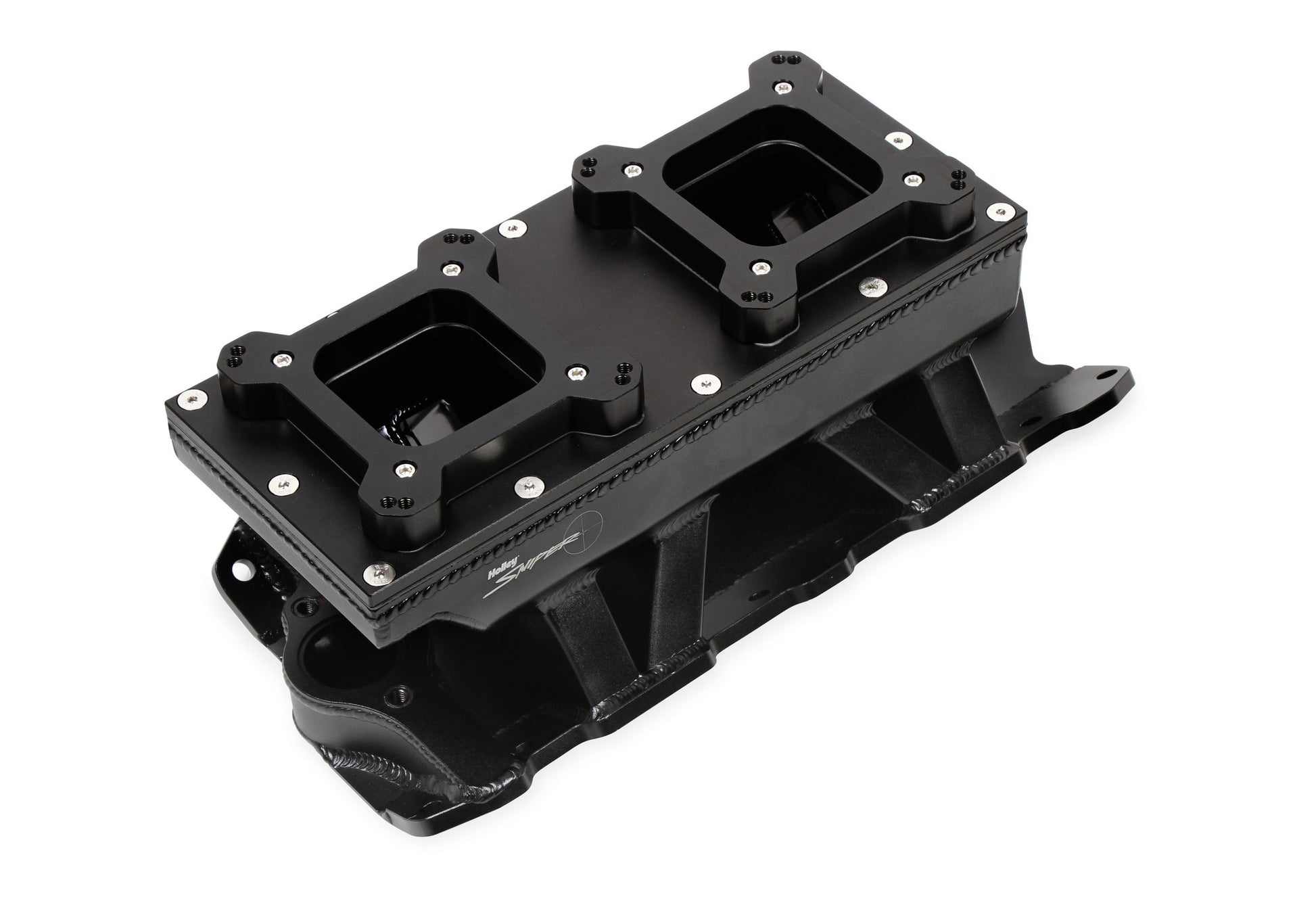

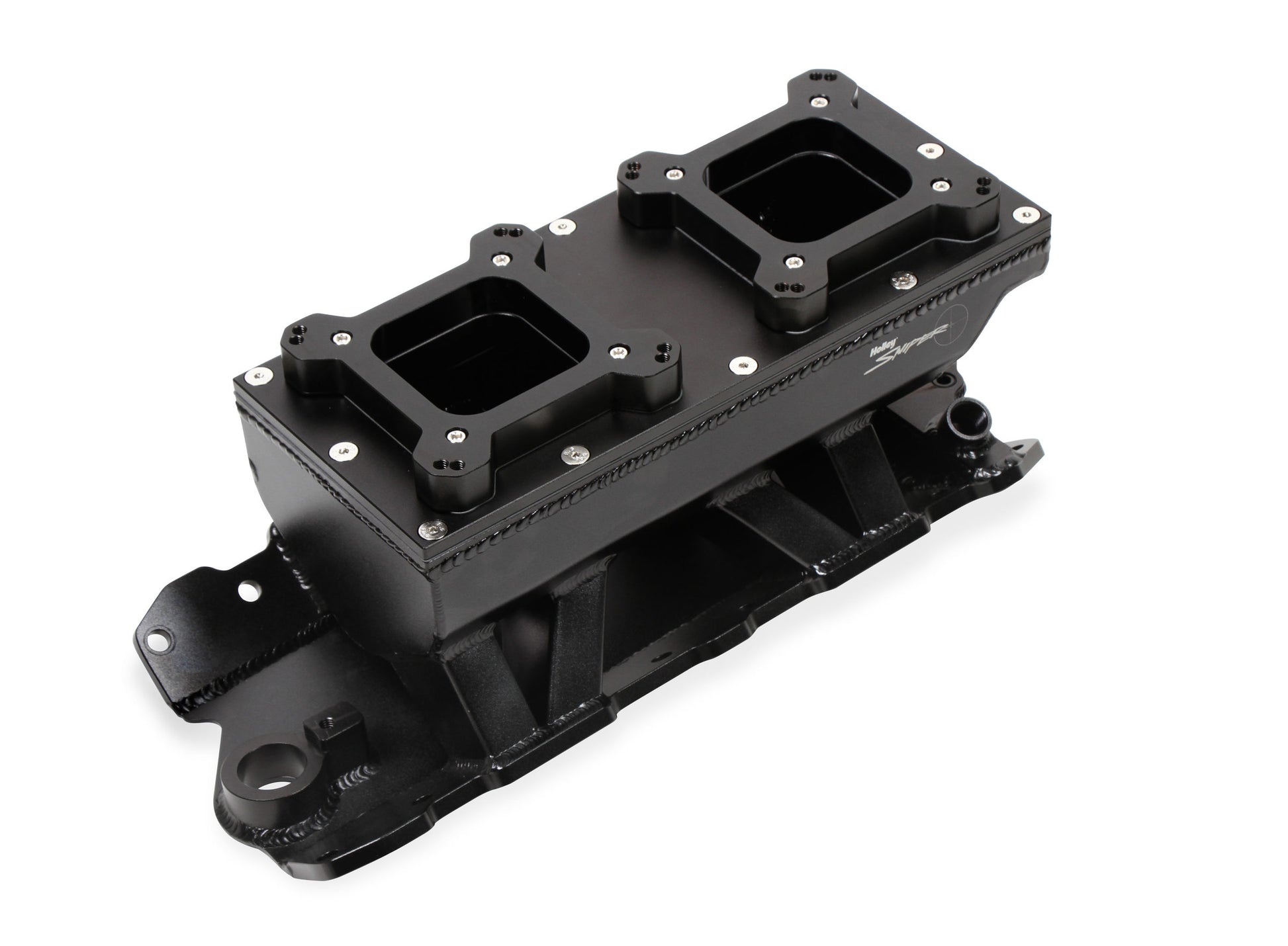

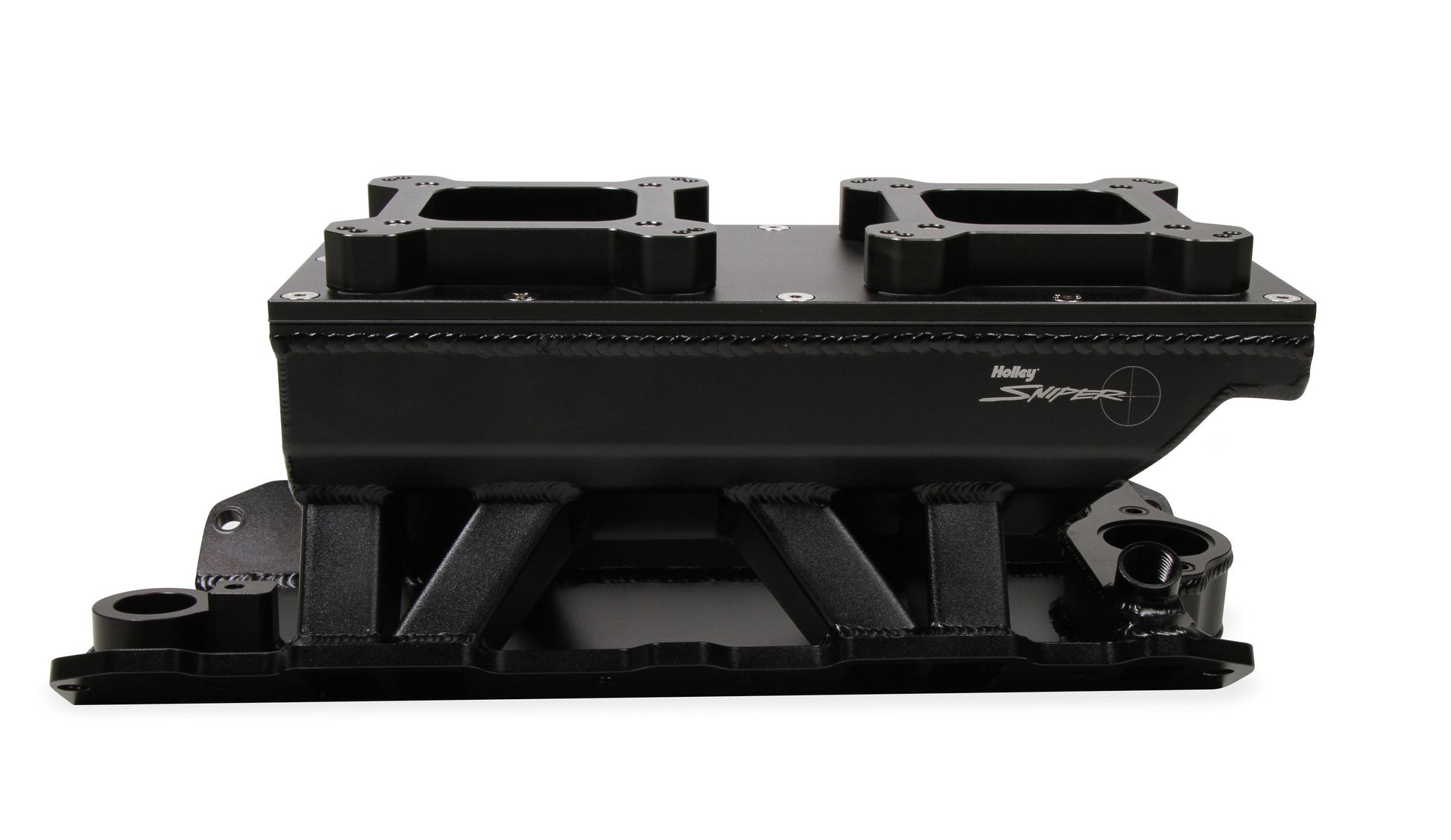

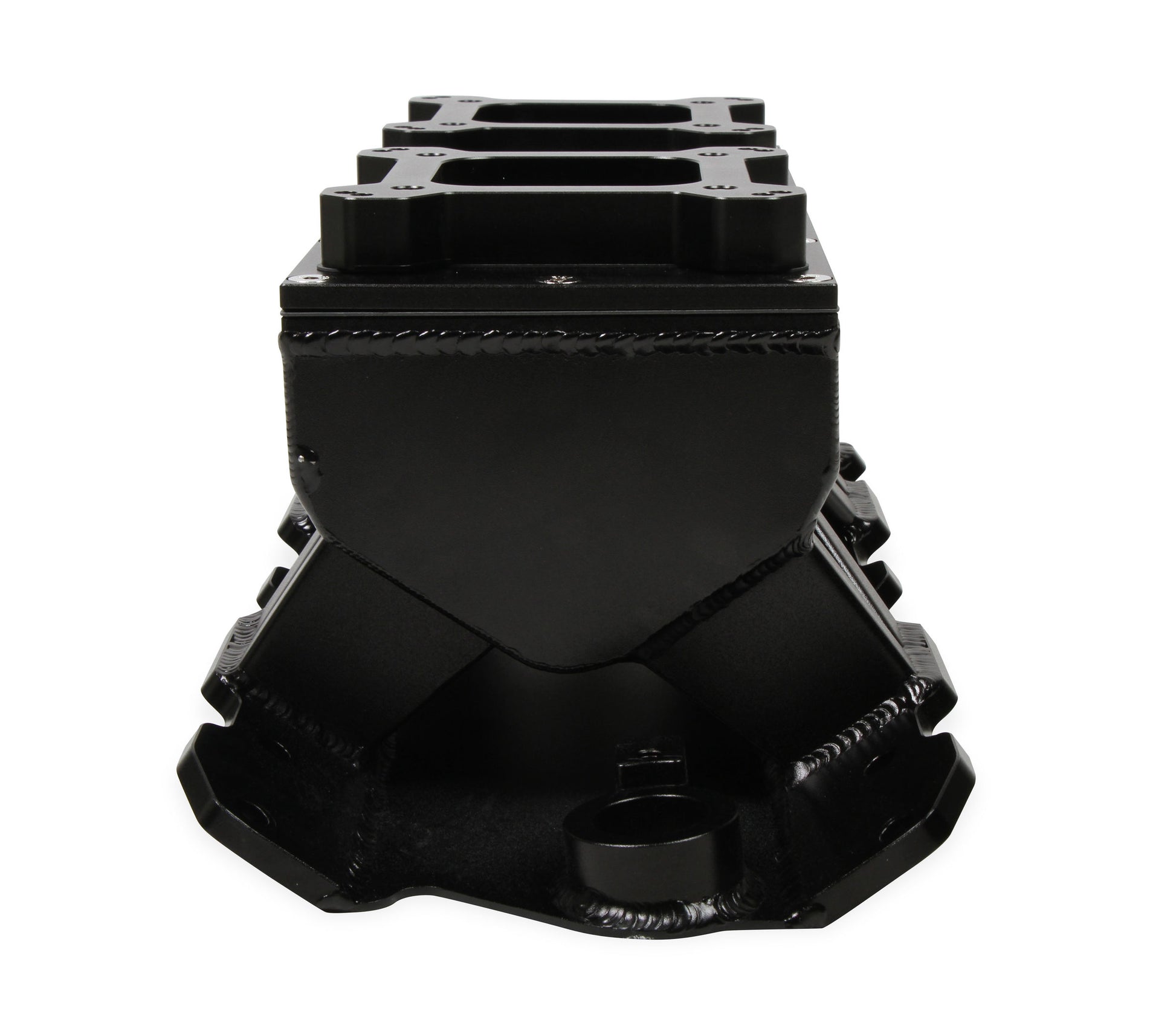

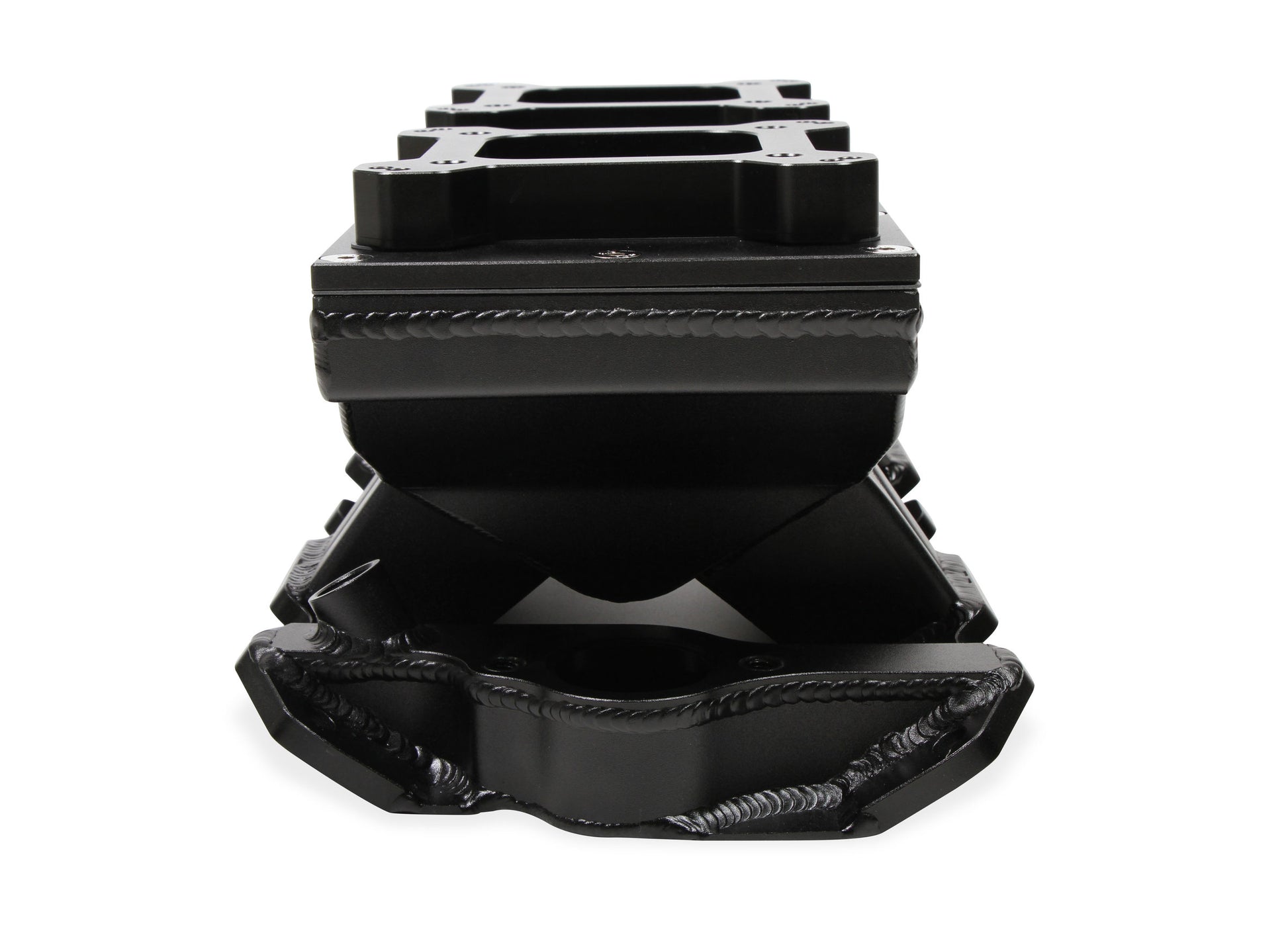

Fabricated Intake Manifold SBC Single Plane Carbureted (2 x 4150 style flange changeable plate) Black with Sniper logo
Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity.
- Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms

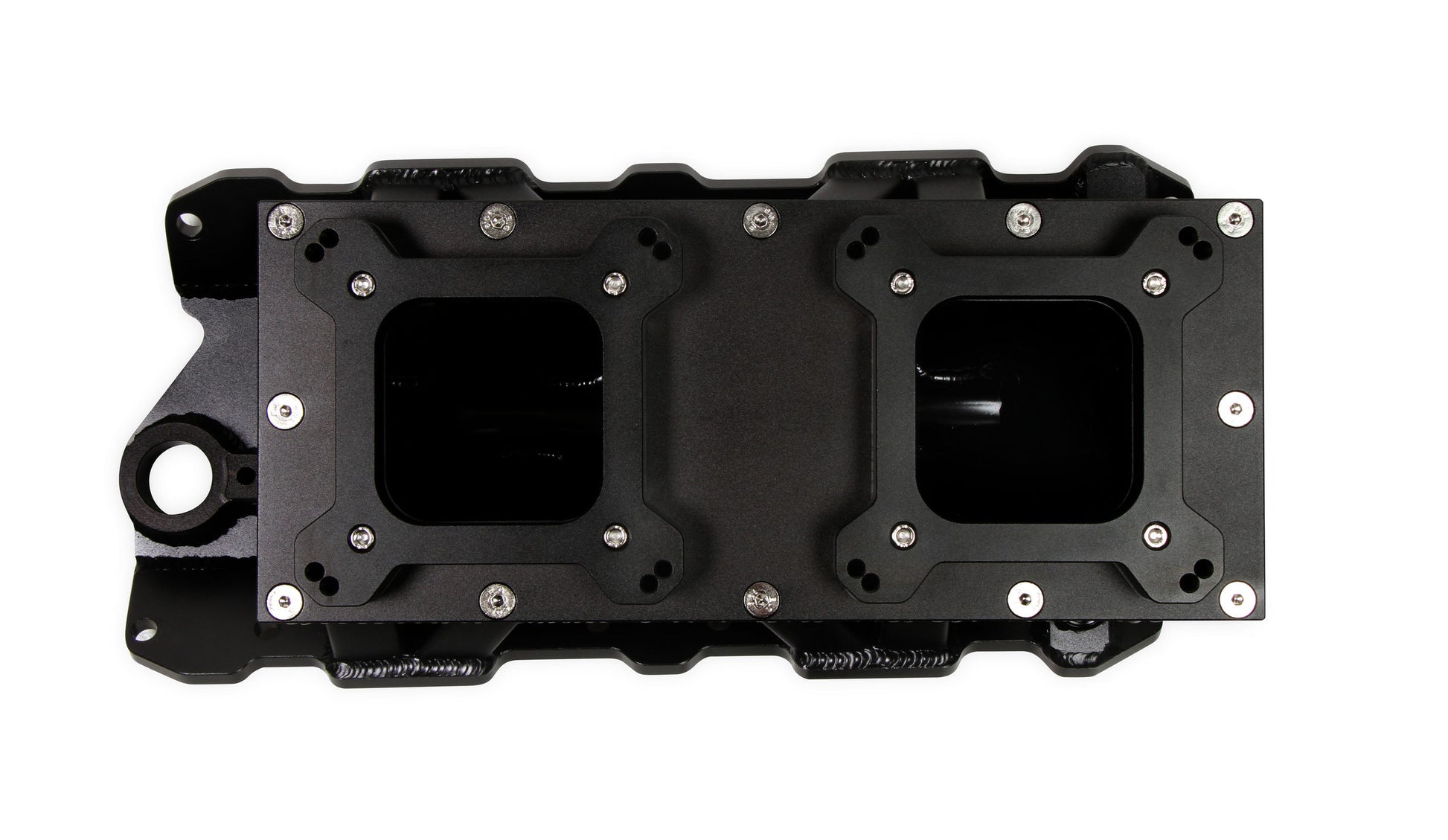

- NEW “Modular” Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options)
- 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions

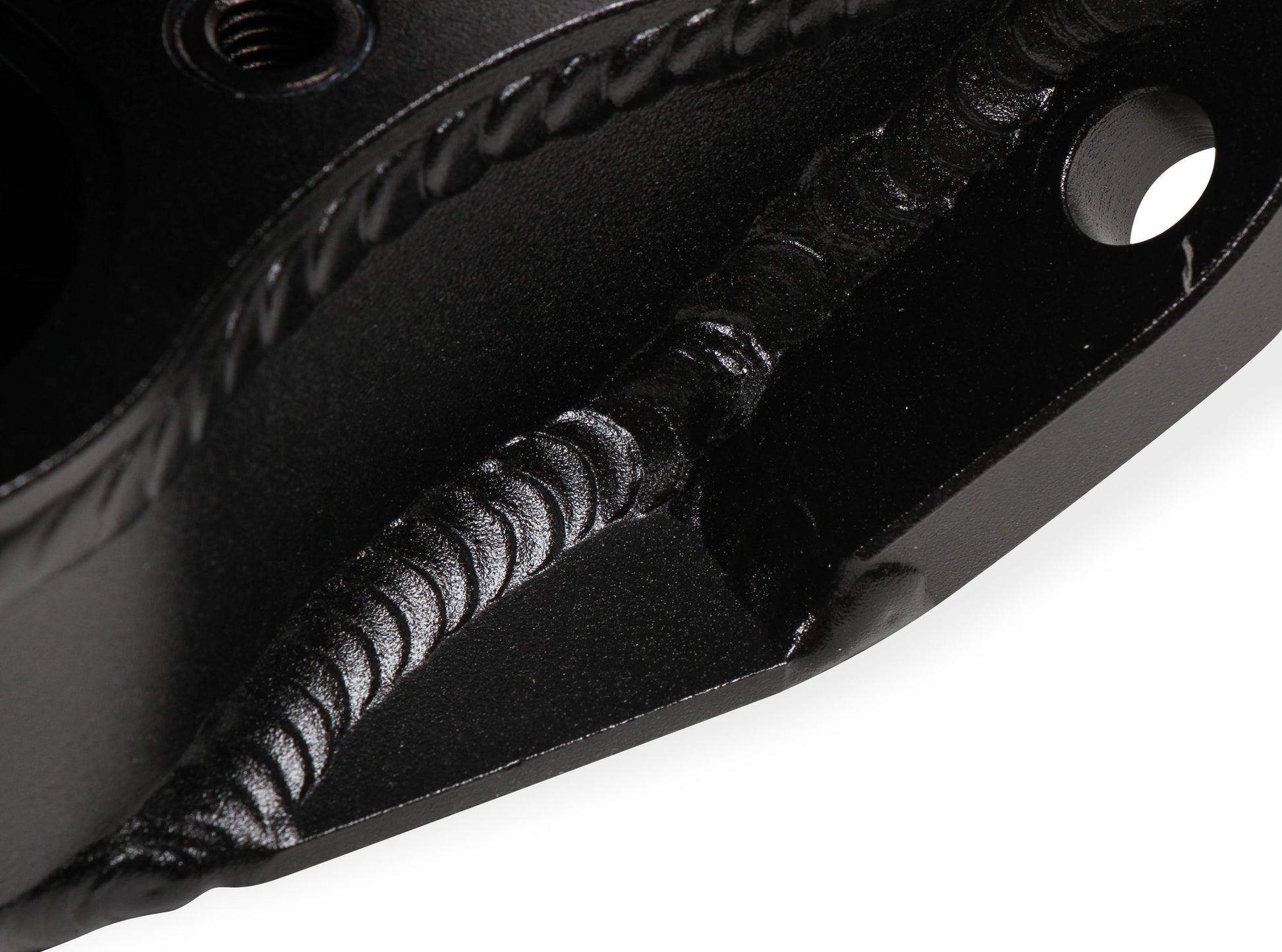

- 100% TIG welded

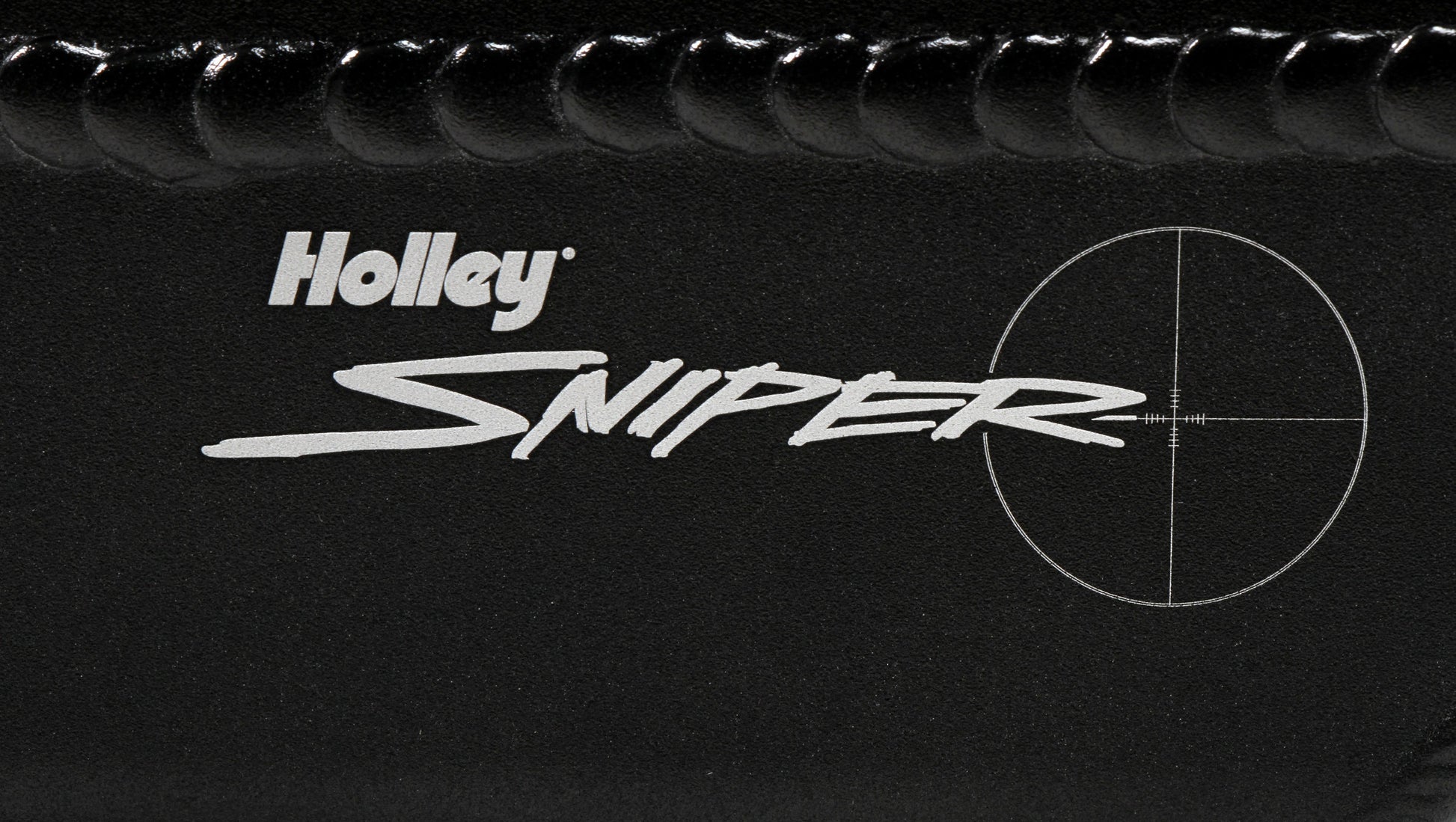

- EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo)
- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
- Available in Silver and Black Finishes
Basic Operating RPM Range: 1800-7000
Brand: Holley Sniper EFI
Carb Flange Center-to-Center: 8.50"
Carburetor Flange: Dominator/4500
Category: Sniper Intake Manifolds SP
Color: Black
Construction: Fabricated
EGR Port: No
Emission Code: 4
Engine: Chevrolet Small Block Gen I
Finish: Black
Flange Size: 4150
Front Height: 8.503 inch
Front Maximum Height: 8.503
Fuel Injectors Included: No
Fuel Rail(s) Included: No
Gasket Or Seal Included: No
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Black

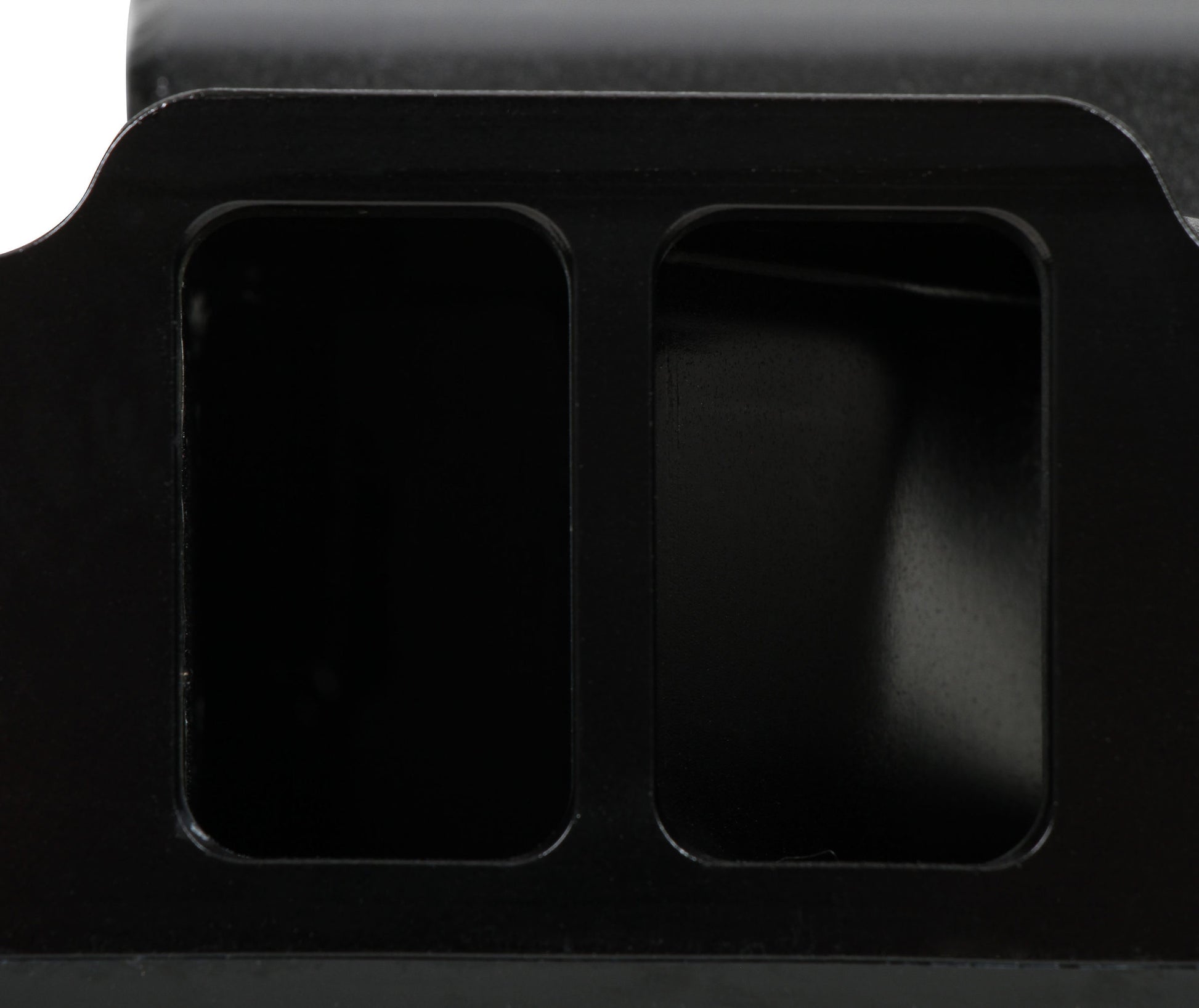

Port Size: 1.90" x 1.15"
Product Type: Intake Manifold
Rear Height: 8.503 inch
Rear Maximum Height: 8.503
Removable Runners: No
Removable Top/Lid: Yes
RPM Power Band: 1800-7000 RPM
Single Or Dual Plane Type: Single Plane
Style: Carbureted
Throttle Body Included: No
Vacuum Ports: None
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
