Sniper - 822112-1

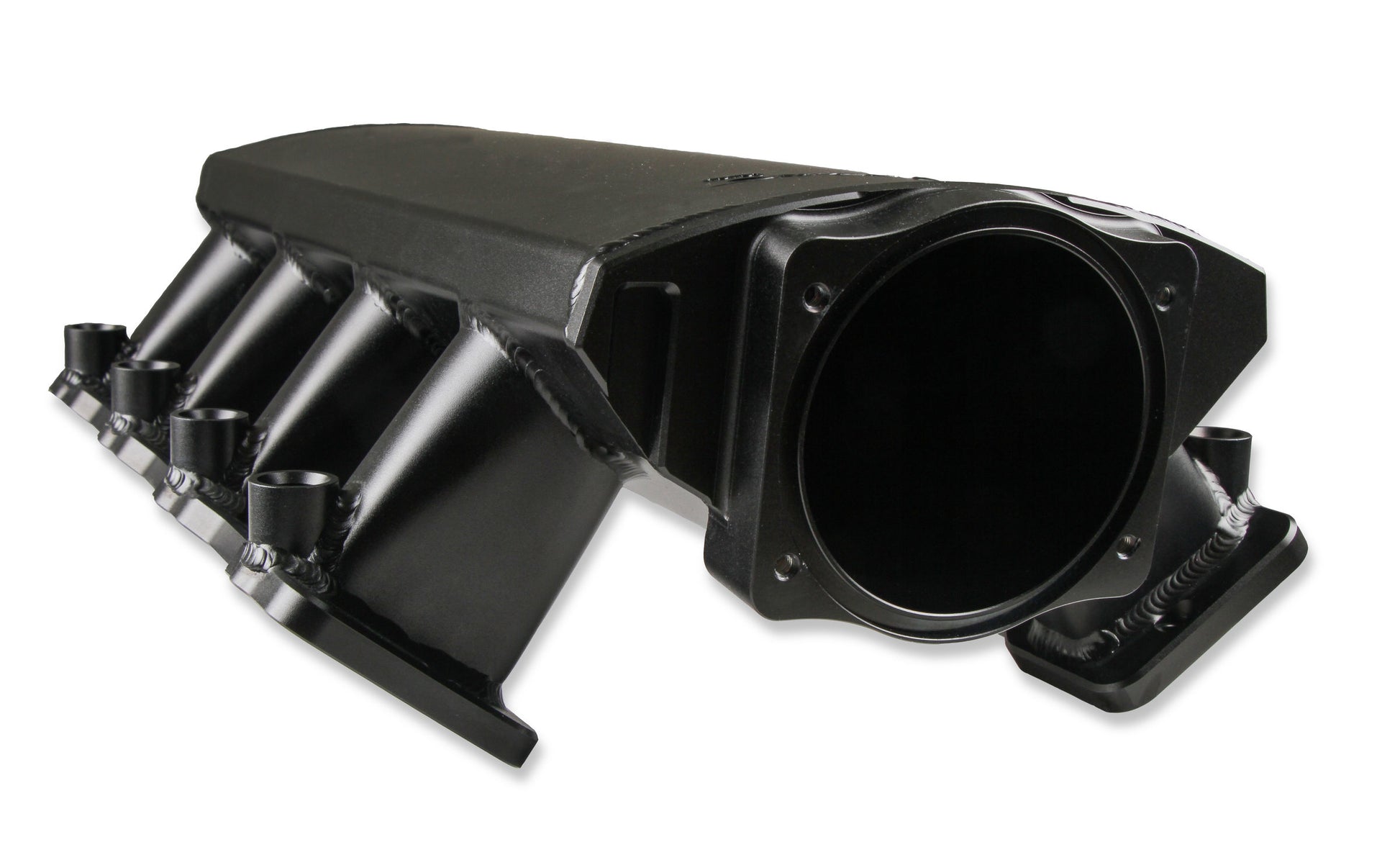

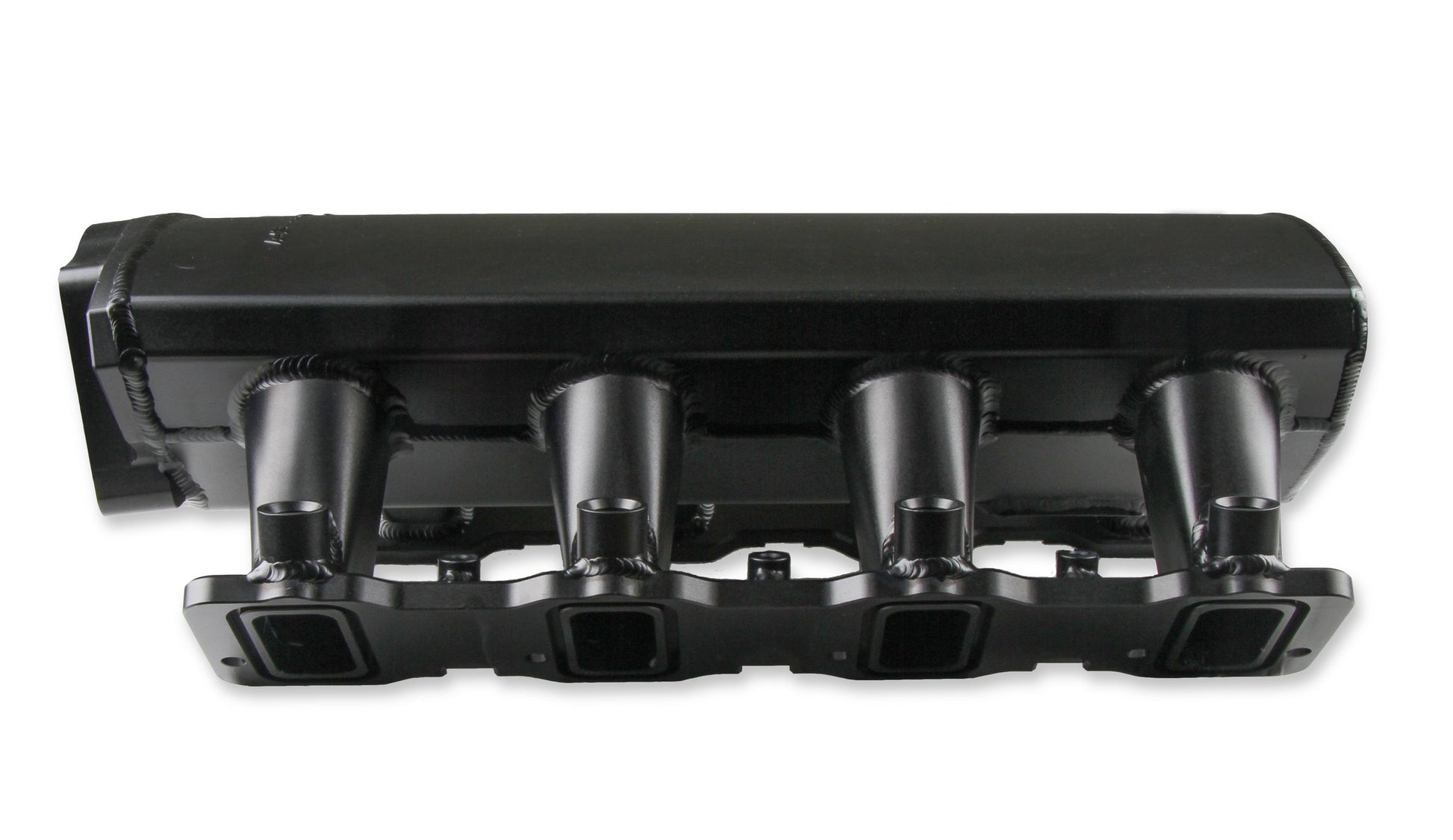

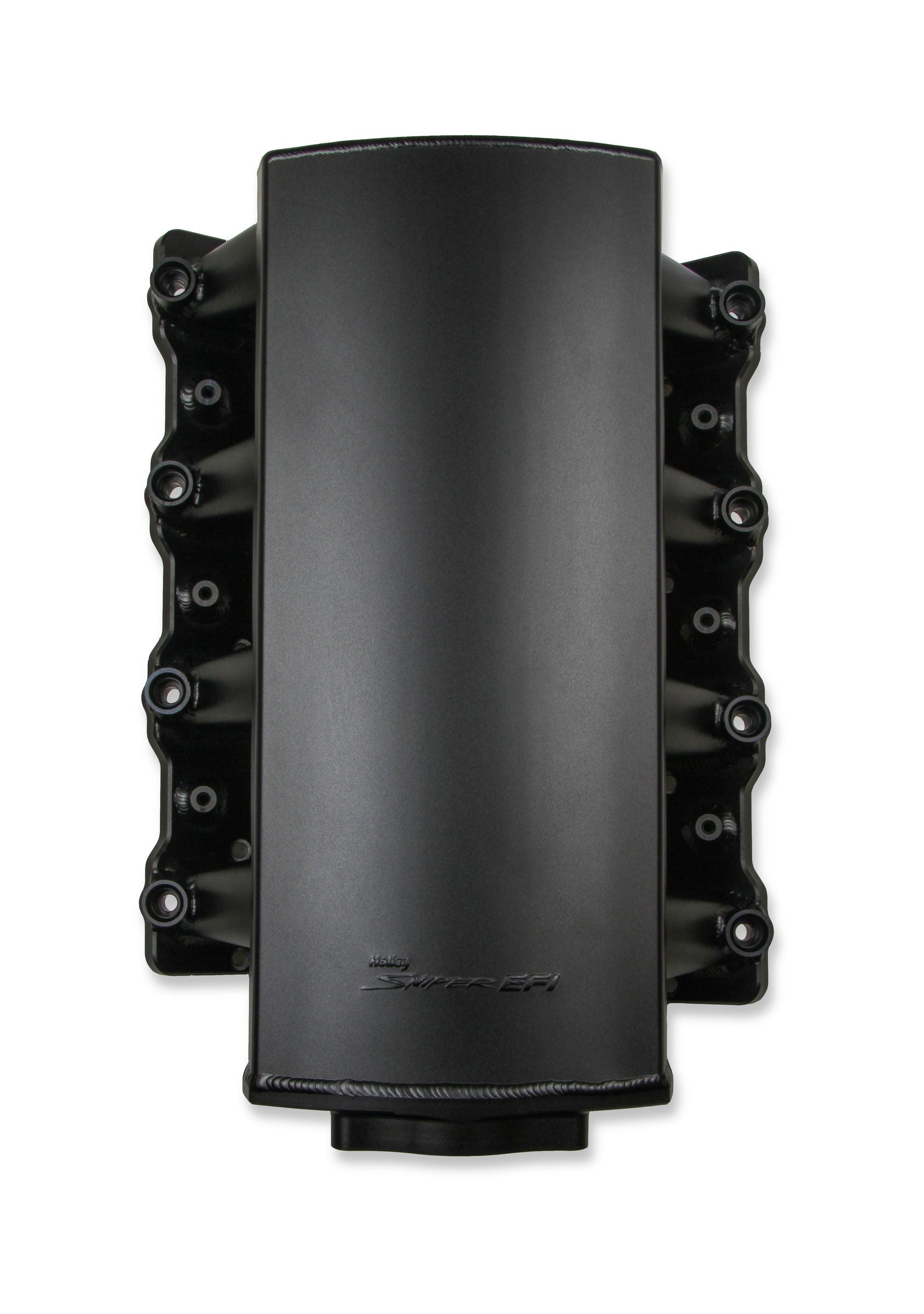

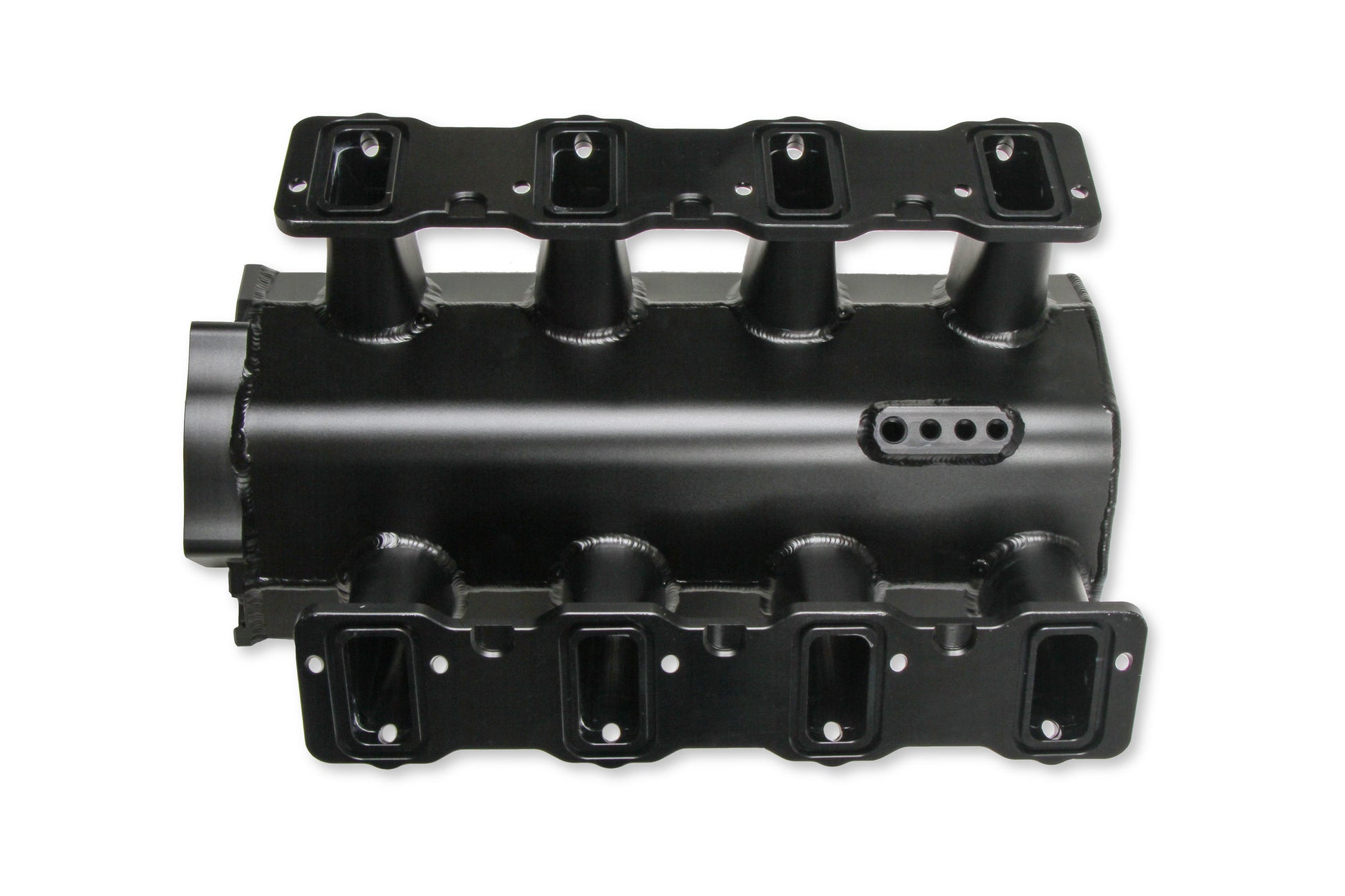

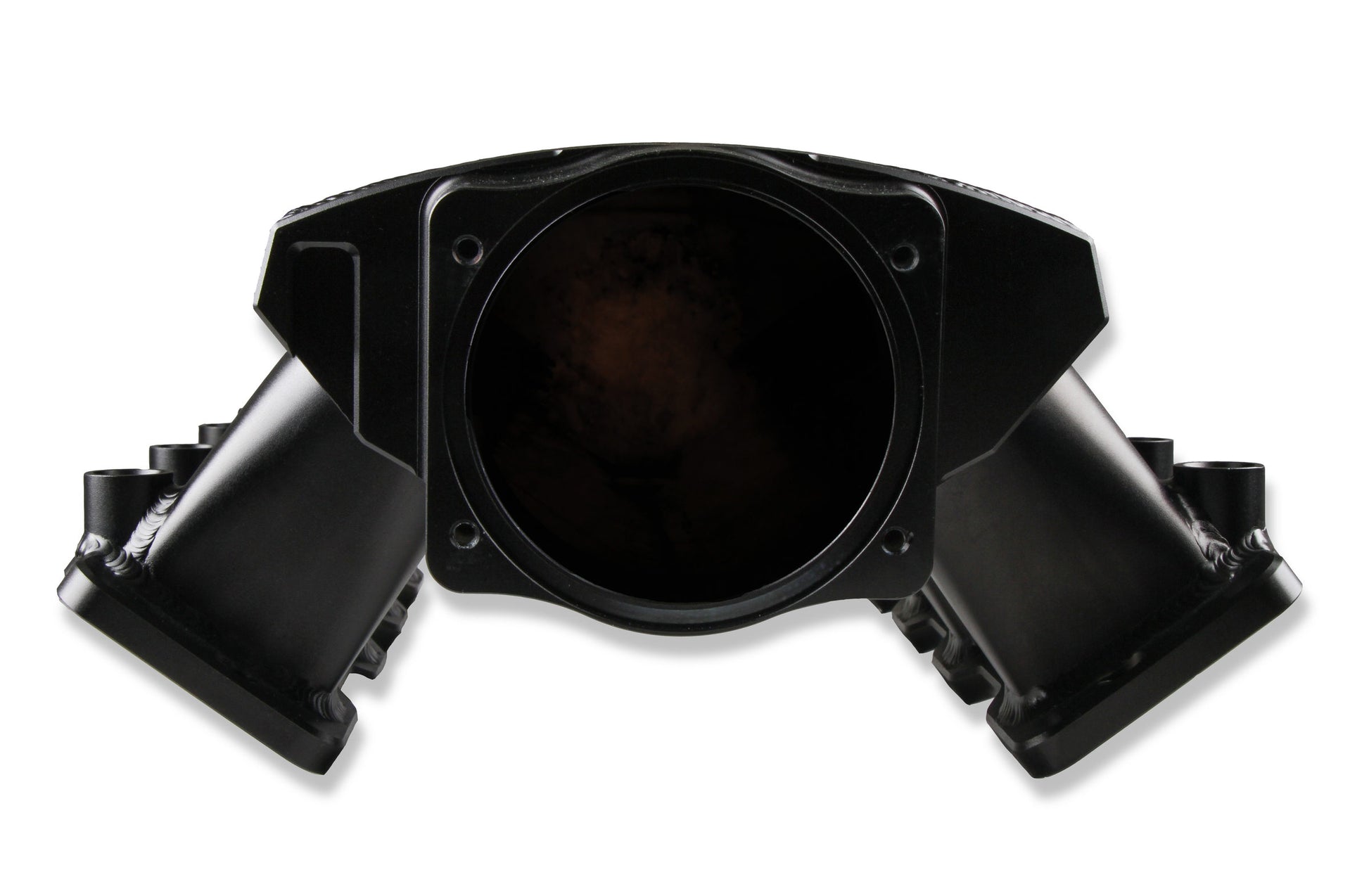

Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available
- Black Finish creates stealthy under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
- 102mm throttle bore opening for increased air flow
- 100% TIG welded for strength and durability

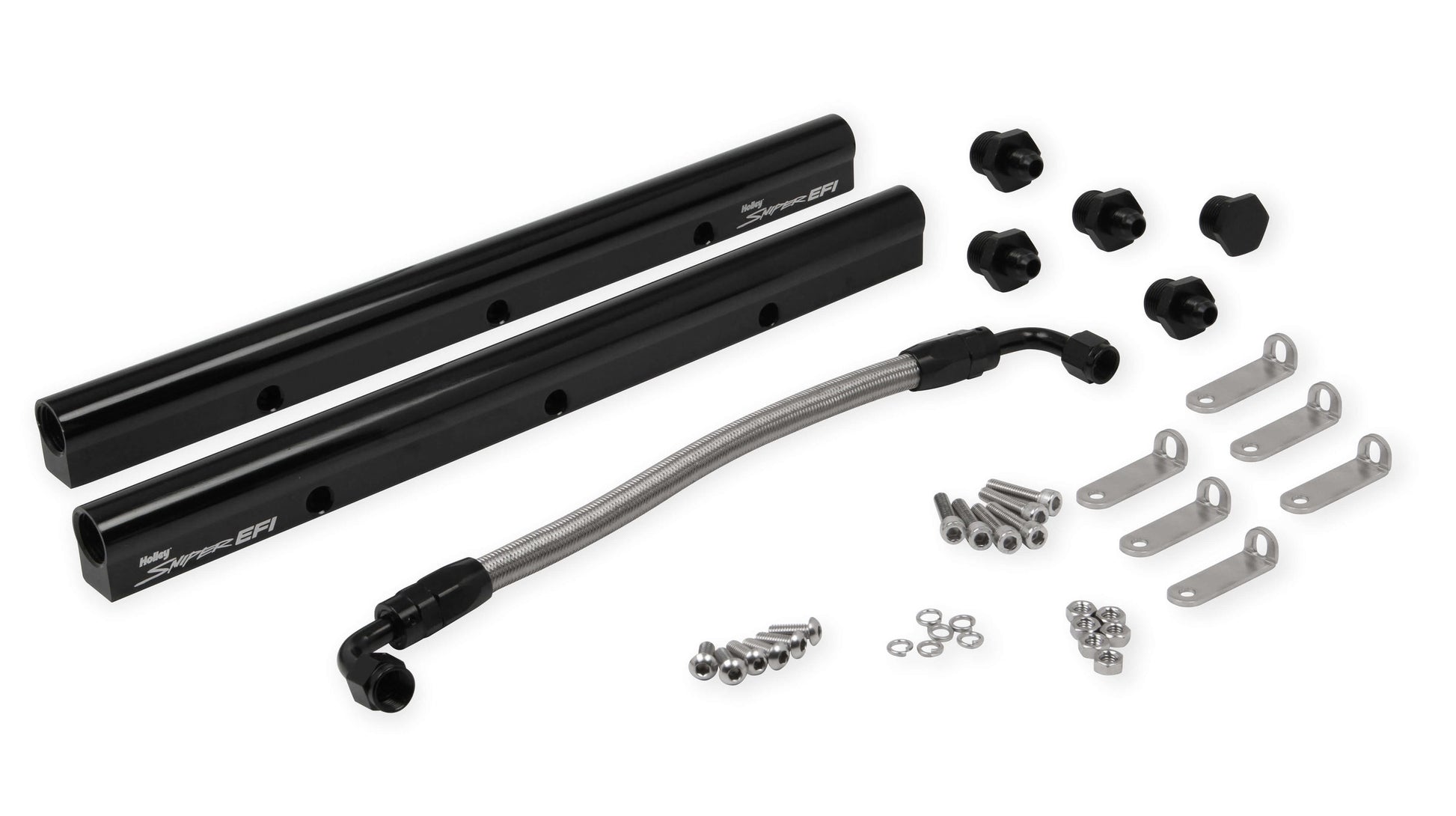

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Provision for MAP sensor located on rear of plenum

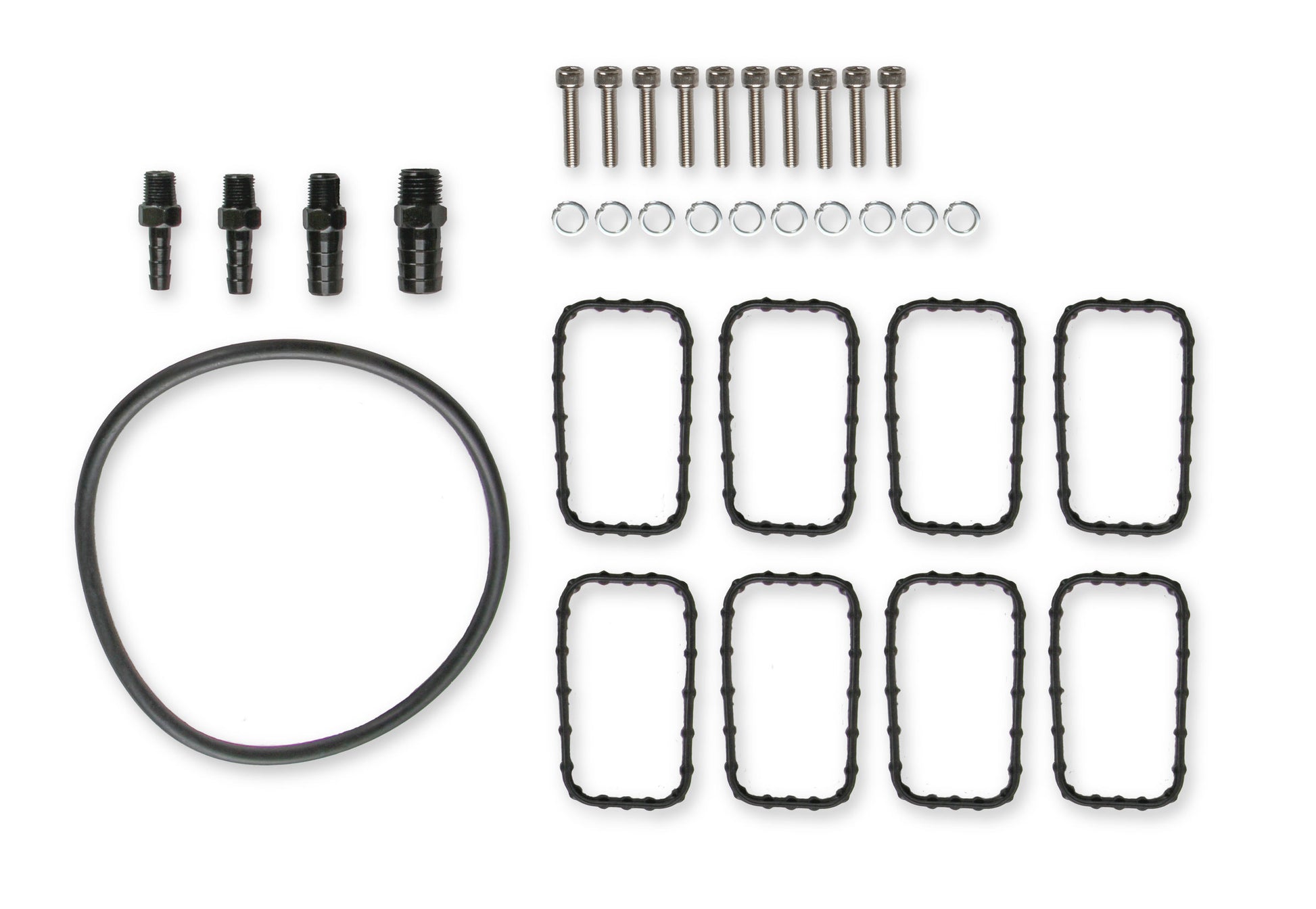

- Product includes all gaskets and hardware for a hassle-free installation
- The Sniper intake will only accept EV1 style injectors.
Brand: Holley Sniper EFI
Category: Engine
Color: Black
Construction: Fabricated
Emission Code: 4
Engine: GM LS3/L92
Finish: Black
Front Height: 6.077 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Gasket Or Seal Included: Yes
Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
part type: Engine Intake Manifold
Product Type: Intake Manifold
Rear Height: 5.290 inch
RPM Power Band: 1800-7000 RPM
Runner Length: 4.252" (108mm)
Style: EFI
Sub Category: Cylinder Block Components
Throttle Body Included: No
Throttle Bore: 102mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
