Sniper - 822042-1

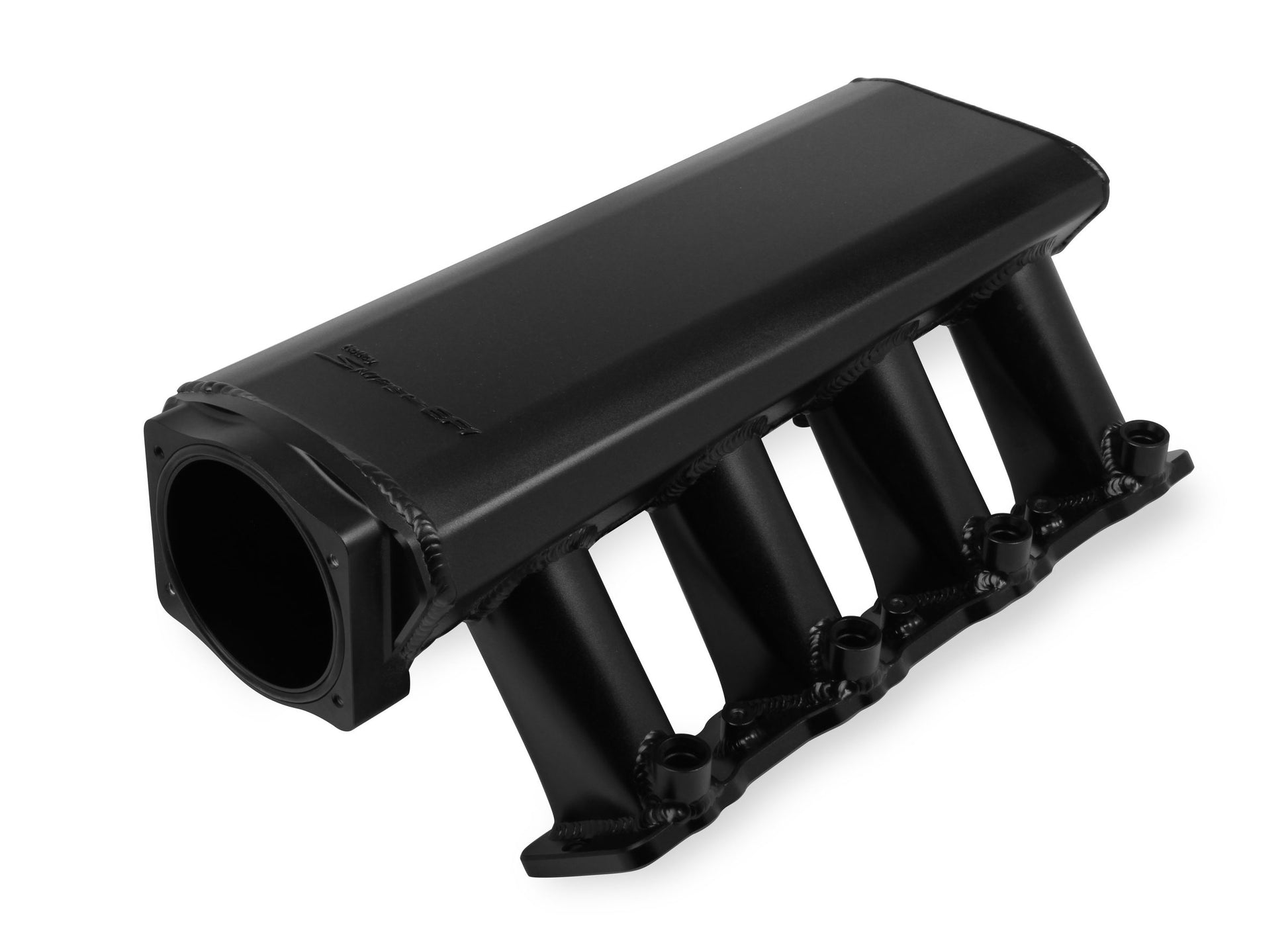

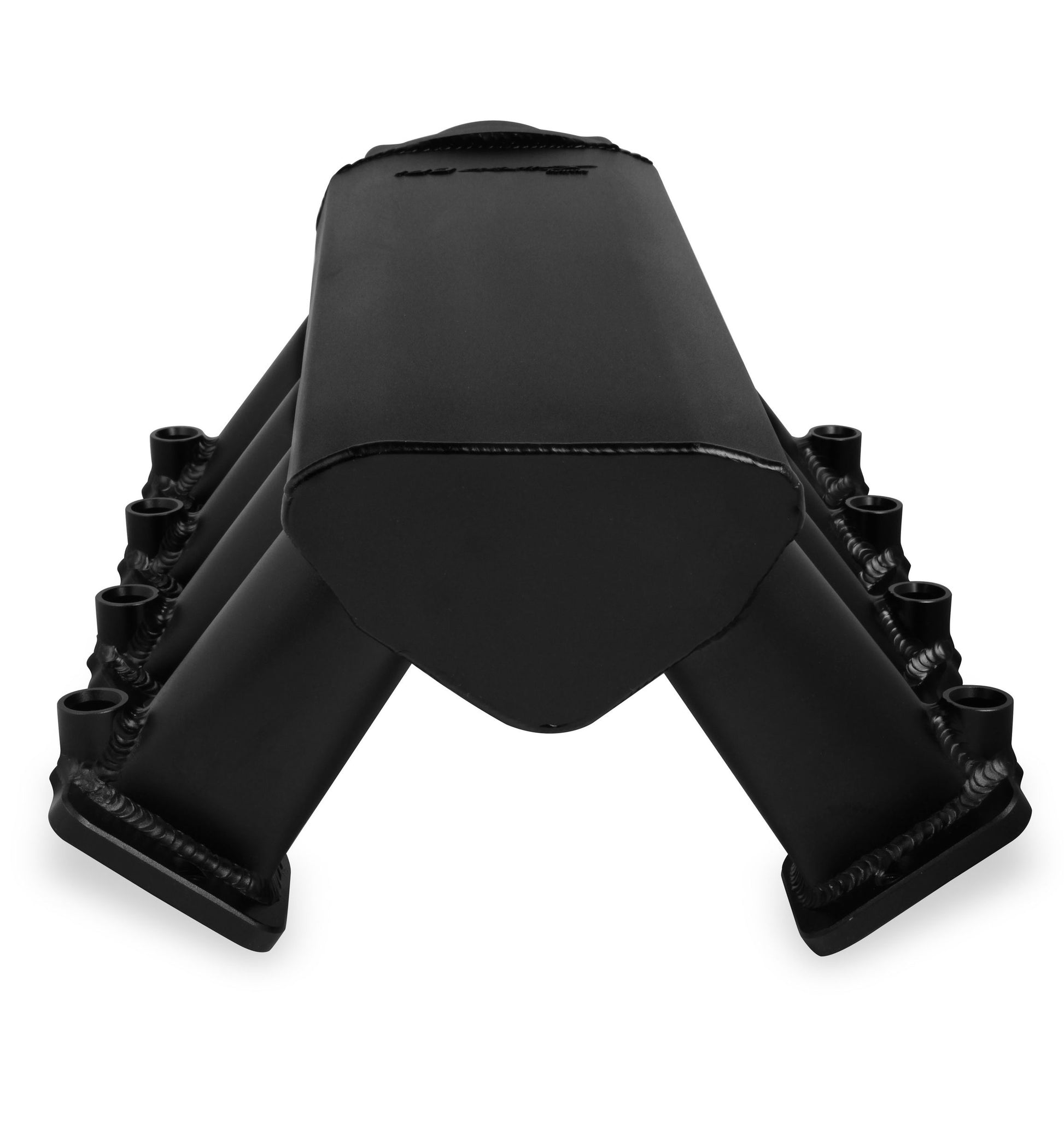

Holley Sniper EFI Sheet Metal Fabricated Intake Manifold LS3/L92 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI logo. Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
- Black Finish creates stealthy under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

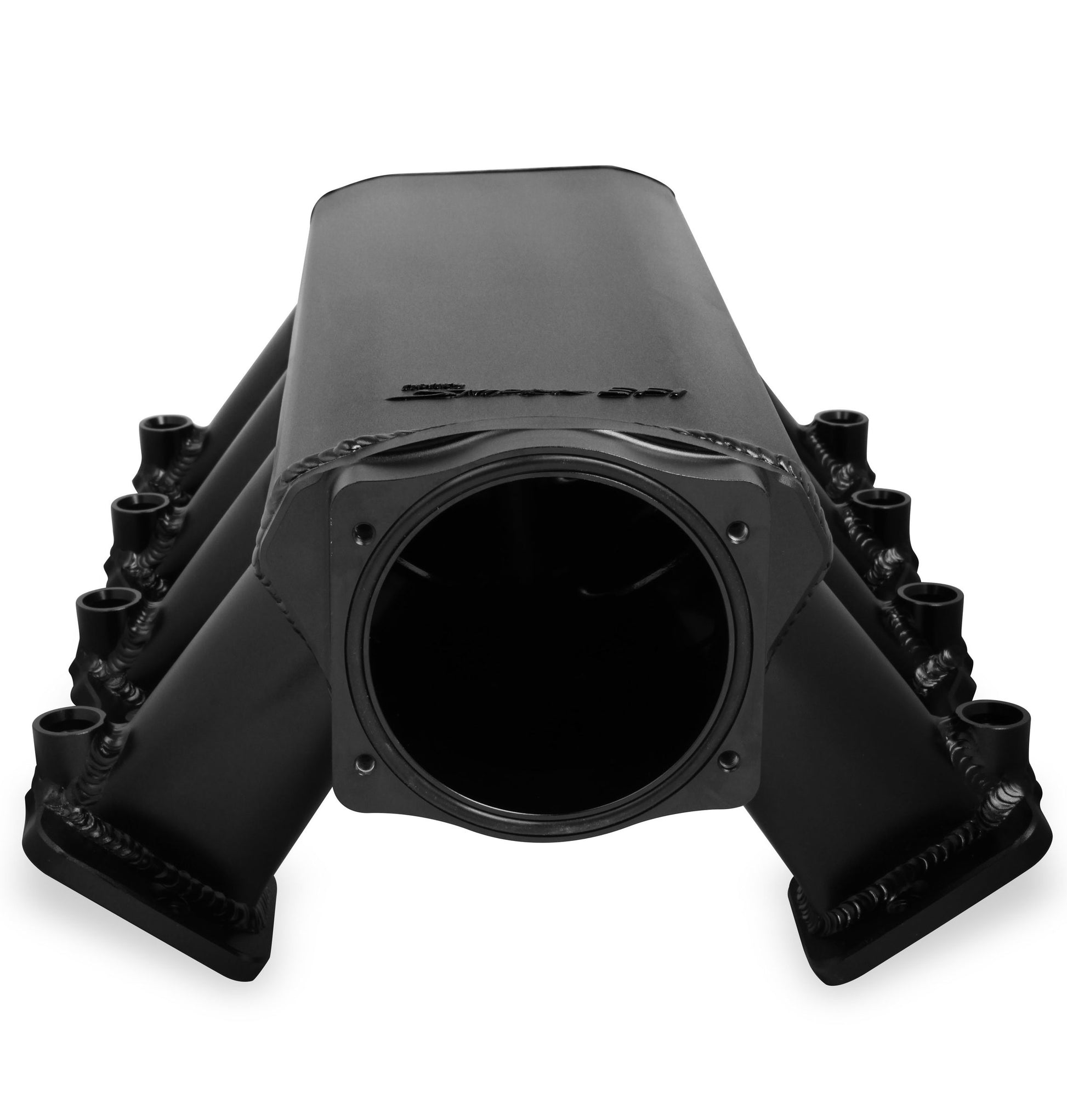

- 102mm throttle bore opening for increased air flow

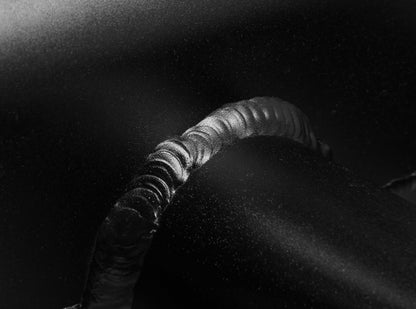

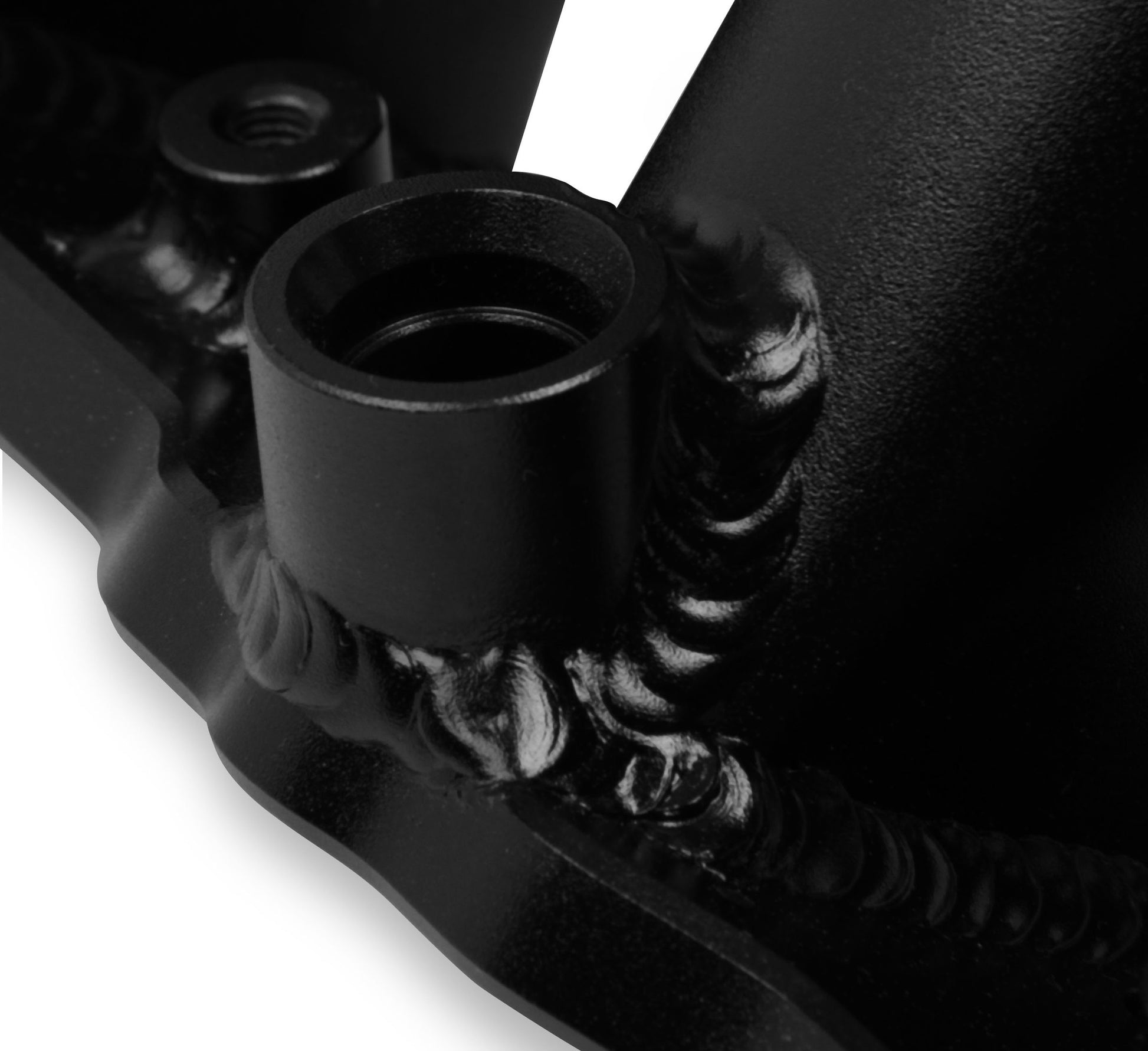

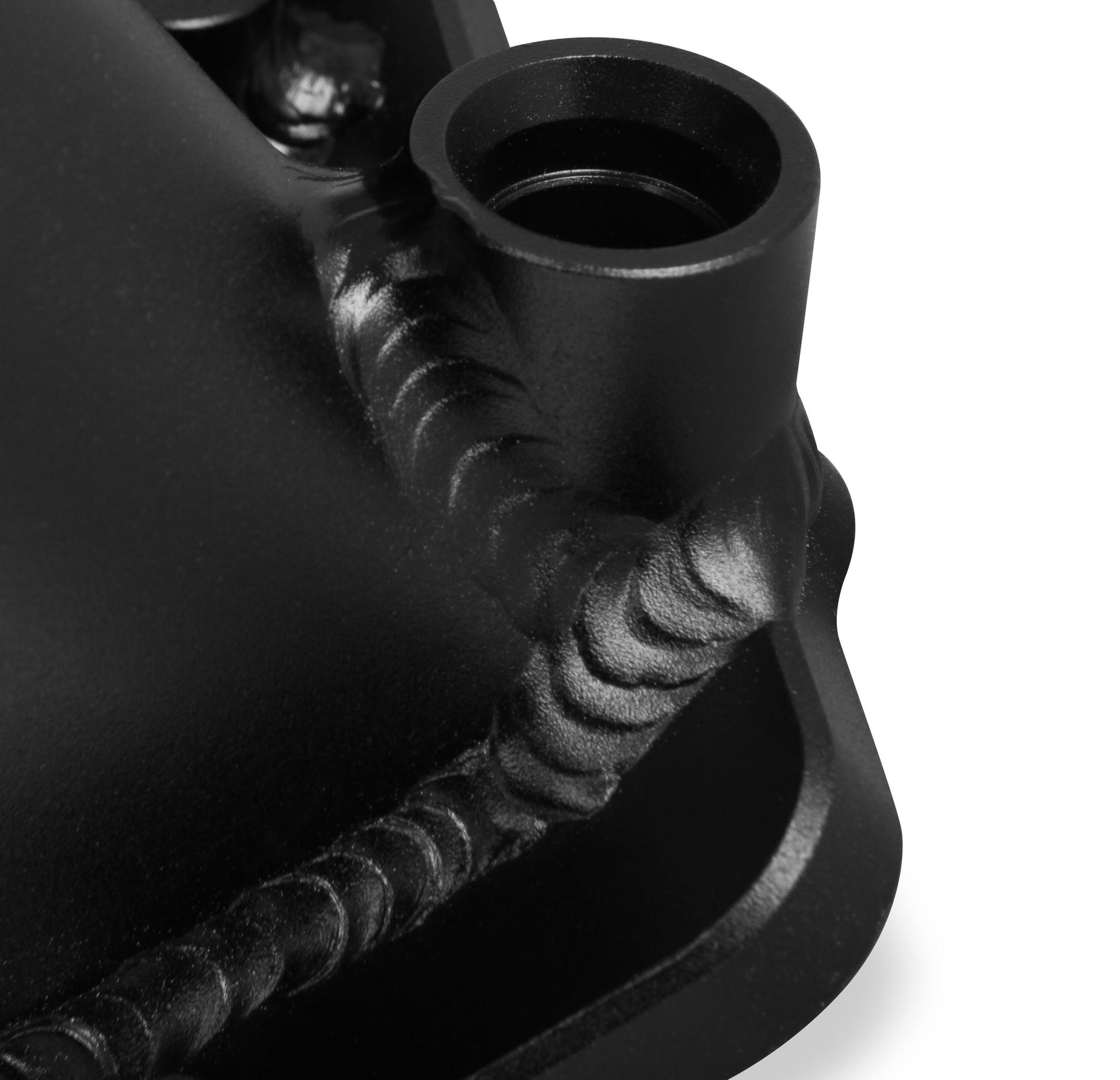

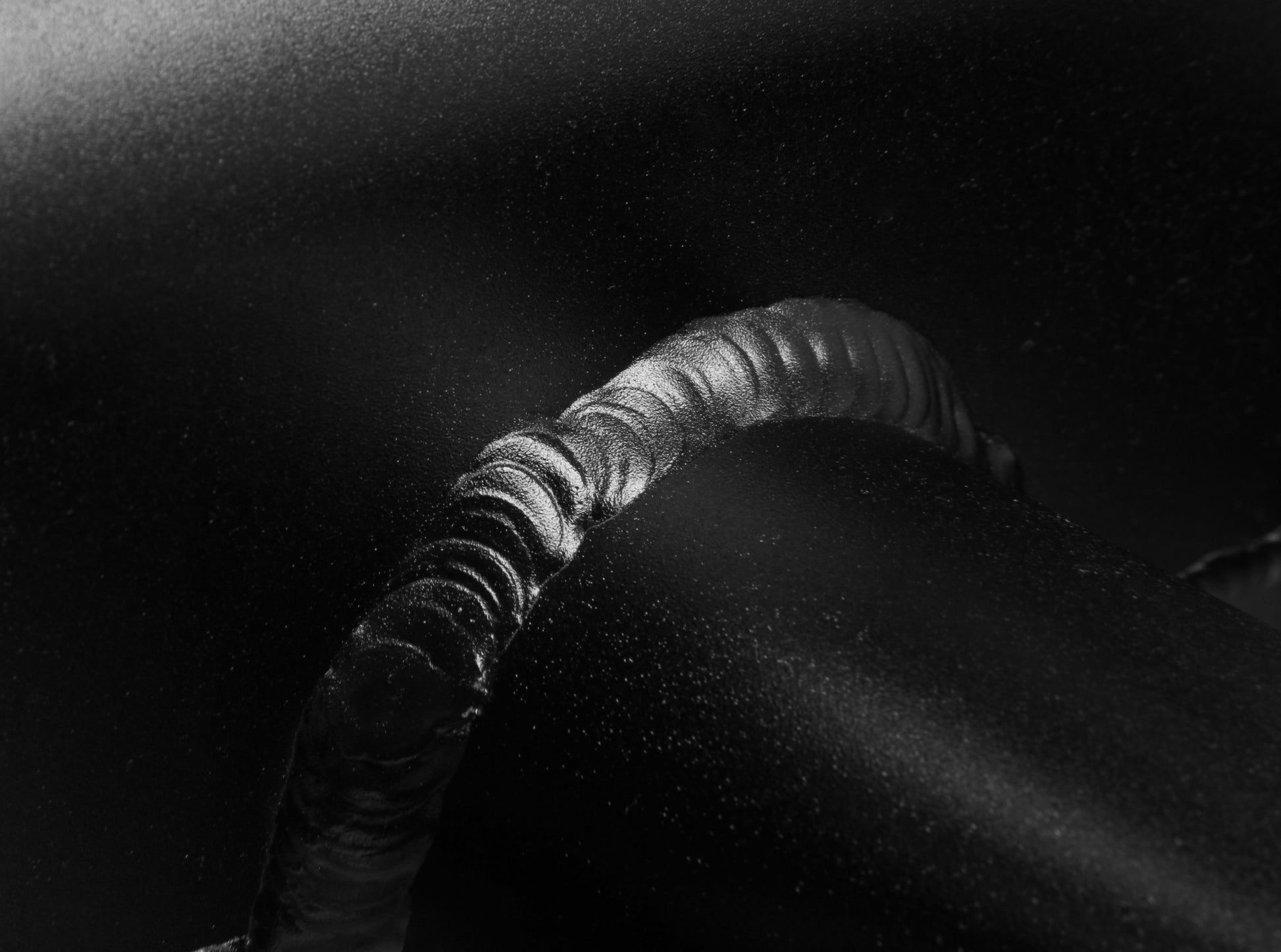

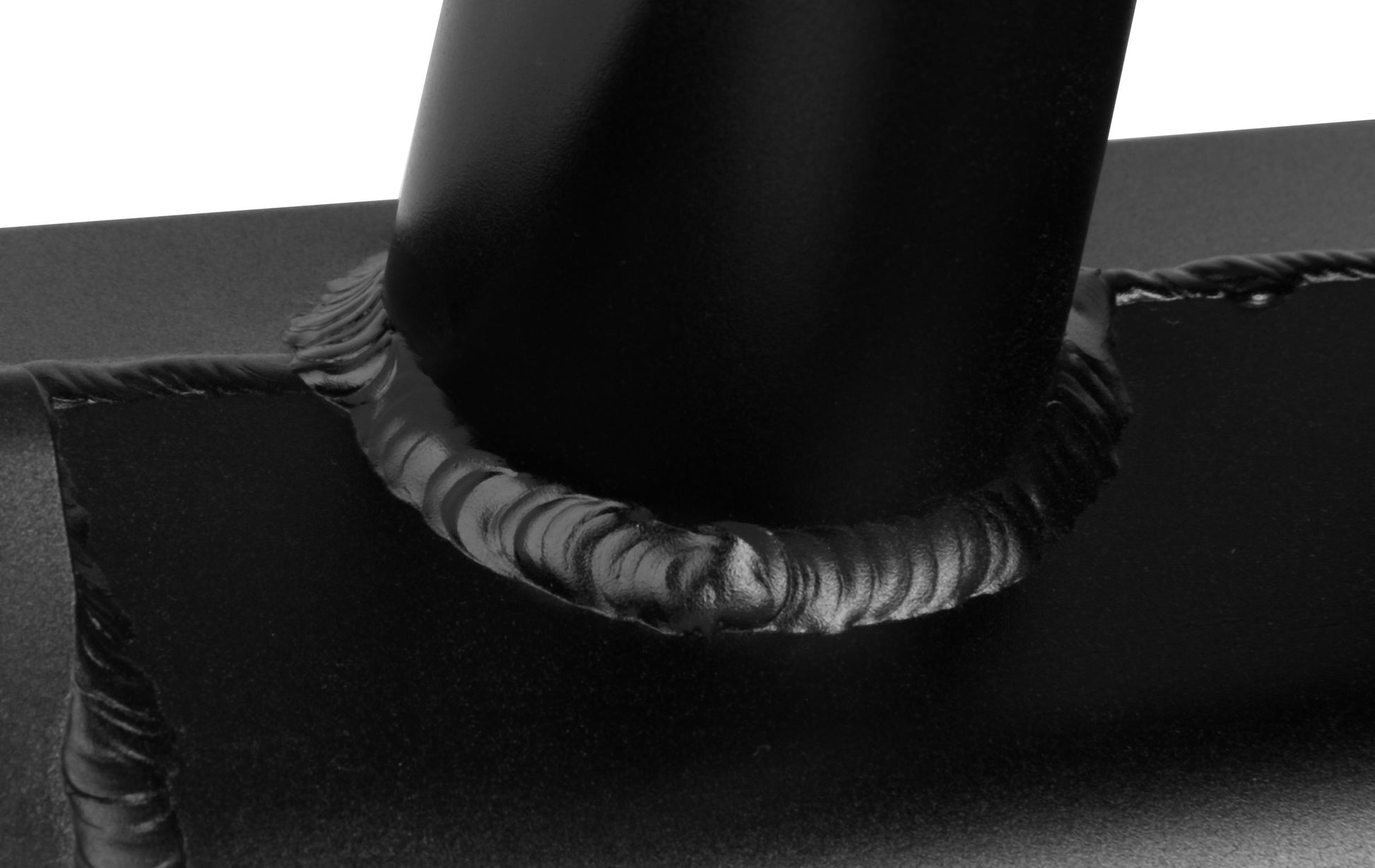

- 100% TIG welded for strength and durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

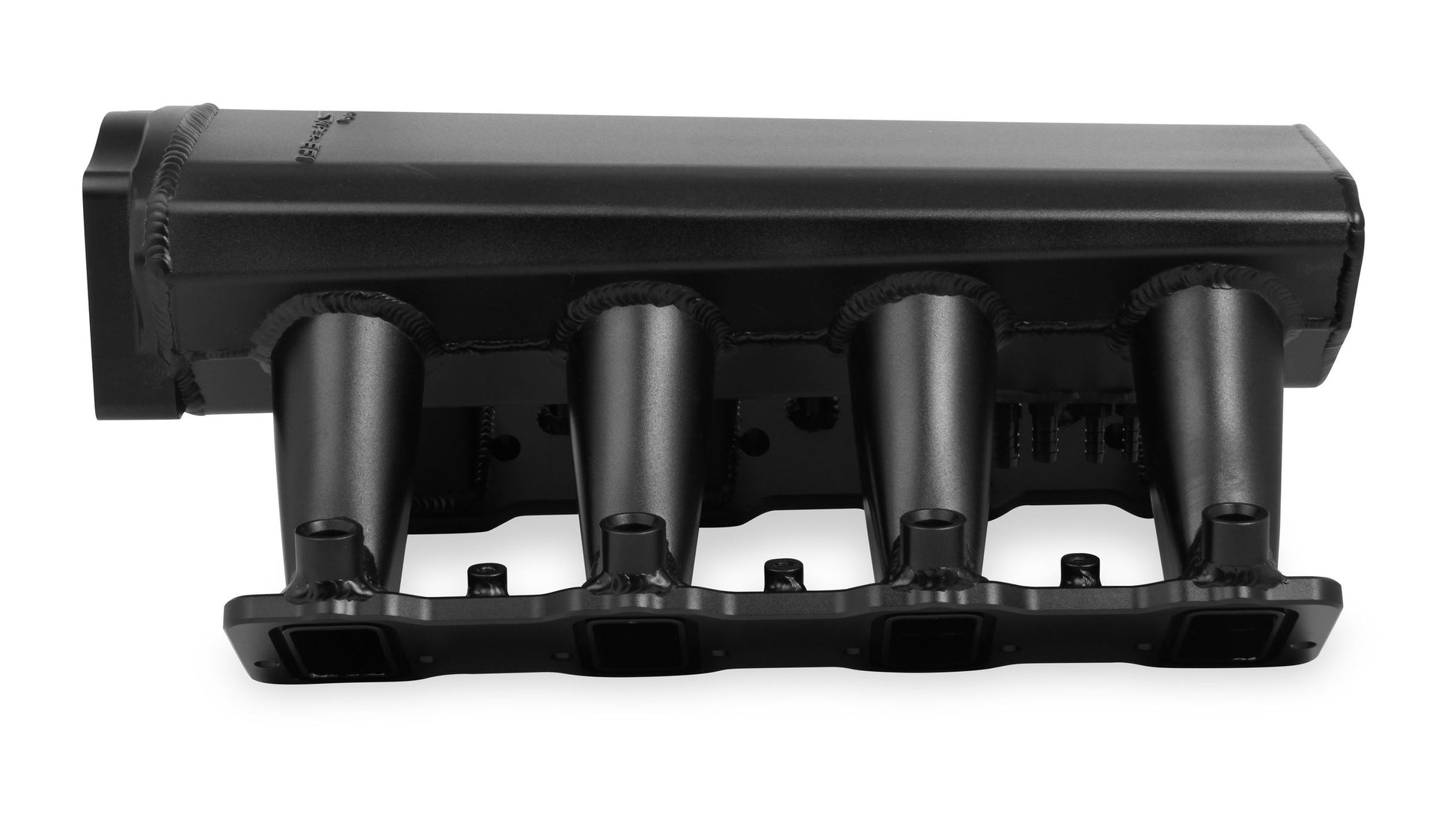

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Provision for MAP sensor located on rear of plenum
- Product includes all gaskets and hardware for a hassle-free installation

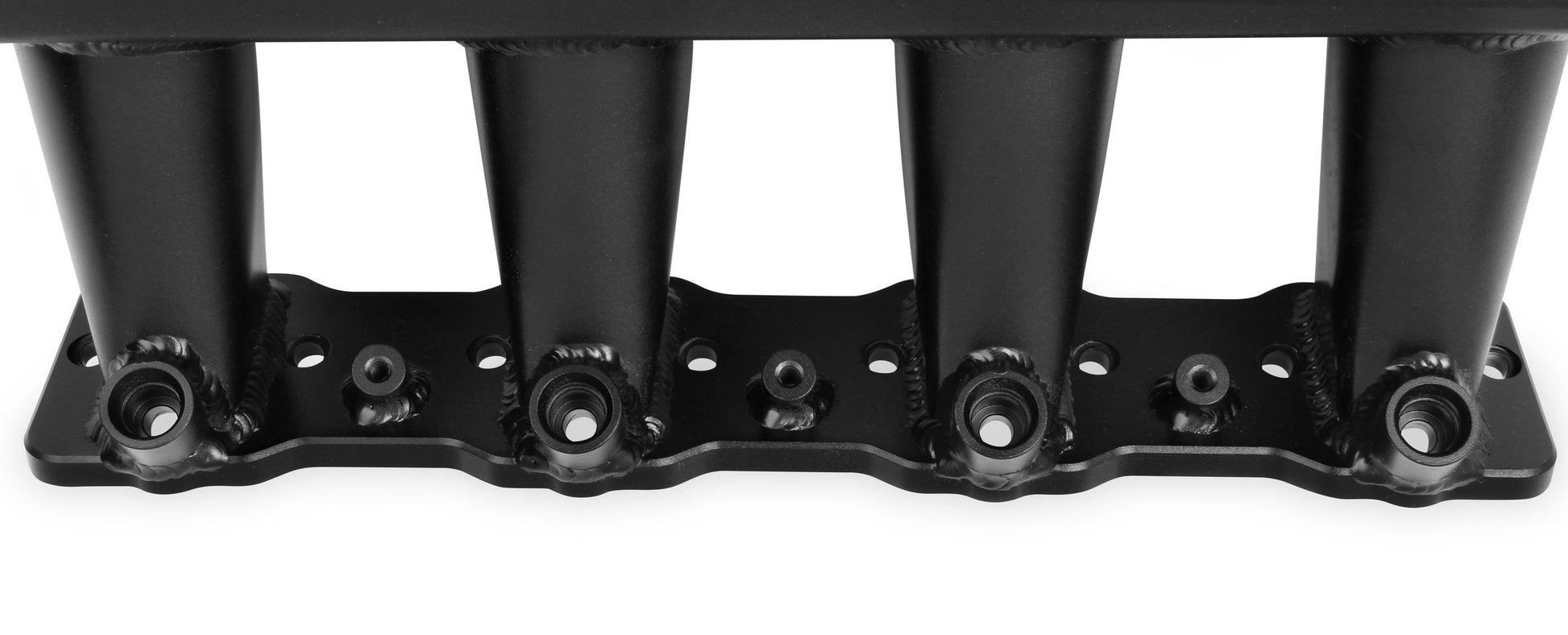

- The Sniper intake will only accept EV1 style injectors.
Brand: Holley Sniper EFI
Category: Engine
Color: Black
Construction: Fabricated
Emission Code: 4
Engine: GM LS3/L92
Finish: Black
Front Height: 7.952 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Style Provision: EV1

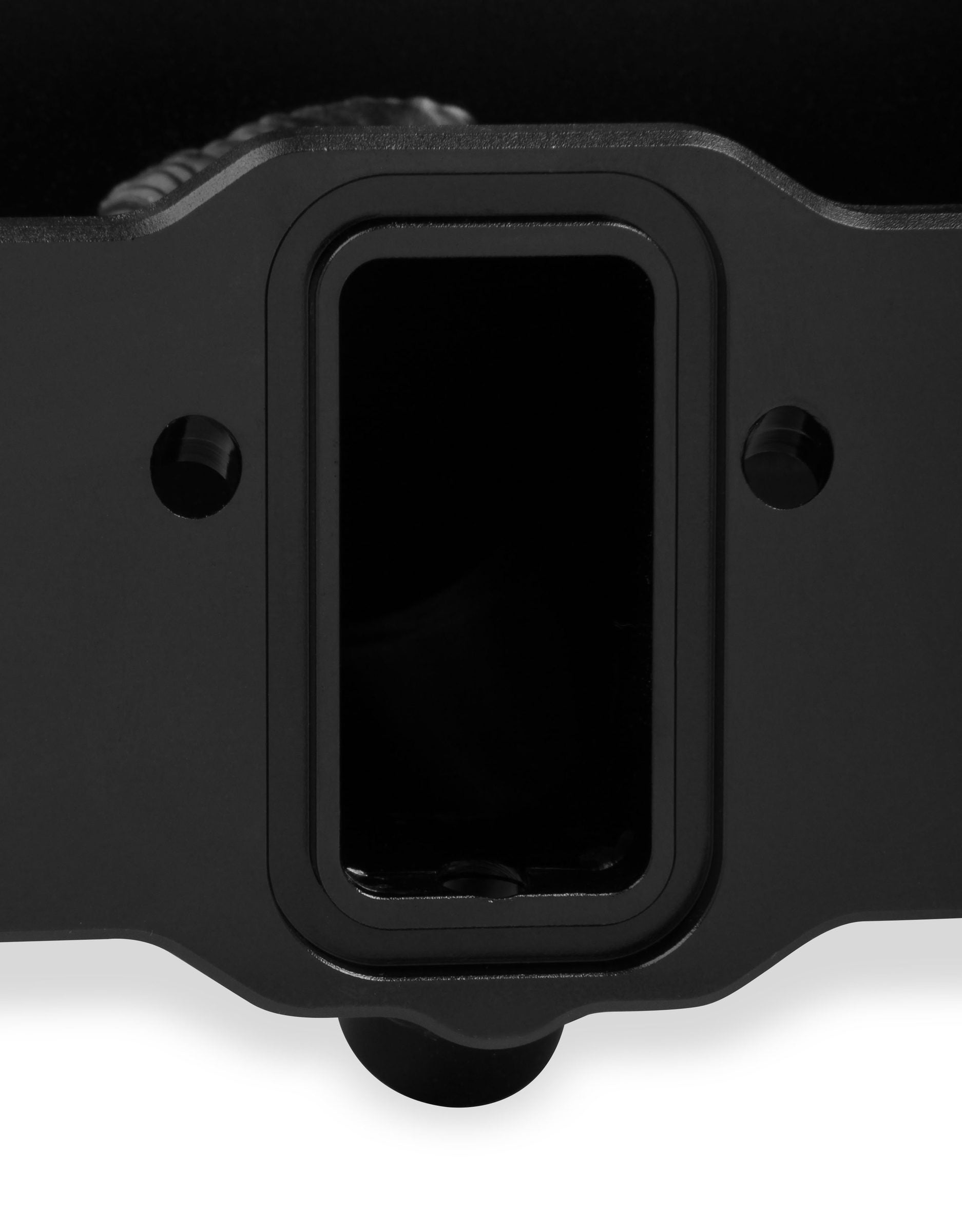

Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
part type: Engine Intake Manifold
Product Type: Intake Manifold
Rear Height: 7.165 inch
Recommended Use: Forced Induction
RPM Power Band: 2500-7000 RPM
Runner Length: 5.512" (140mm)
Style: EFI
Sub Category: Cylinder Block Components
Throttle Body Included: No
Throttle Bore: 102mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
