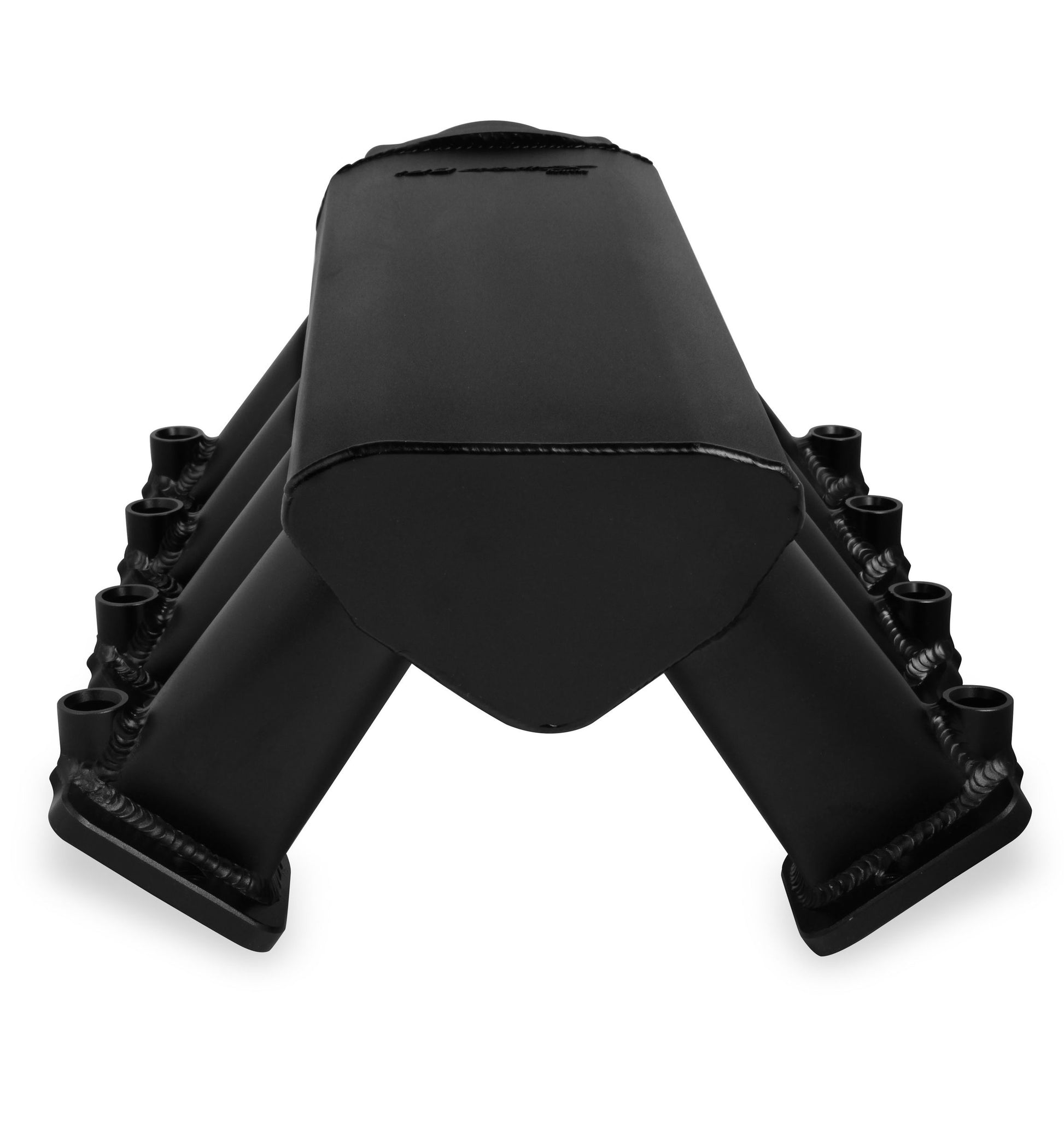

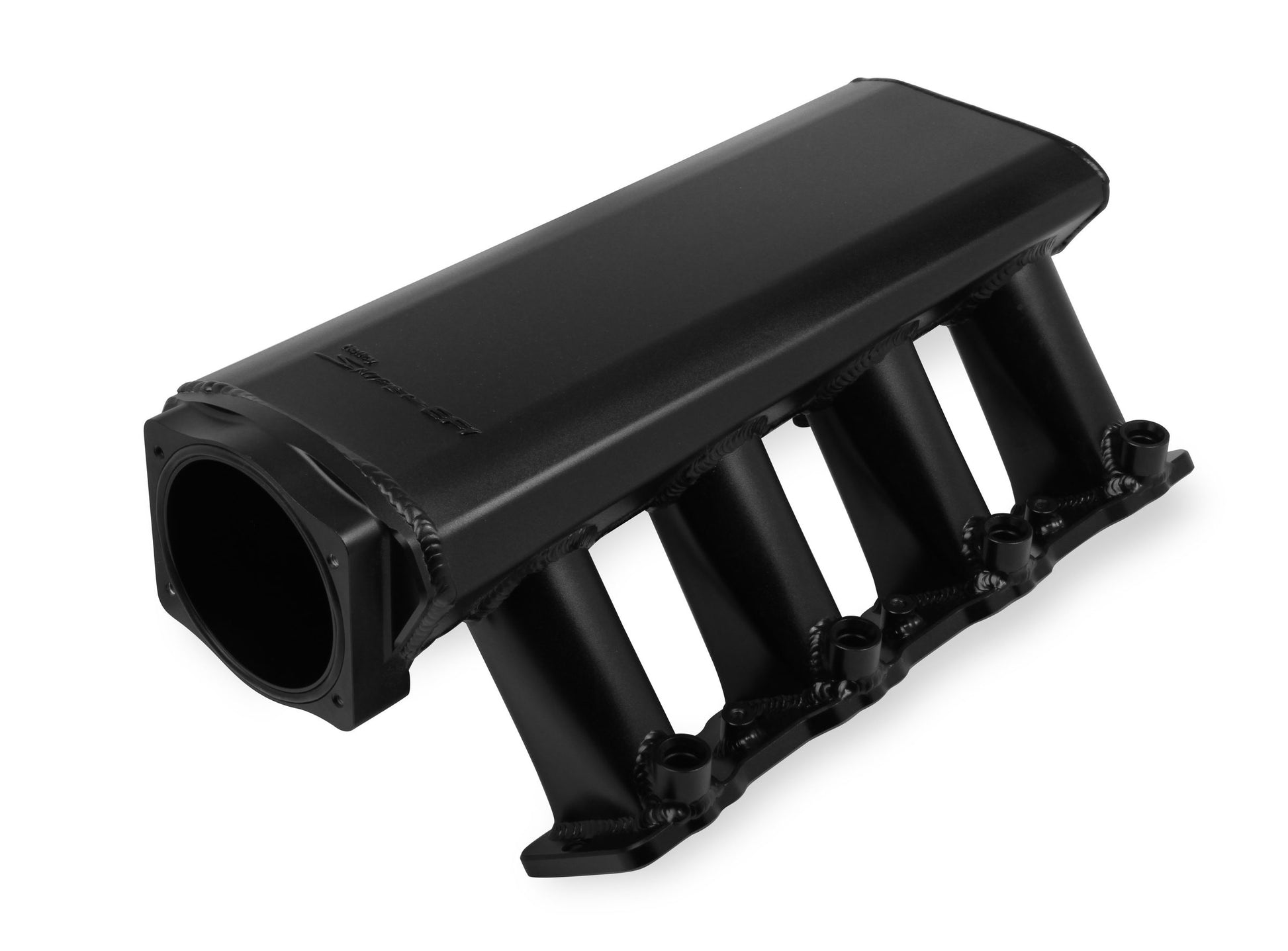

Sniper 822032-1 - Motorsports EFI Intake
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI logo
Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent

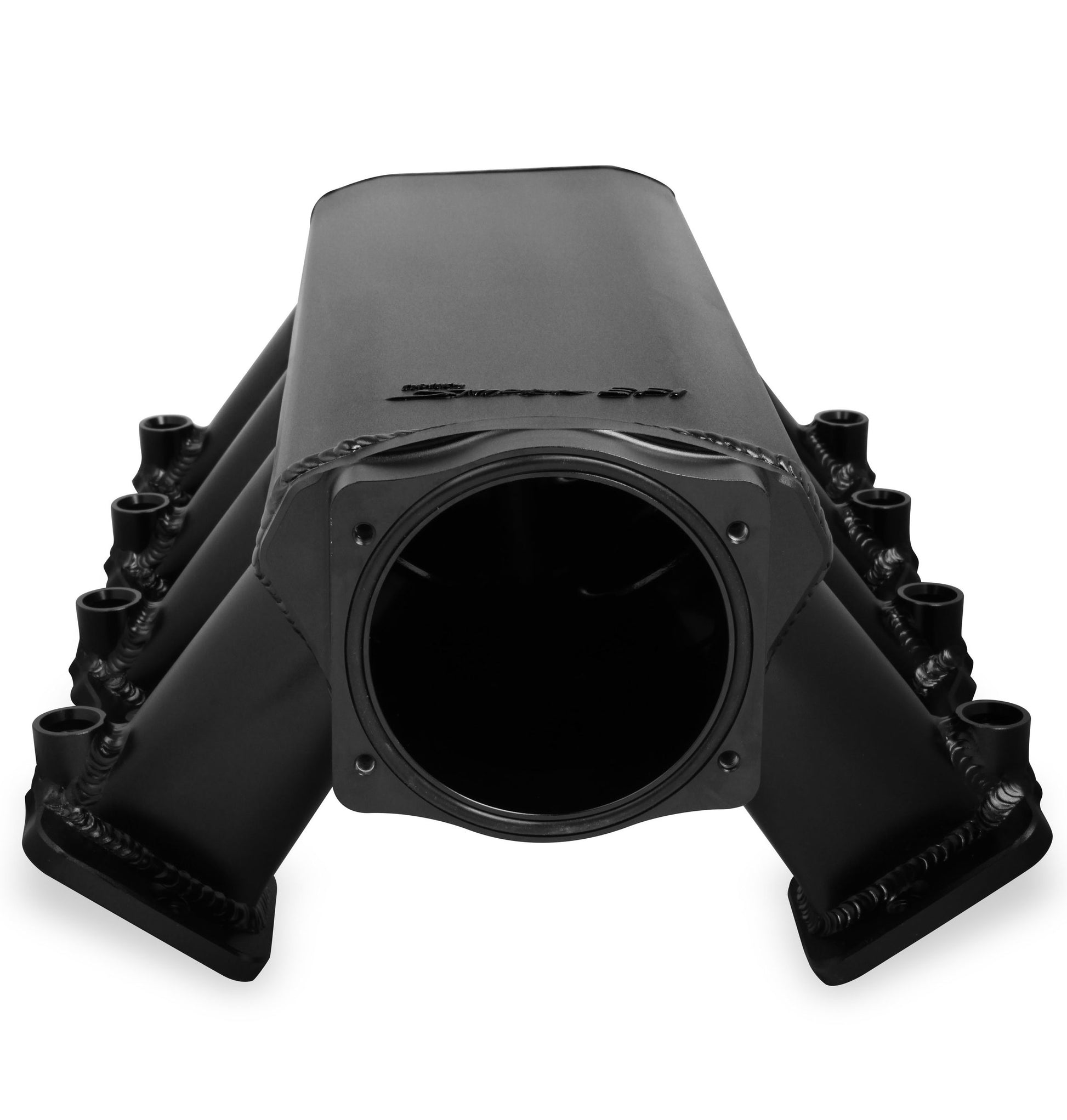

- 92mm throttle bore opening for increased air flow

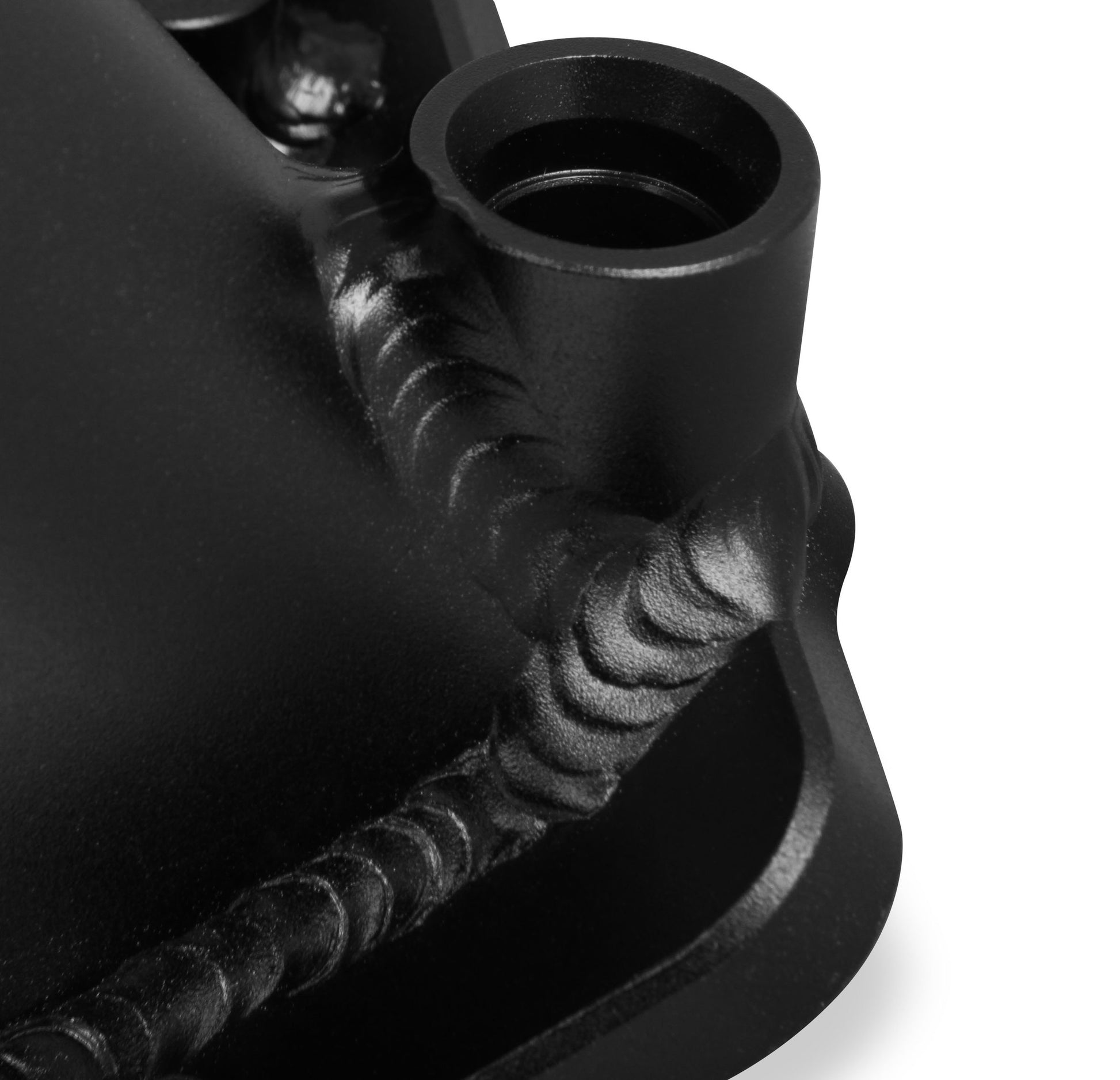

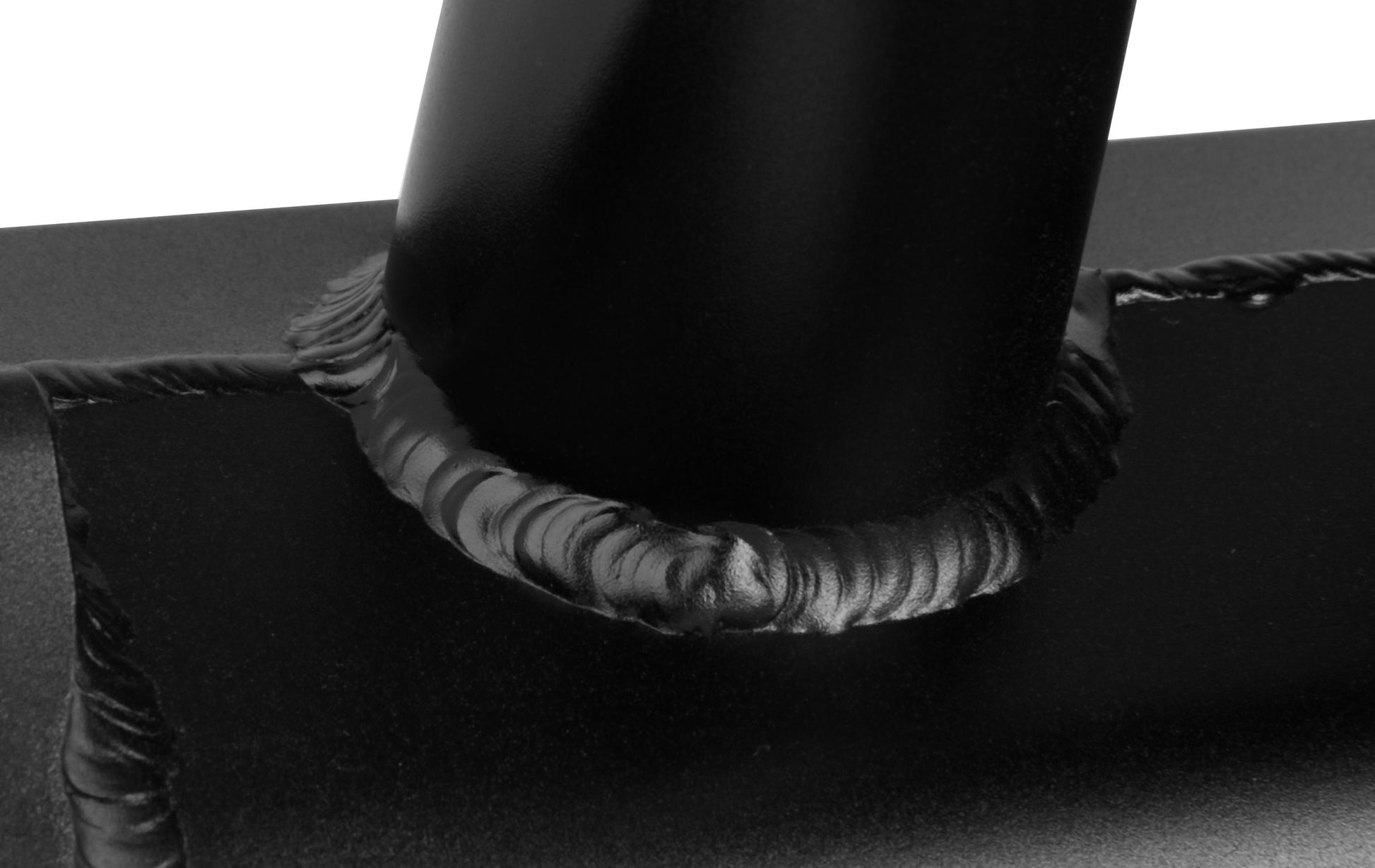

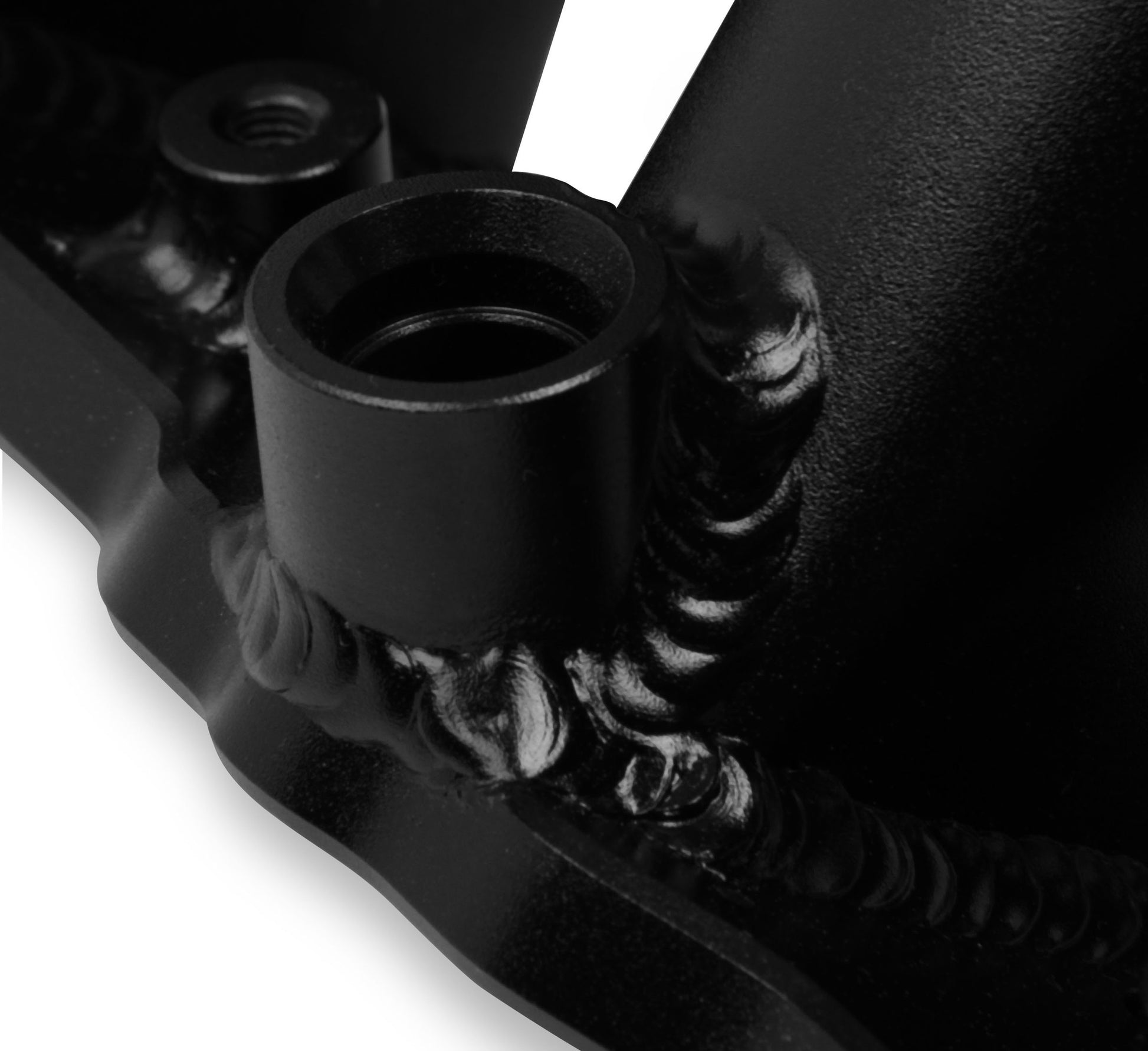

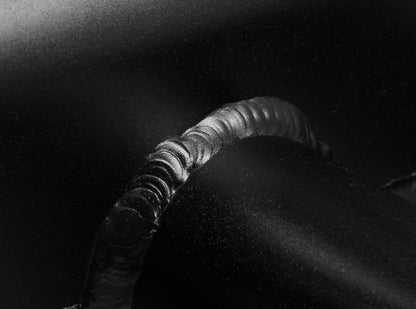

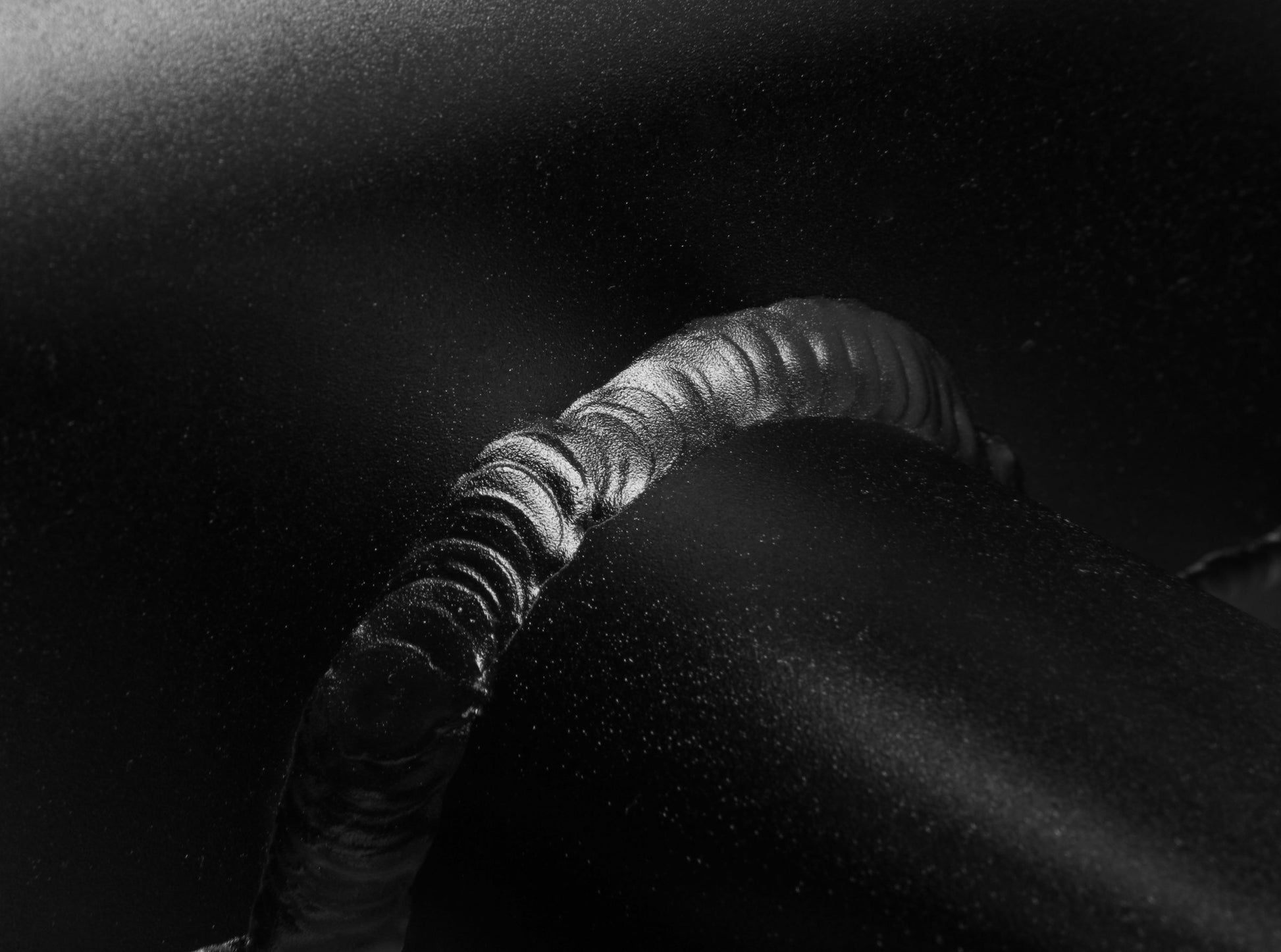

- 100% TIG welded for strength and durability

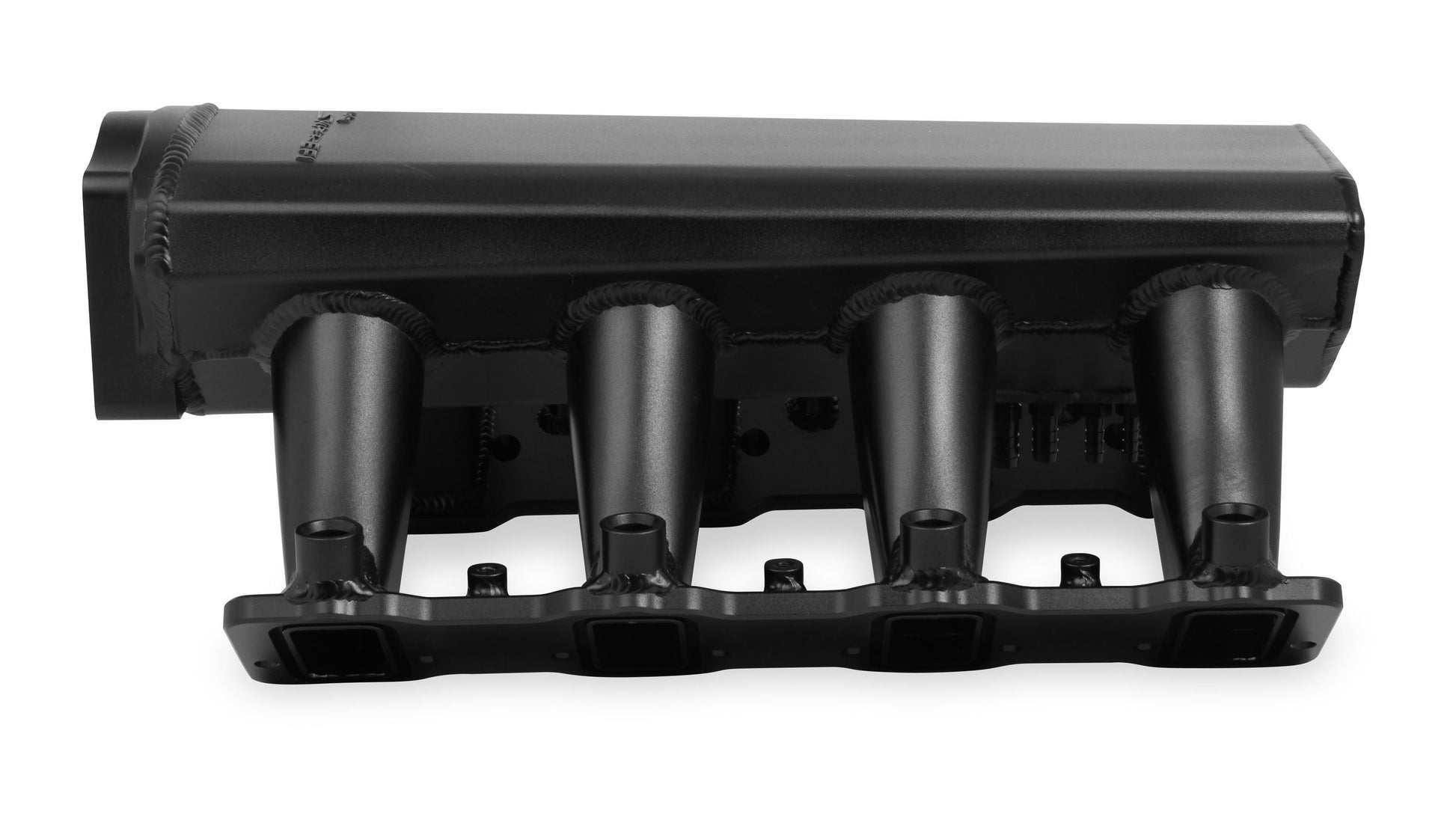

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
- Product includes all gaskets and hardware for a hassle-free installation
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- Black Finish creates stealthy under-hood styling

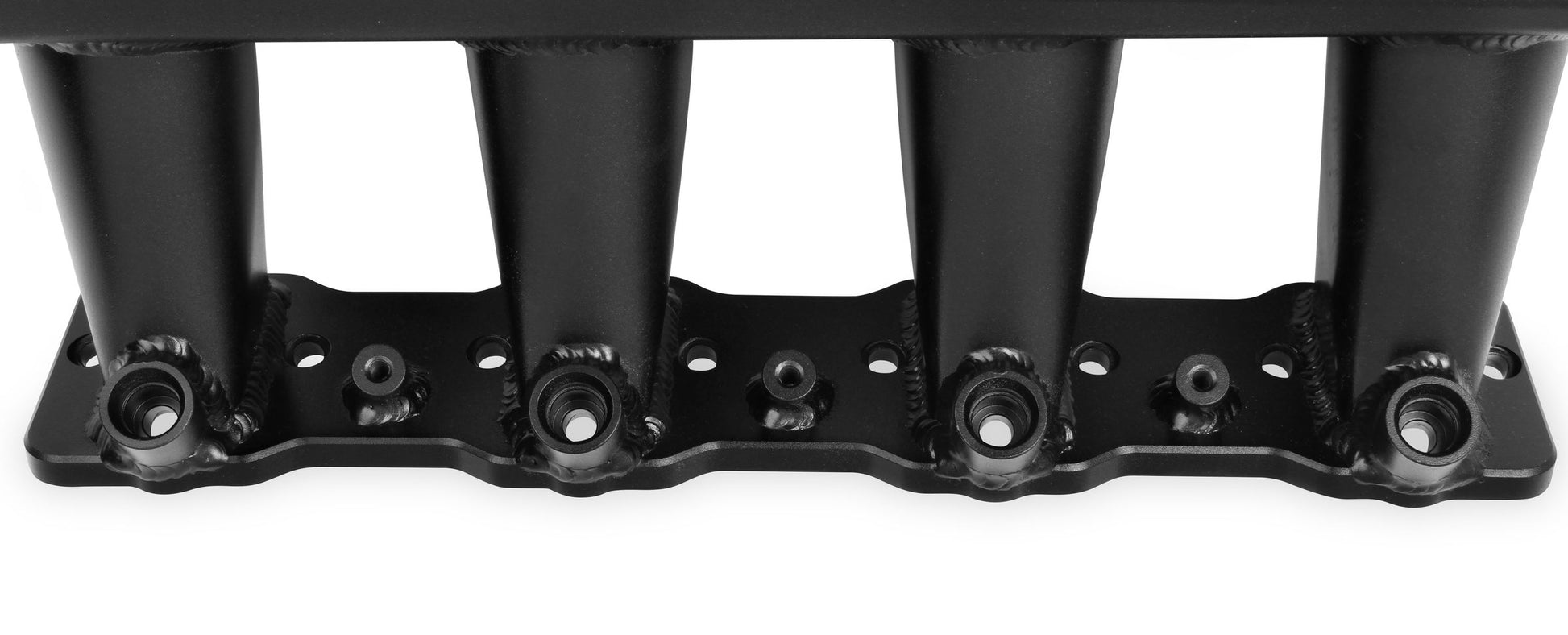

- The Sniper intake will only accept EV1 style injectors.
Basic Operating RPM Range: 2200-6800
Brand: Holley Sniper EFI
Carburetor Flange: N/A
Carburetor Quantity: N/A
Carburetor Studs Included: No
Category: Engine
CNC Ported: No
Color: Black
Construction: Fabricated

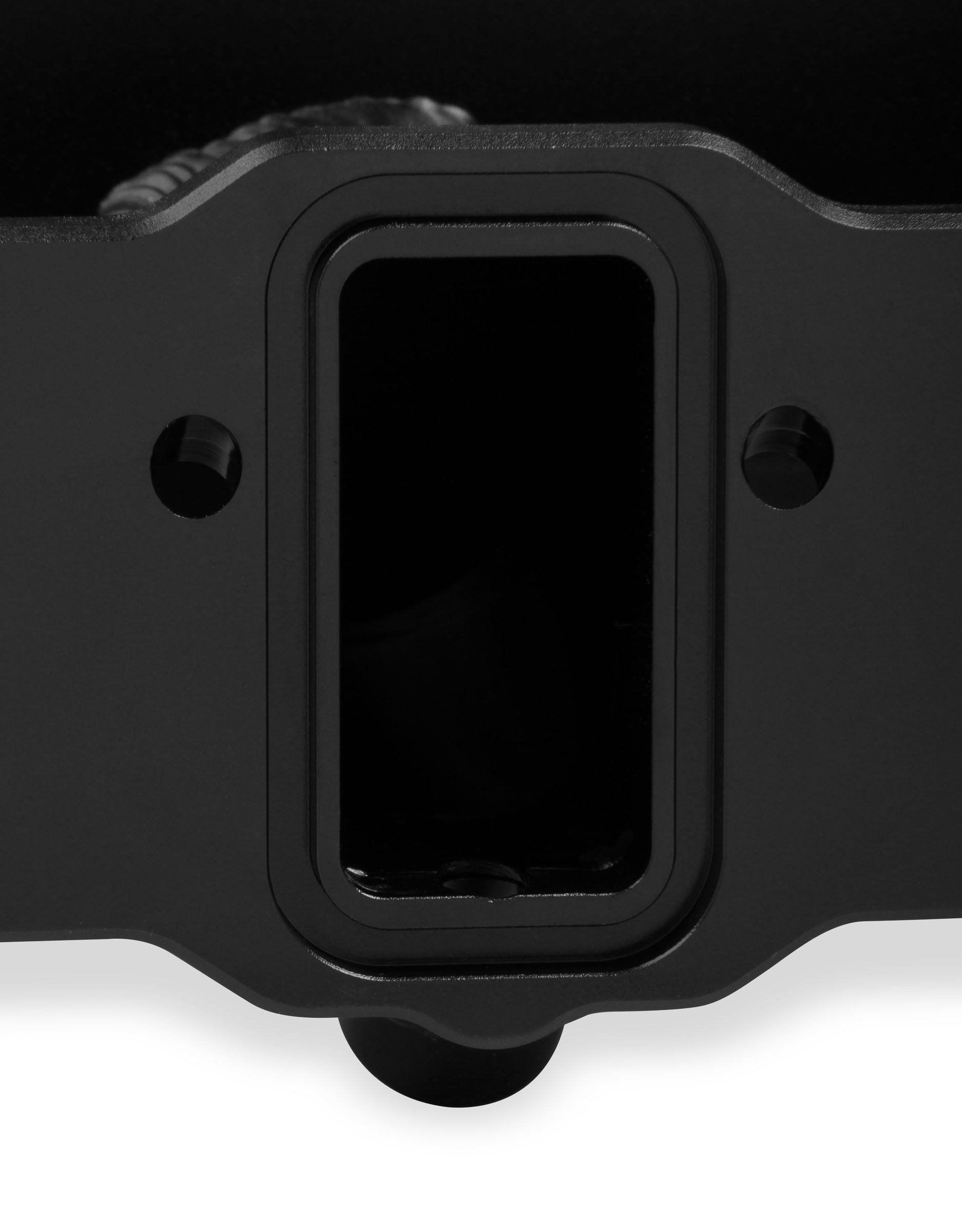

Cylinder Head Port Shape: Rectangle
Deck Height: 9.24
EGR Port: No
Emission Code: 4
Engine: GM LS3/L92
Flange Style: N/A
Front Maximum Height: 7.952
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Black
Product Type: Intake Manifold
Rear Maximum Height: 7.165
Removable Runners: No
Removable Top/Lid: No
Runner Length: 5.512" (140mm)
Single Or Dual Plane Type: Single
Style: EFI
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 92
Throttle Body Gasket Included: Yes
Throttle Body Included: No
Throttle Bore: 92mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
