Sniper - 822031-1

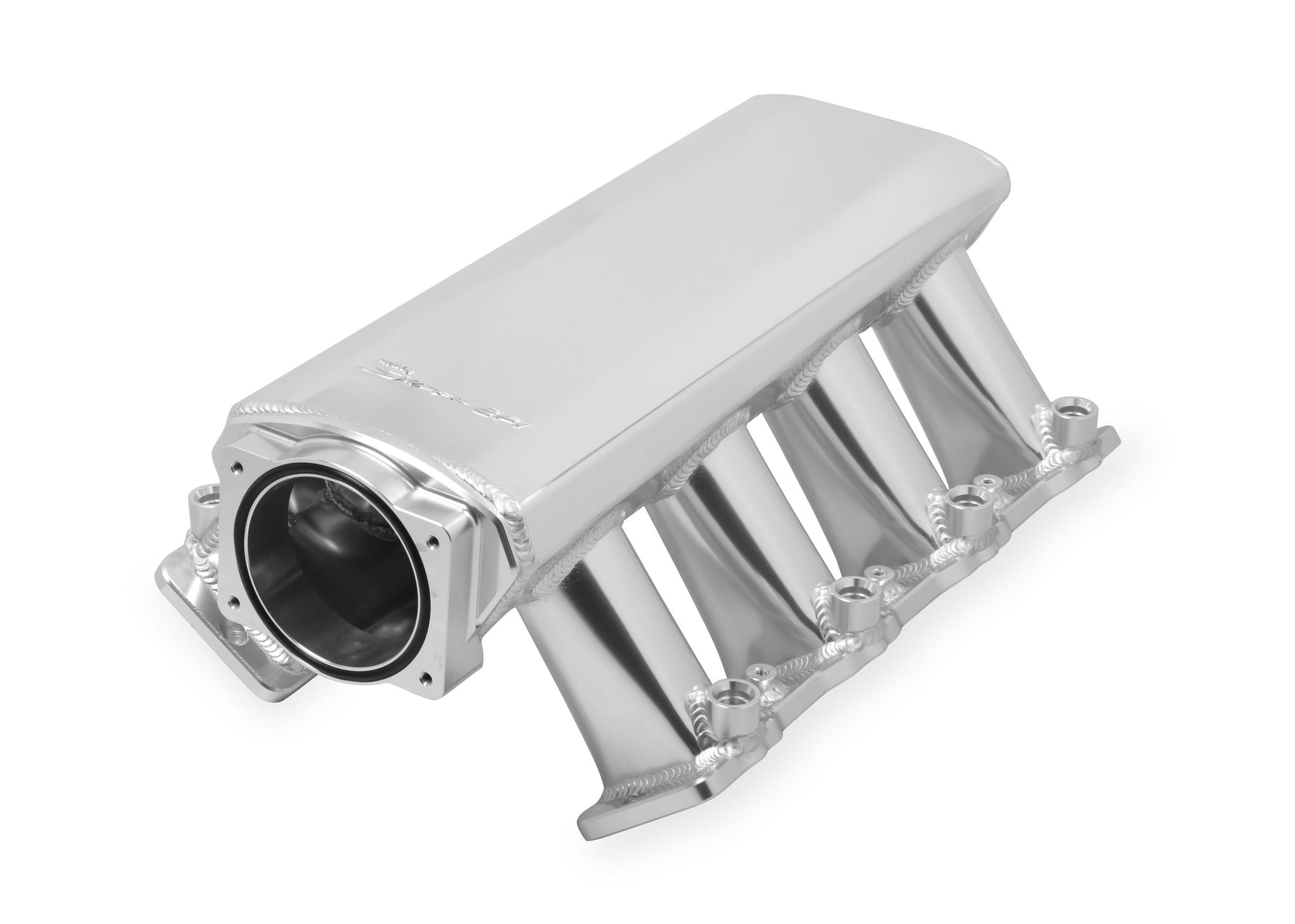

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
- 3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes

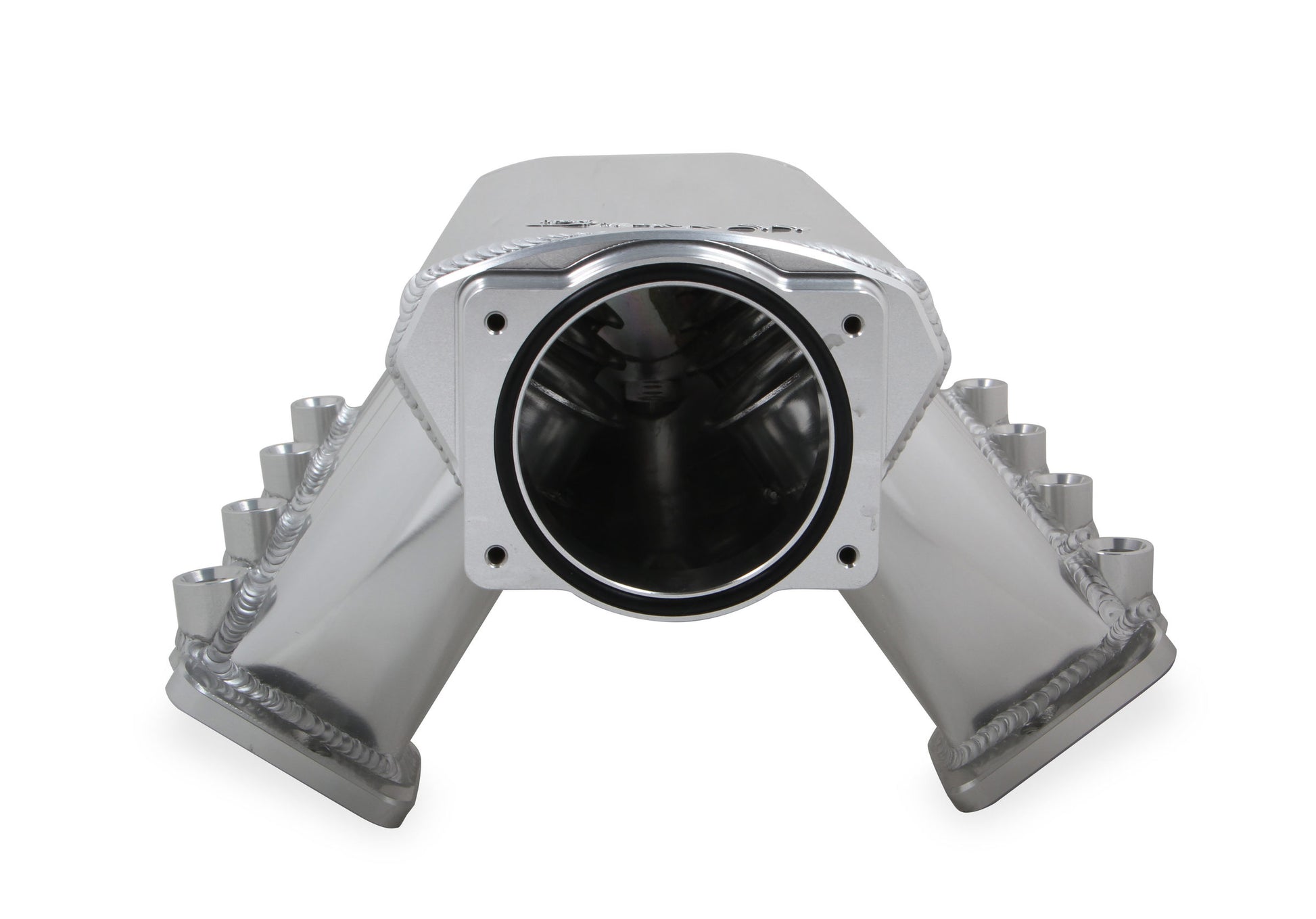

- Available in 92mm and 102mm bore Throttle Body Openings

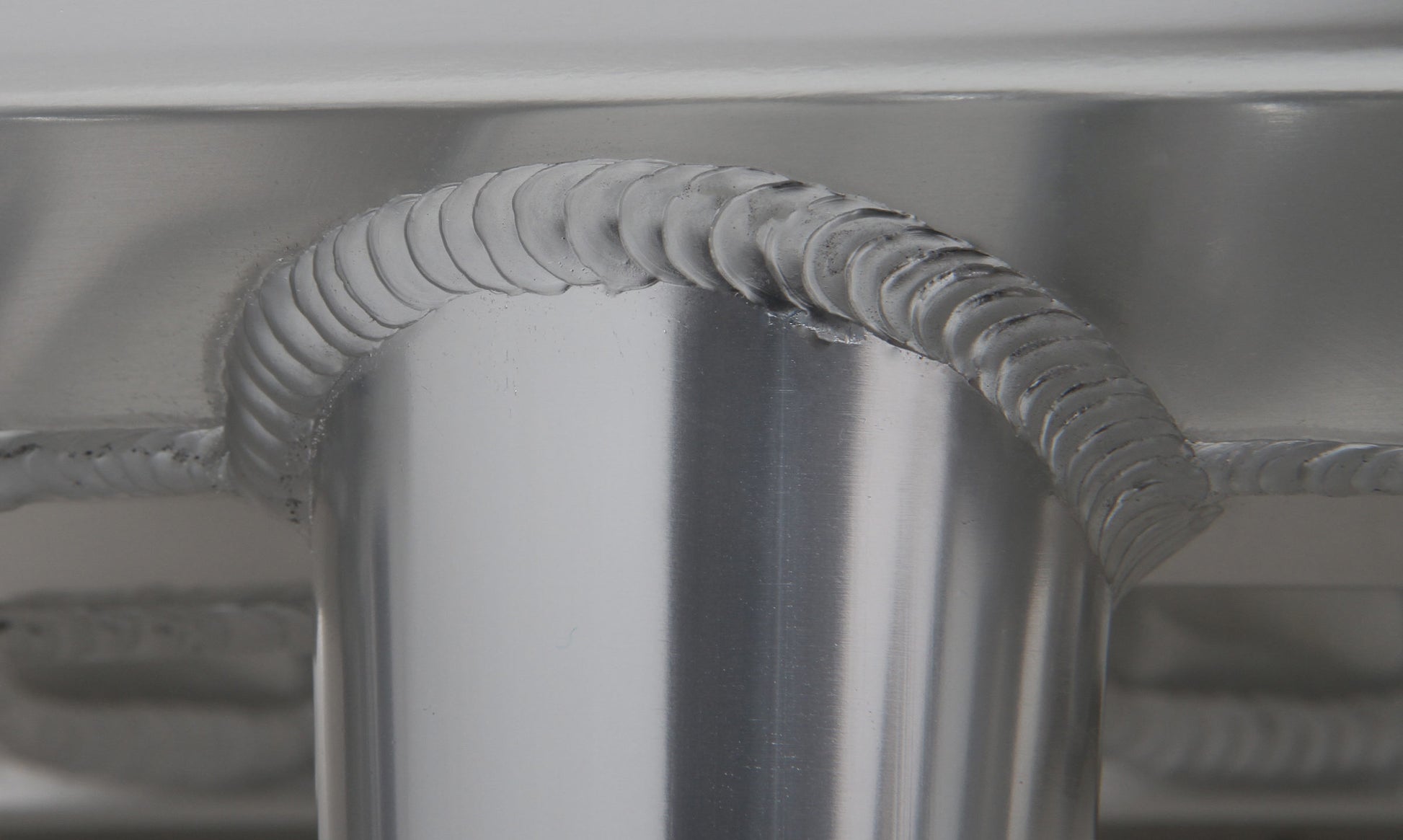

- 100% TIG welded
- Available for EFI and Carbureted applications with custom Holley Sniper logo
- EFI Intakes include 3/8" Fuel rail kits (Sniper logo laser engraved)
- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
- Provision for MAP sensor located on rear of plenum
- The Sniper intake will only accept EV1 style injectors.
Brand: Holley Sniper EFI
Category: Engine
Color: Silver
Construction: Fabricated
Emission Code: 4
Engine: GM LS3/L92
Finish: Silver
Front Height: 7.952 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI

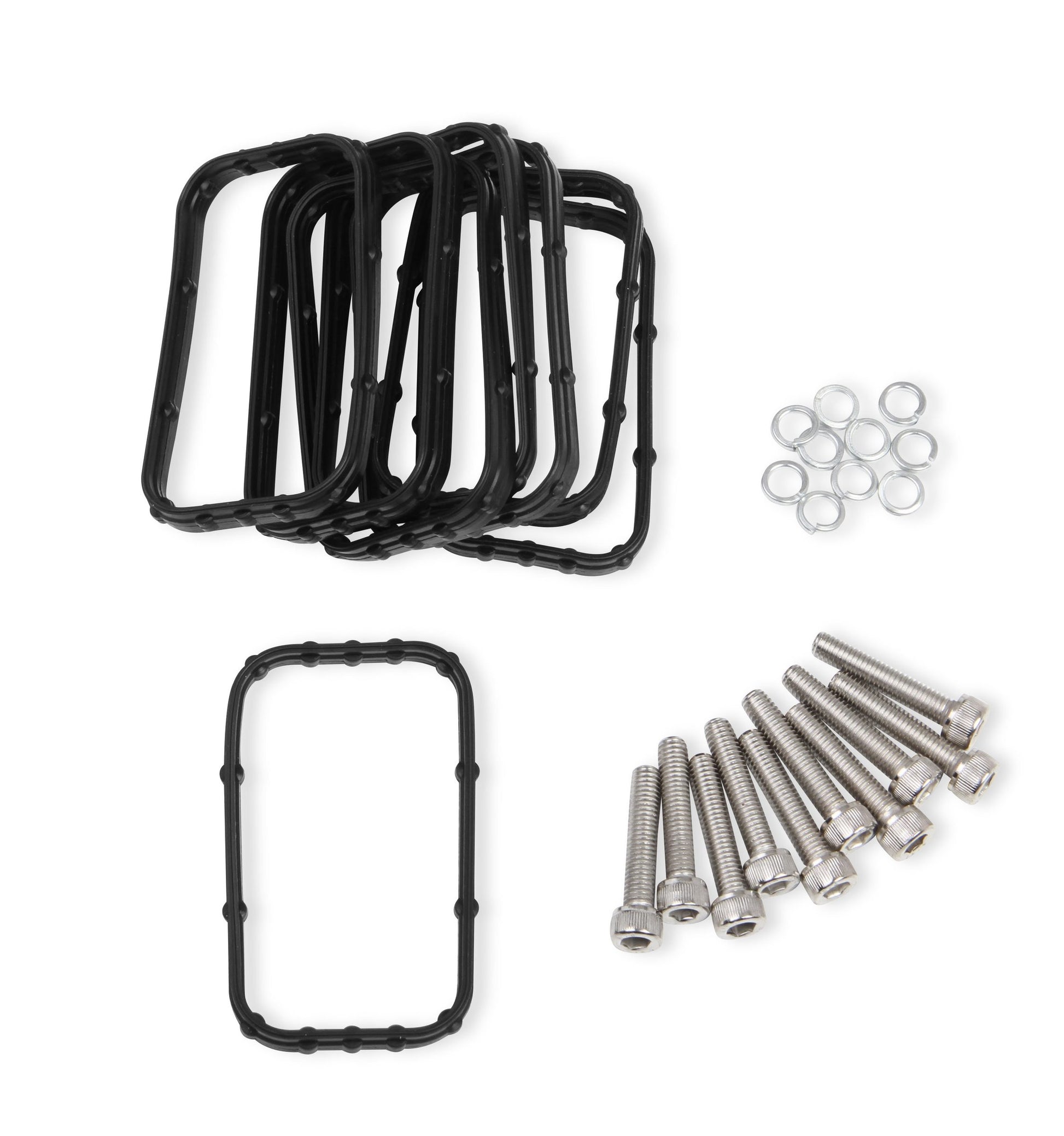

Gasket Or Seal Included: Yes
Injector Style Provision: EV1

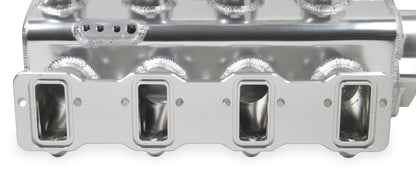

Intake Port Gasket(s) Included: Yes
Manifold Type: Fabricated
part type: Engine Intake Manifold
Product Type: Intake Manifold
Rear Height: 7.165 inch
Recommended Use: Forced Induction
RPM Power Band: 2500-7000 RPM
Runner Length: 5.512" (140mm)
Style: EFI
Sub Category: Cylinder Block Components
Throttle Body Included: No
Throttle Bore: 92mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
