Sniper - 820201
Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm LS1/2/6, Rail Kit - Slvr

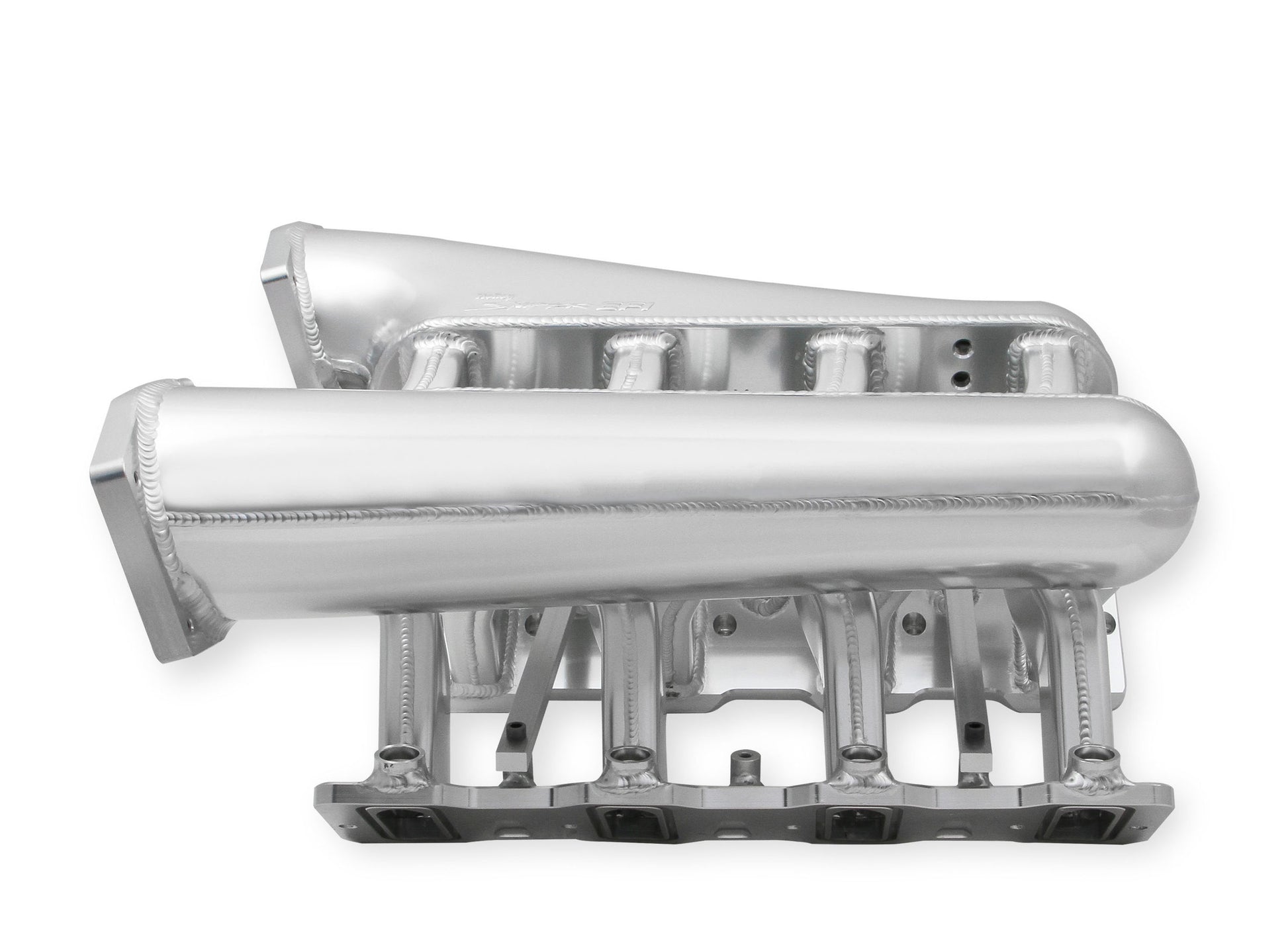

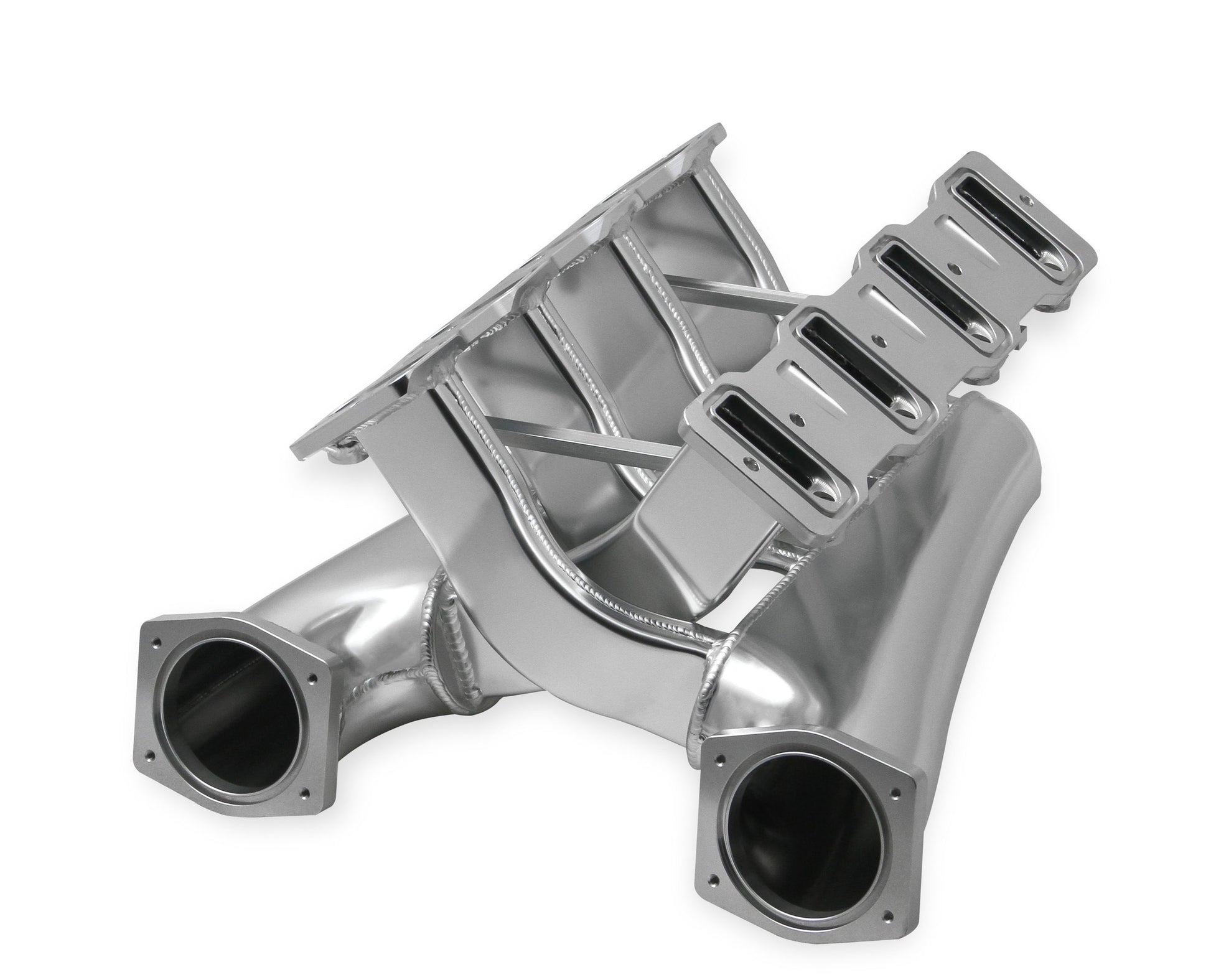

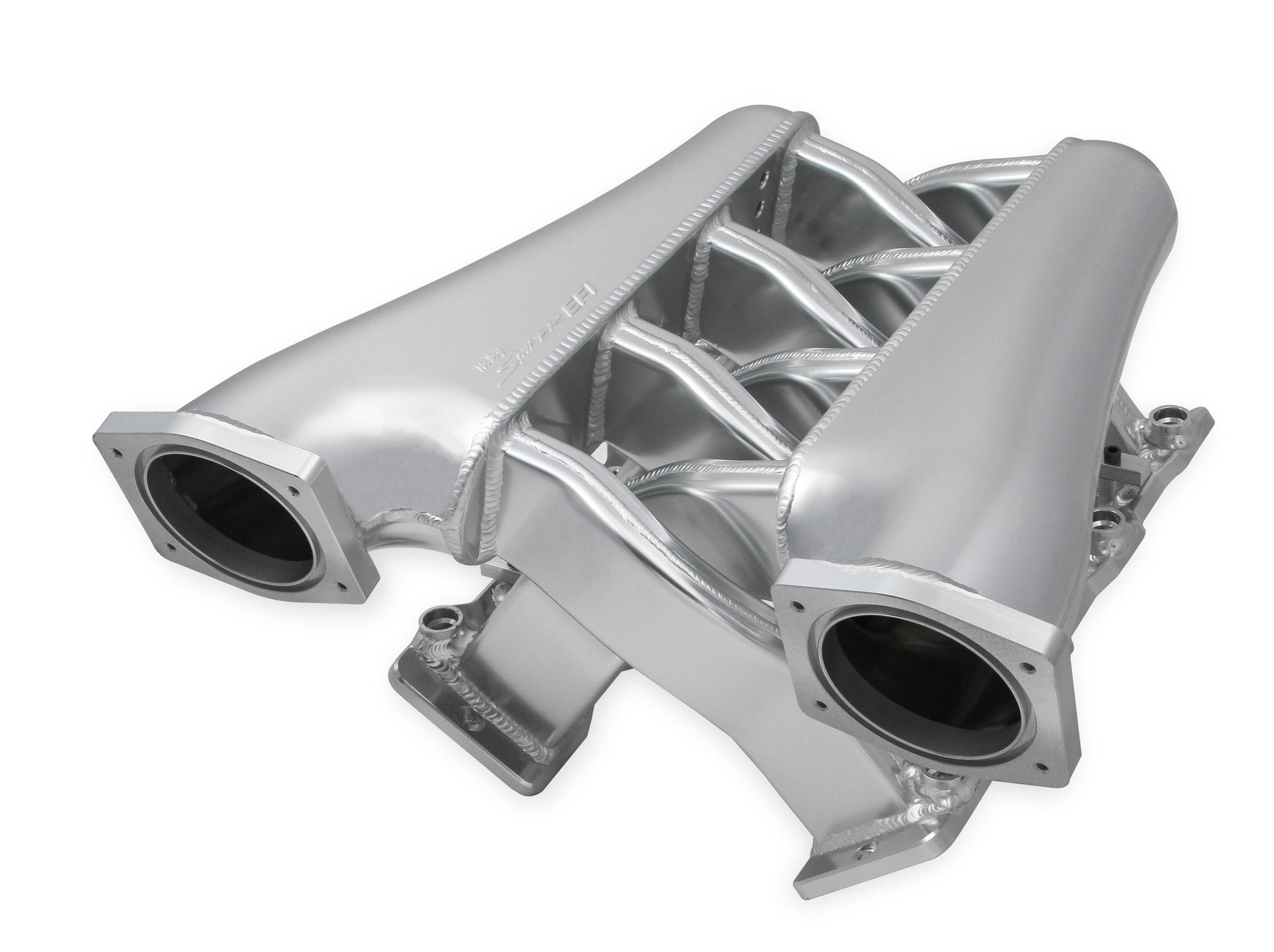

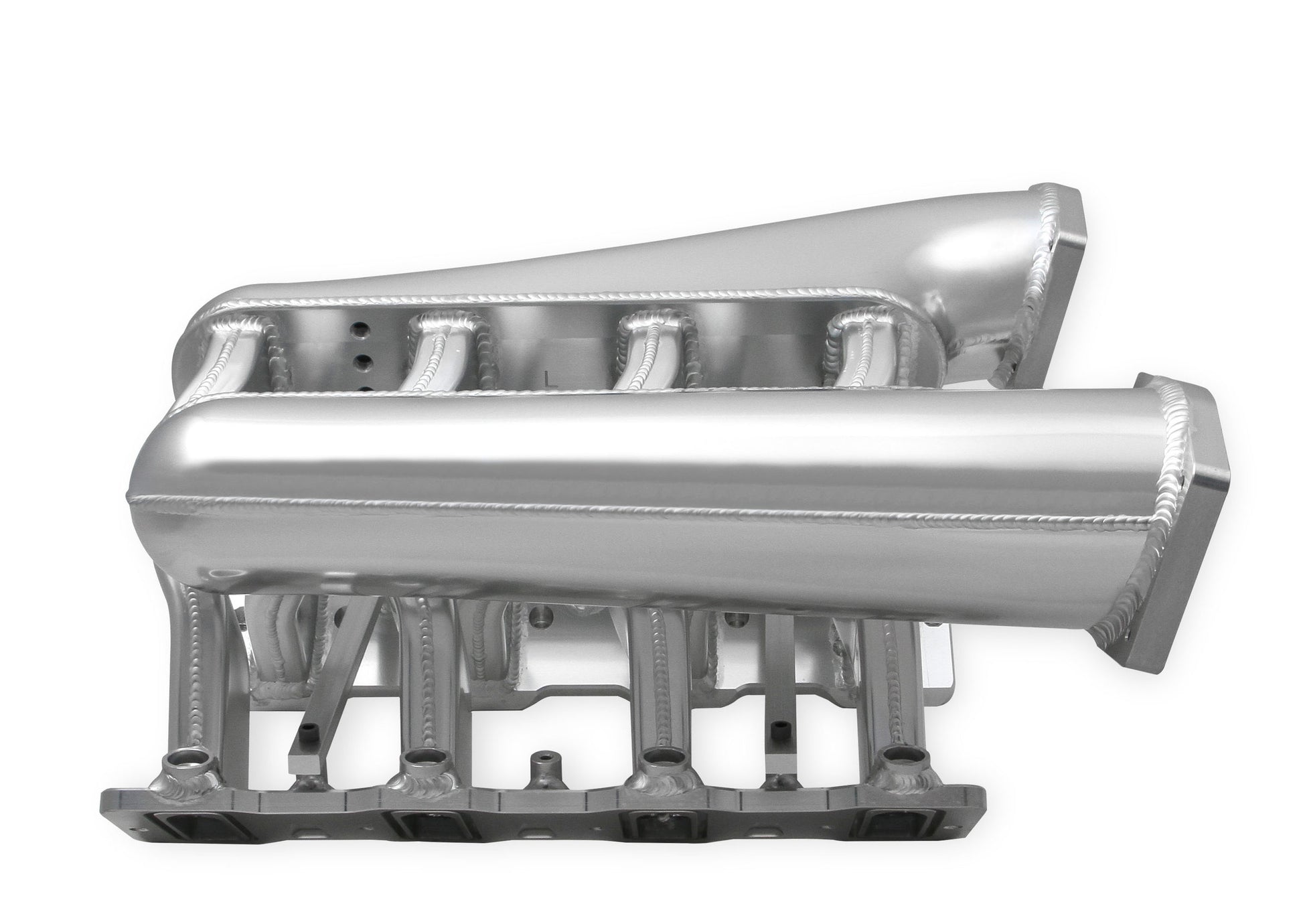

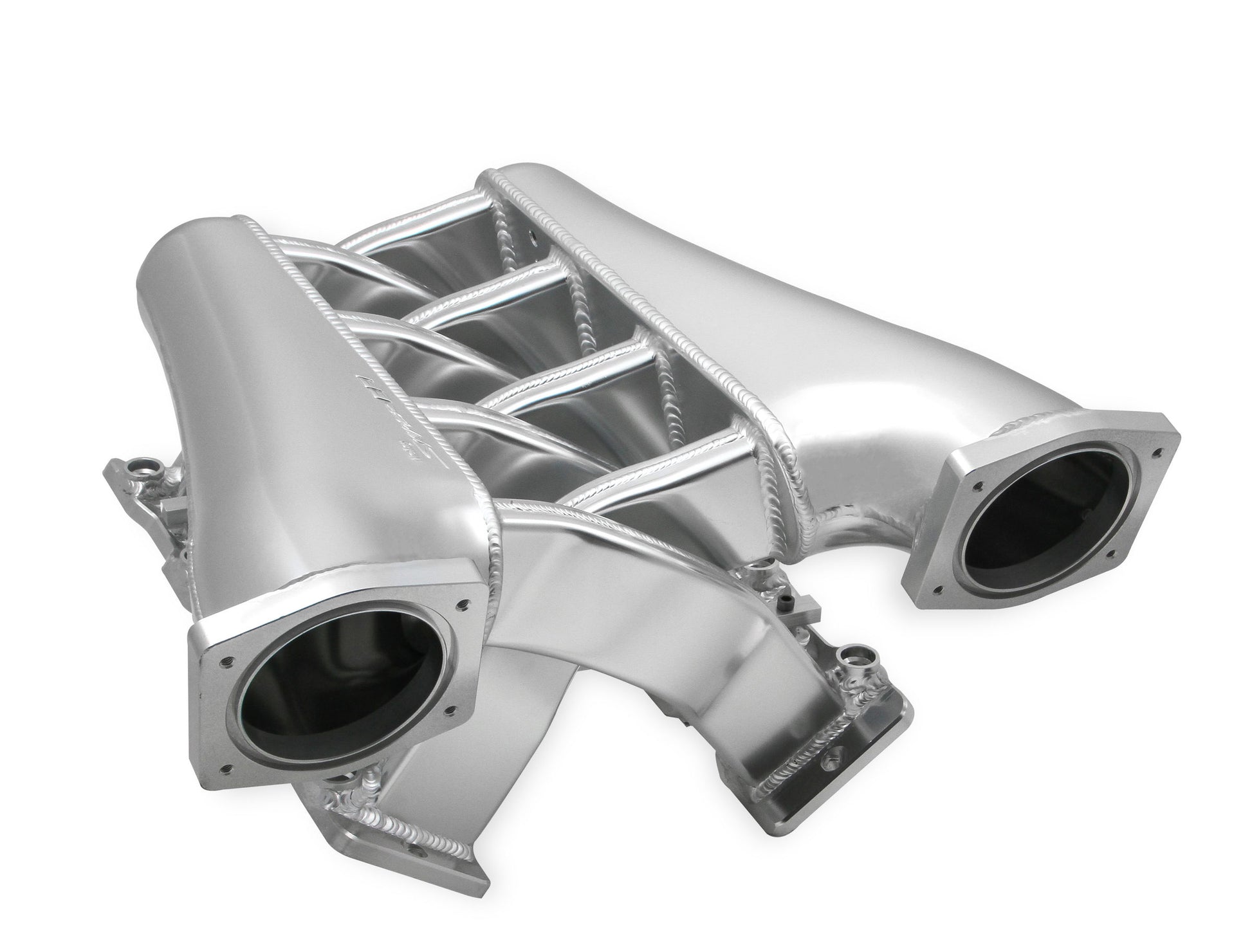

Sniper EFI "Dual Plenum" Intake Manifold 92mm throttle body bore for GM LS1/2/6 engines (Includes installation kit, and fuel rail kit) Silver Finish
These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower.
- Silver finish creates high impact under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

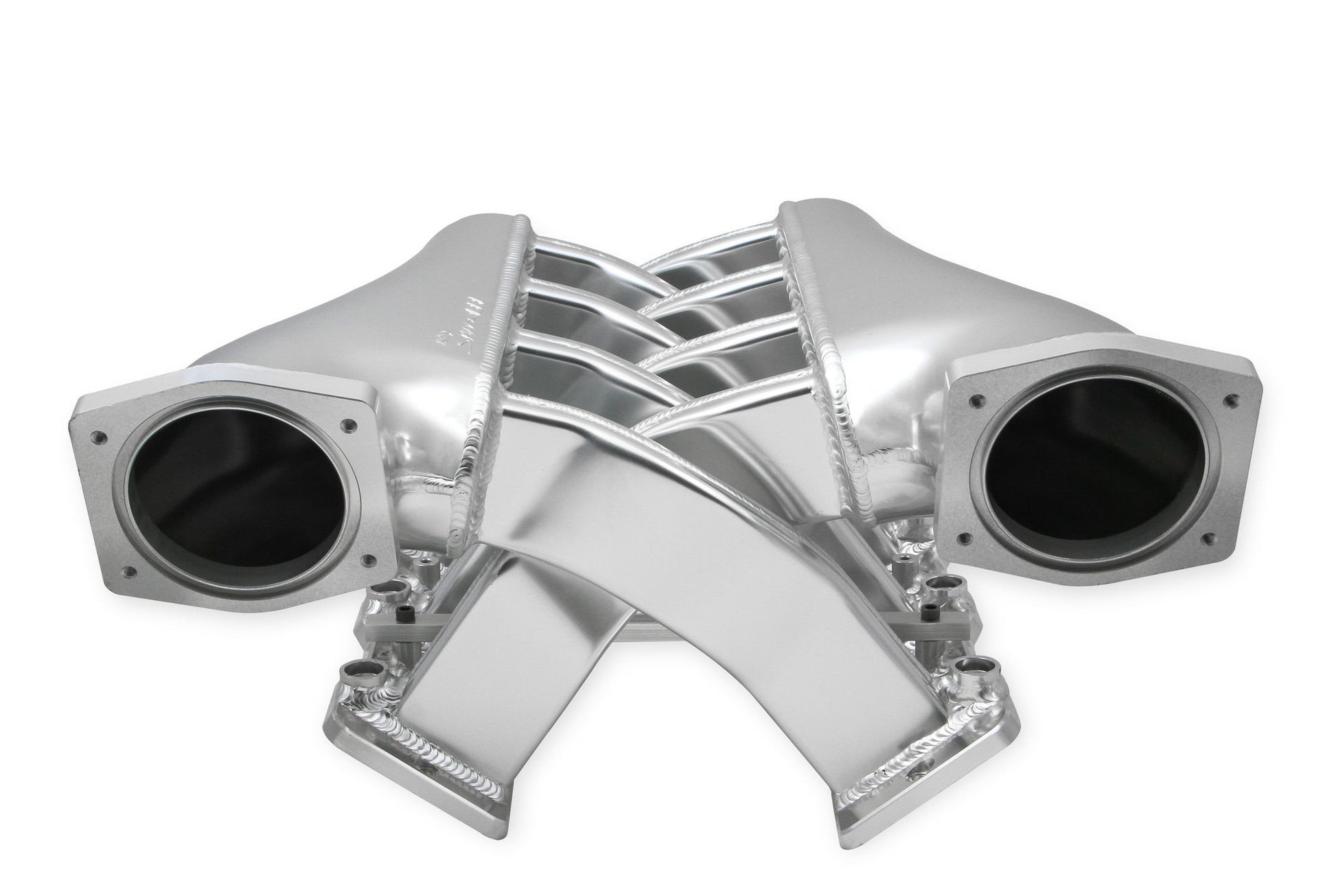

- Twin 92mm throttle bore openings for increased air flow

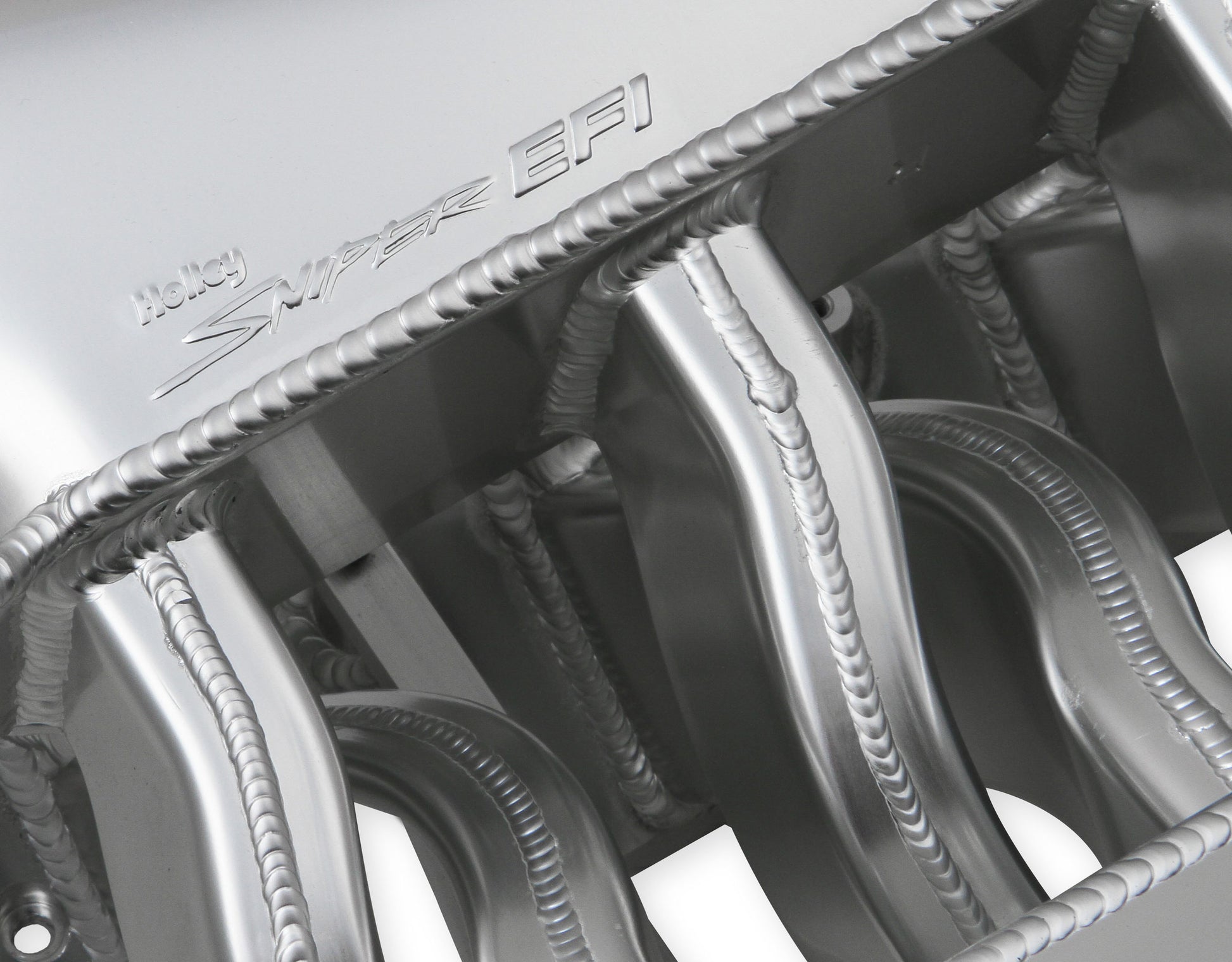

- 100% TIG welded for strength and durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

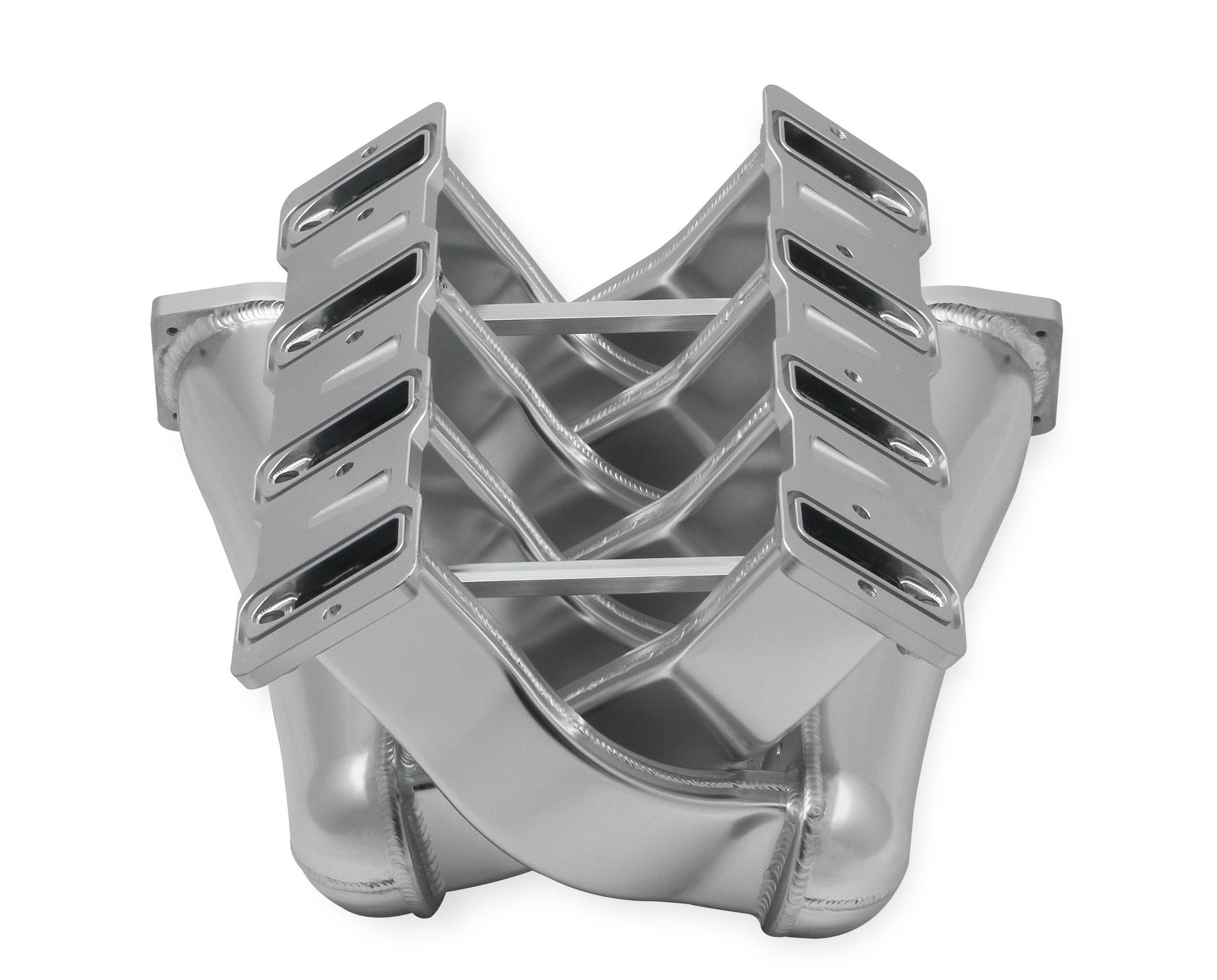

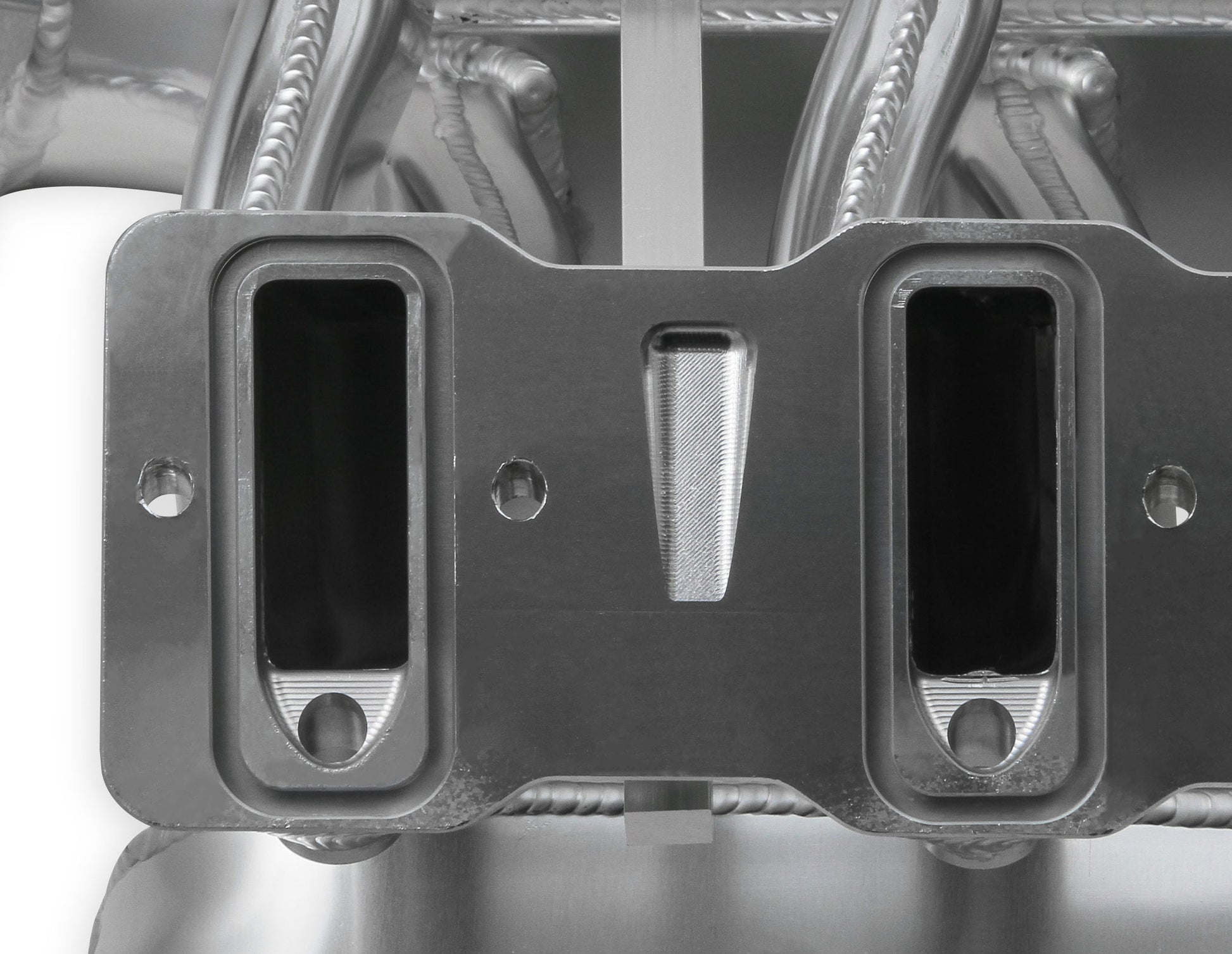

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

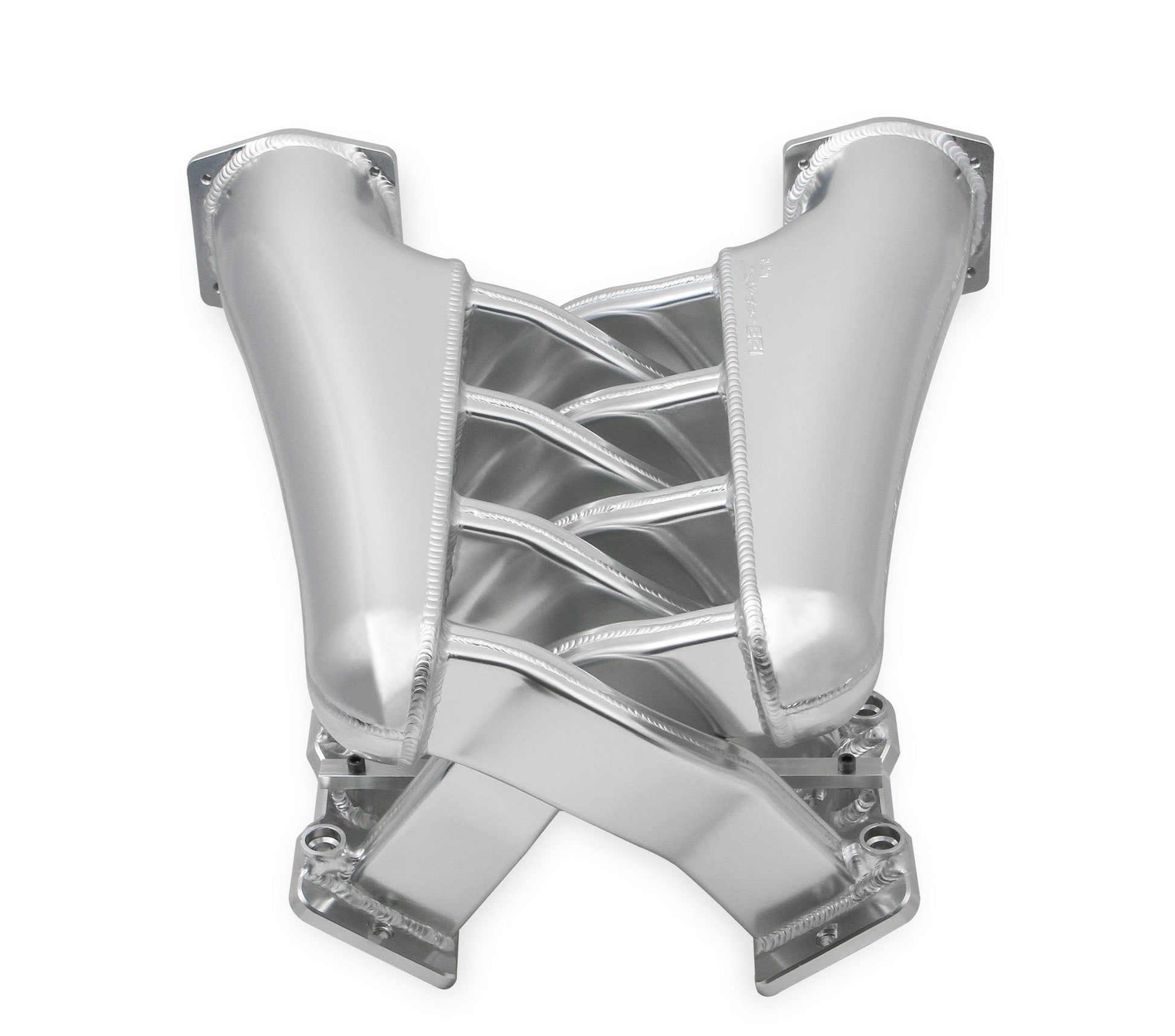

- Dual plenum design ideal for street max effort engines and boosted applications
- Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM
- Long Intake runner lengths (12.75 inchesĀ) offering low end torque and operating range of 1600-6800 RPM
- Product includes all gaskets and hardware for a hassle-free installation
Basic Operating RPM Range: 1500-6500 RPM
Brand: Holley Sniper EFI
Category: Sniper EFI Intakes
Color: Silver
Construction: Fabricated
EGR Port: No
Emission Code: 4
Engine: GM LS1/LS2/LS6
Finish: Silver
Front Height: 11.082 inch
Front Maximum Height: 11.802 IN
Front Width: 19.4292 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Style Provision: LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR
Intake Port Gasket(s) Included: No
Manifold Type: Fabricated
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Polished
Product Type: Intake Manifold
Rear Height: 9.738 inch
Rear Maximum Height: 9.738 IN
Rear Width: 13.2844 inch
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
RPM Power Band: 1500-6500 RPM
Runner Length: 4.921" (125mm)
Single Or Dual Plane Type: Single Plane
Style: EFI
Throttle Body Bore Diameter: 92 MM
Throttle Body Included: No
Throttle Bore: 92mm
Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
