Sniper - 820101-1

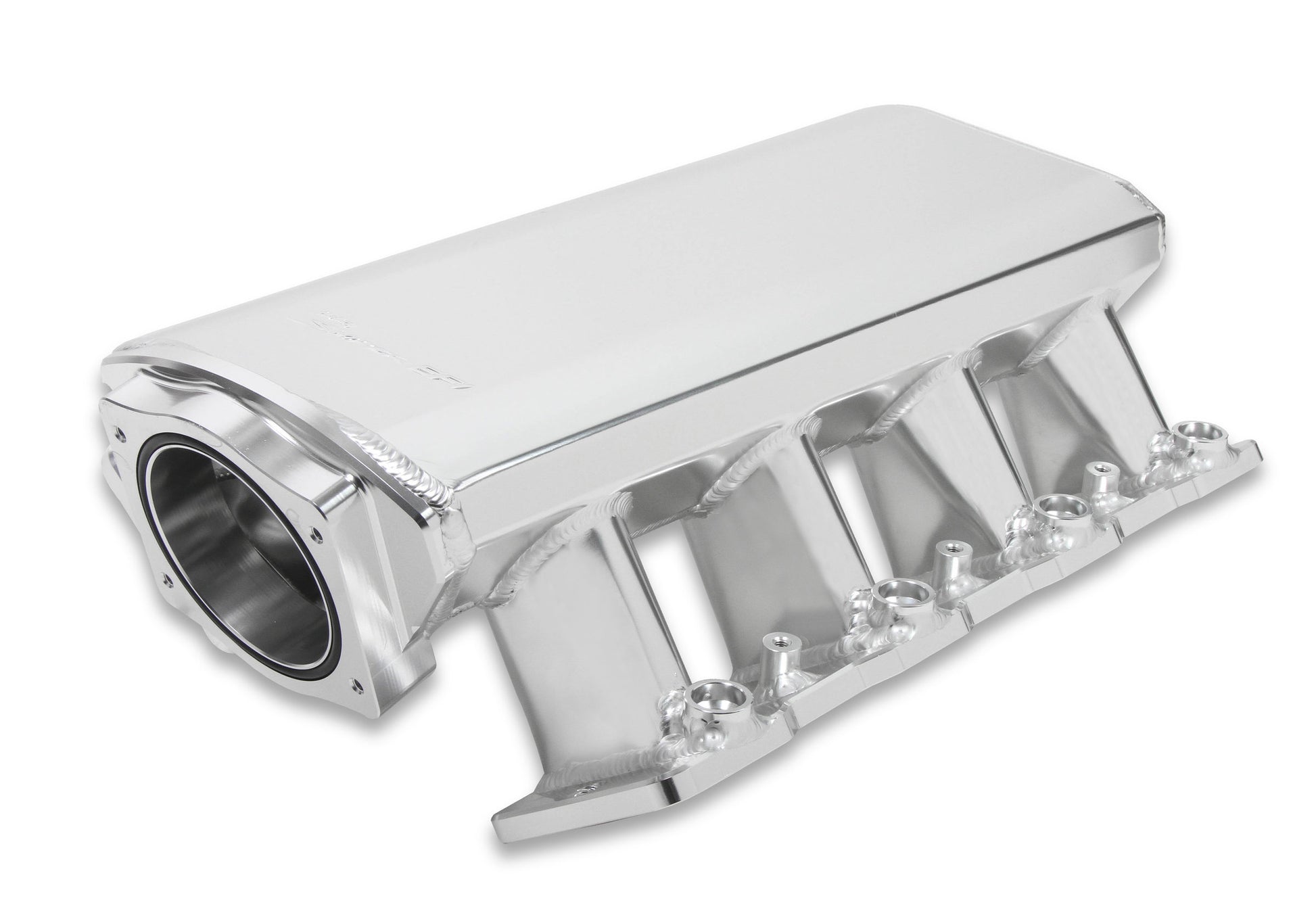

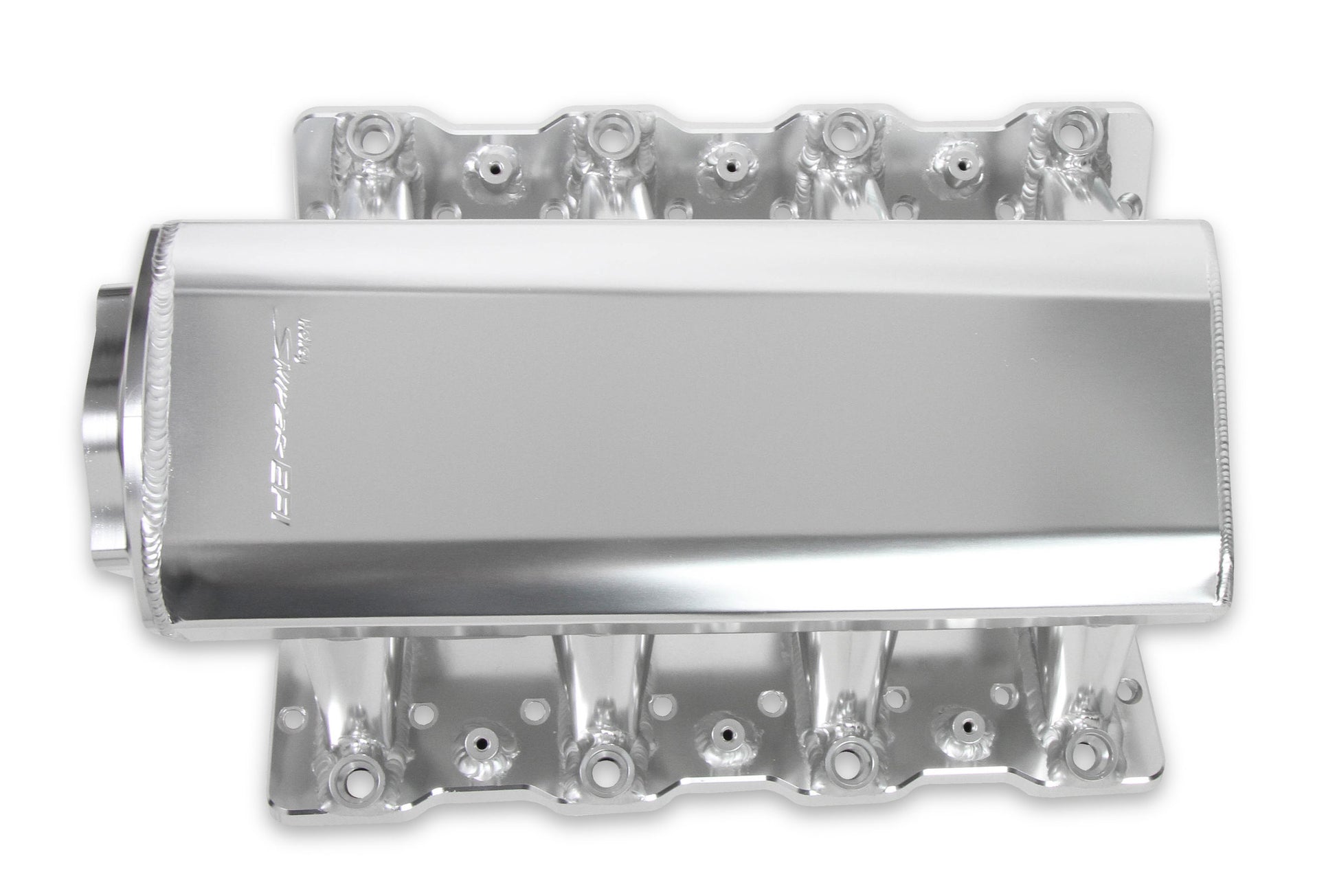

Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS1/LS2/LS6
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available
- Silver finish creates high impact under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

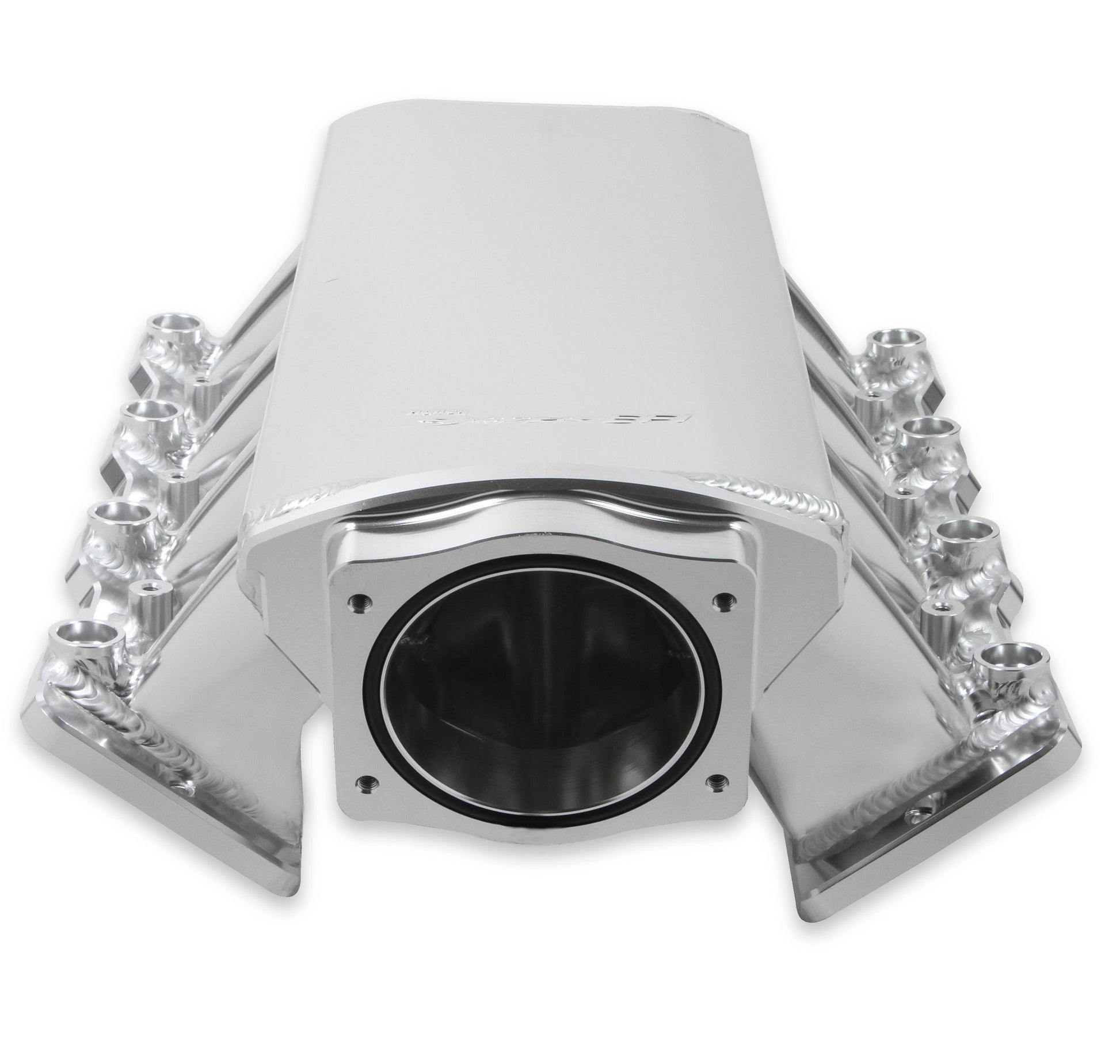

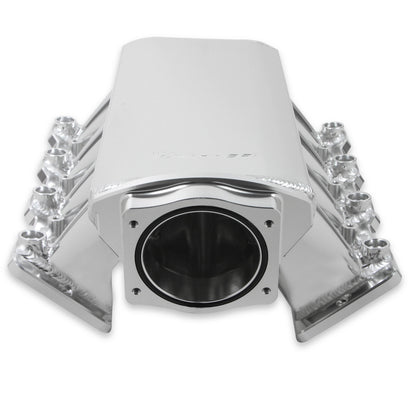

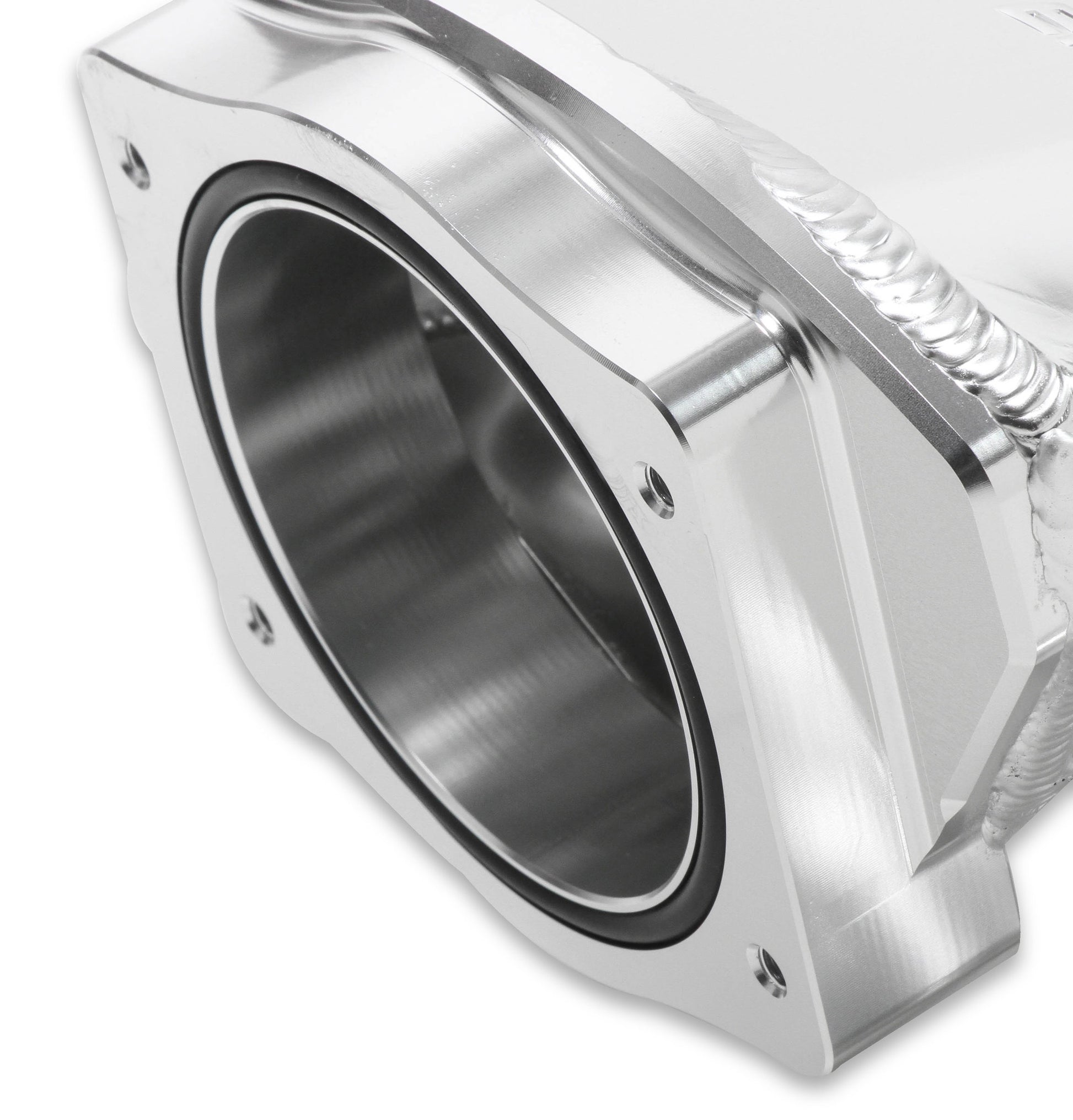

- 92mm throttle bore opening for increased air flow

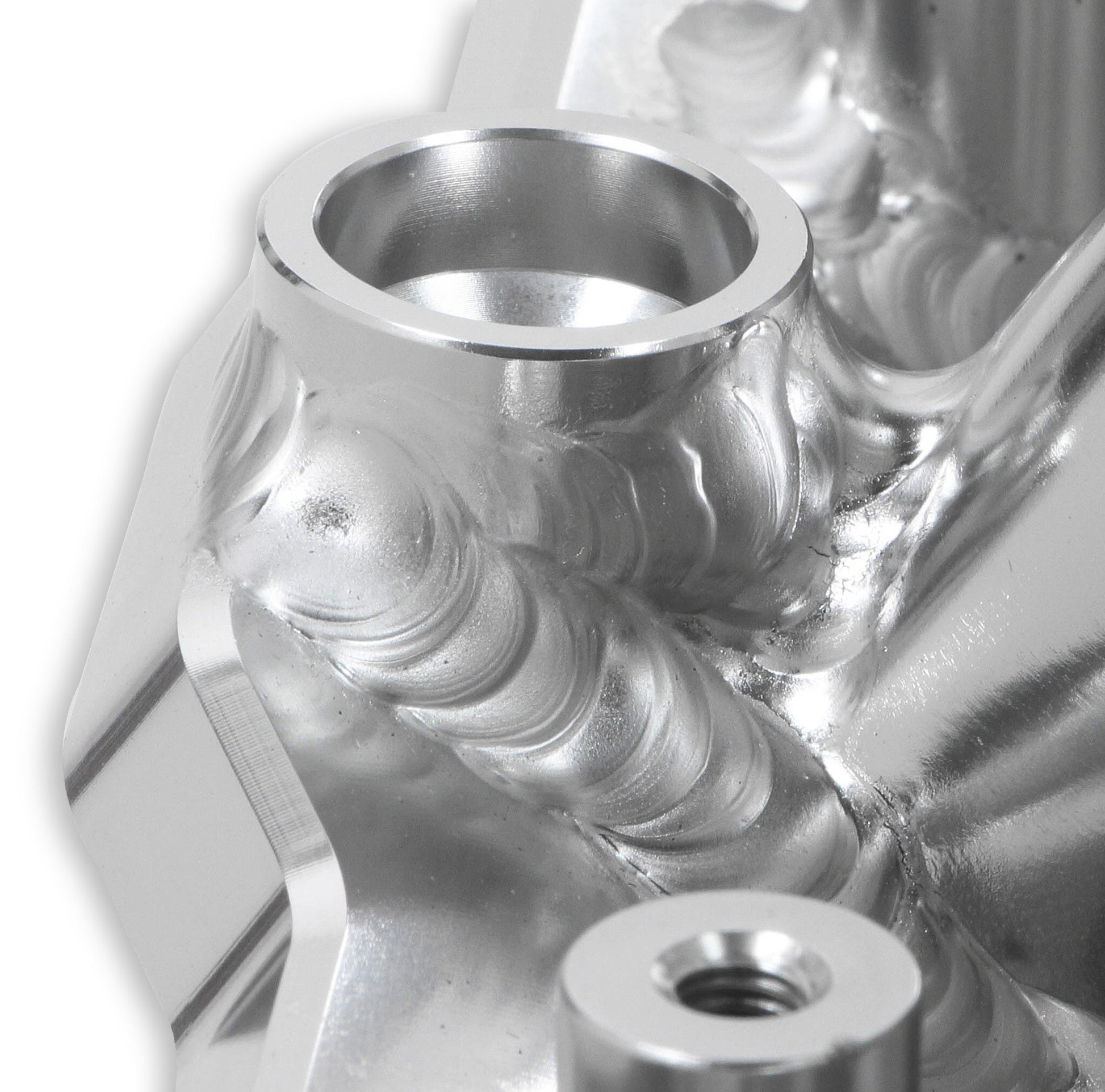

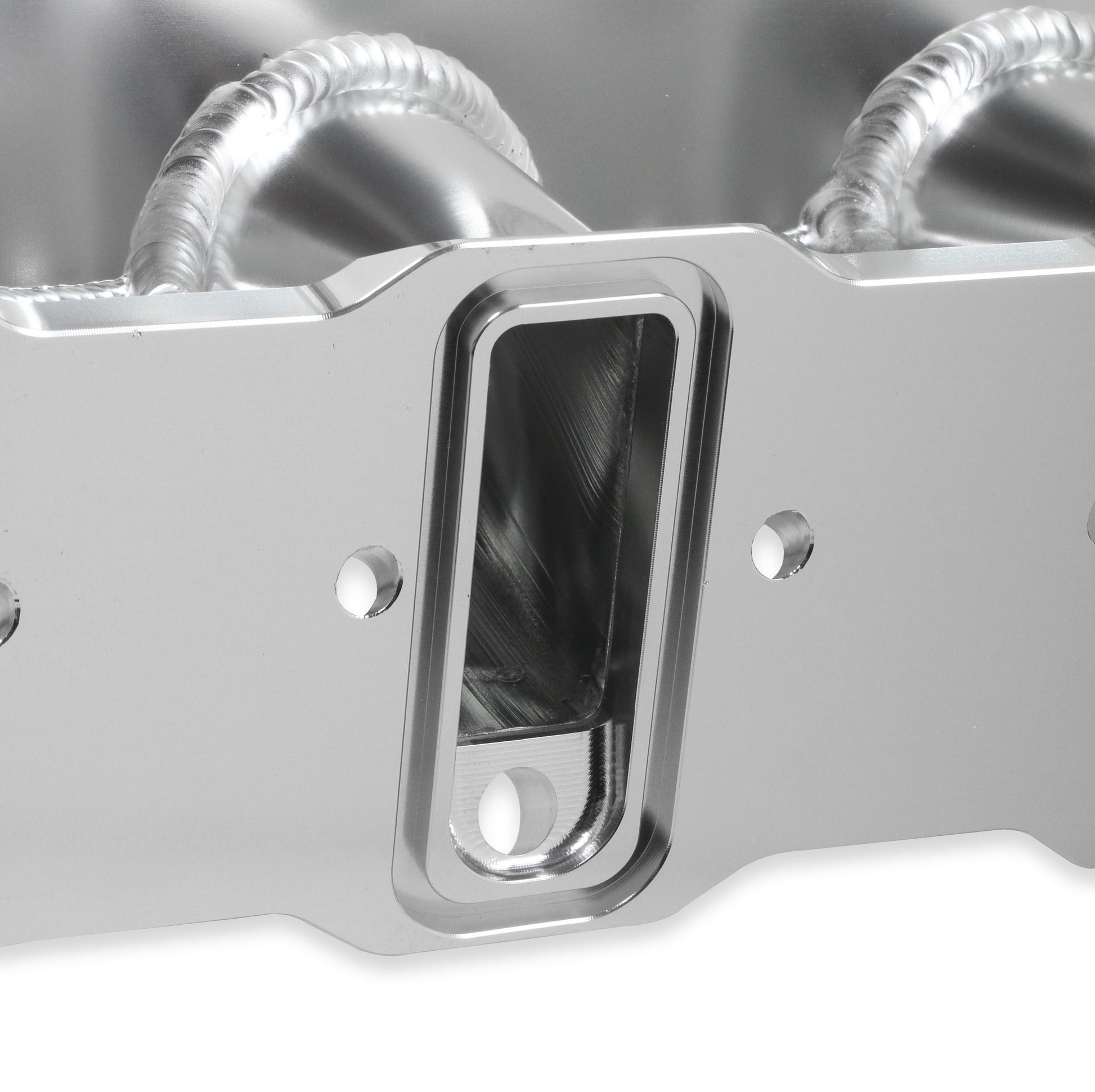

- 100% TIG welded for strength and durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

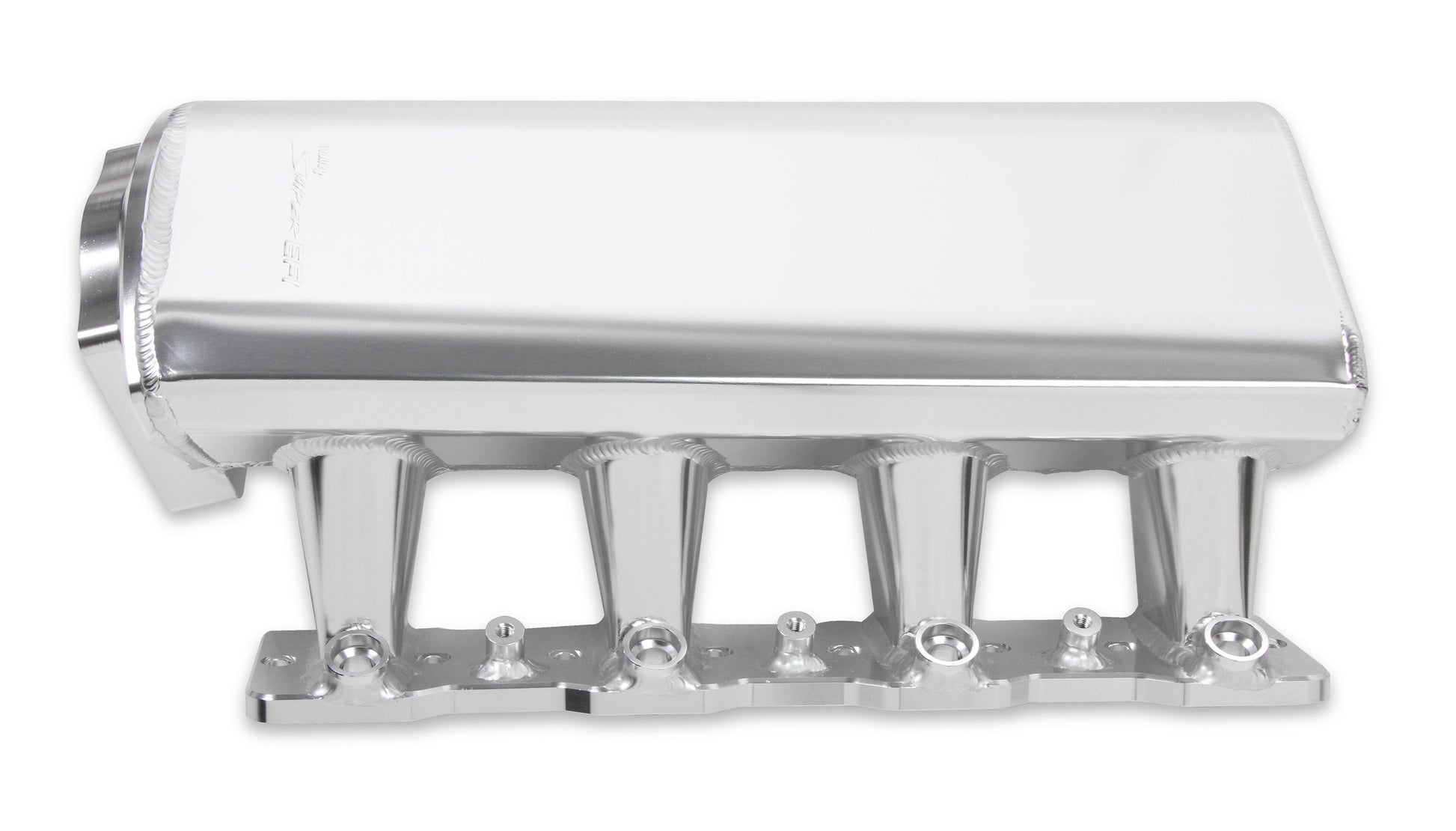

- Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum

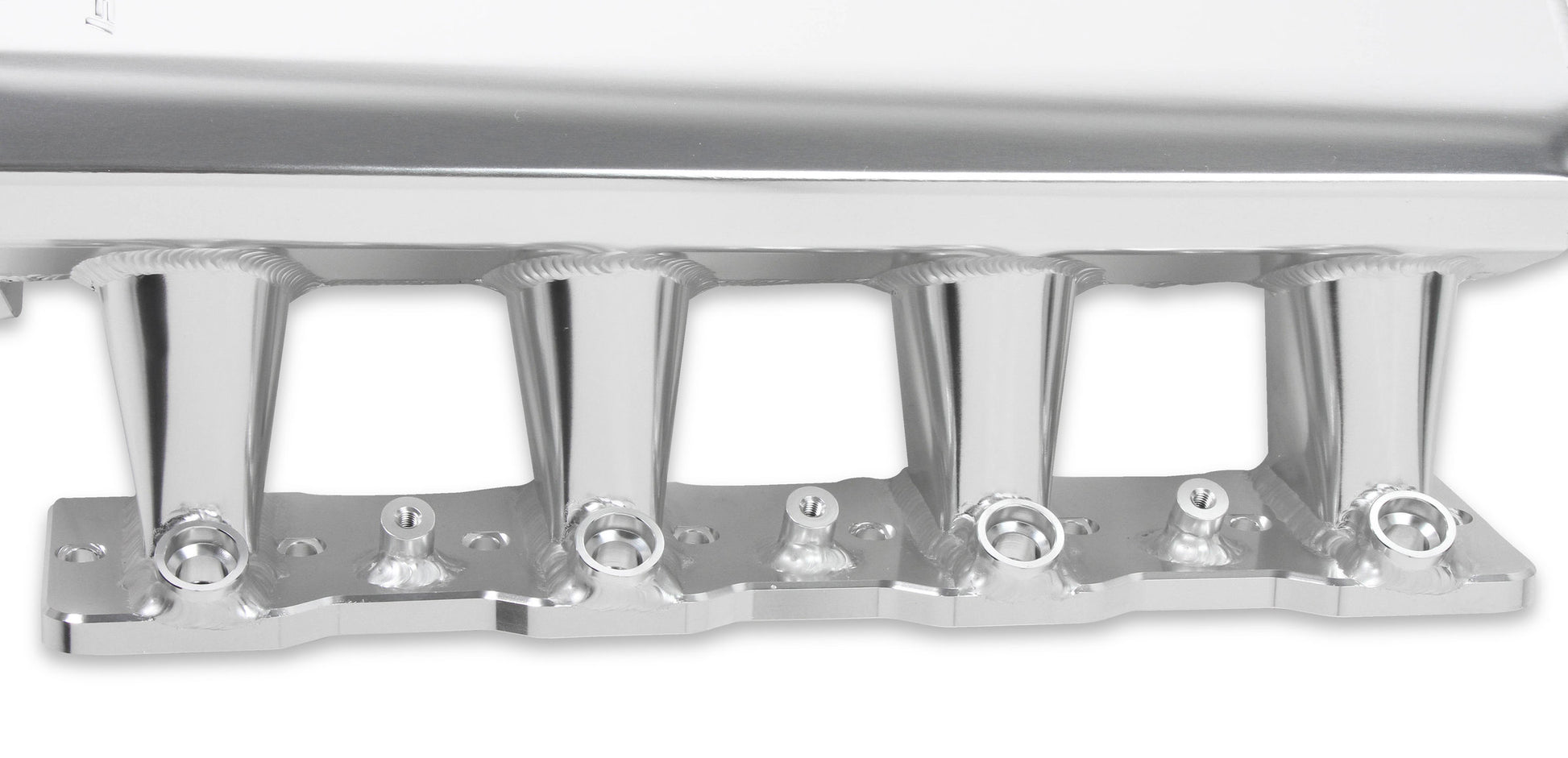

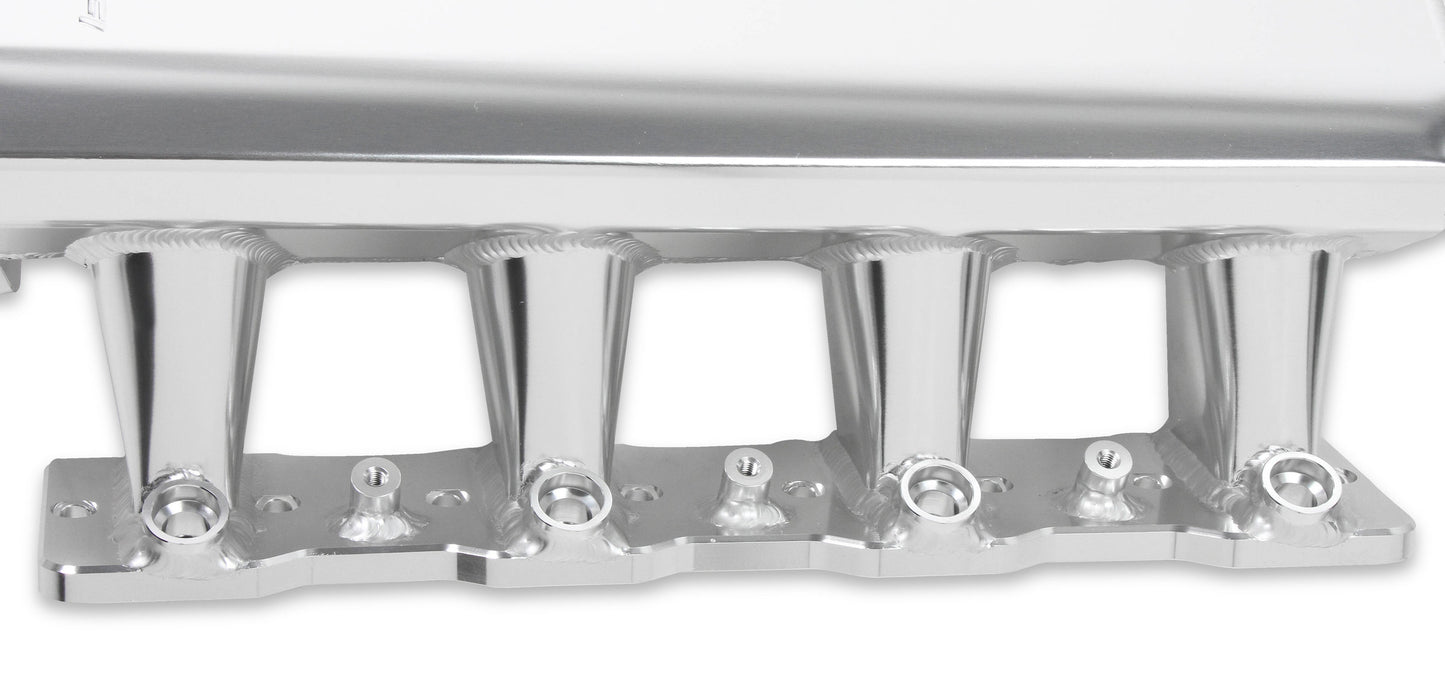

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Provision for MAP sensor located on rear of plenum
- Product includes all gaskets and hardware for a hassle-free installation
- The Sniper intake will only accept EV1 style injectors.
Brand: Holley Sniper EFI
Category: Engine
Color: Silver
Construction: Fabricated
Emission Code: 4
Engine: GM LS1/LS2/LS6
Finish: Silver
Front Height: 6.392 inch
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Injector Style Provision: EV1
Intake Port Gasket(s) Included: Yes
part type: Engine Intake Manifold
Product Type: Intake Manifold
Rear Height: 5.684 inch
Recommended Use: Forced Induction
RPM Power Band: 1500-6500 RPM
Runner Length: 4.527" (115mm)
Style: EFI
Sub Category: Cylinder Block Components
Throttle Bore: 92mm

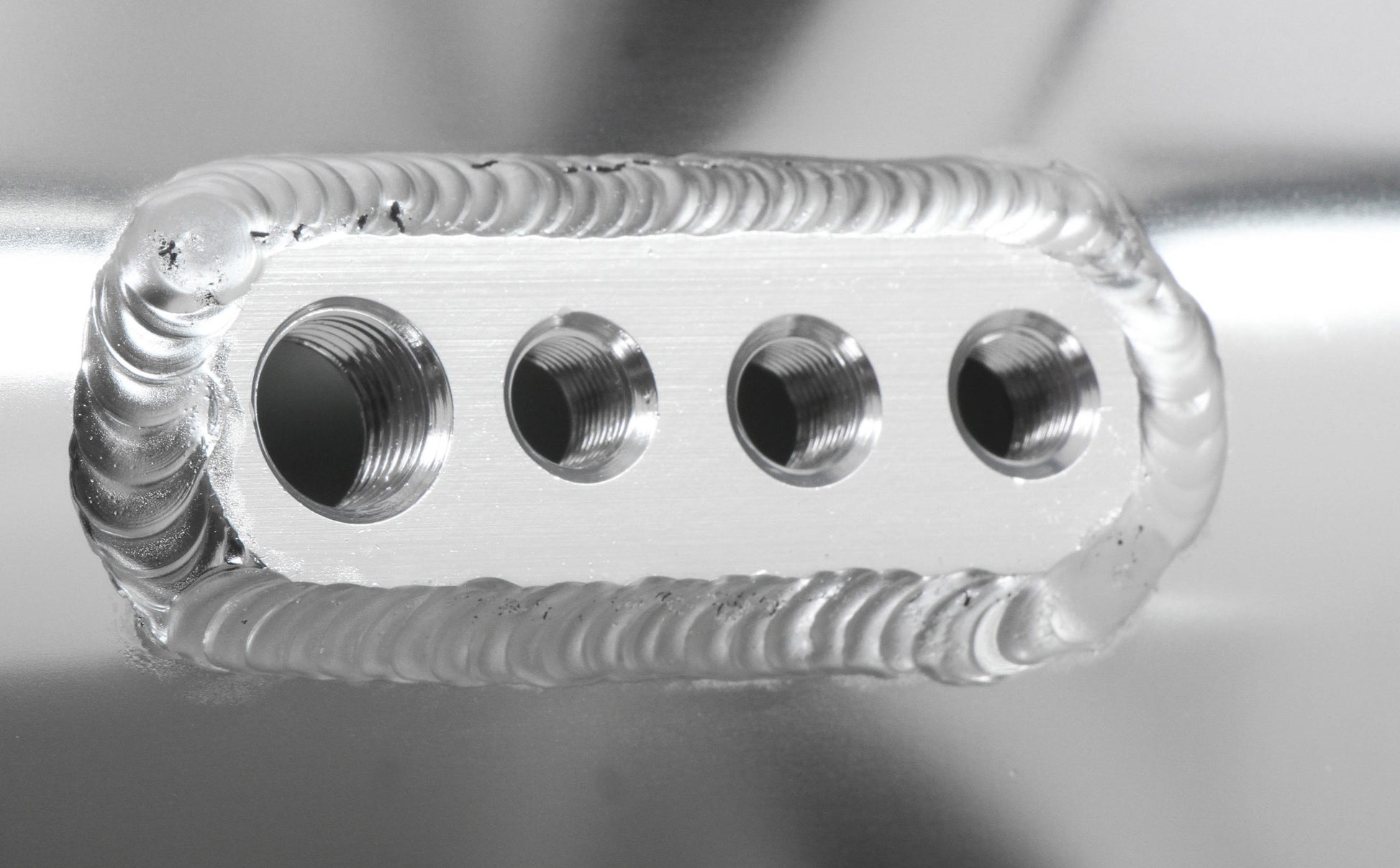

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
