Sniper 820042-1 - EFI Intakes

Sniper 820042-1 - EFI Intakes

Sniper | 820042-1
SKU: SNIP-820042-1

$849.95 USD

~~$956.95 USD~~ $849.95 USD

Sale Sold out

Shipping calculated at checkout.

15 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Sniper 820042-1 - EFI Intakes

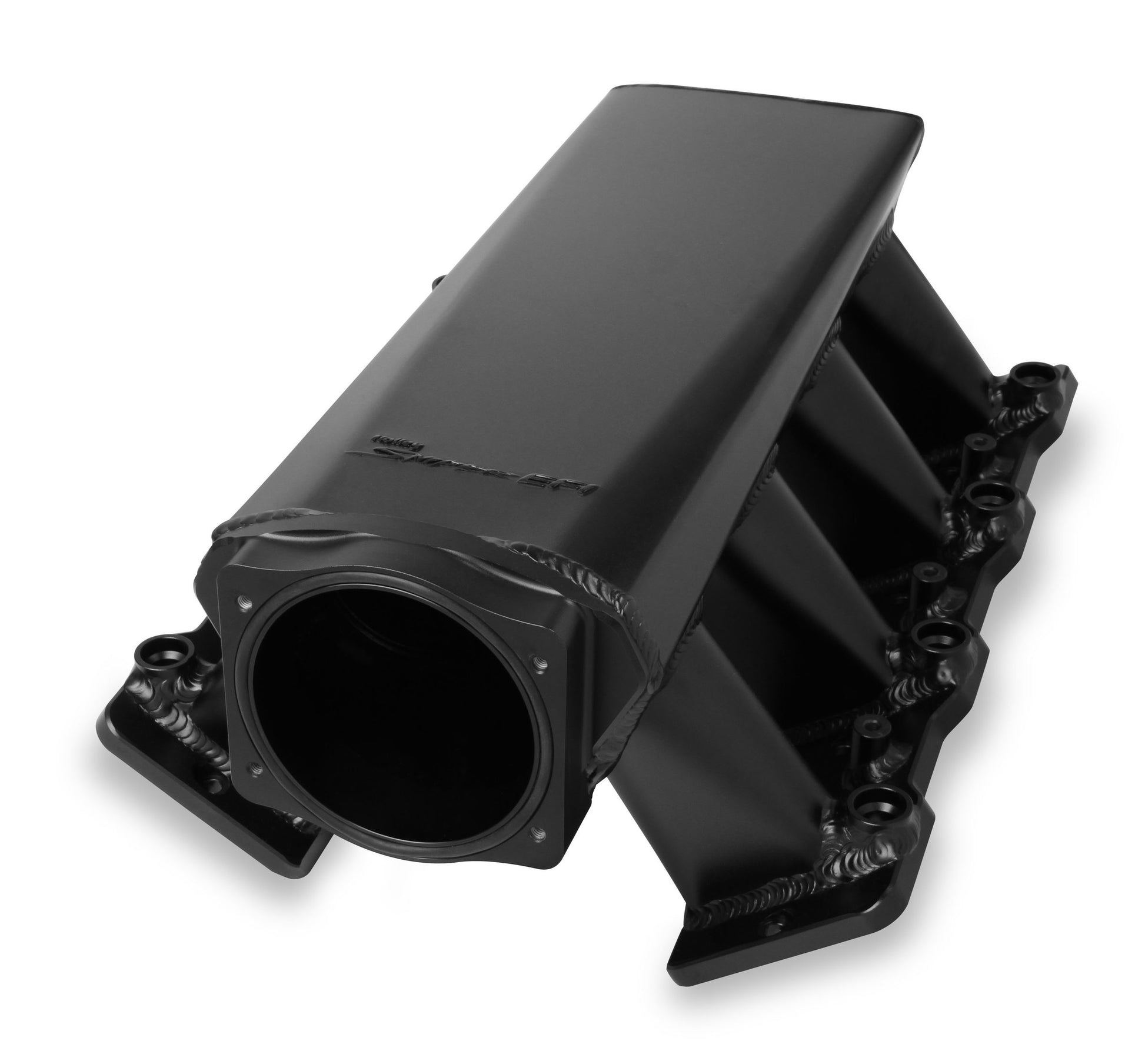

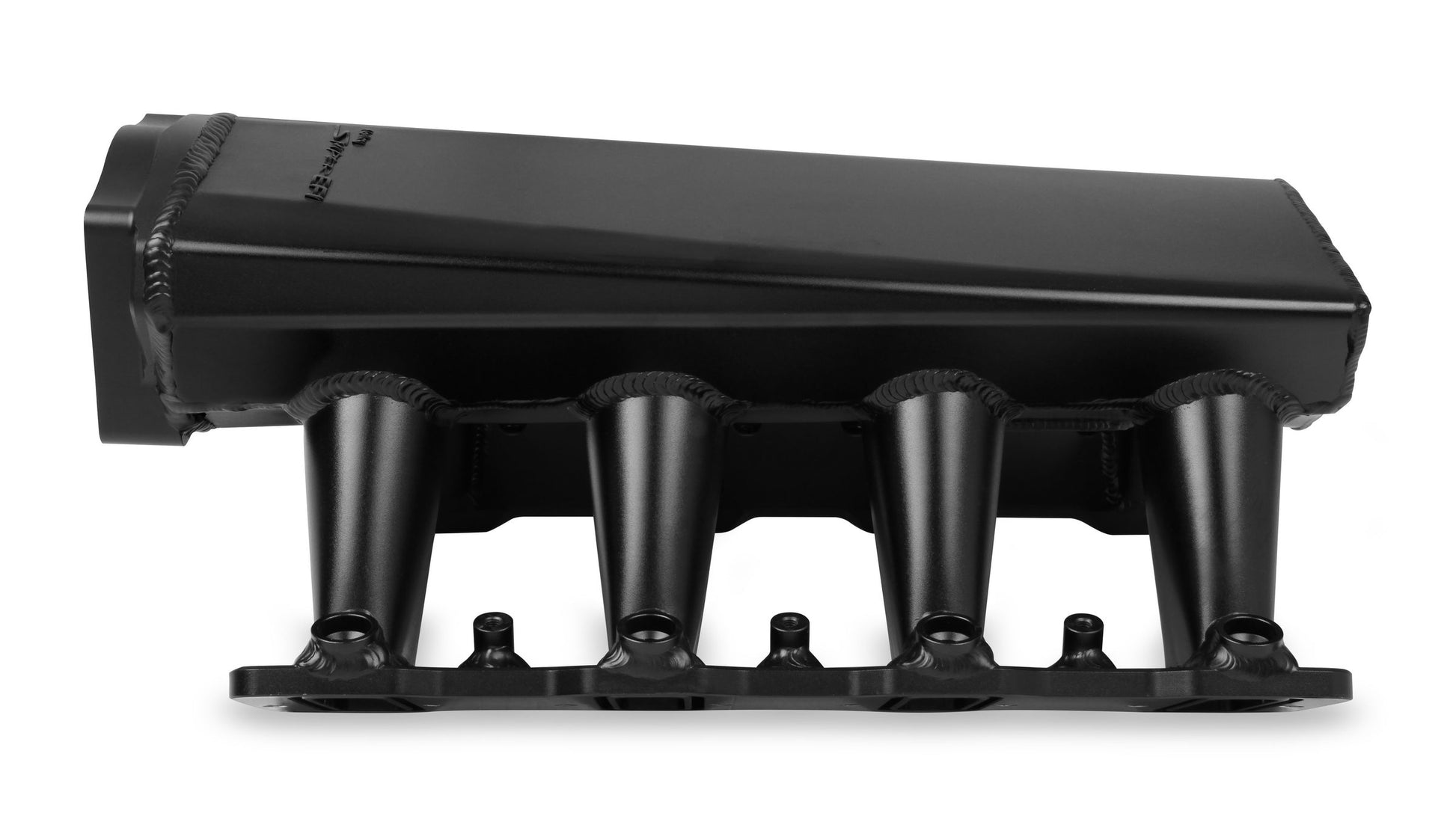

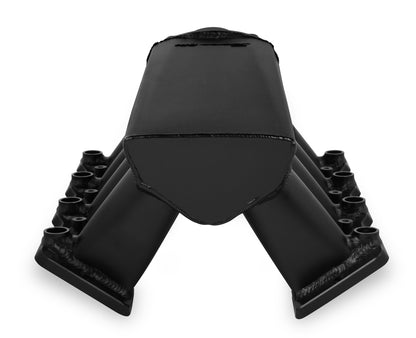

Sniper EFI Sheet Metal Fabricated Intake Manifold

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo

Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent

Product includes all gaskets and hardware for a hassle-free installation
Black Finish creates stealthy under-hood styling

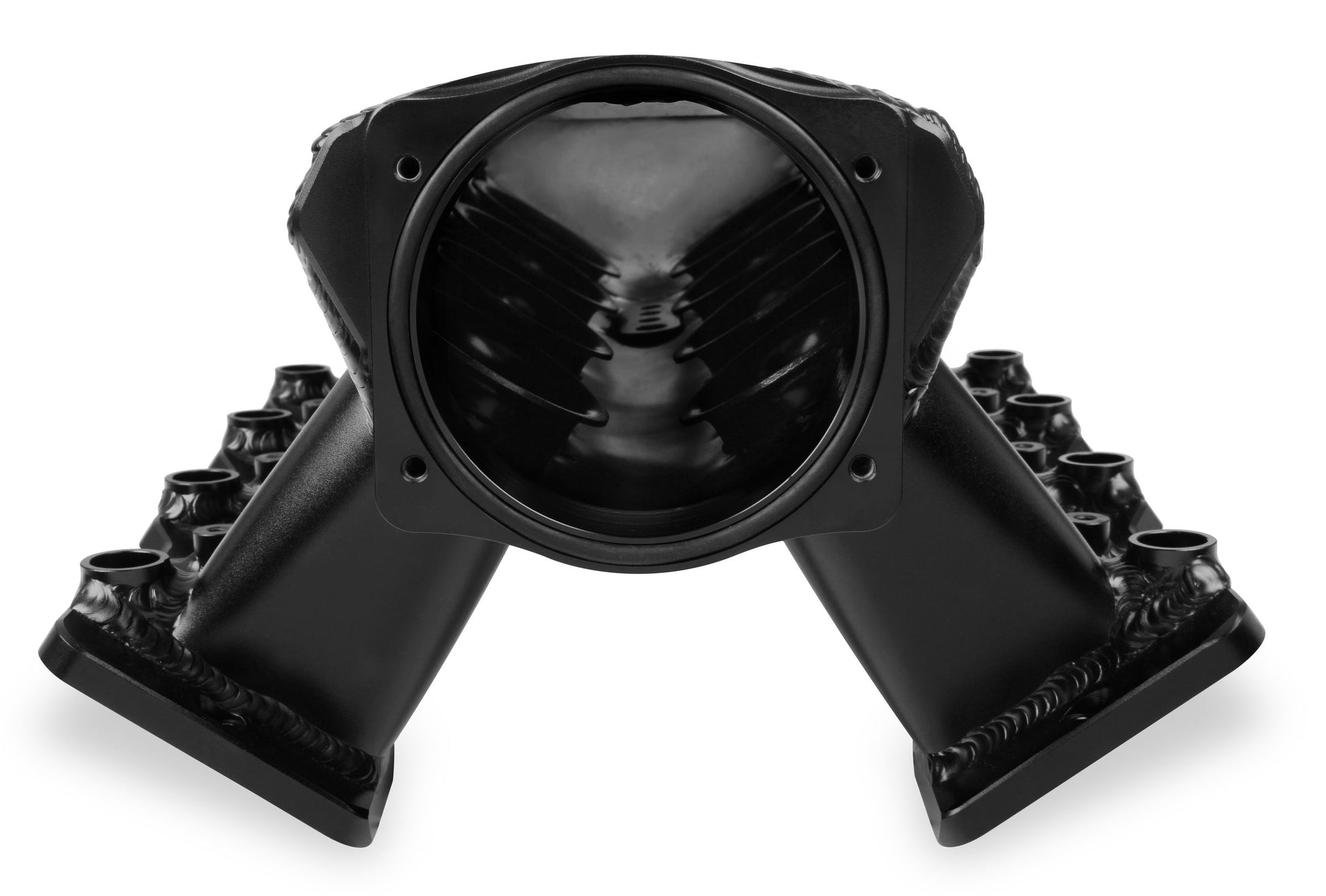

102mm throttle bore opening for increased air flow

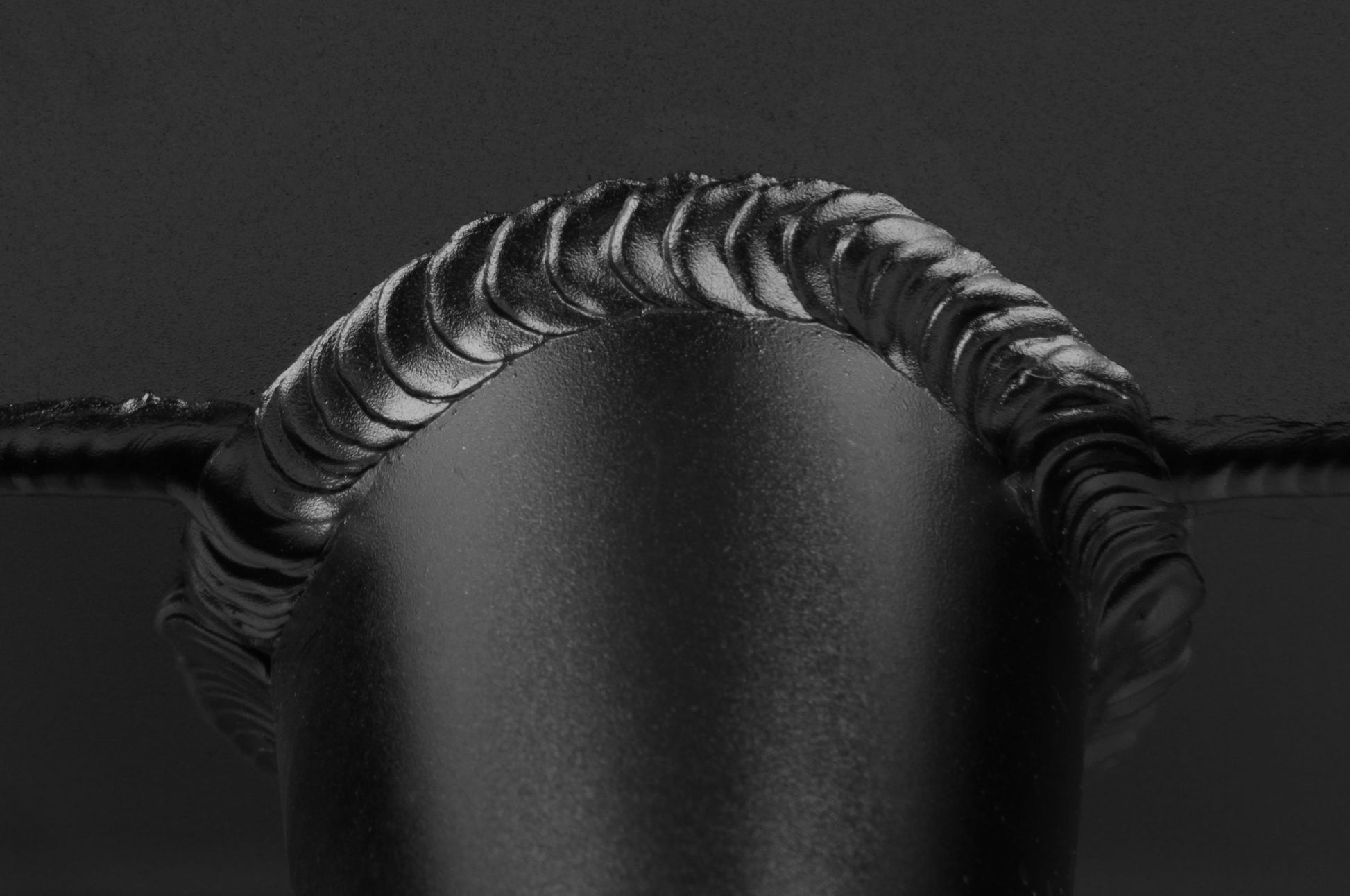

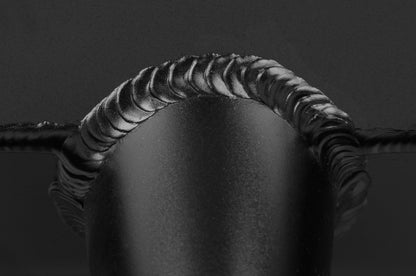

100% TIG welded for strength and durability
3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
The Sniper intake will only accept EV1 style injectors.
Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

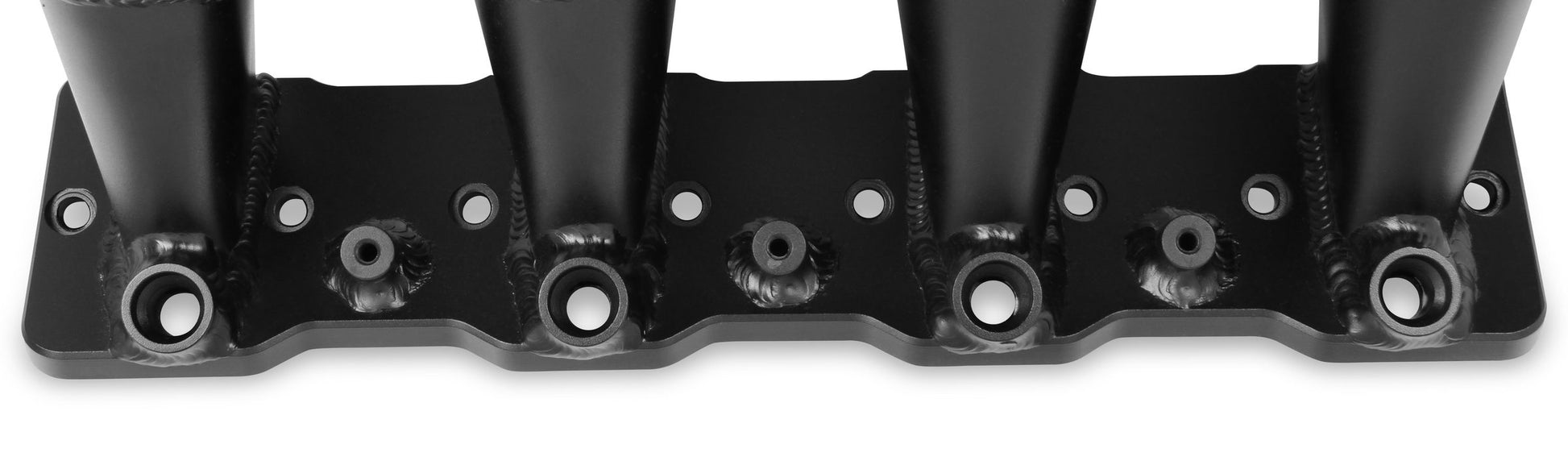

Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

Basic Operating RPM Range: 2200-6800

Brand: Holley Sniper EFI

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: No

Category: Engine

CNC Ported: No

Color: Black

Construction: Fabricated

Cylinder Head Port Shape: Cathedral

Deck Height: 9.24

EGR Port: No

Emission Code: 4

Engine: GM Gen III/IV (LS)

Flange Style: N/A

Front Maximum Height: 8.267

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Fuel System Type: EFI

Gasket Or Seal Included: Yes

Grade Type: Performance

Injector Style Provision: EV1

Intake Port Gasket(s) Included: Yes

Manifold Type: Fabricated

Material: Aluminum

Nitrous Bung(s) Included: No

part type: Engine Intake Manifold

Plenum Finish: Black

Product Type: Intake Manifold

Rear Maximum Height: 7.559

Removable Runners: No

Removable Top/Lid: No

Runner Length: 4.921" (125mm)

Single Or Dual Plane Type: Single Plane

Sub Category: Cylinder Block Components

Throttle Body Bore Diameter: 102

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Throttle Bore: 102mm

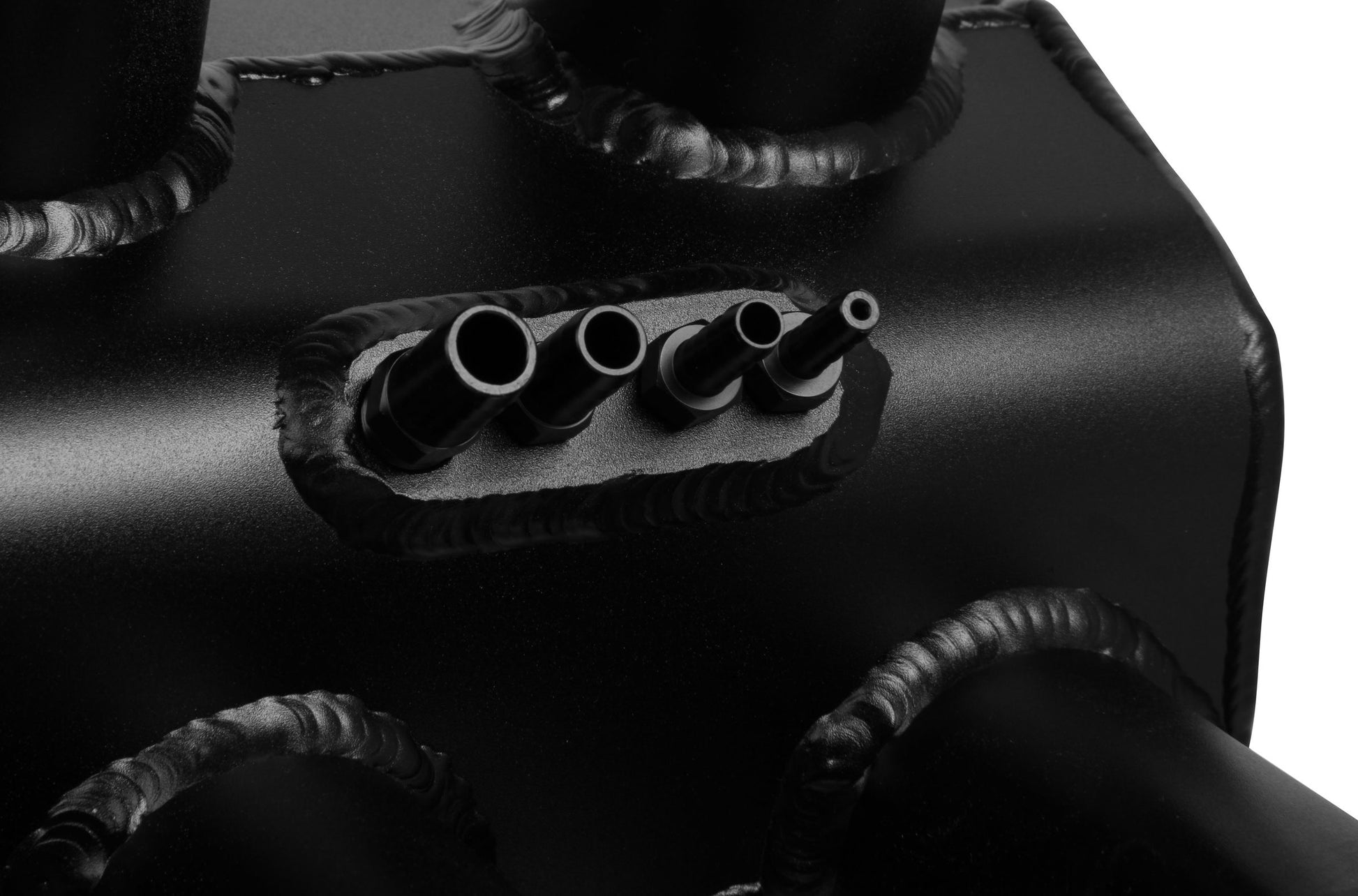

Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT

Warning: California Proposition 65

Warranty: Manufacturer's Limited 90 Day Warranty
