Sniper - 19-395

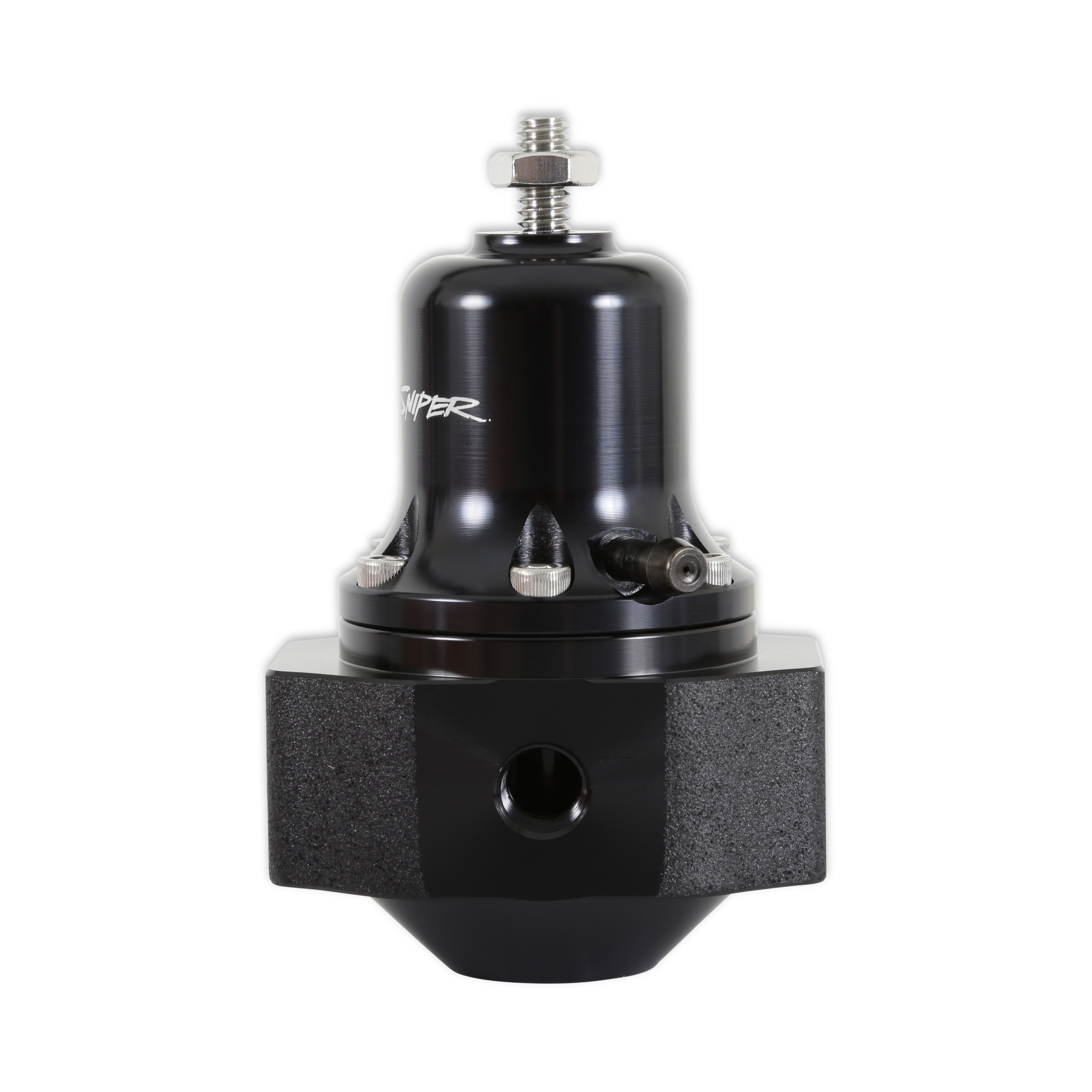

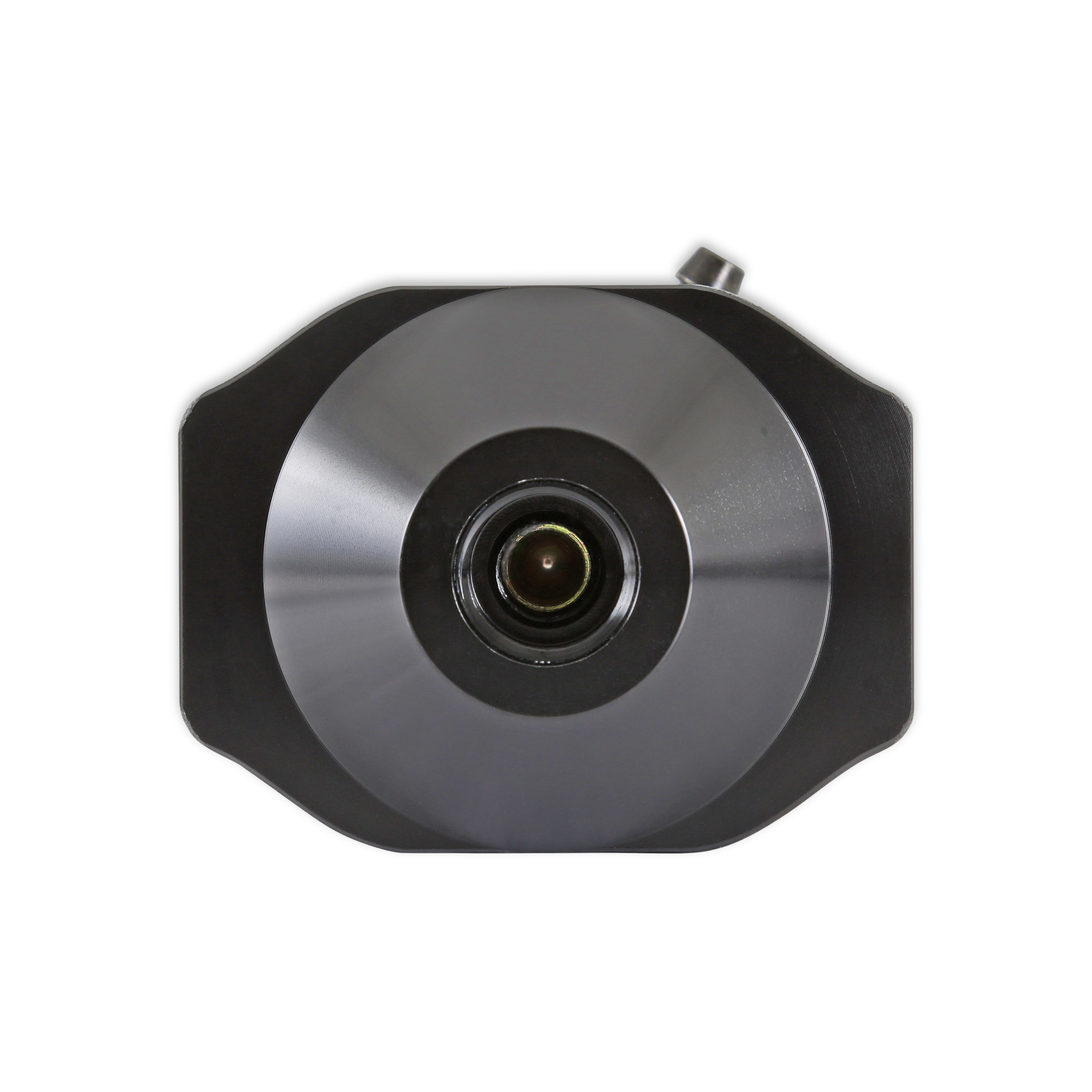

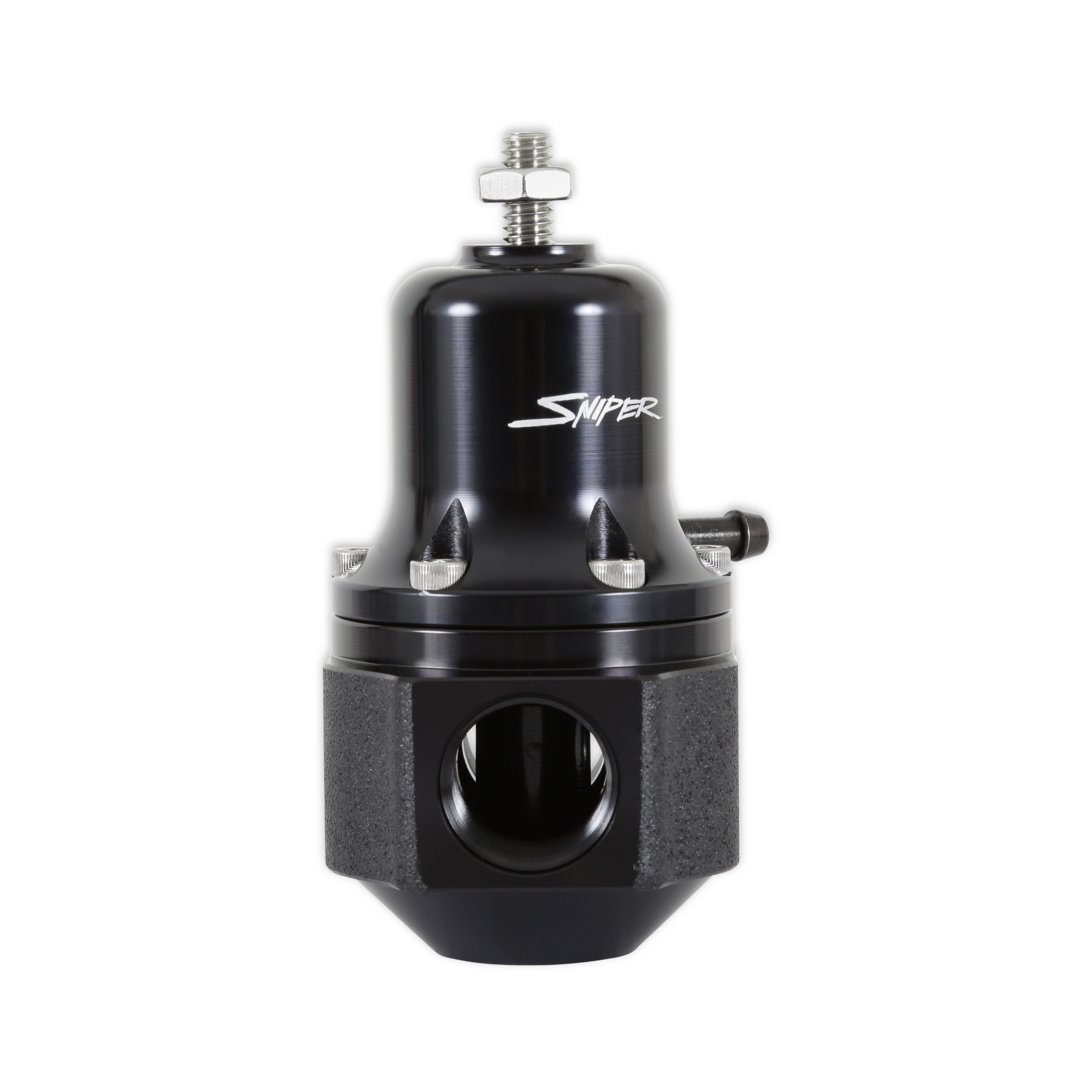

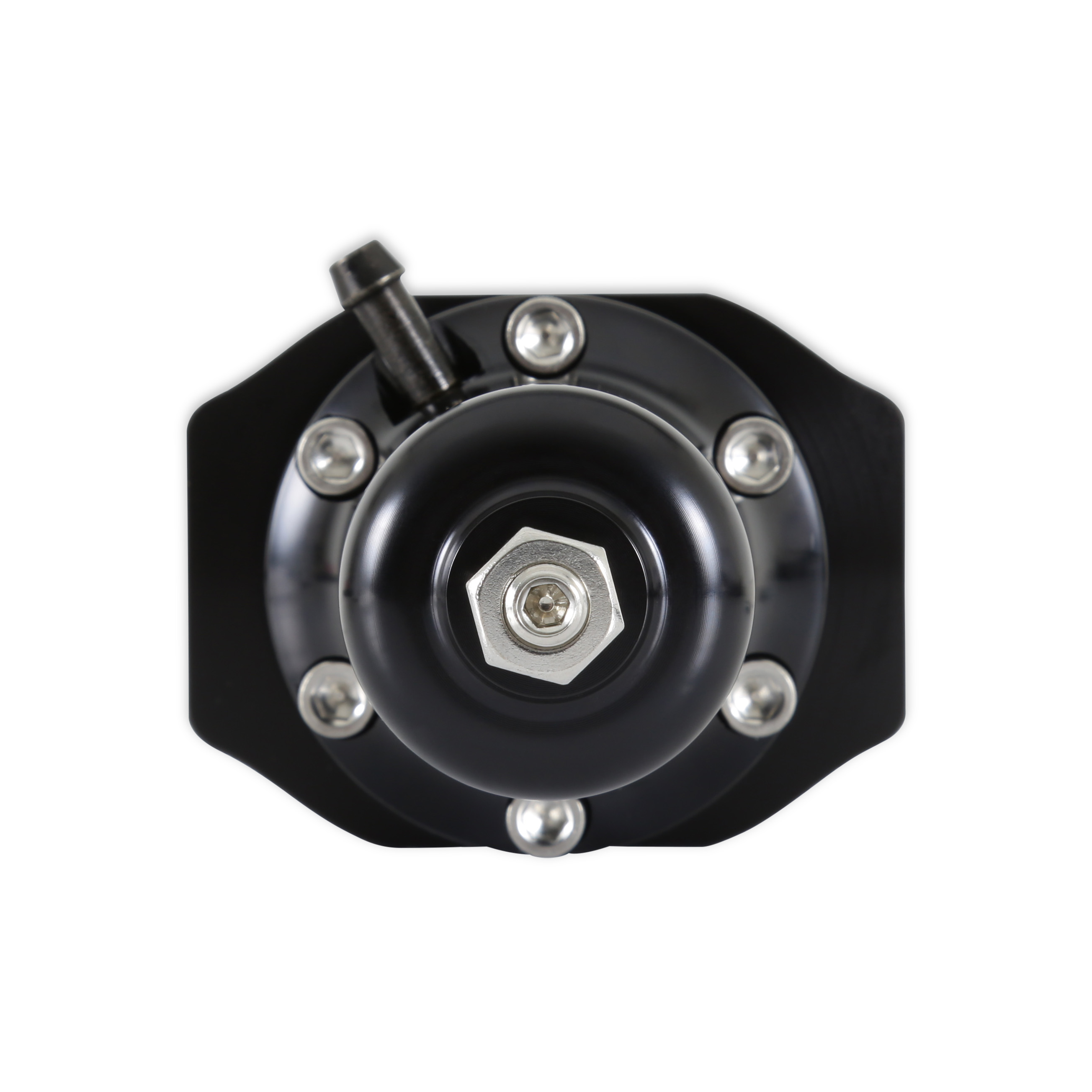

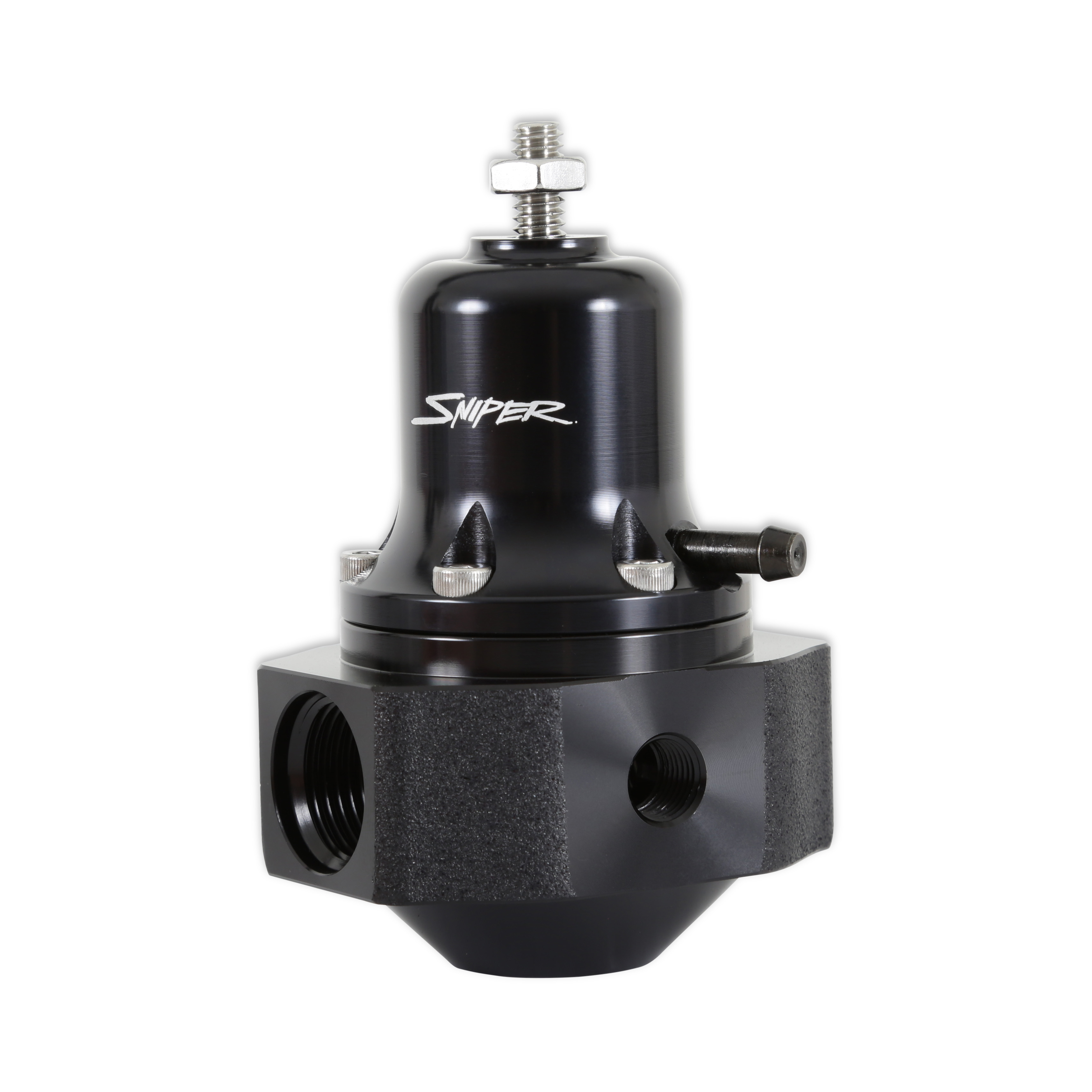

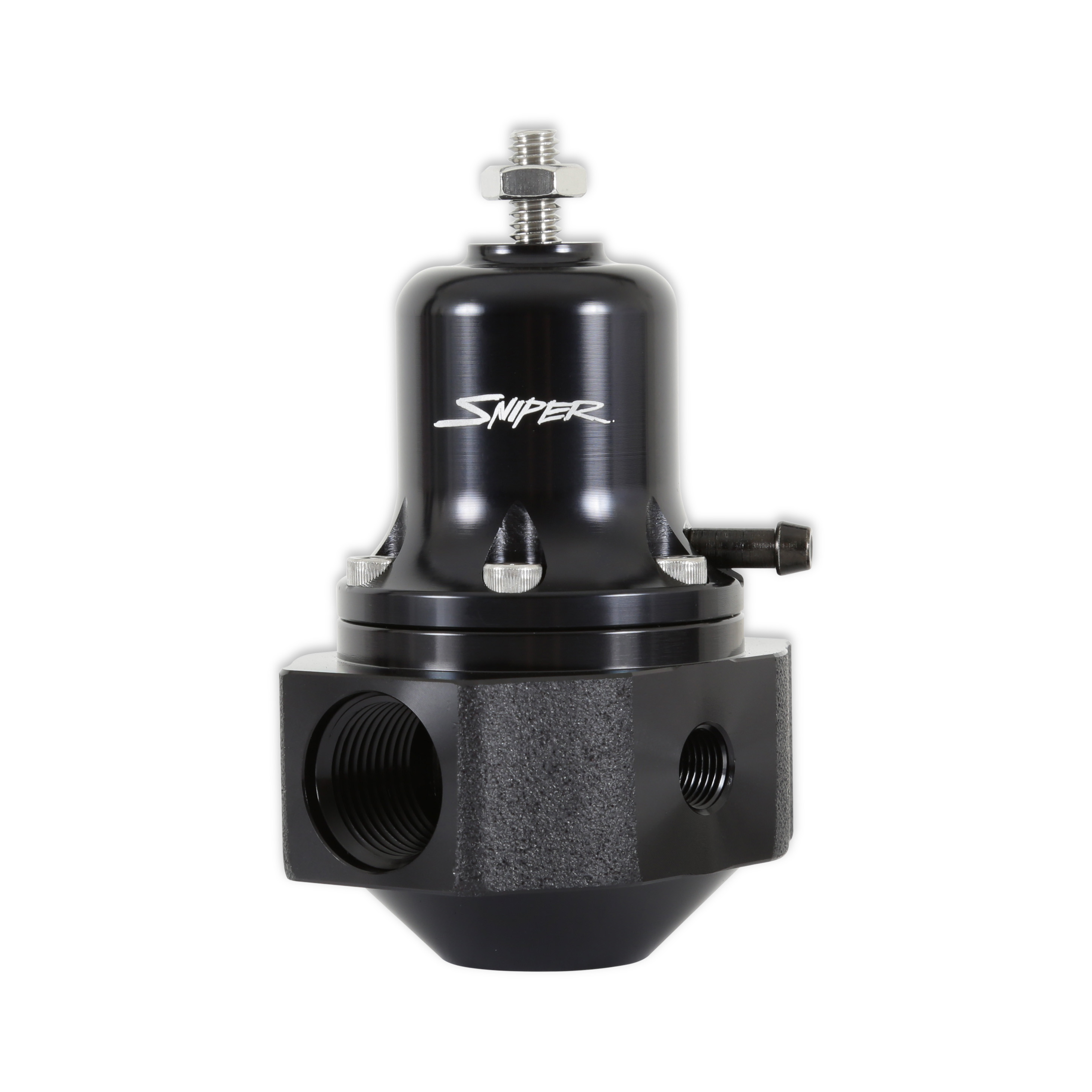

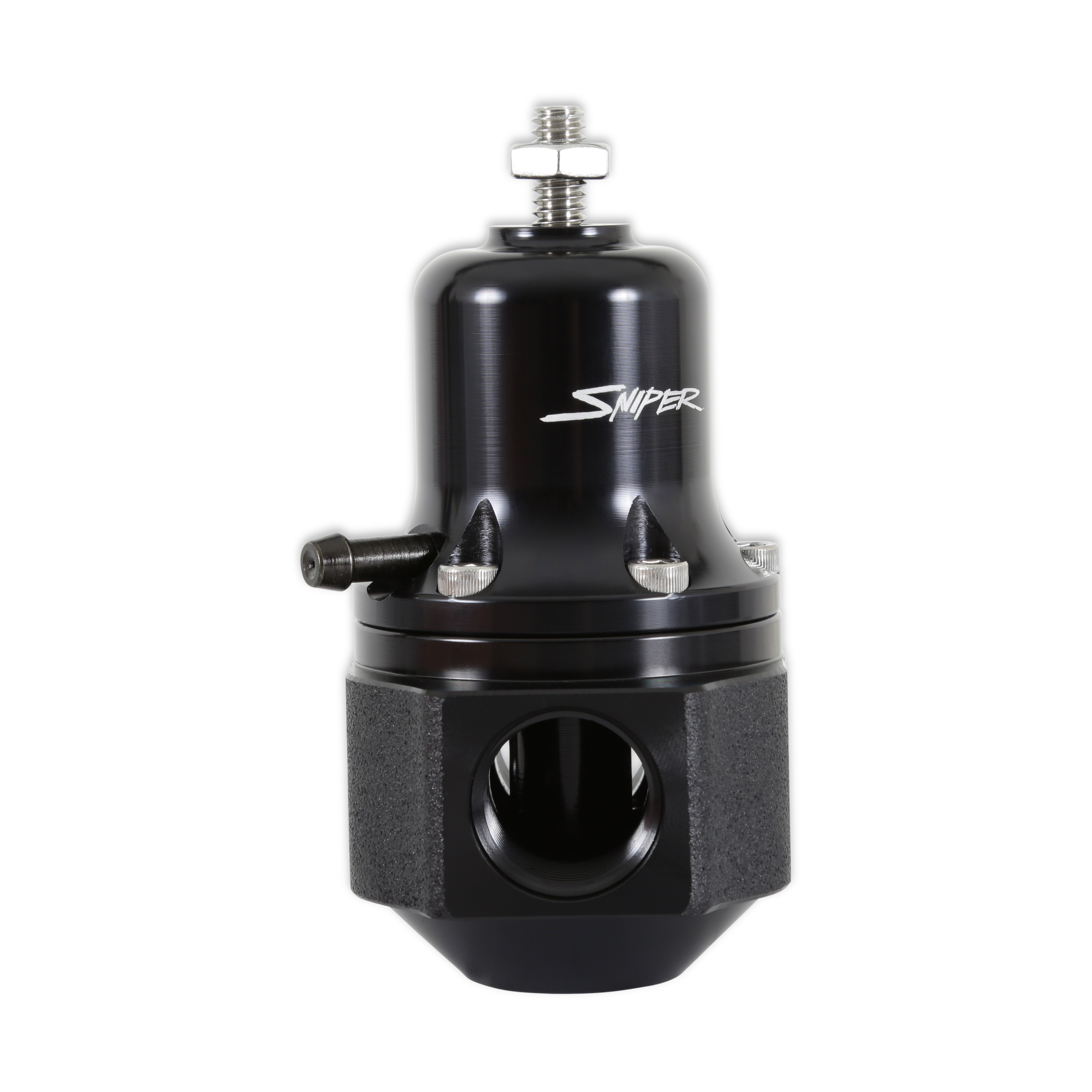

Sniper EFI 40-130 psi Fuel Regulator 8AN Boost Reference 1:1
Sniper EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 40-130 psi, a gauge port, and a boost reference port as well. These regulators are ideal for vehicles/systems where superior flow and pressure control are needed. These regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks.
- Longer spring for wider range of adjustment (40-130 psi)
- Features an oversized bypass orifice and corrugated diaphragm for superior flow
- Constructed of billet aluminum with a black anodized base and top for good looks
- Offered in -6 and -8 ORB configurations
- Used in systems with a return line back to tank

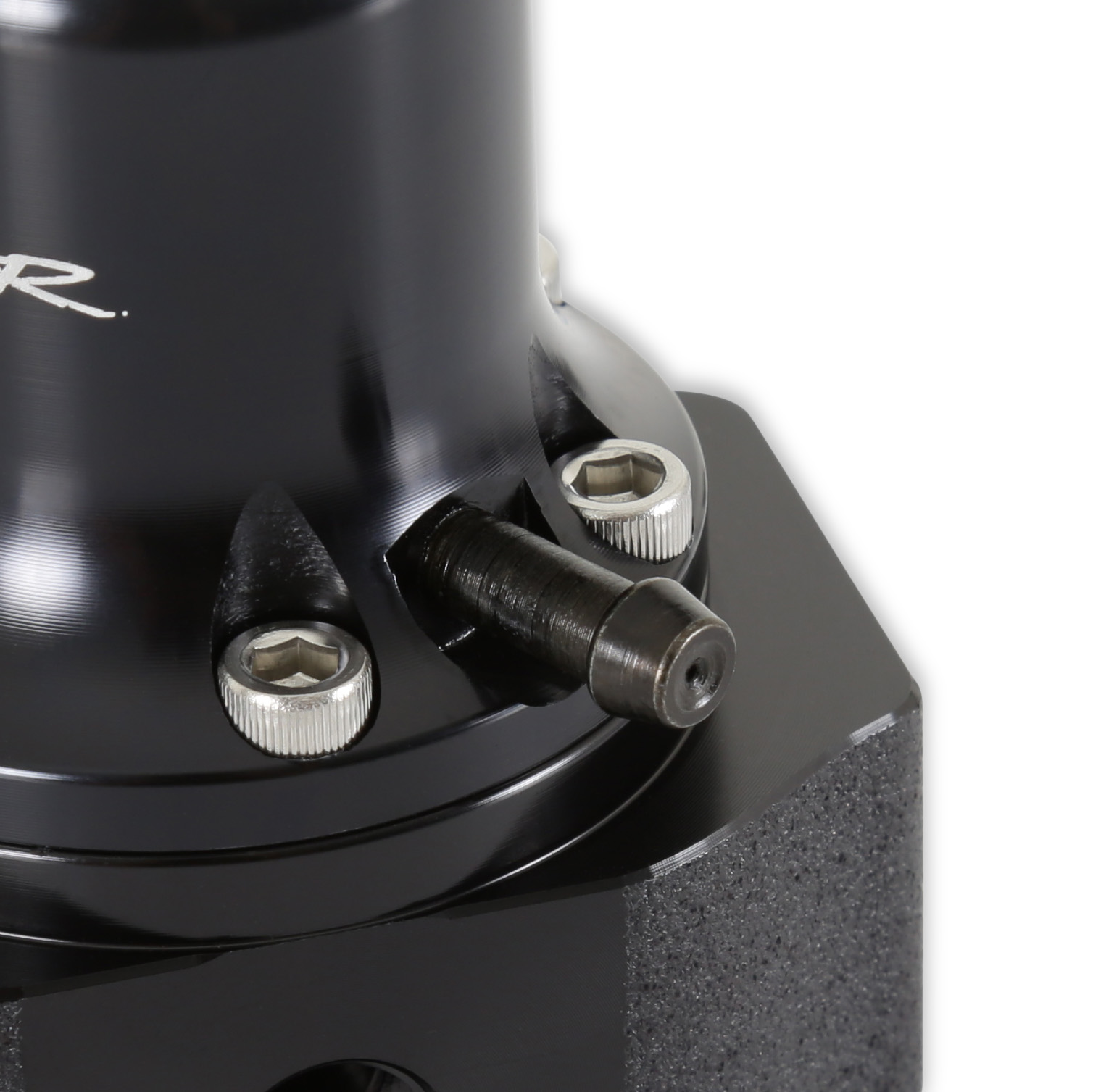

- 1/8-inch NPT Boost Reference Port (Ratio 1:1)
- 1/8-inch NPT Fuel Gauge Port
- Alcohol fuel and race gas compatible

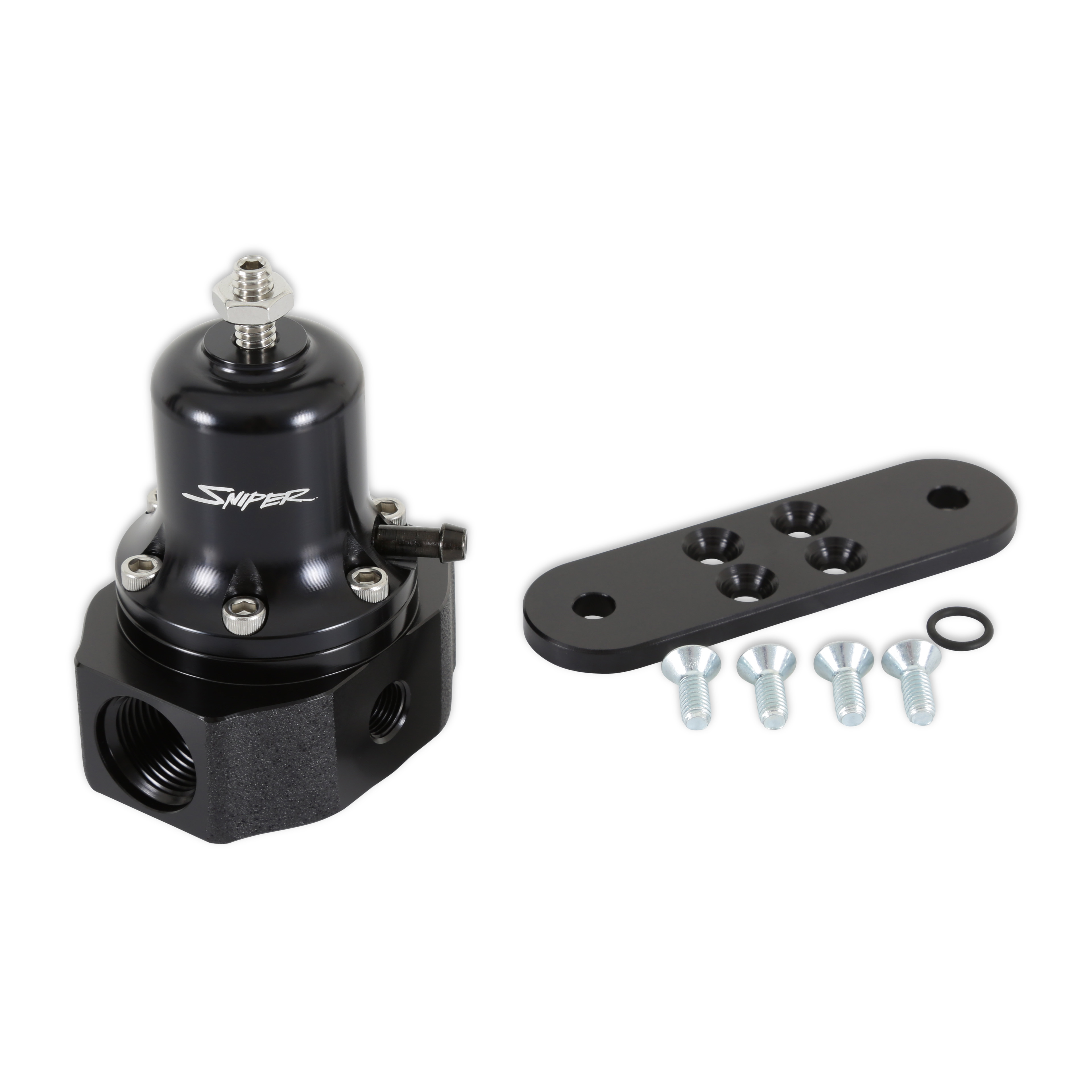

- Includes mounting bracket, hardware, and an 1/8-inch NPT barb fitting for manifold reference
Adjustable: Yes
Brand: Holley Sniper EFI
Category: Air and Fuel Delivery
Emission Code: 5
Fuel Type: Gasoline/Alcohol
Gauge Included: No
Gauge Port Included: Yes
Grade Type: Performance
Inlet Gender: Female
Inlet Port Diameter: 3/4-16 IN
Inlet Type: ORB
Maximum Pressure: 130
Minimum Pressure: 40
Mounting Bracket Included: Yes
Outlet Gender: Female
Outlet Port Diameter: 3/4-16 IN
Outlet Type: ORB
part type: Fuel Pressure Regulator
Port Quantity: 3
Pressure Rating: 40-130 PS
Product Type: Fuel Pressure Regulator
Rebuildable: Yes
Style: Return Style
Sub Category: Carburetion
Vacuum Port Quantity: 1
Warning: California Proposition 65
Warranty: Manufacturer's Limited 1 Year Warranty
