Sniper - 19-190
Sniper EFI Fuel Tank System 255 LPH
1955-1956 Chevy Station Wagon and Sedan Delivery, Coated Steel, EFI, Gas
Overall Size: 24-1/2" x 25" x 8"

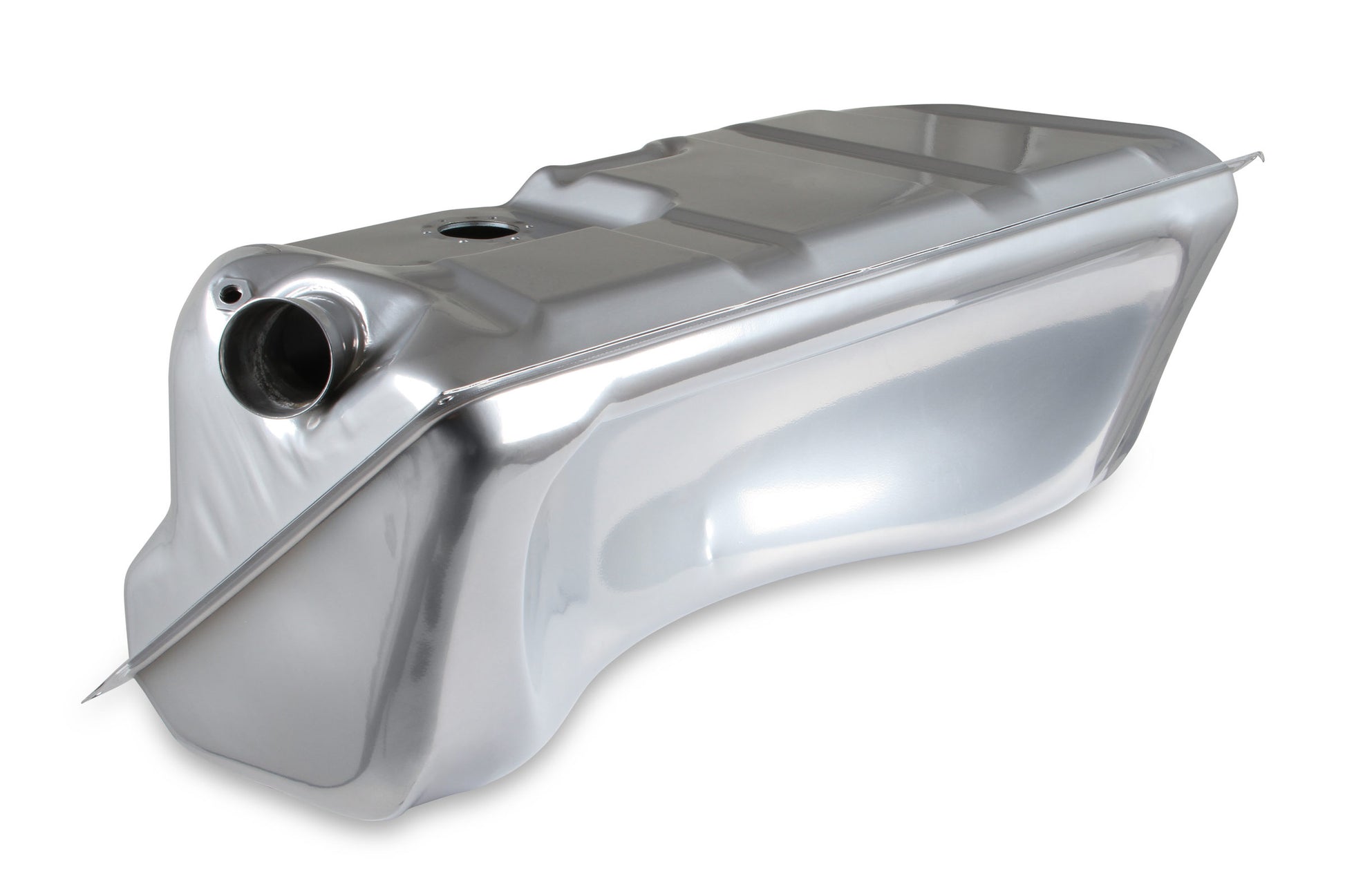

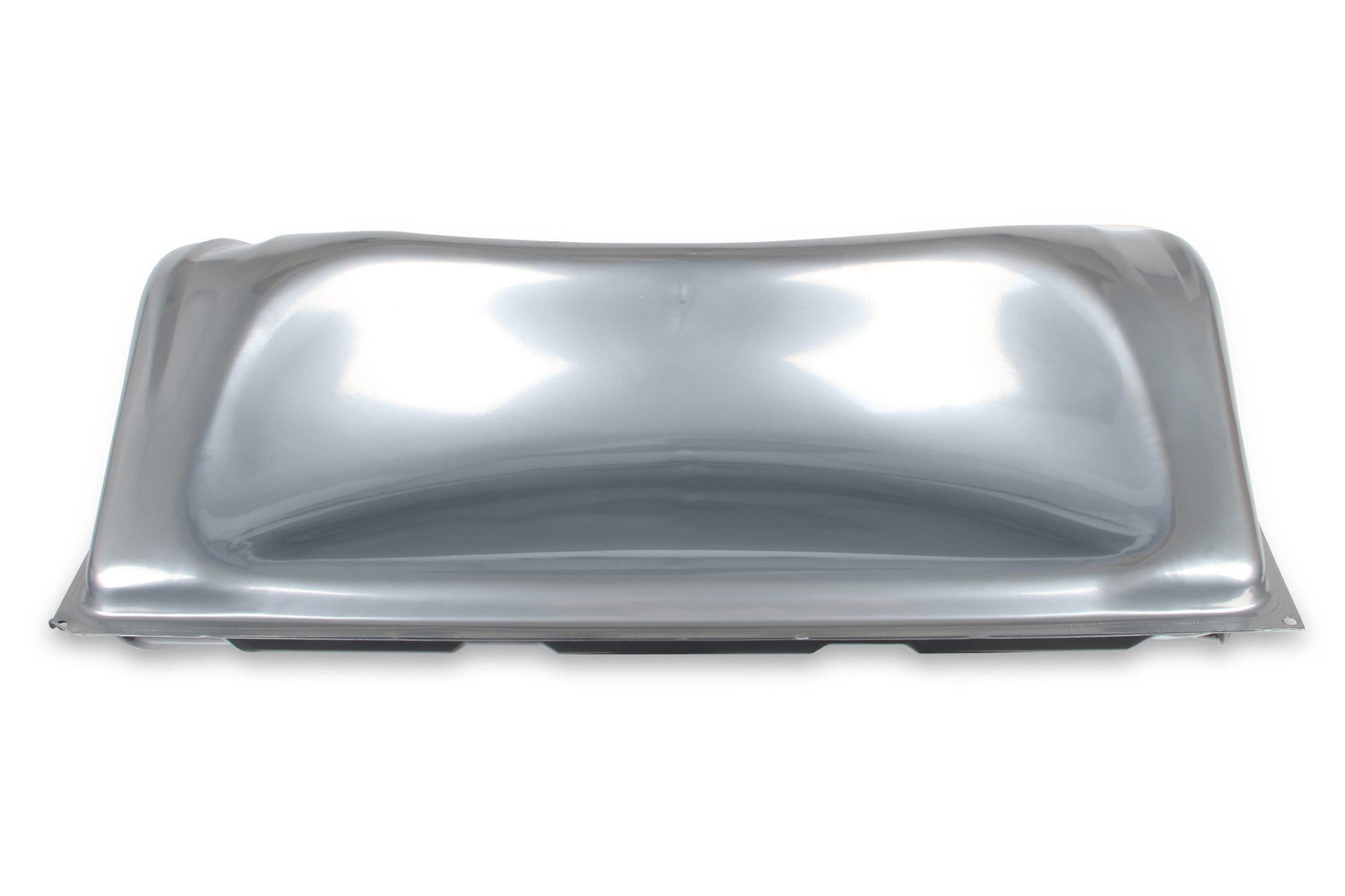

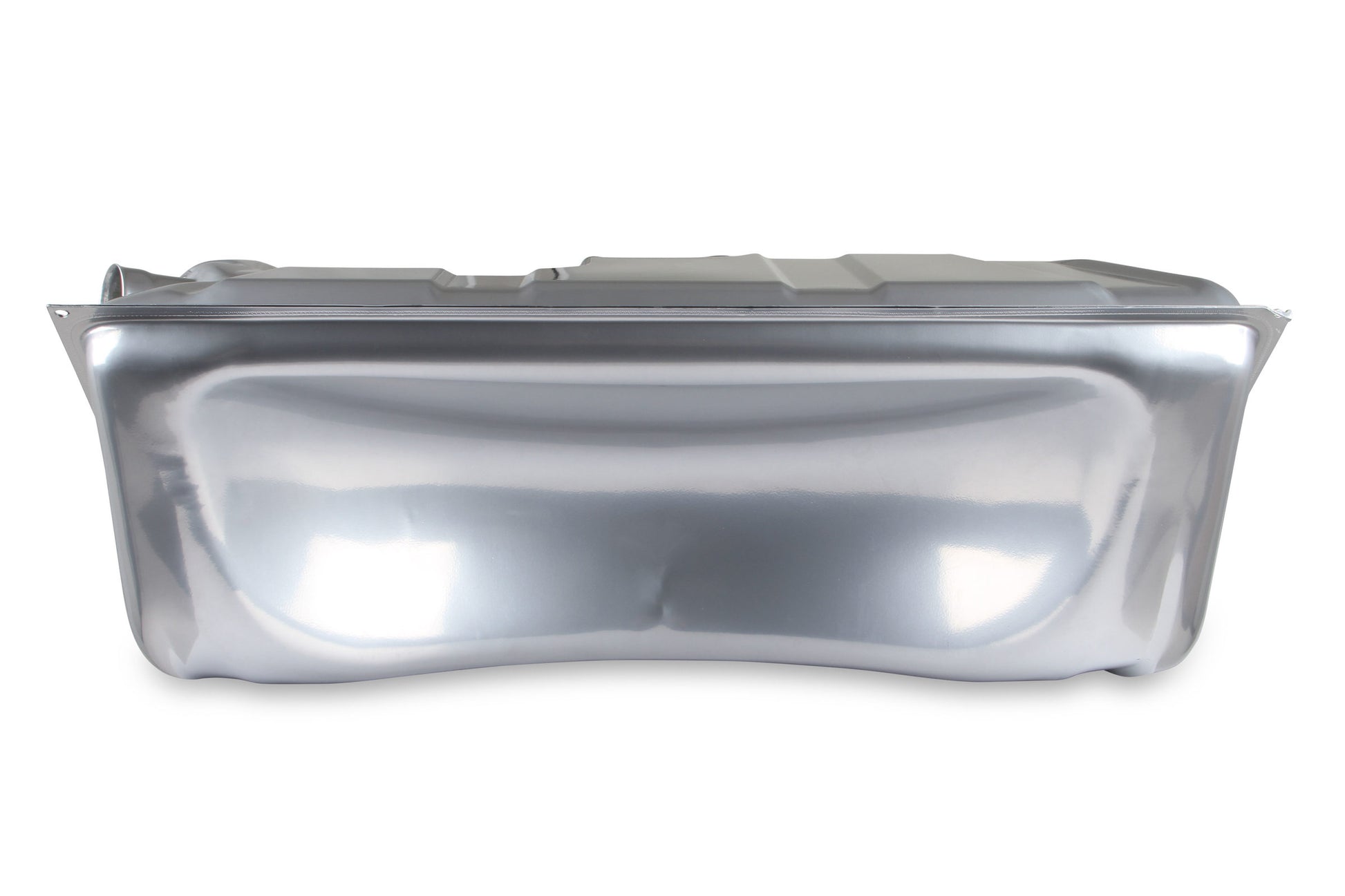

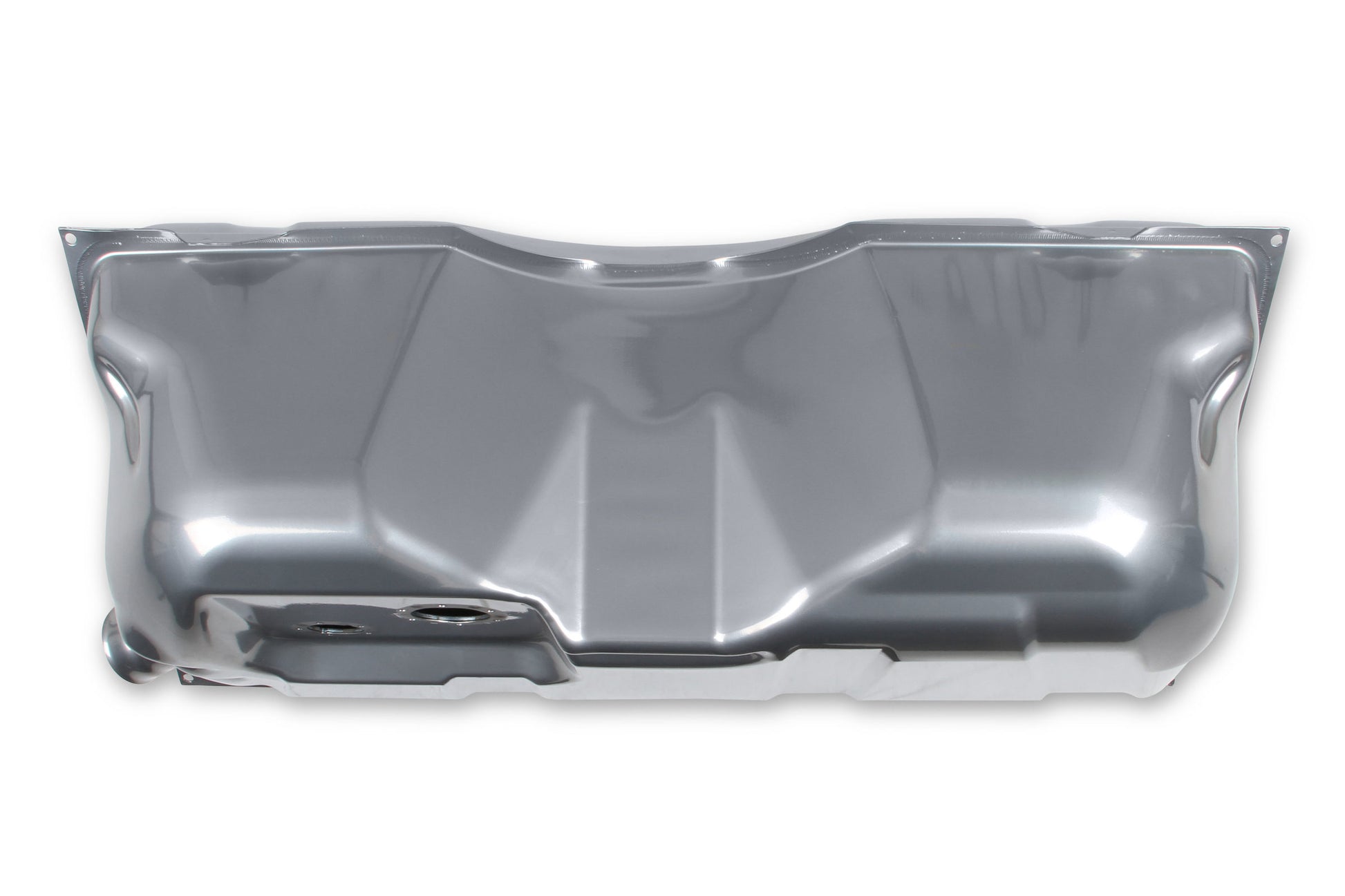

- Tanks are coated galvanized steel then powder coated silver for total corrosion protection

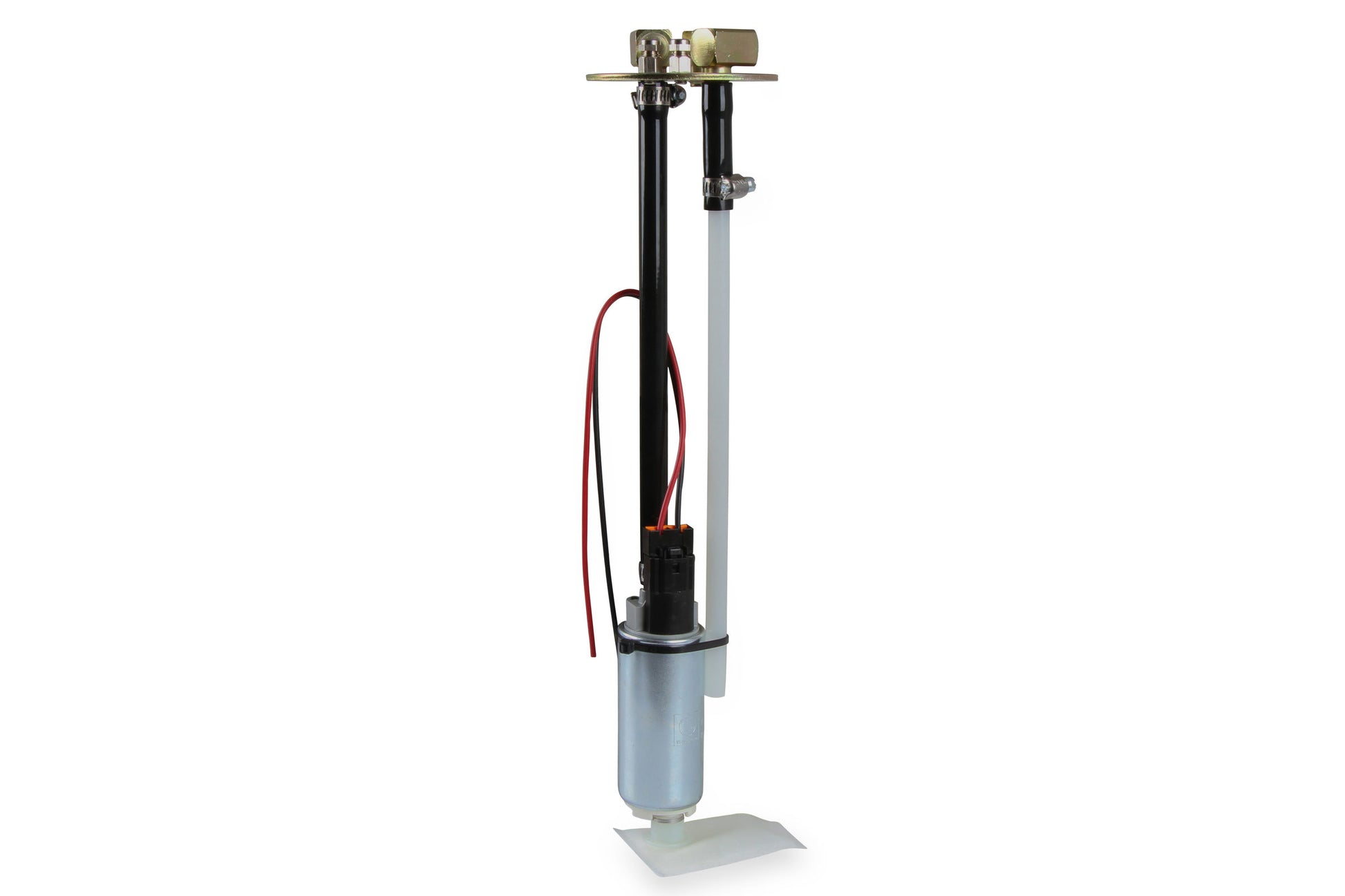

- 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
- Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

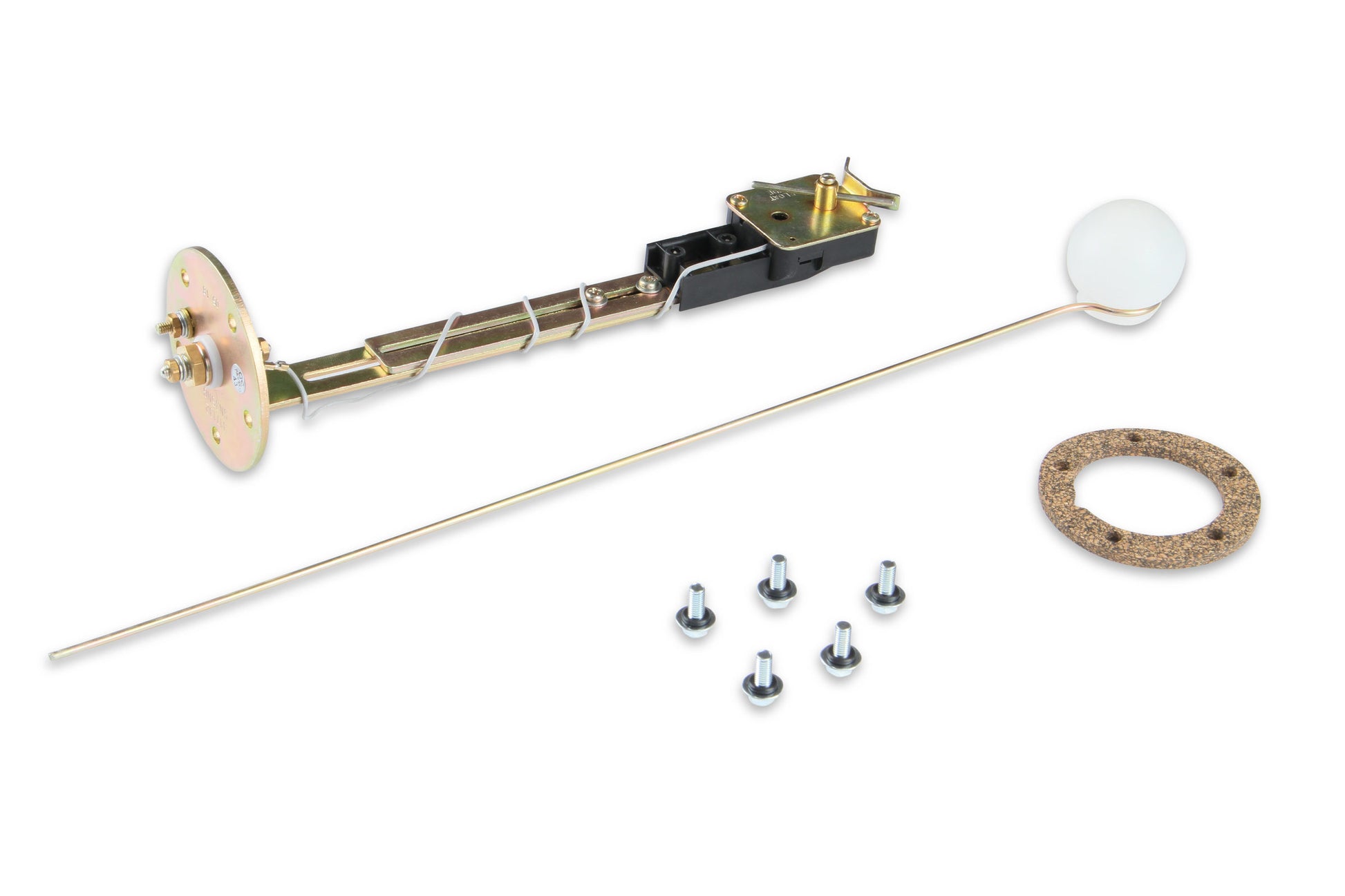

- Fuel level sender included with the correct Ohm range for your factory gauges

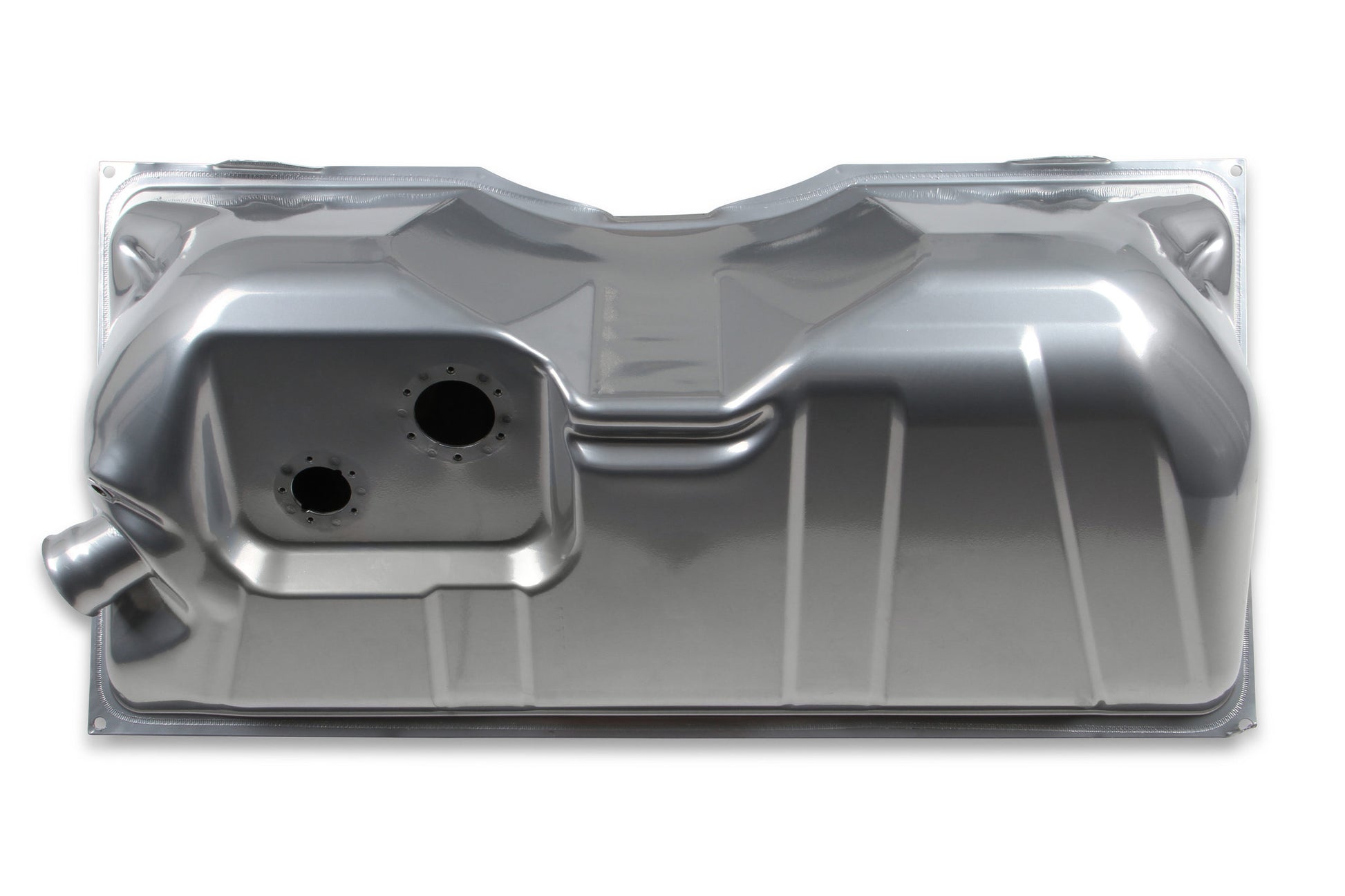

- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
- EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fits and looks like an OE tank when installed

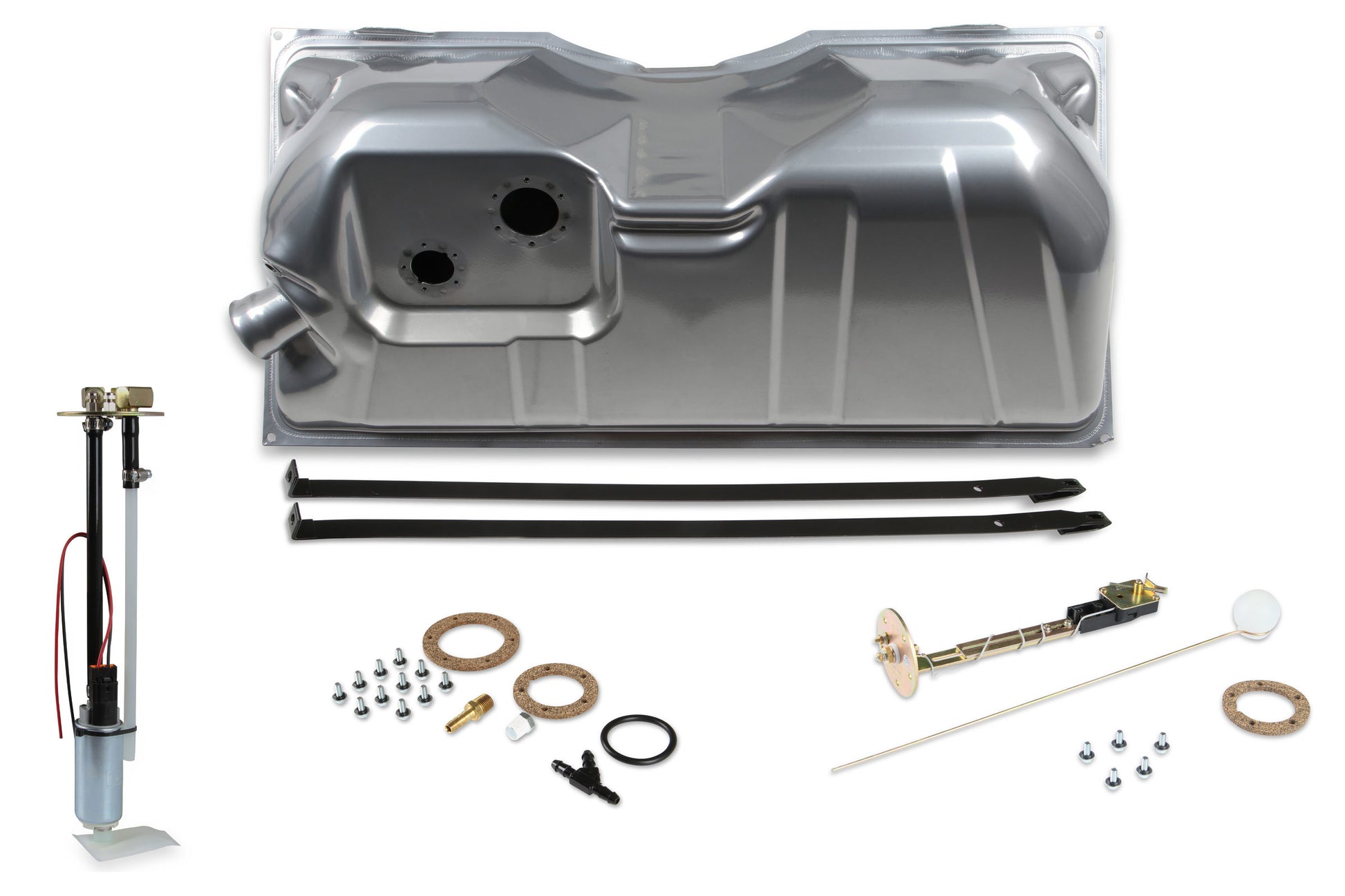

- Complete bolt in solution for your EFI conversion

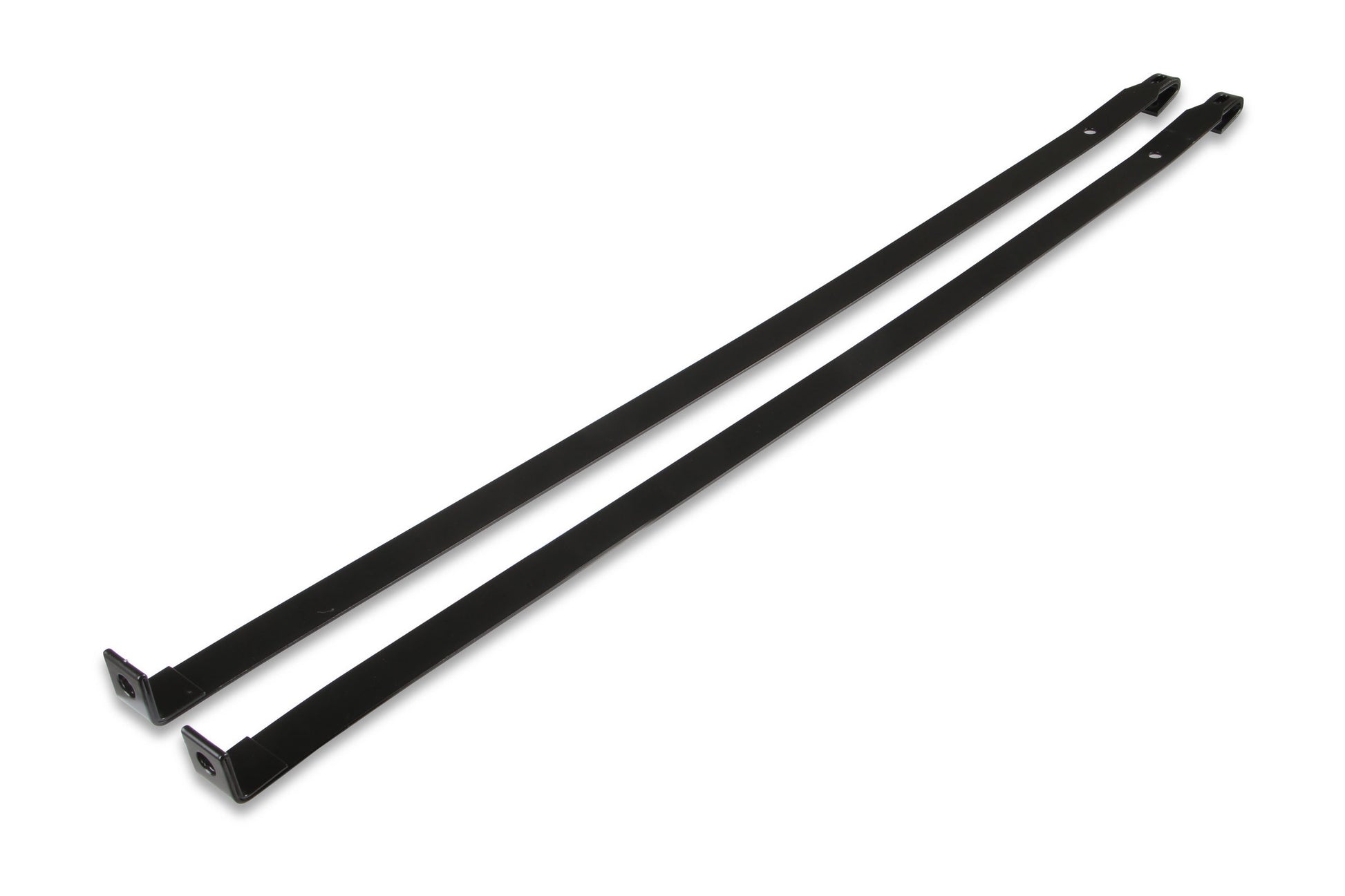

- Includes new tank straps and drain plug
Application: 1955-1956 Chevy Station Wagon
Baffled Sump: Yes
Brand: Holley Sniper EFI
Category: Air and Fuel Delivery
Color: Silver
Drain Plug: No
Emission Code: 3
Filler Neck Attached: No
Finish: Powdercoated
Free Flow LPH: 255
Fuel Sending Unit Ohms: 0-30 Ohms
Fuel System Compatibility: Electronic Fuel Injection
Fuel System Type: Gasoline
Fuel Tank Coating: Powder Coated
Gallon Capacity: 17
Grade Type: Performance
Lock Ring Included: No
Material: Steel
Maximum Flow Rating: 255 LPH
Mounting Straps Included: Yes
New Straps Included: Yes
O-Ring Included: Yes
part type: Fuel Tank and Pump Assembly Combination
Product Type: Fuel Tank
Sending Unit Included: Yes
Sub Category: Fuel Pumps and Related Components
Tank Capacity: 17
Tank Color: Gray
Tank Material: Steel
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
