Sniper - 19-101
1967-68 CHEVY CAMARO/FIREBIRD NARROW COR

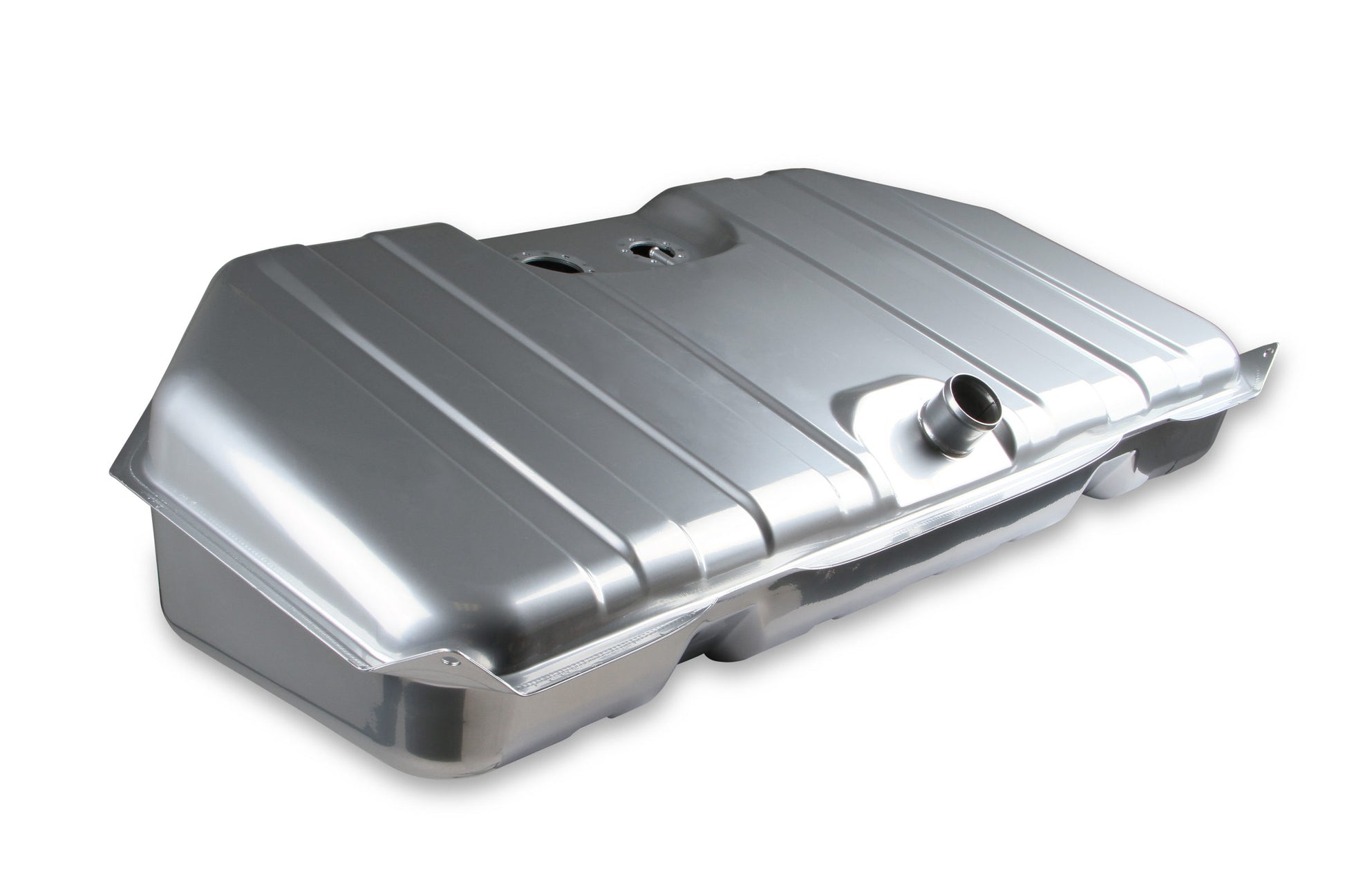

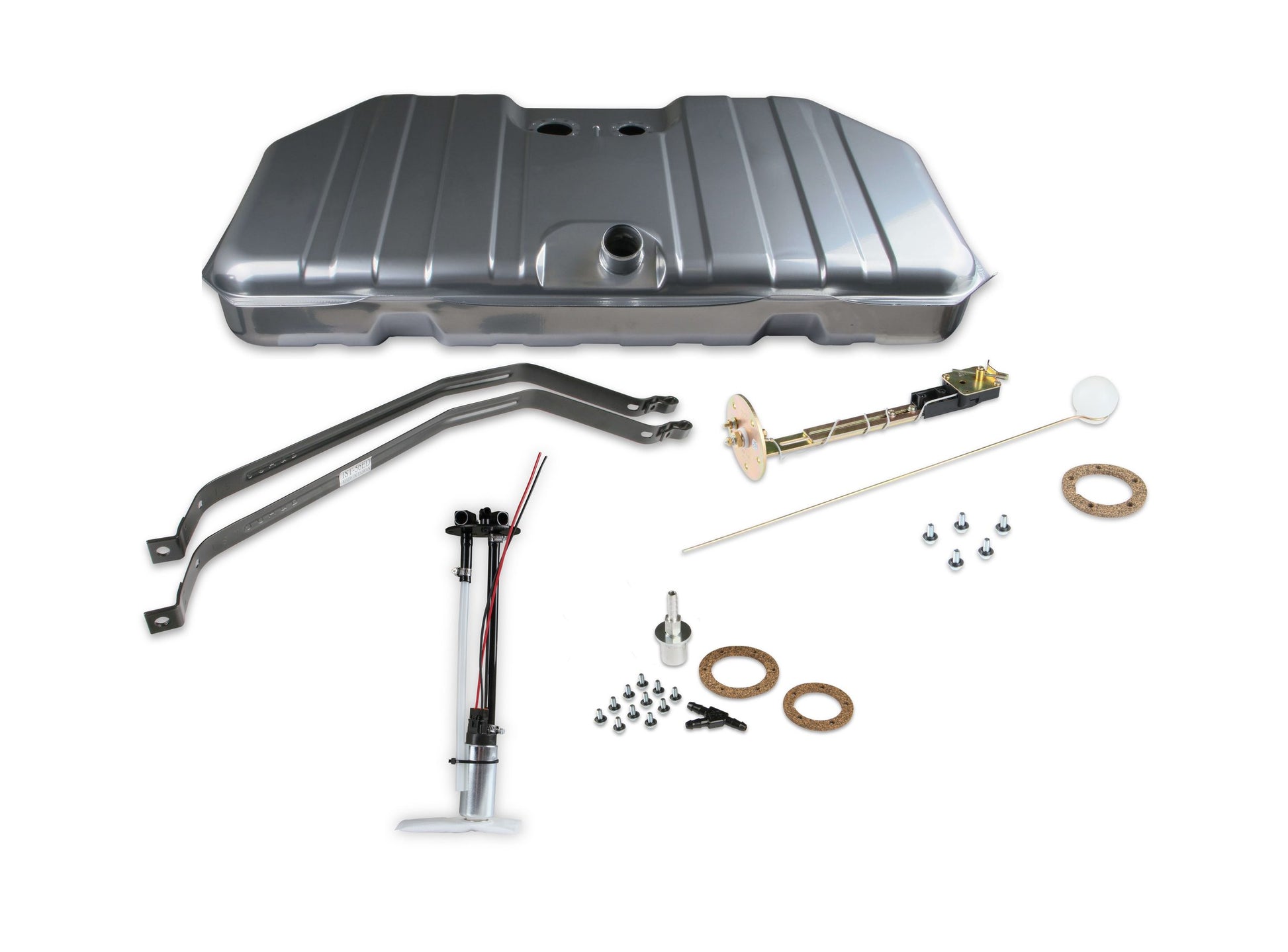

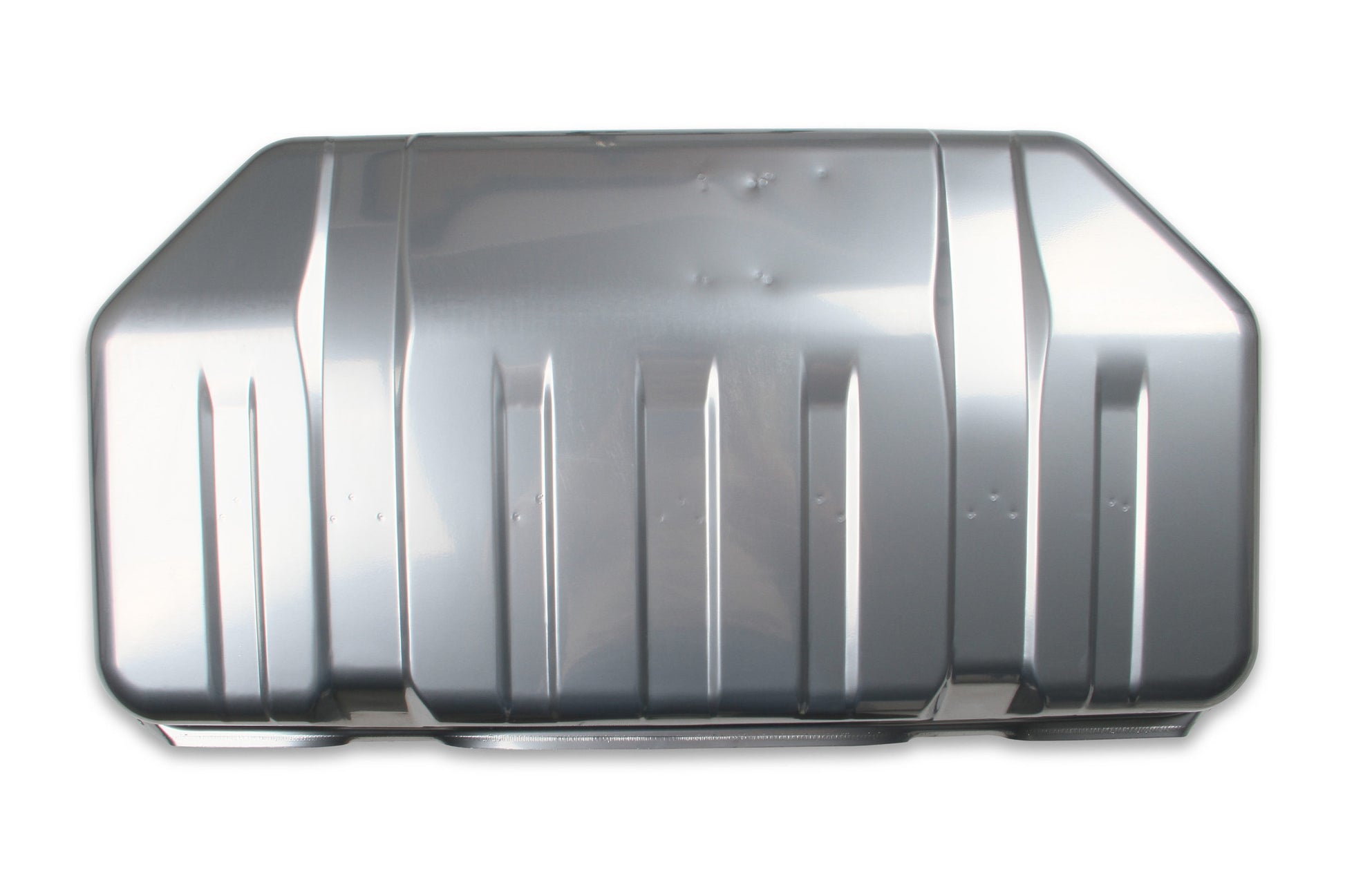

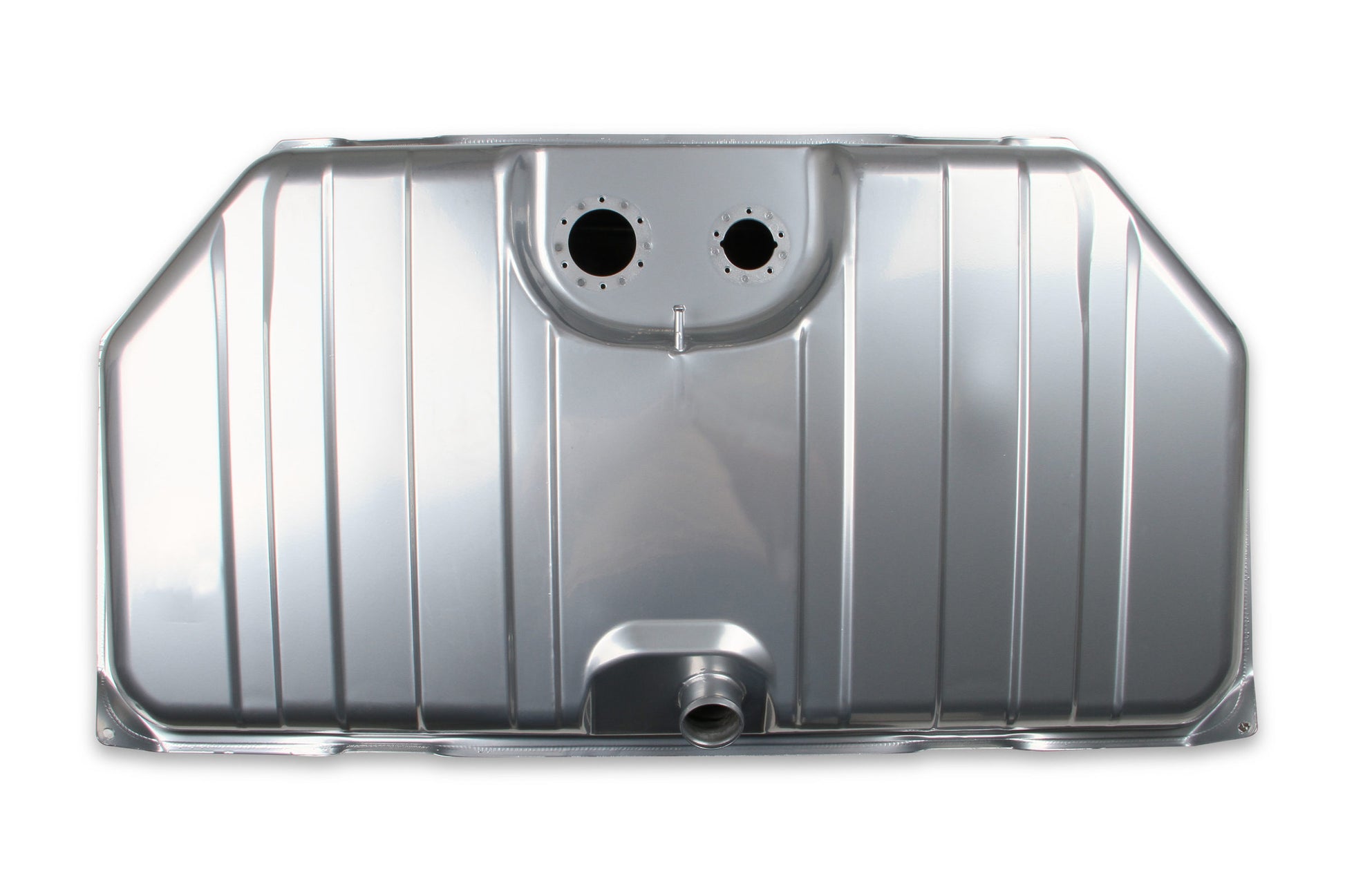

1967-1968 Chevy Camaro / Firebird with notched front corners
The filler neck is not included with the 1967-1968 Camaro/Firebird fuel tanks. You will need to use your original filler neck or purchase the 19-552 replacement filler neck.
- Tanks are galvanized steel and then powder coated silver for maximum corrosion protection.

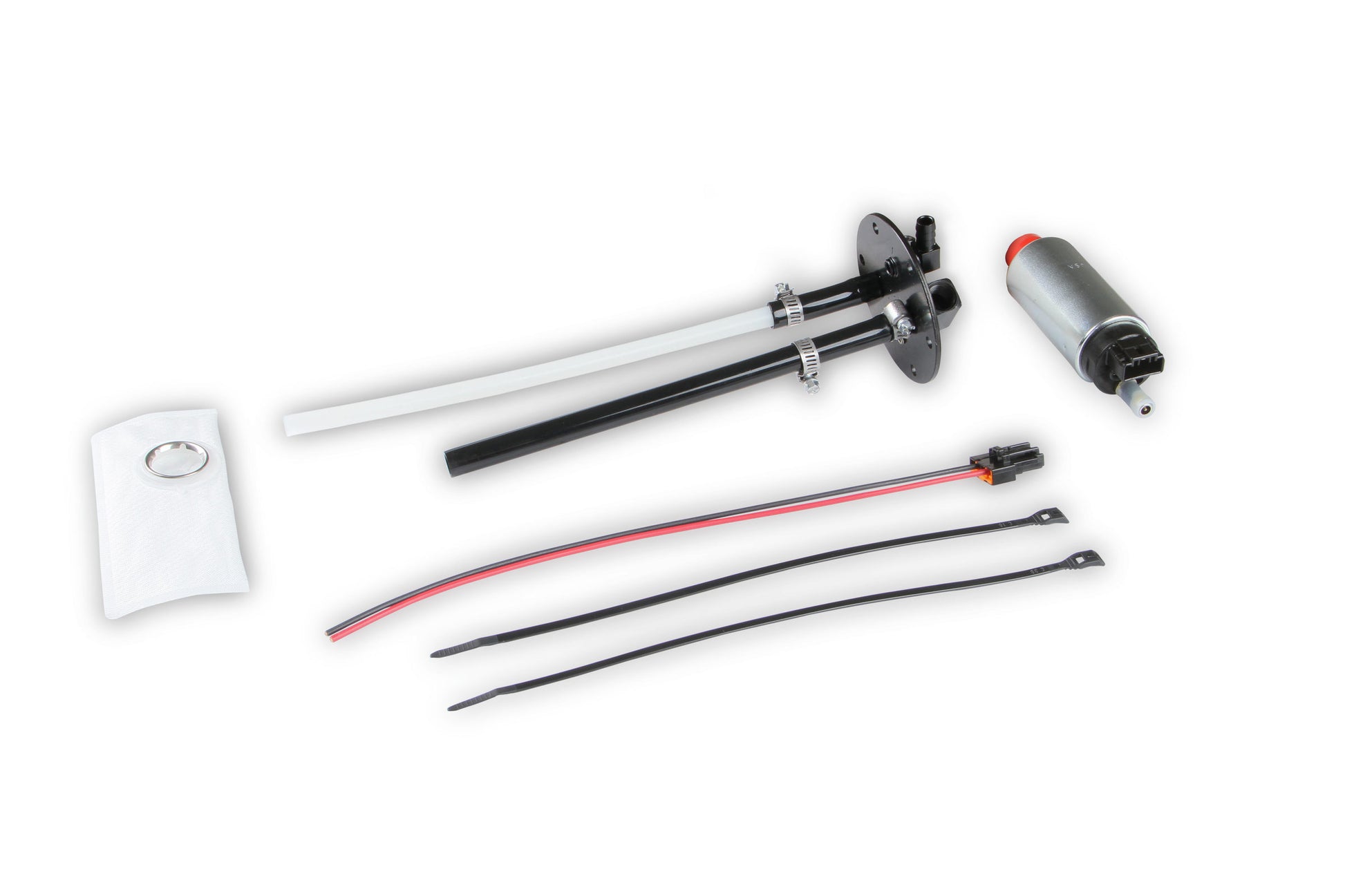

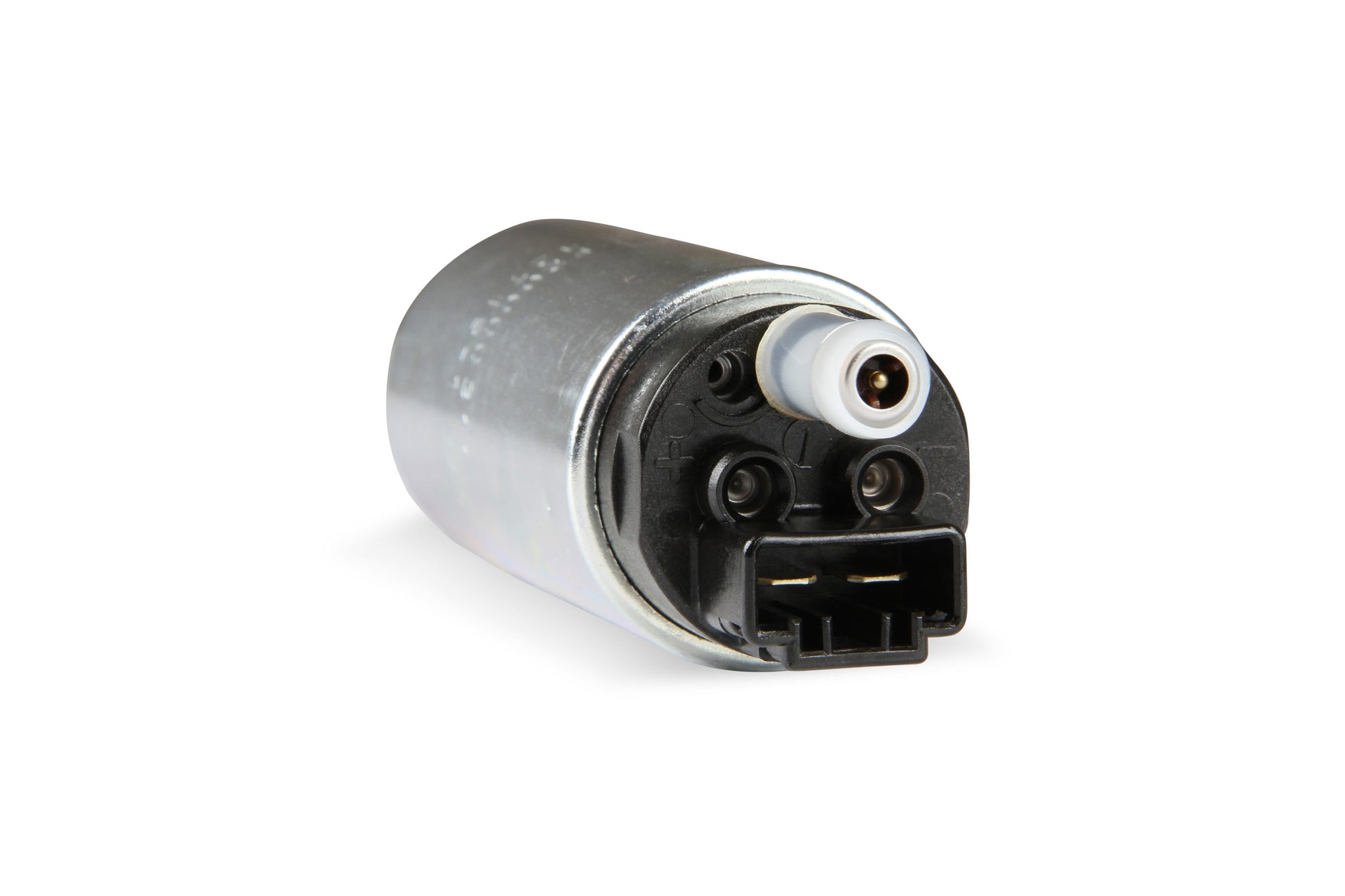

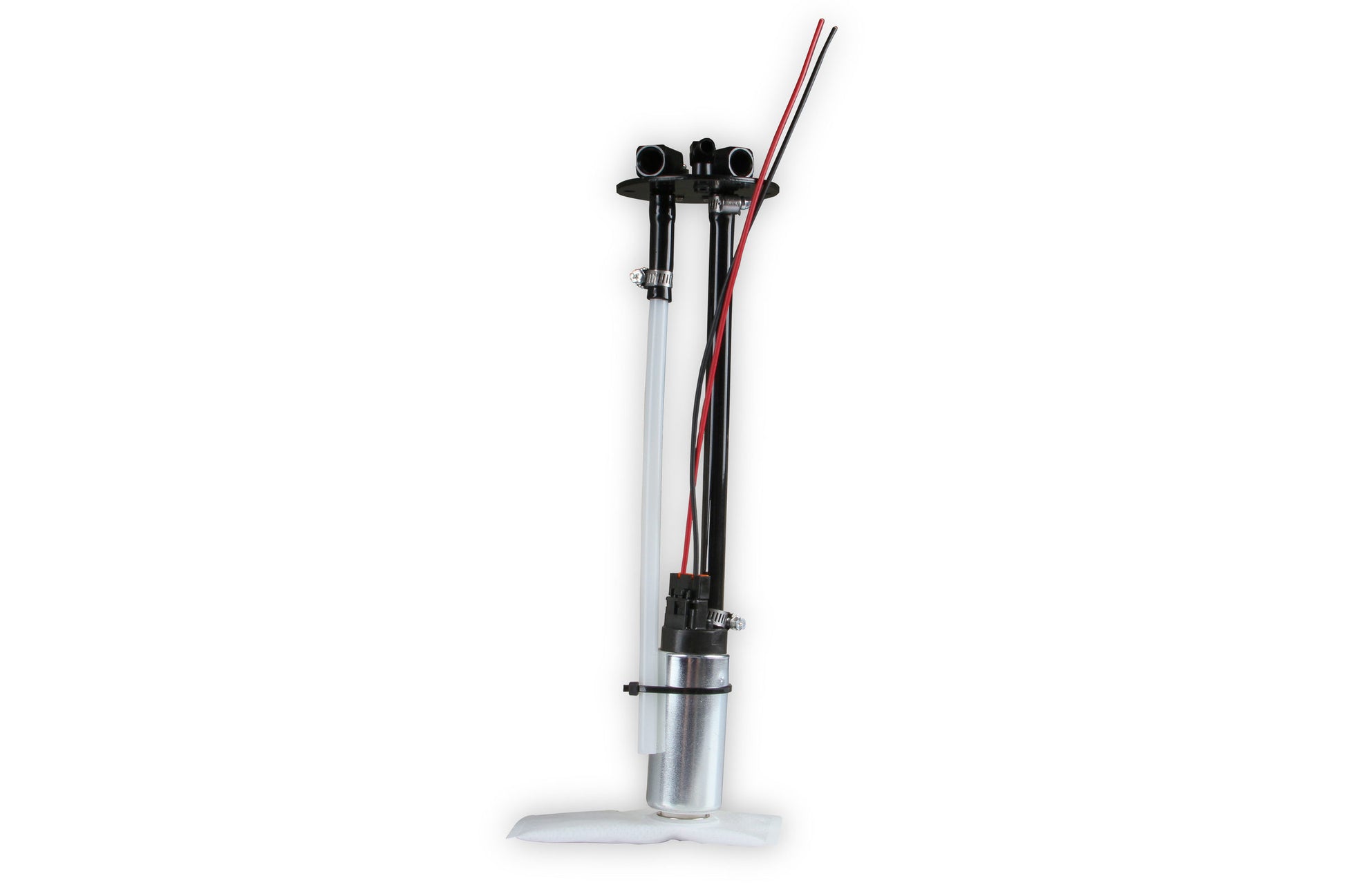

- 255 lph fuel pump with hanger assembly provides you the fuel you need with in-tank quietness.

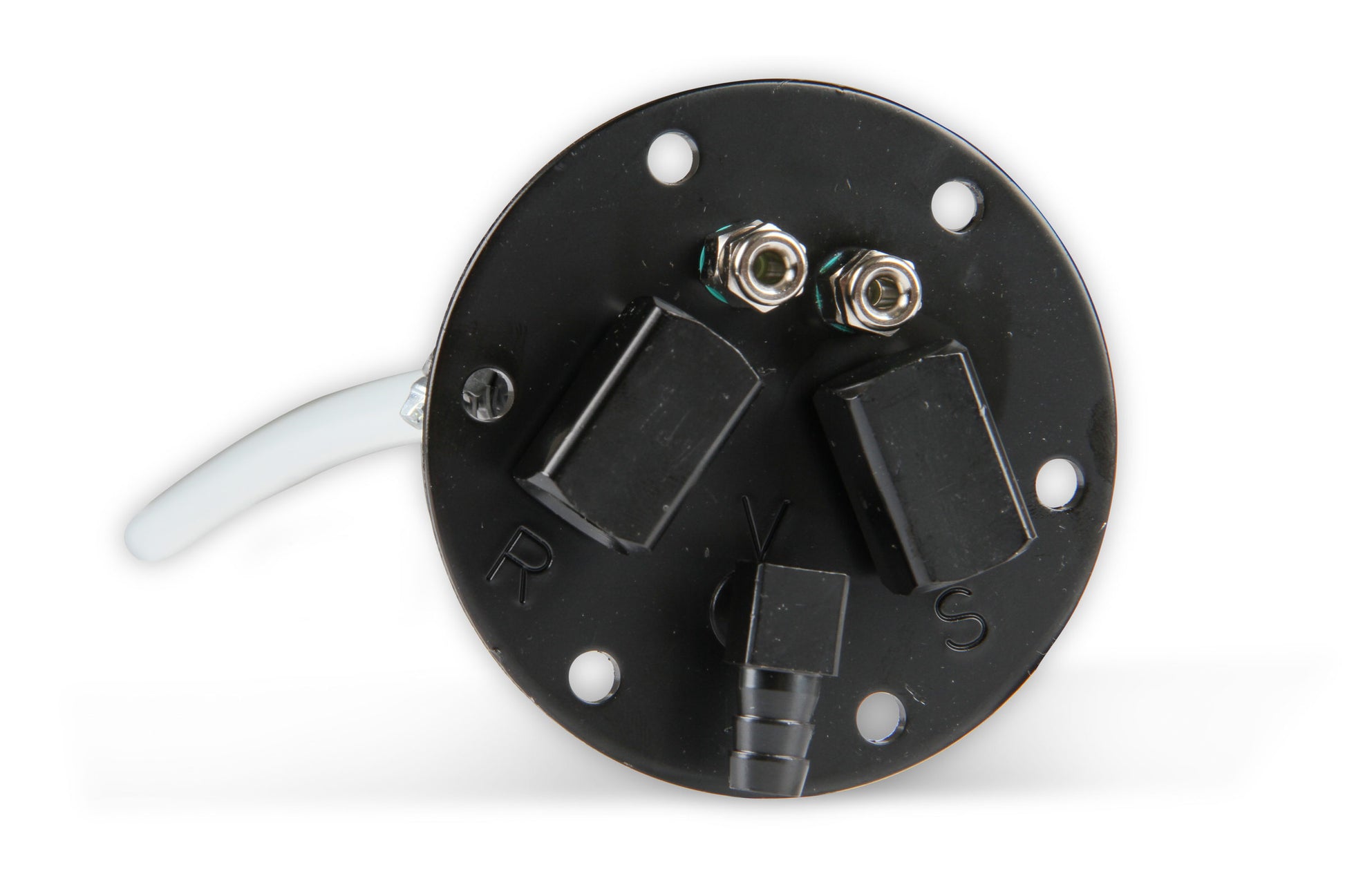

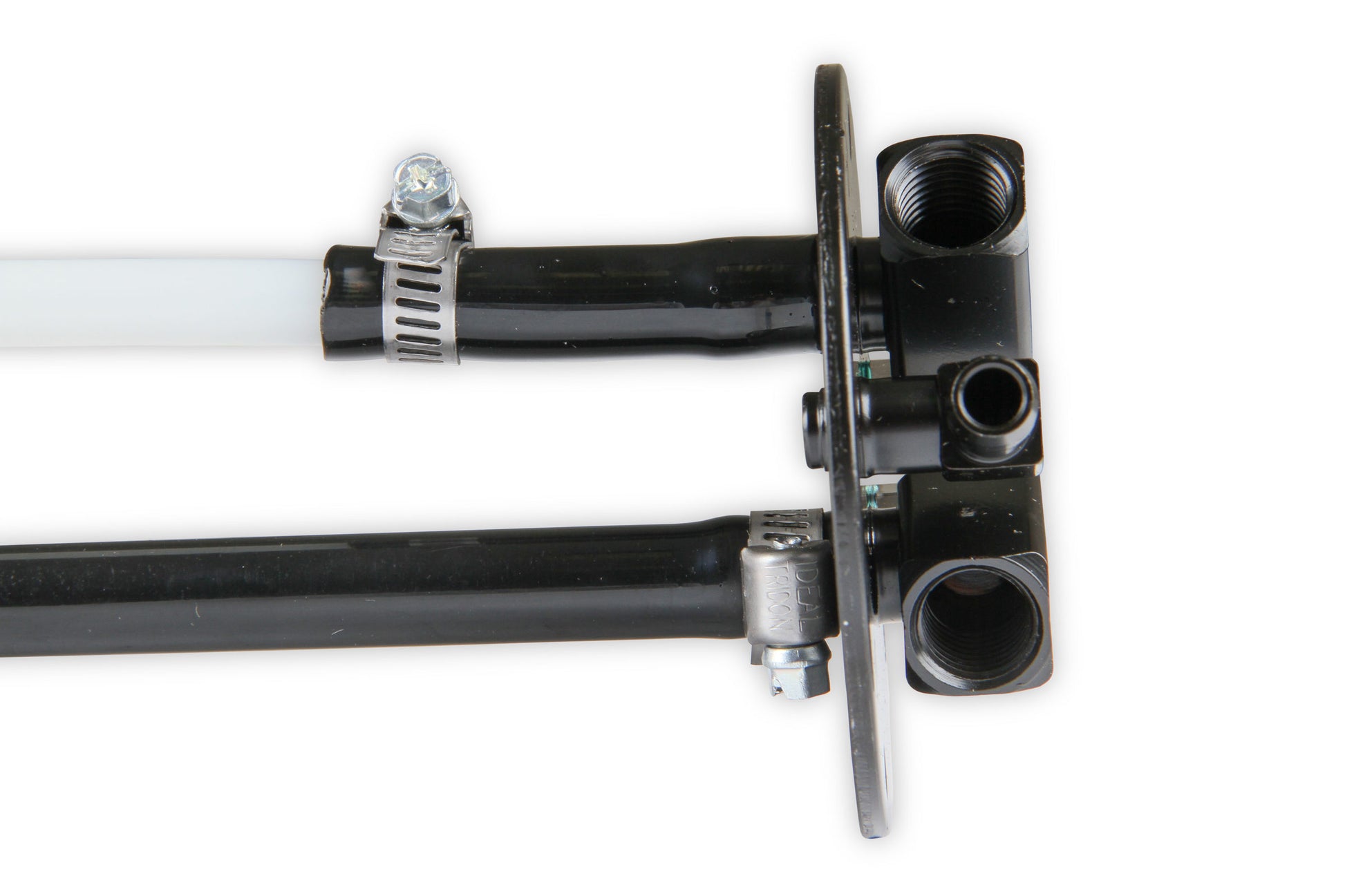

- Sender has 1/4" NPT supply and return line ports for easy fuel line connection and a barbed vent fitting.
- Fuel level sender included with the correct Ohm range for your factory gauges.
- Fuel pump and sender are recessed in the fuel tank to provide an easy installation with no modifications to your vehicle.
- Internal tank baffling includes a large 4.8 liter internal fuel tray to prevent fuel pump starvation.
- Fits and looks like an OEM fuel tank when installed.

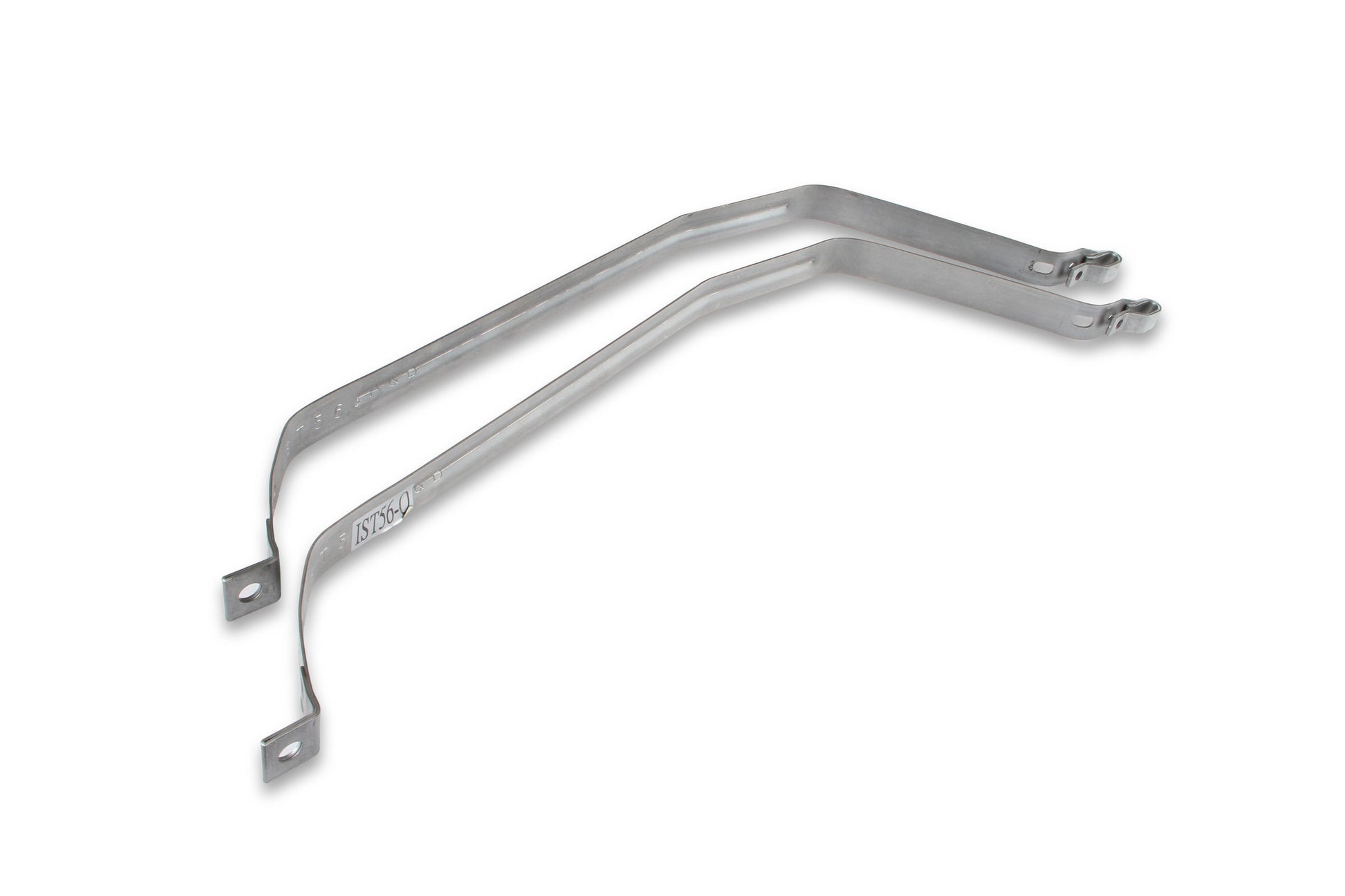

- New fuel tank straps included.
- Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance.
Application: 1967-1968 Chevrolet Camaro/Pontiac Firebird
Attached Sump: Yes
Baffled Sump: Yes
Brand: Holley Sniper EFI
Category: Air and Fuel Delivery
Color: Silver
Drain Plug: No
Emission Code: 3
Filler Neck Attached: No
Finish: Powdercoated
Free Flow LPH: 255
Fuel Sending Unit Ohms: 0-90 Ohms
Fuel System Compatibility: Electronic Fuel Injection
Fuel System Type: Gasoline
Fuel Tank Coating: Powder Coated
Gallon Capacity: 18
Grade Type: Performance
Lock Ring Included: Yes
Material: Steel
Maximum Flow Rating: 255 LPH
Mounting Straps Included: Yes
New Straps Included: Yes
O-Ring Included: Yes
part type: Fuel Tank and Pump Assembly Combination
Product Type: Fuel Tank
Resistance Ohms Empty: 0 82
Resistance Ohms Full: 90 82
Sending Unit Included: Yes
Sub Category: Fuel Pumps and Related Components
Tank Capacity: 18 GA
Tank Color: Gray
Tank Material: Steel
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
