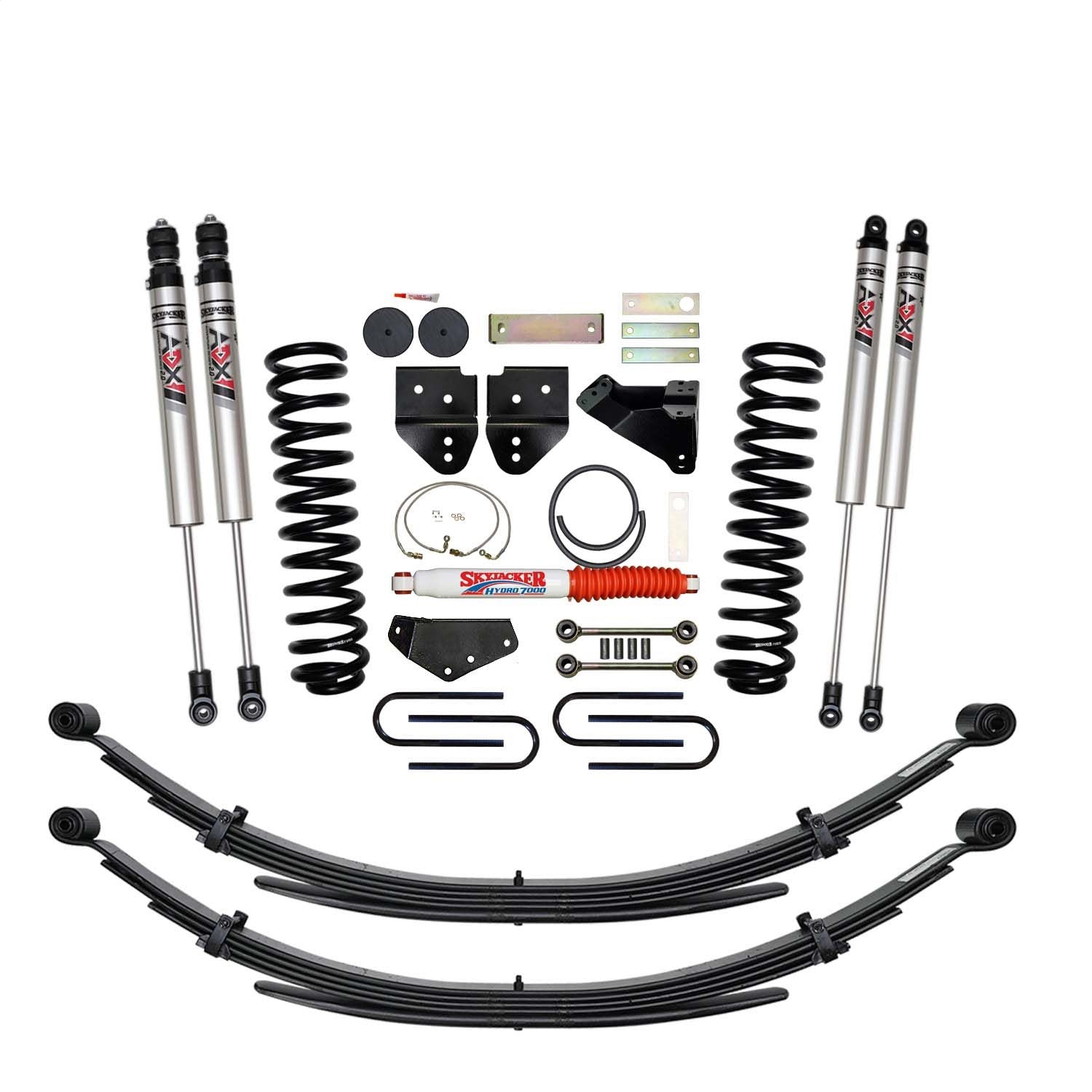

Skyjacker F8601KSH-XM - 6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks

Skyjacker F8601KSH-XM - 6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks

6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

6in.SYSTEM;08 F350 4WD GAS

Specifically engineered for the Super Duty F350 4WD with Gas motors, this lift lets you go bigger in a bolder way. Add 36s tires, gain ground clearance and go conquer. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. The process starts with 5160H chromium alloy material, an advanced method of shot peening and a presetting process. Compressing the spring completely down to where the coils touch (solid height) is preset. This takes any fatigue or stress off the spring and eliminates sagging. Radius arm drop brackets lower the OEM radius arms mounts at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar links realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line brackets and braided stainless steel brake lines correct and reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. Hydro steering stabilizer included. Softride(R) Technology leaf springs have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon(R) wear pads between leafs and bolt style spring clips prevent binding and eliminate friction. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength.

• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology
• ADX M2.0 Reacts Quicker To Improve Control And Stability
• IFP Technology Provides Quickest Shock Reaction Time Ever
• 36s Improve Your Off-Road Stance and Gain Ground Clearance
• Proper Caster Maintains Factory Handling And Ride Quality
• Yields More Lift In Front For A More Level Stance
• Skyjacker Softride Technology Enhanced Spring Performance
• Radius Arm Mount Drop Brackets Properly Corrects Caster
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered
• Bump Stop Spacers Keep Suspension Travel Safely In Check
• Skyjacker Softride Technology Heightened Leaf Springs
