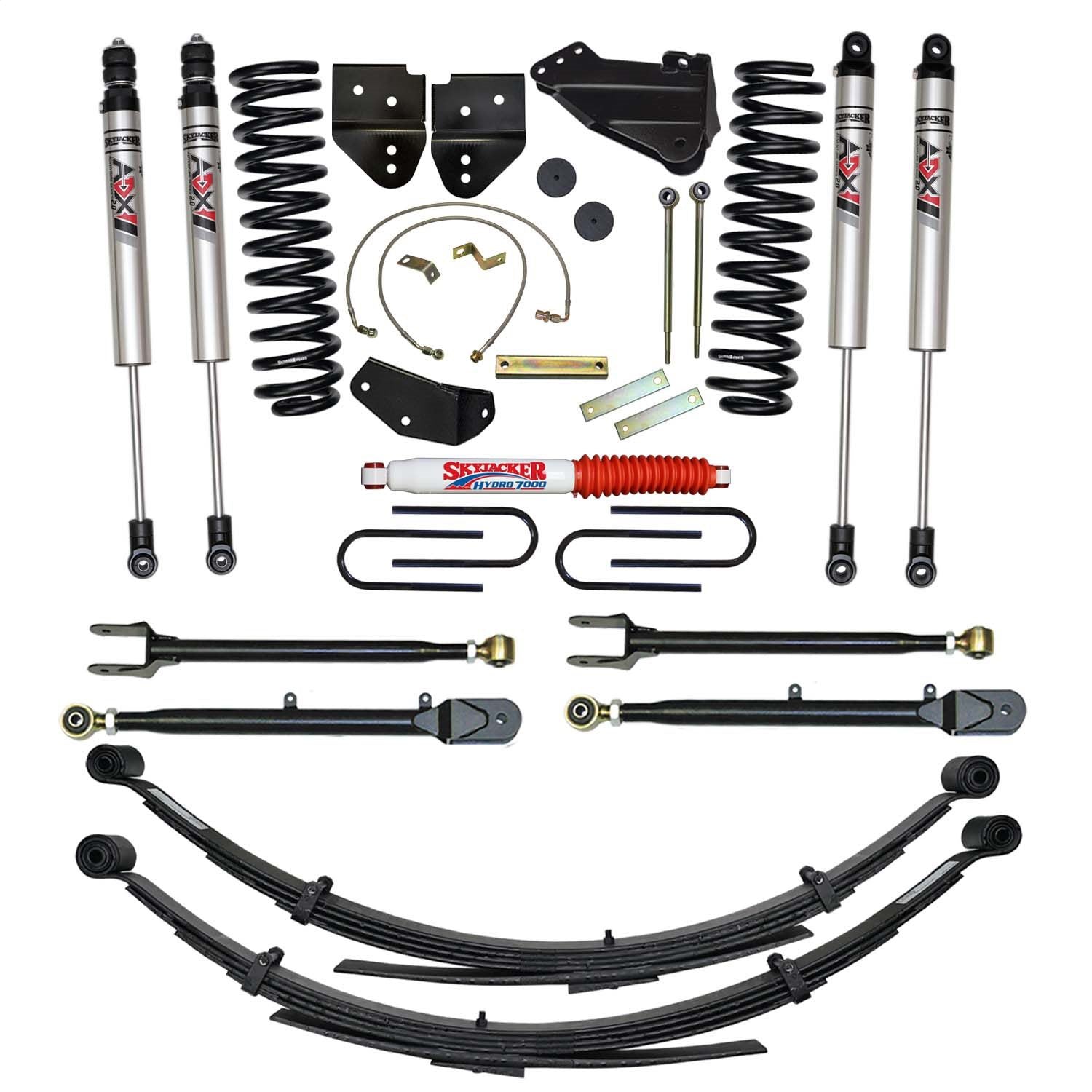

Skyjacker F54024KS-XM - 4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks

Skyjacker F54024KS-XM - 4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks

4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

4in.SYS;05-07F250;GAS;4LK;ADX

Skyjacker re-engineered the Super Dutys suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-inch OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with steel encased rubber bushing. Drop brackets lower the rear mounts at the frame to maintain the correct caster specifications for proper alignment. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. The process starts with 5160H chromium alloy material, an advanced method of shot peening and a presetting process. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. A drop pitman arm corrects steering angle. Front sway bar links realign sway bar. Drop spacers reposition front bump stops. Front brake line brackets and braided stainless steel brake lines correct and reposition the brake lines. A heavy-duty steering stabilizer relocation bracket and Hydro steering stabilizer included. Softride(R) Technology leaf springs have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon(R) wear pads between leafs and bolt style spring clips prevent binding and eliminate friction. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

• ADX 2.0 Has Quickest Shock Reaction Time Ever
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology
• ADX M2.0 Reacts Quicker To Improve Control And Stability
• IFP Technology Provides Quickest Shock Reaction Time Ever
• 35s Improve Your Off-Road Stance And Gain Ground Clearance
• Proper Caster Maintains Factory Handling And Ride Quality
• Yields More Lift In Front For A More Level Stance
• Skyjacker Softride Technology Enhanced Spring Performance
• Radius Arm Mount Drop Brackets Properly Corrects Caster
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered
• Skyjacker Softride Technology Heightened Leaf Springs
• Increase Travel With Impressive 4-link Flex Ride Enhancement
