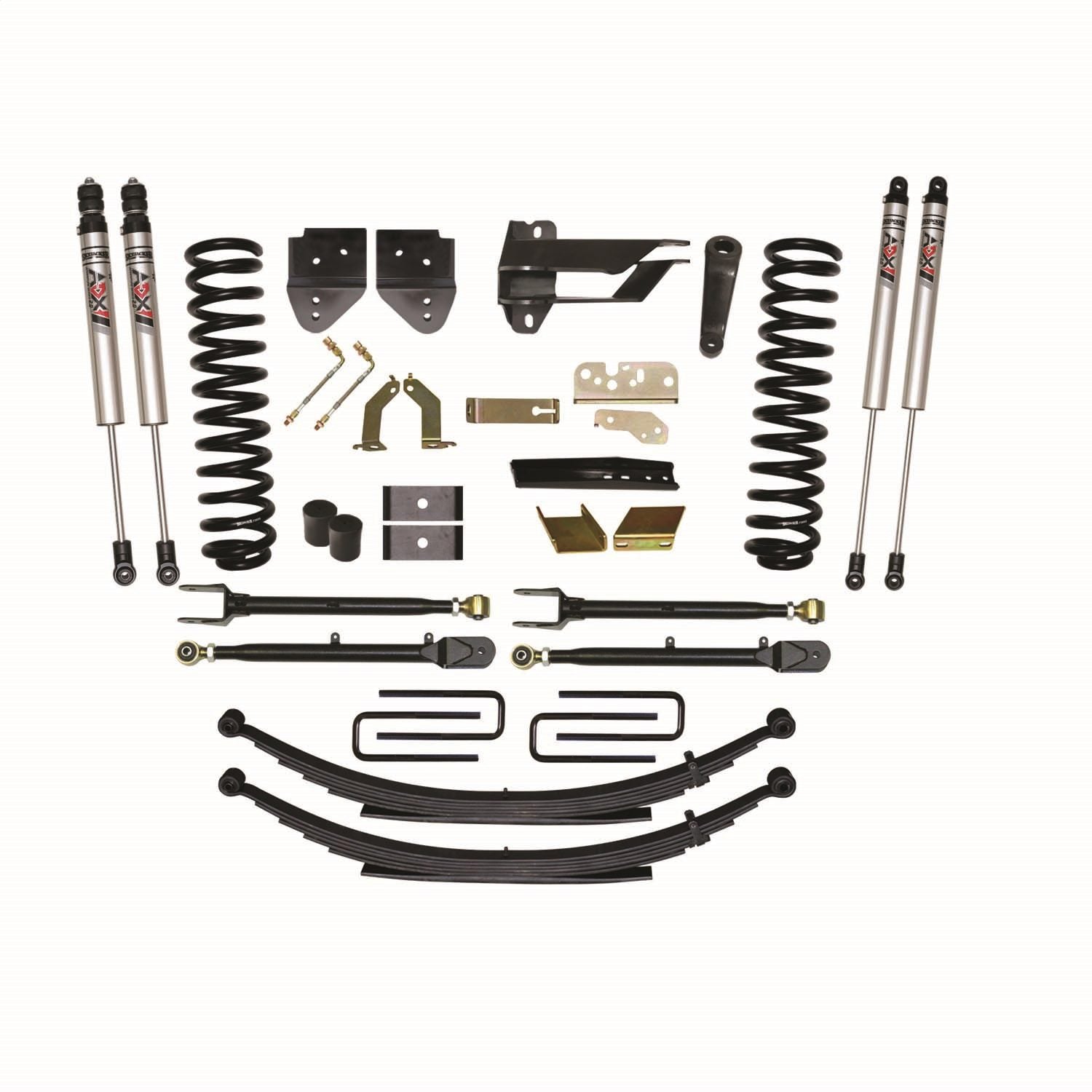

Skyjacker F176024KS-XM - 6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks

Skyjacker F176024KS-XM - 6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks

6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

6in.SYS;17 F250-F350 4WD/GAS

Skyjacker re-engineered the Super Dutys suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-inch OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with RB style rubber bushing. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. A drop pitman arm corrects steering angle. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. Softride(R) Technology leaf springs have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon(R) wear pads between leafs and bolt style spring clips prevent binding and eliminate friction. E-brake relocation brackets, bump stop spacers, rear braided stainless steel brake line extensions and rear exhaust hanger brackets are included. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength. Reap the benefits: On-Road Refinement and Off-Road Readiness.

• ADX M2.0 Has Race-Inspired Full-Displaced Valving System
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology
• IFP Technology Provides Quickest Shock Reaction Time Ever
• ADX M2.0 Reacts Quicker To Improve Control And Stability
• 37s Improve Your Off-Road Stance And Gain Ground Clearance
• Increase Travel With Impressive 4-link Flex Ride Enhancement
• Yields More Lift In Front For A More Level Stance
• Skyjacker Softride Technology Enhanced Spring Performance
• Radius Arm Mount Drop Brackets Properly Corrects Caster
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered
• Bump Stop Spacers Keep Suspension Travel Safely In Check
• Skyjacker Softride Technology Heightened Leaf Springs
