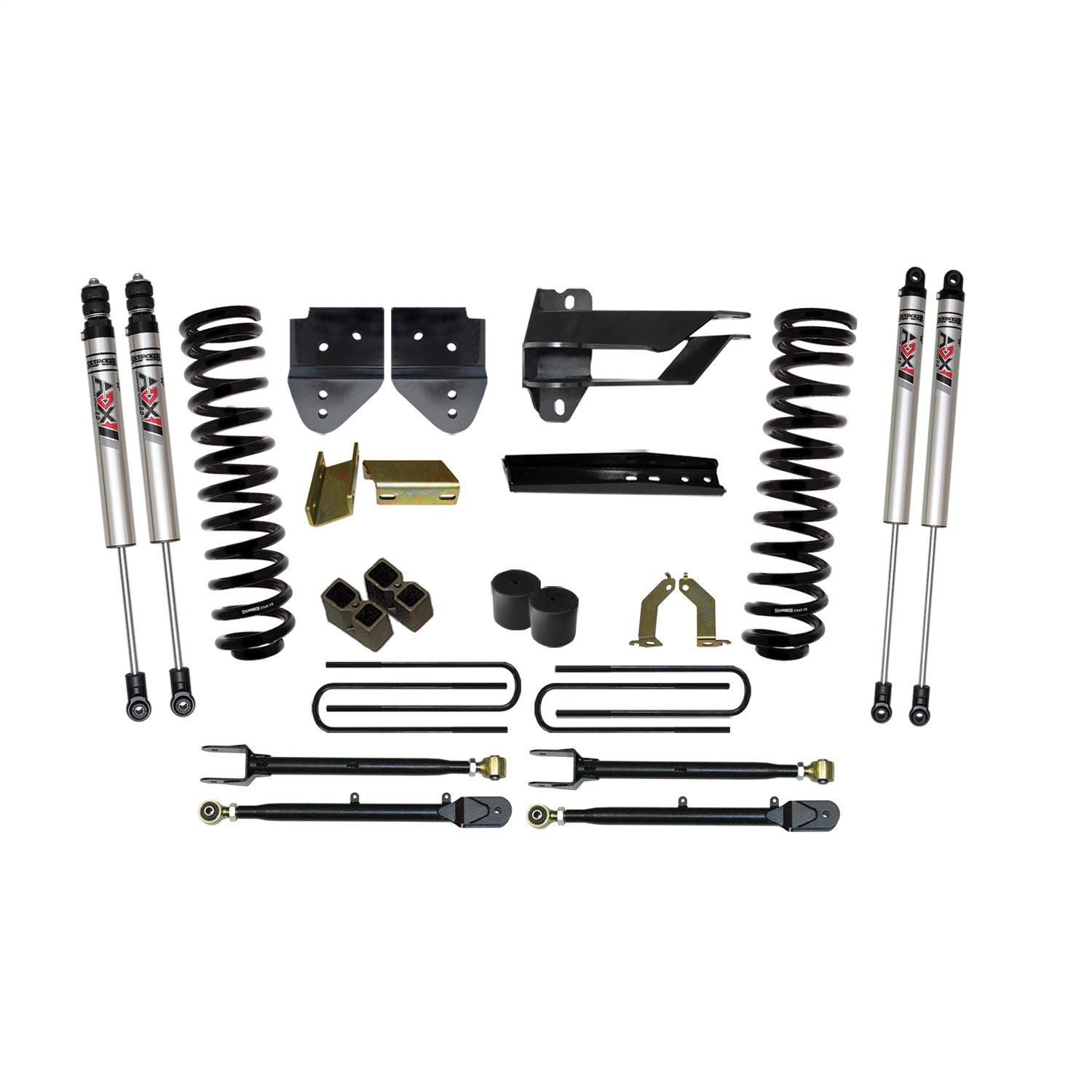

Skyjacker F174524K3-XM - 4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks

Skyjacker F174524K3-XM - 4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks

4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

4INKIT;2017 F350 4WD/DSL W/

Raise your Super Dutys suspension clearance with essential room to run 35-inch tires. Those larger aggressive off-road tires will gain you ground clearance and add a larger ready-for-action stance. With Skyjacker's all-in lift kit, you can reap the benefits of On-Road Refinement and Off-Road Readiness. Formed from 2-inch OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with RB style rubber bushing. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. Skyjacker specifically engineered this Variable Rate Coil Spring for the F350 Super Duty 4WD Diesel to deliver a smoother ride. Radius arm drop brackets lower the OEM radius arm mounts at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 2-inch rear block and U-bolt kit delivers a more level stance. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

• ADX M2.0 Has Race-Inspired Full-Displaced Valving System
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology
• IFP Technology Provides Quickest Shock Reaction Time Ever
• ADX M2.0 Reacts Quicker To Improve Control And Stability
• 35s Improve Your Off-Road Stance And Gain Ground Clearance
• Increase Travel With Impressive 4-link Flex Ride Enhancement
• Proper Caster Maintains Factory Handling And Ride Quality
• Yields More Lift In Front For A More Level Stance
• Skyjacker Softride Technology Enhanced Spring Performance
• Radius Arm Mount Drop Brackets Properly Corrects Caster
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered
• Bump Stop Spacers Keep Suspension Travel Safely In Check
