Skunk2 - 307-05-9085
Ultra Series Race Centerfeed Intake Manifold; 5L Volume; 90mm Inlet w/Early 5.0 Ford TB Bolt Pattern; 4 Secondary Injector Passes; Flange Fits B Series Vtec Heads; Black Adapter;
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads! The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
- Modular 3pc. Design w/Removable Plenum
- 5.0L Plenum Volume

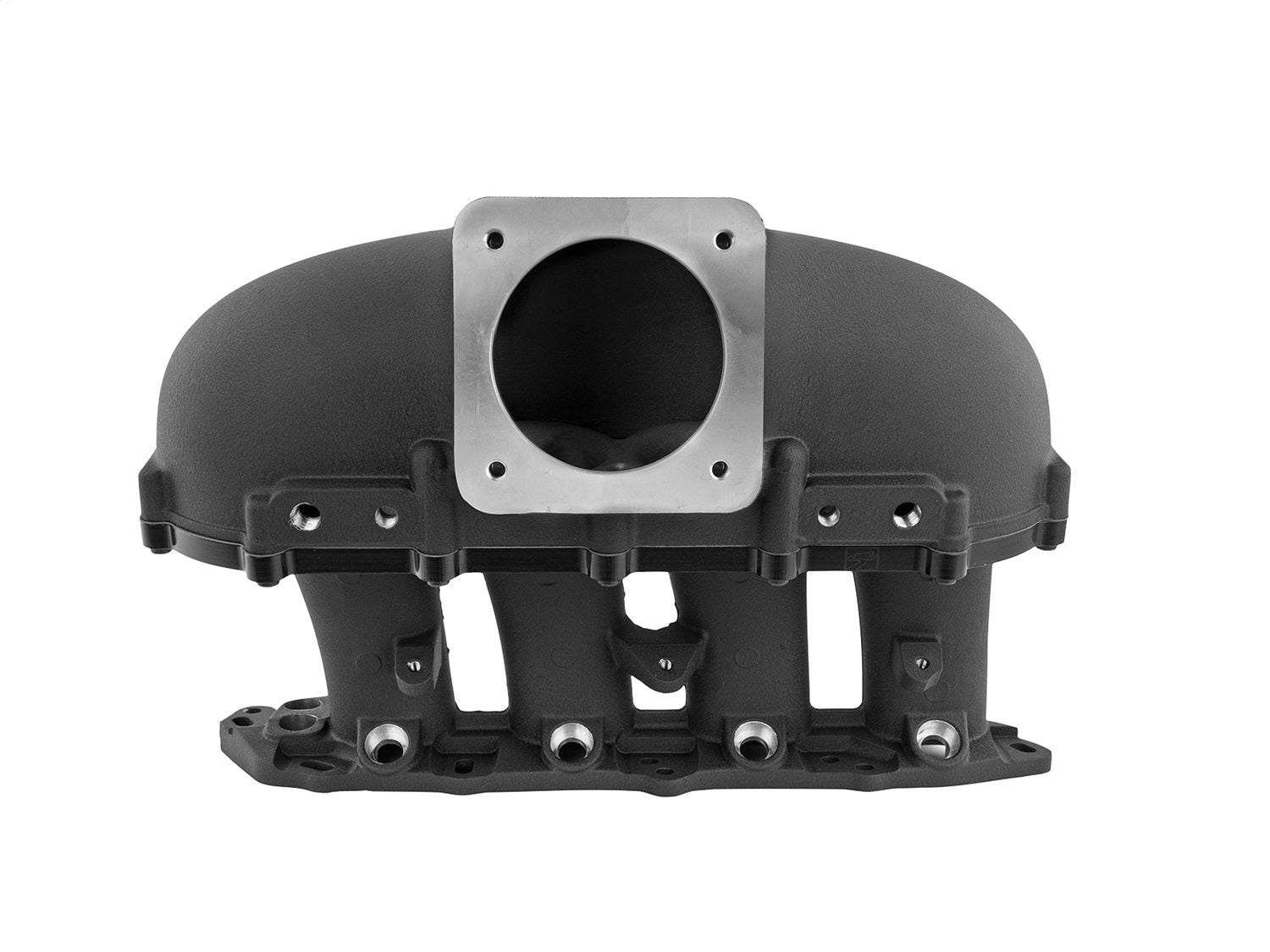

- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- 6.0 in. Tapered Hi-Velocity Runners
- Raised 87mm Velocity Stacks
- Provisions Secondary Fuel Rail And Injectors
- Universal Mounting Flange Fits All B VTEC Cylinder Heads
- 4 in. x 1/8 in. NPT And 3 in. x 1/4 in. NPT Accessory Ports
- Hi-Grade Mounting Hardware

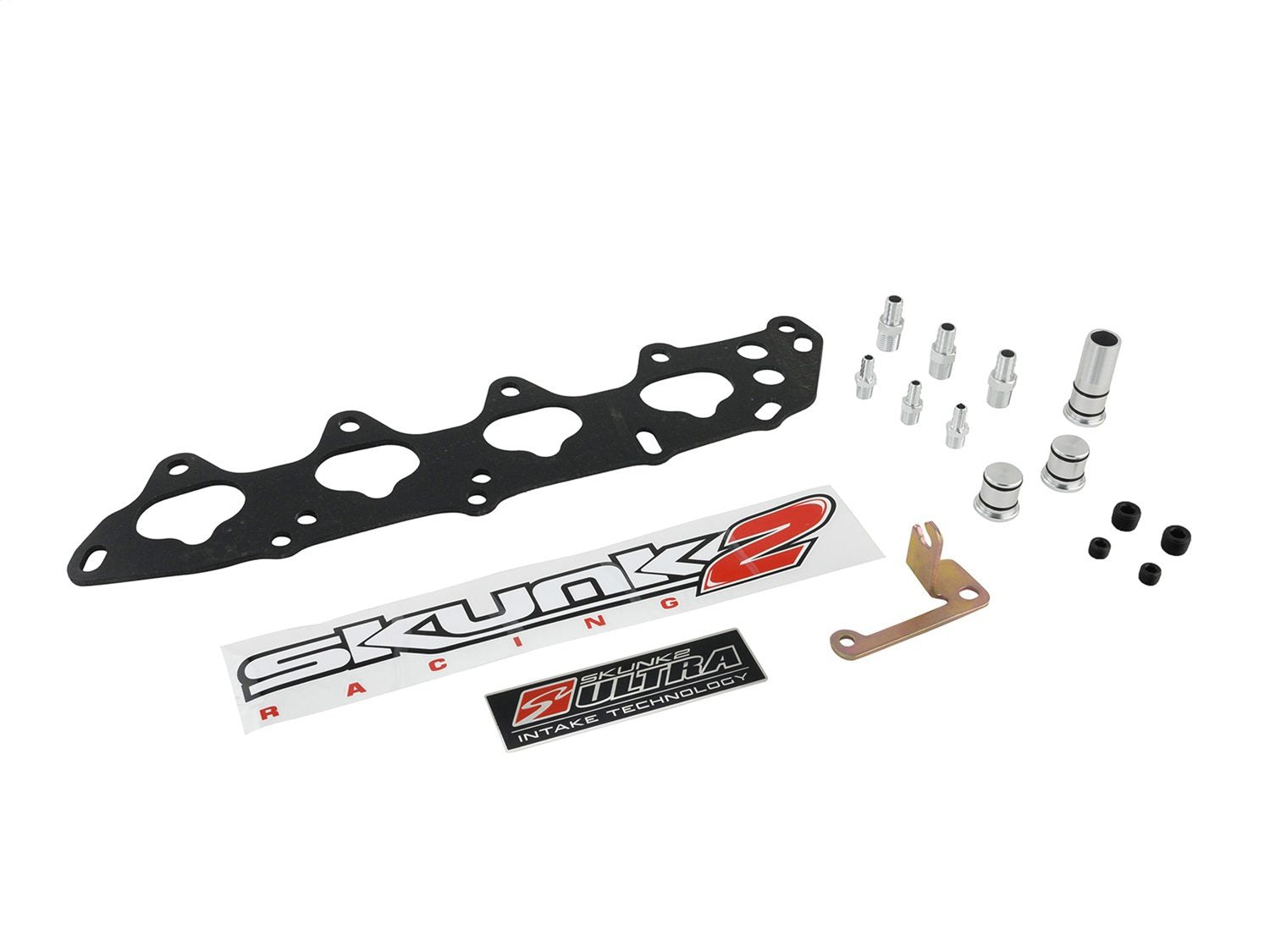

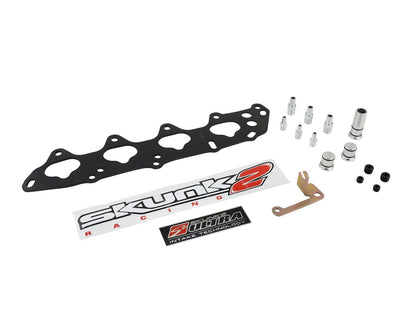

- Thermal Gasket Included
- Fits Most Popular Chassis Configurations
- US Patent No. D673977
