Skunk2 306-05-1190 - Alpha Series Honda D16/Z6 Connecting Rods (Long Rods)

Skunk2 306-05-1190 - Alpha Series Honda D16/Z6 Connecting Rods (Long Rods)

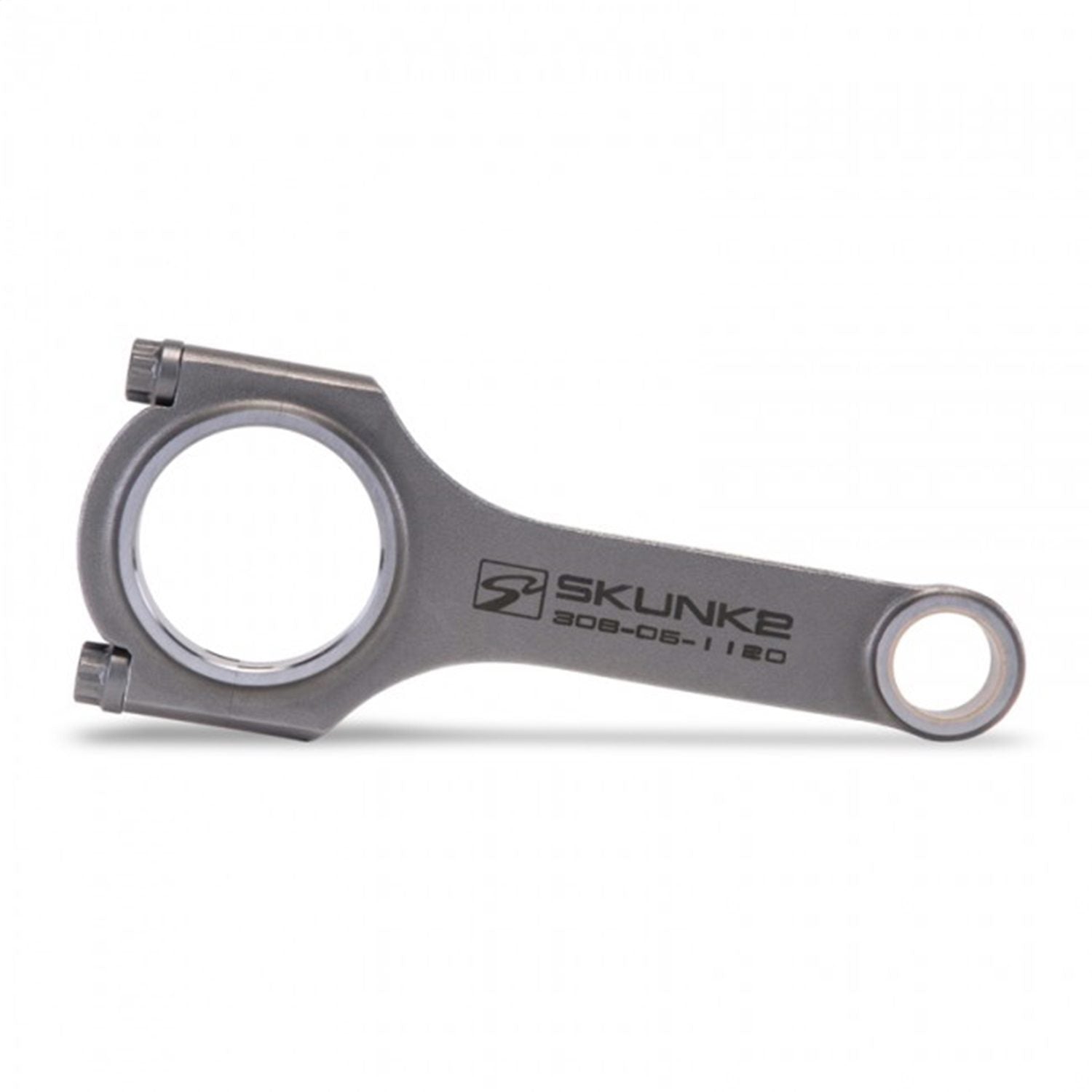

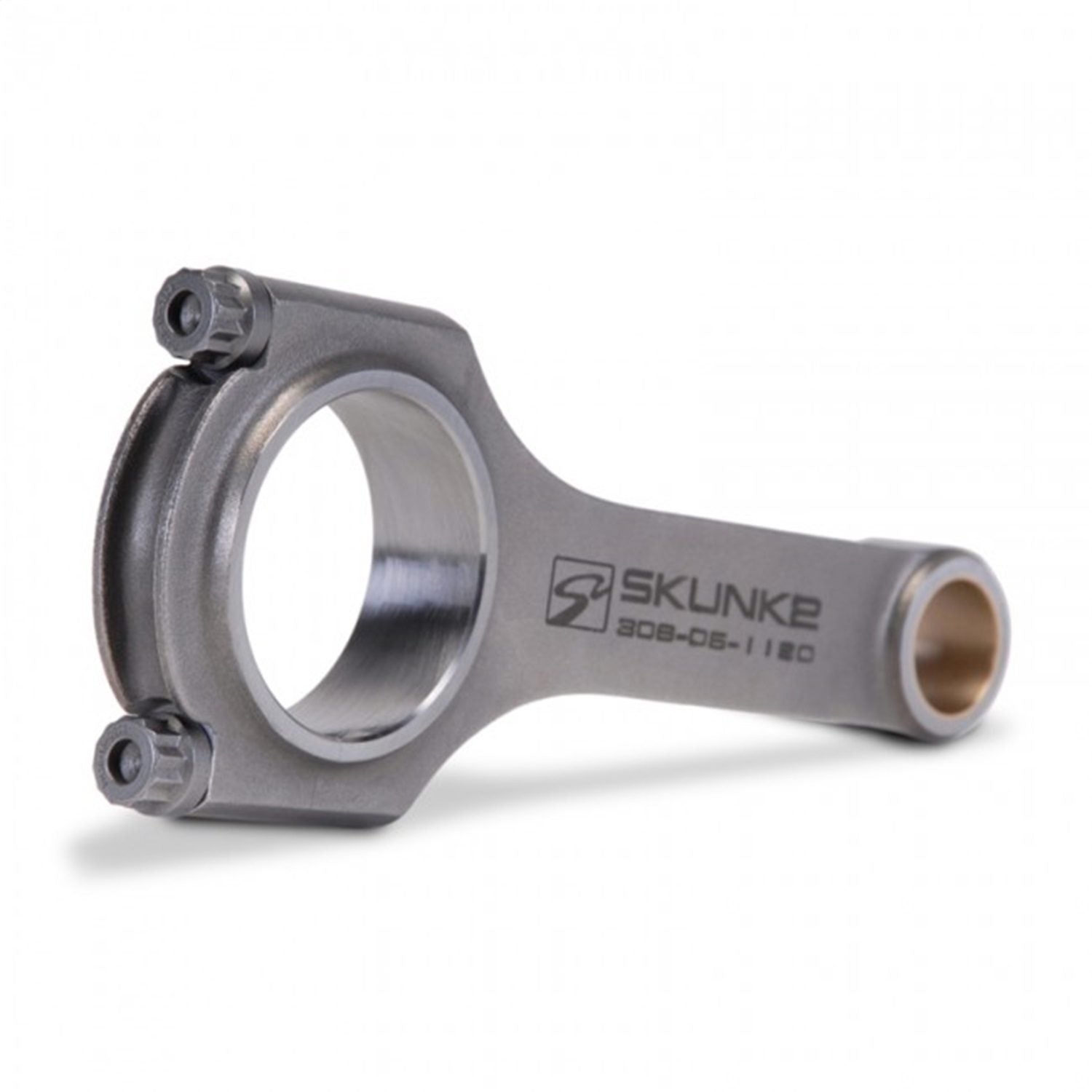

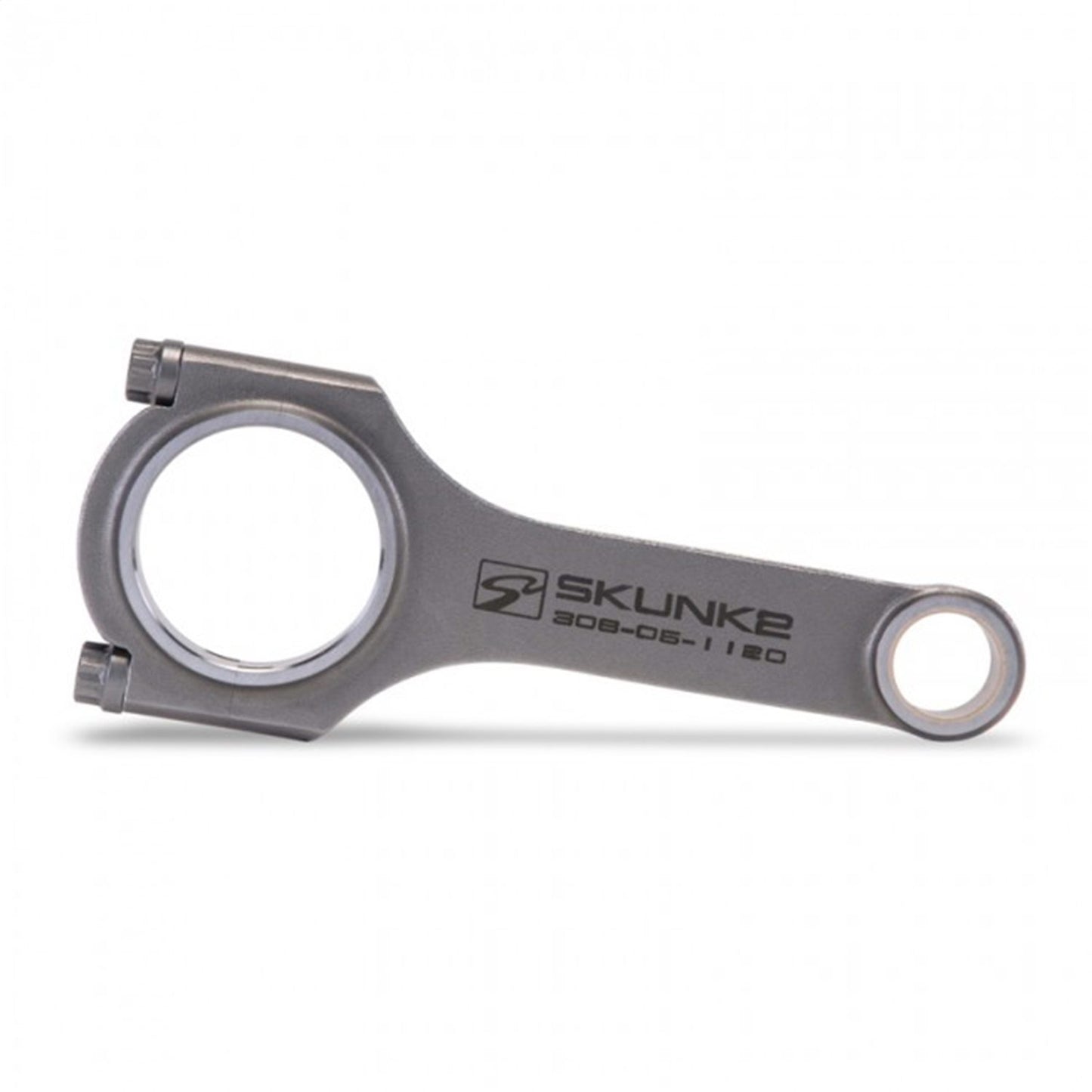

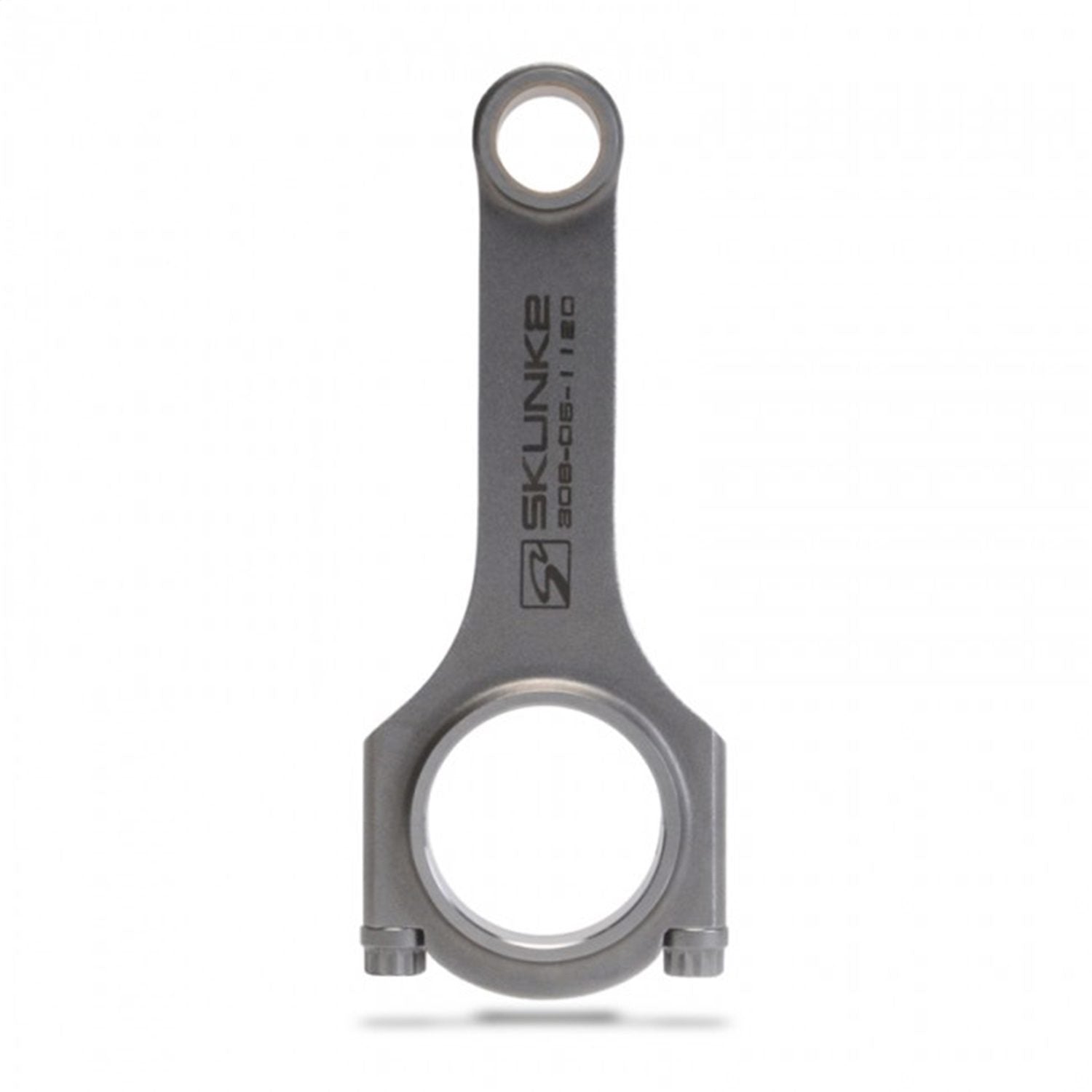

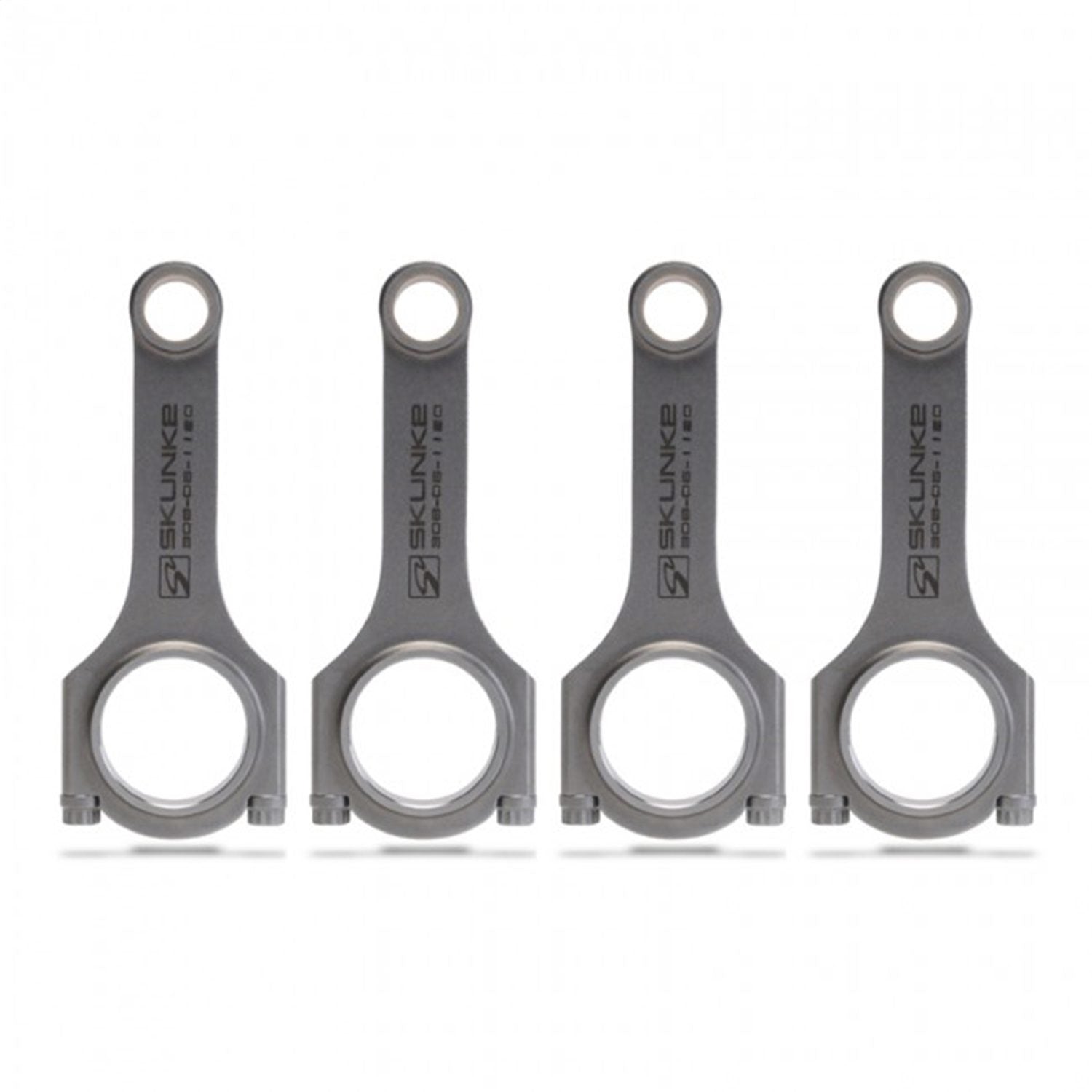

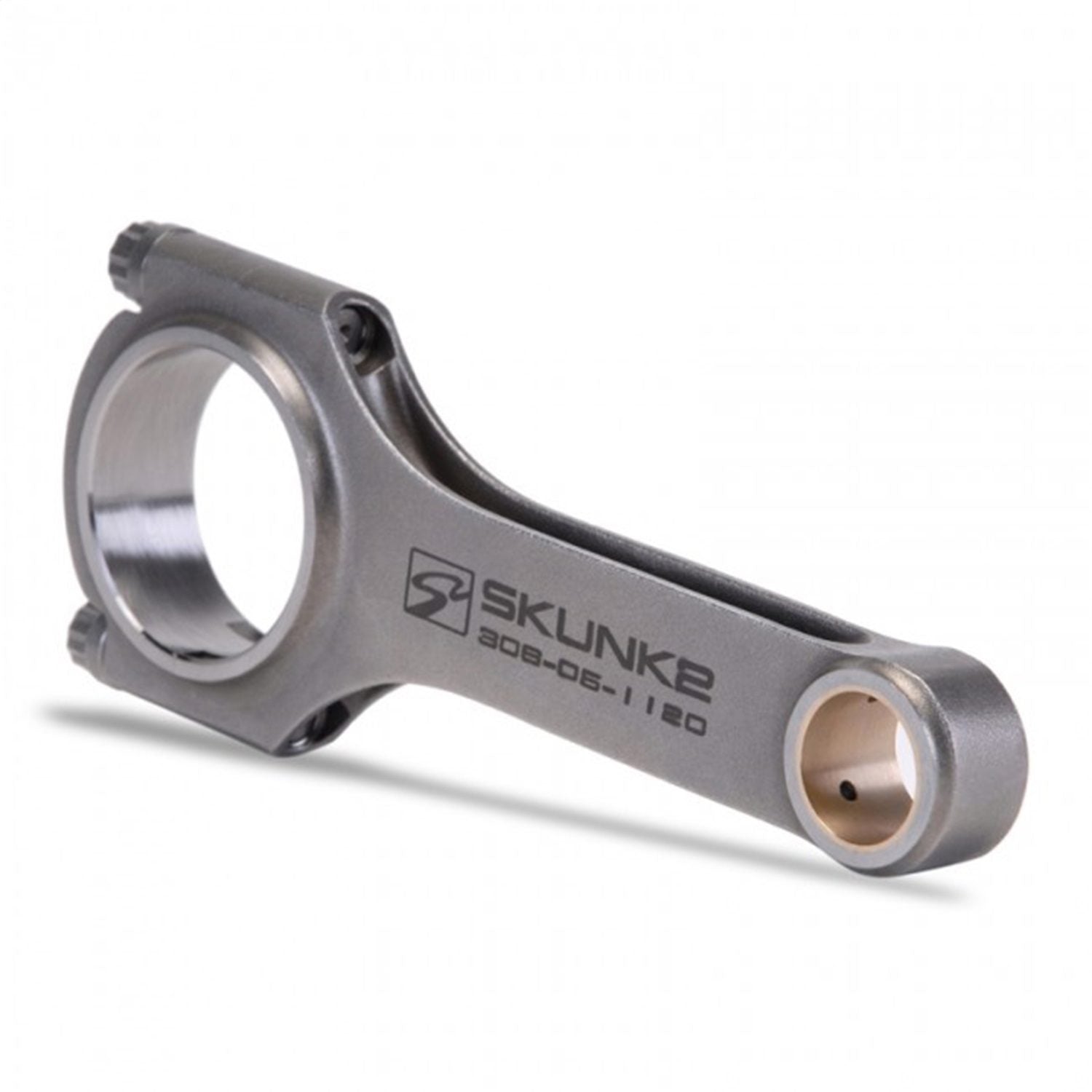

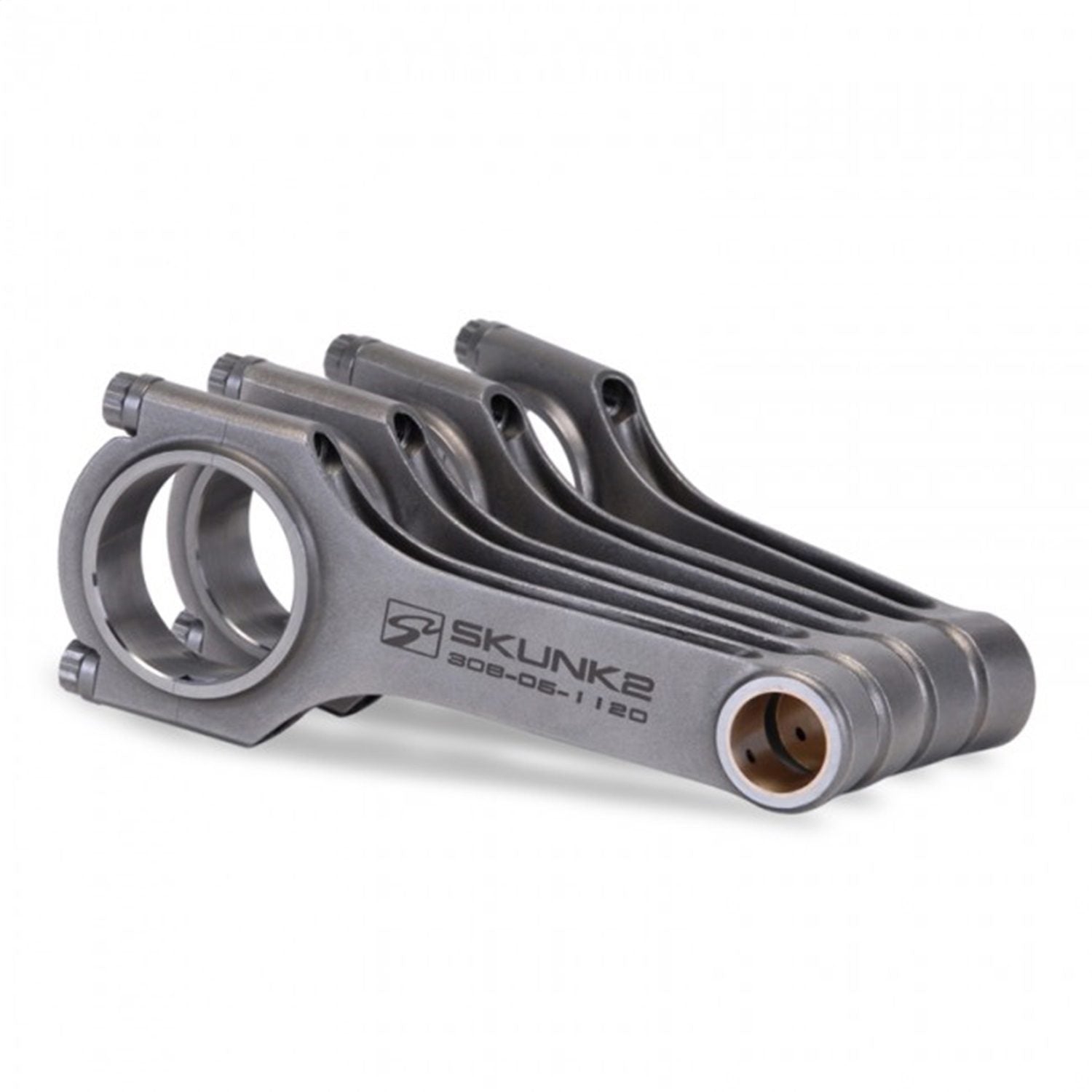

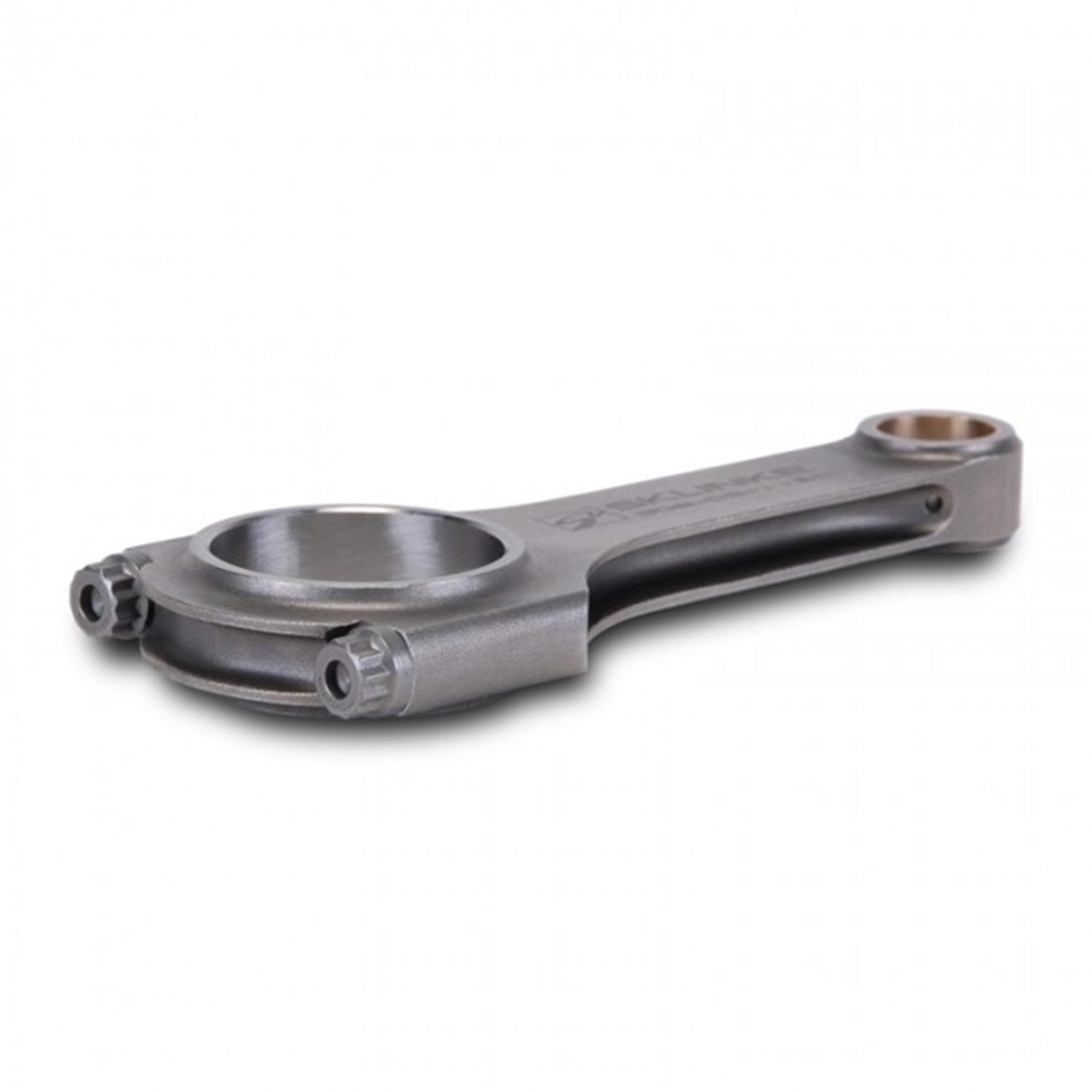

Alpha Series Connecting Rod Set; 138.63mm Length; 457 Grams; Rated to 900HP; H-Beam; Long Rod; Incl. 3/8 ARP2000 Bolts/Lube; 4340 Chromoly Steel; Set of 4;

Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications.

• Length 138.63mm
• Weight 510 grams

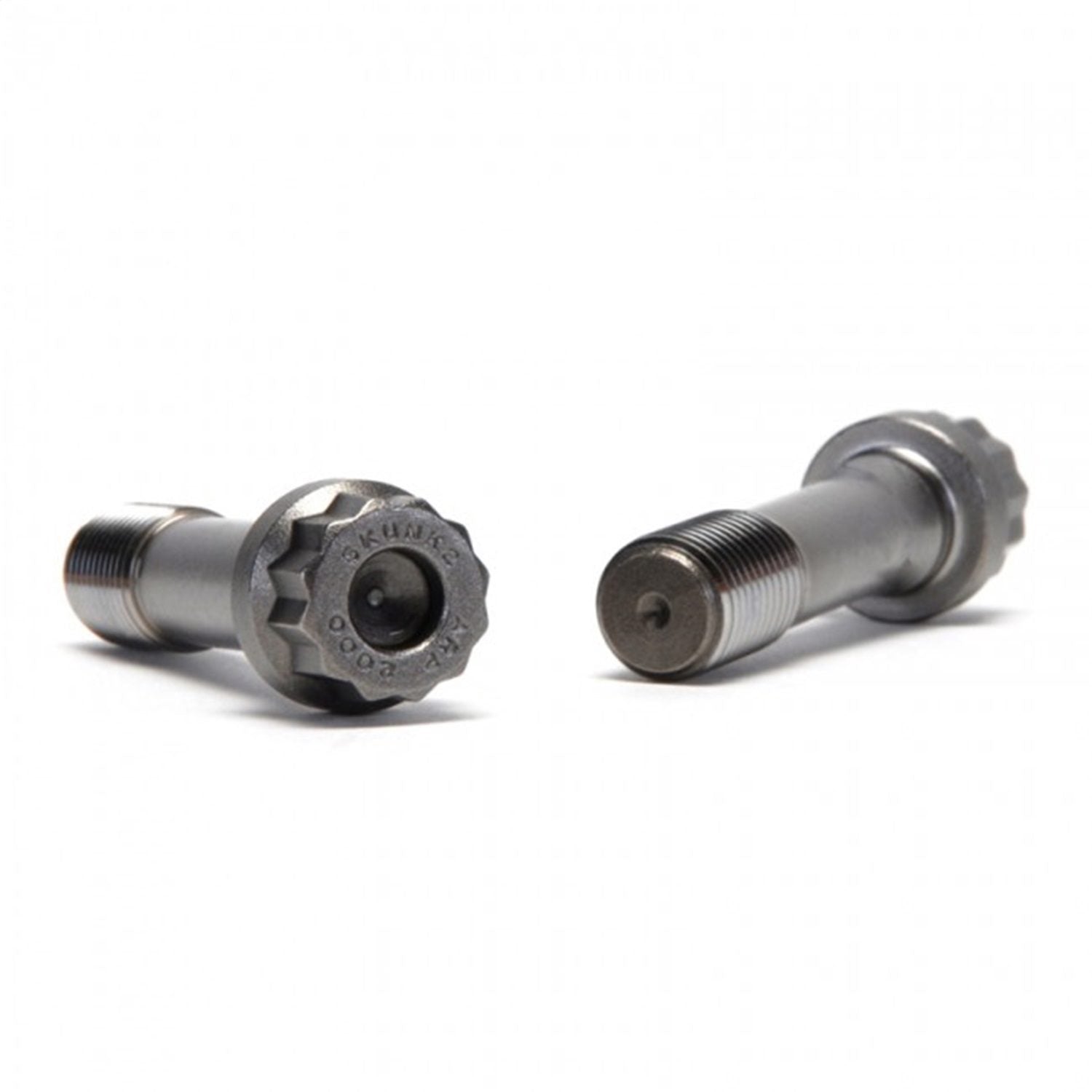

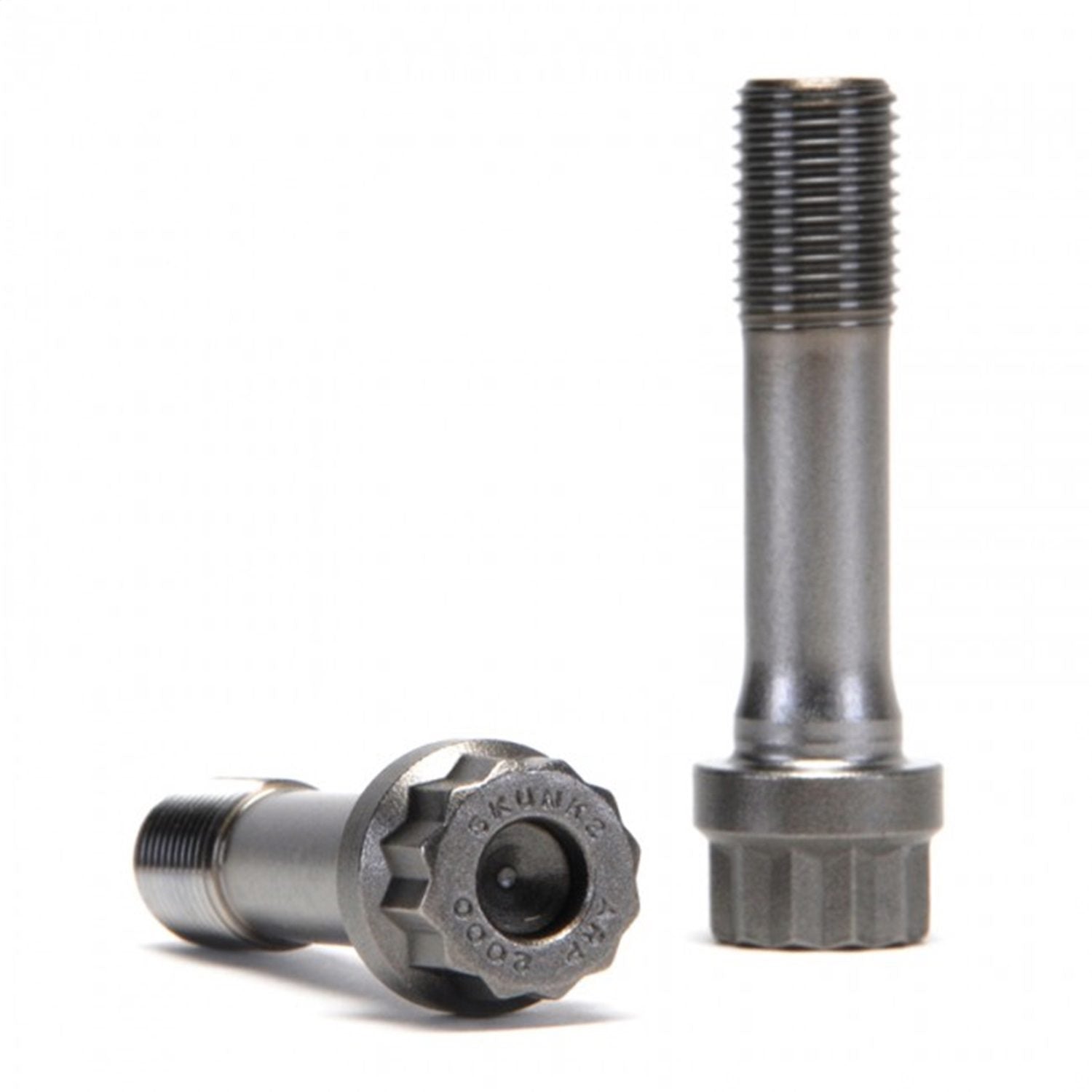

• 3/8-in. ARP2000/Skunk2 Bolts
• Shot-Peened For Reduced Fatigue
• Bronze Wrist Pin Bushings
• Pin End Compatible w/Most Pistons w/o Machining
• Dual-Pin Oil Passages For Increased Lubrication And Strength
• Balanced +/- 1 Gram
• Magna-flux Inspected
• Heat Treated
• FEA Analyzed
• 900+ HP Capable
