Scott Drake 340-3HF - 3 Row Hi-Flow Radiator

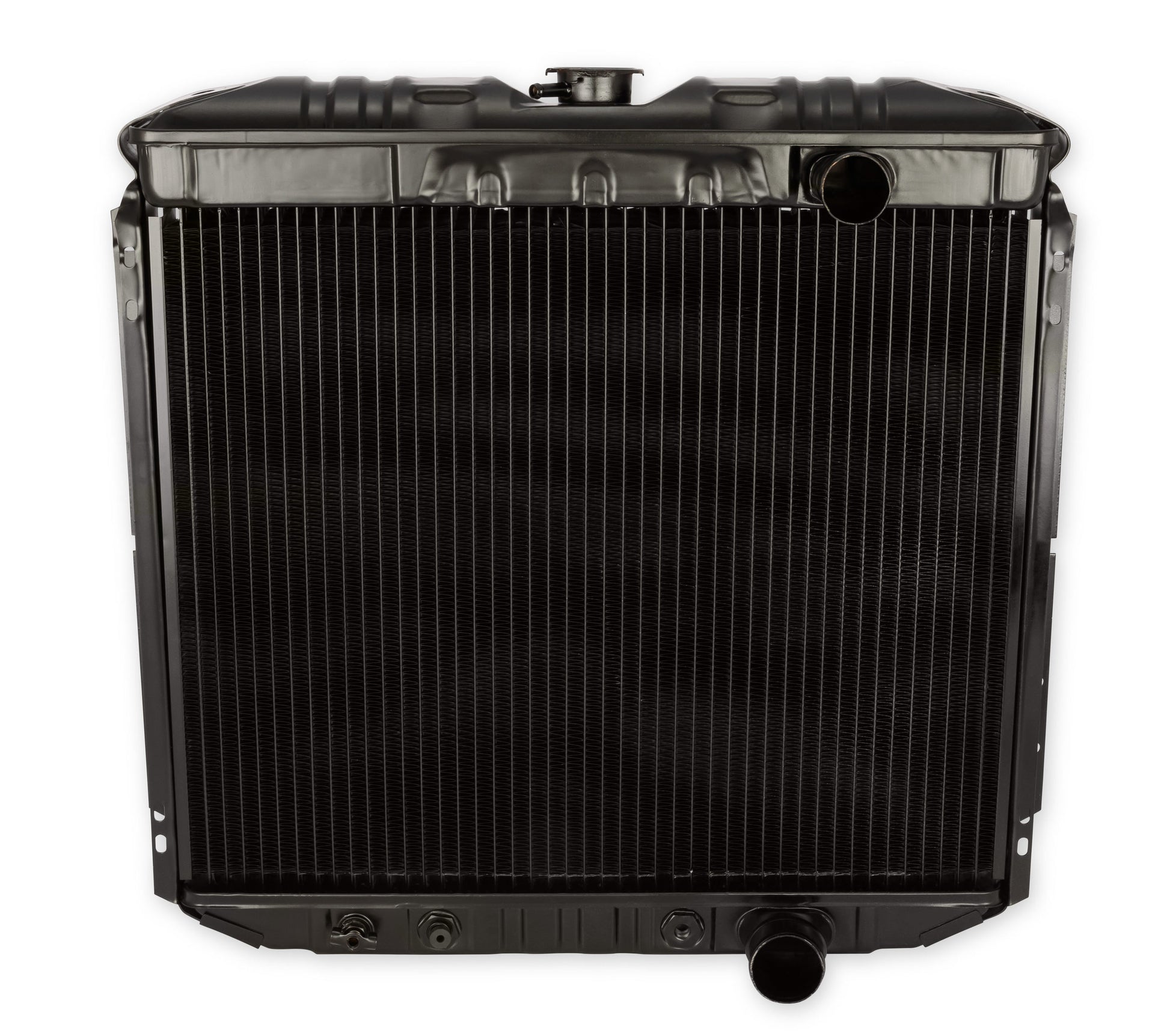

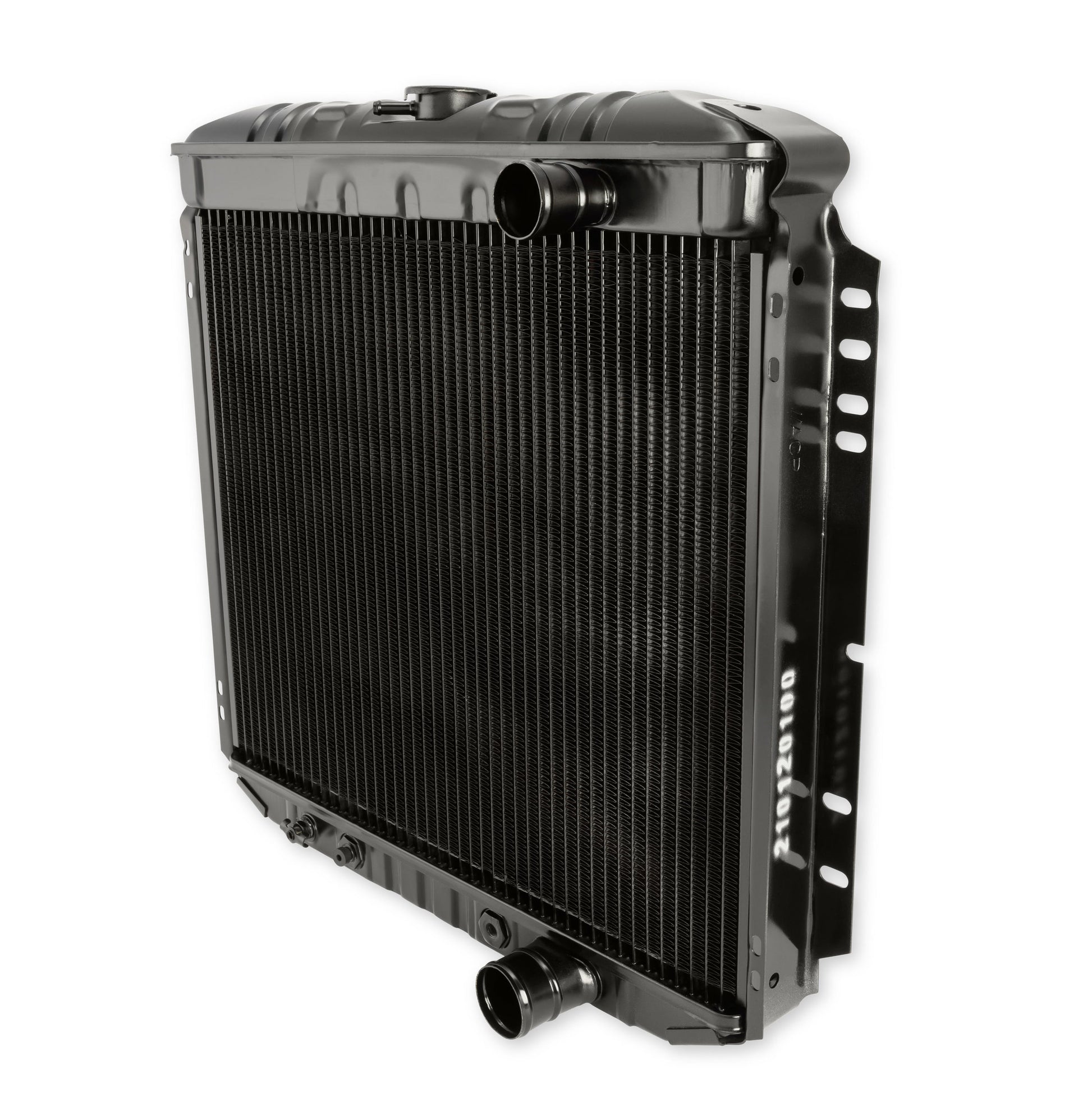

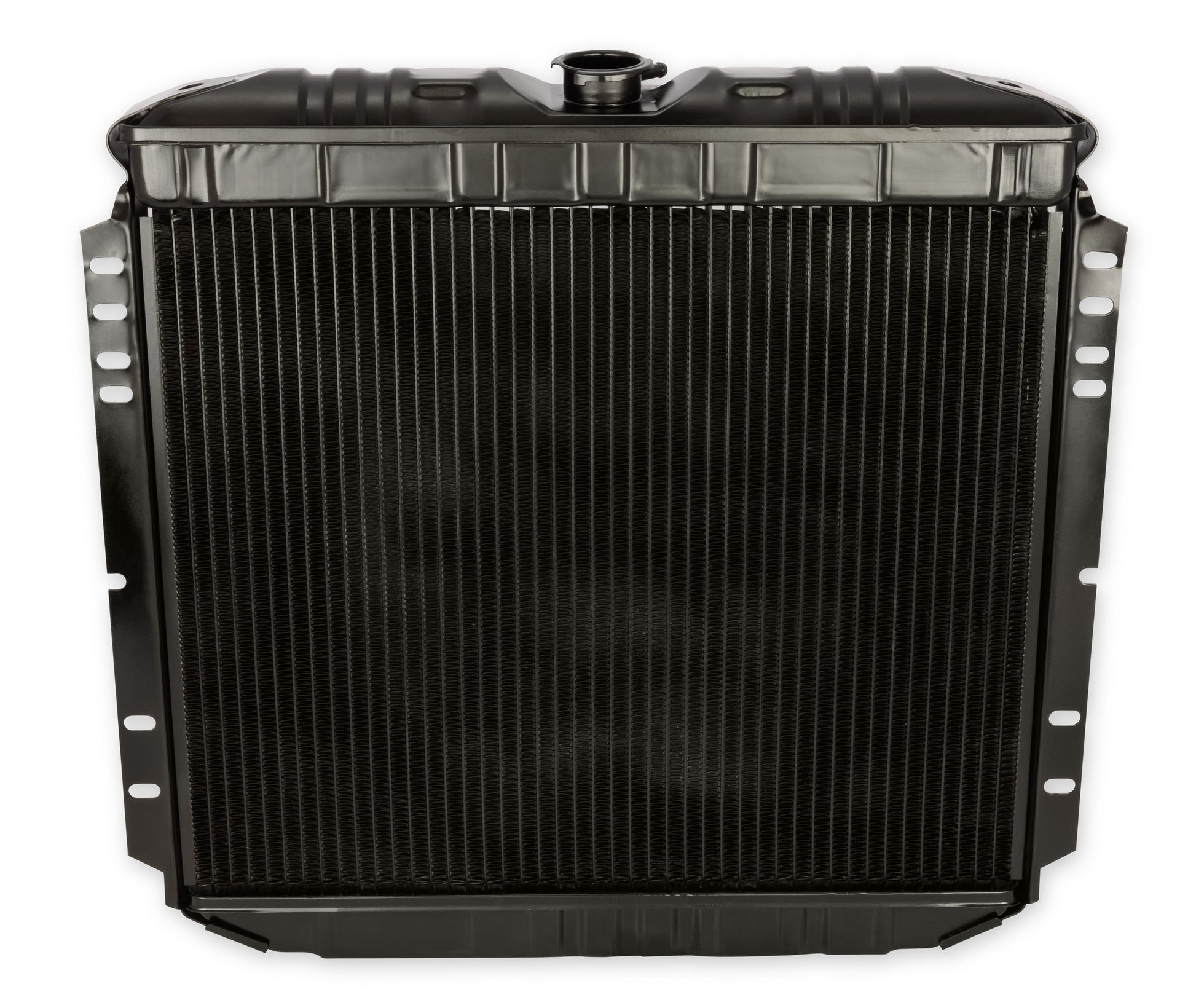

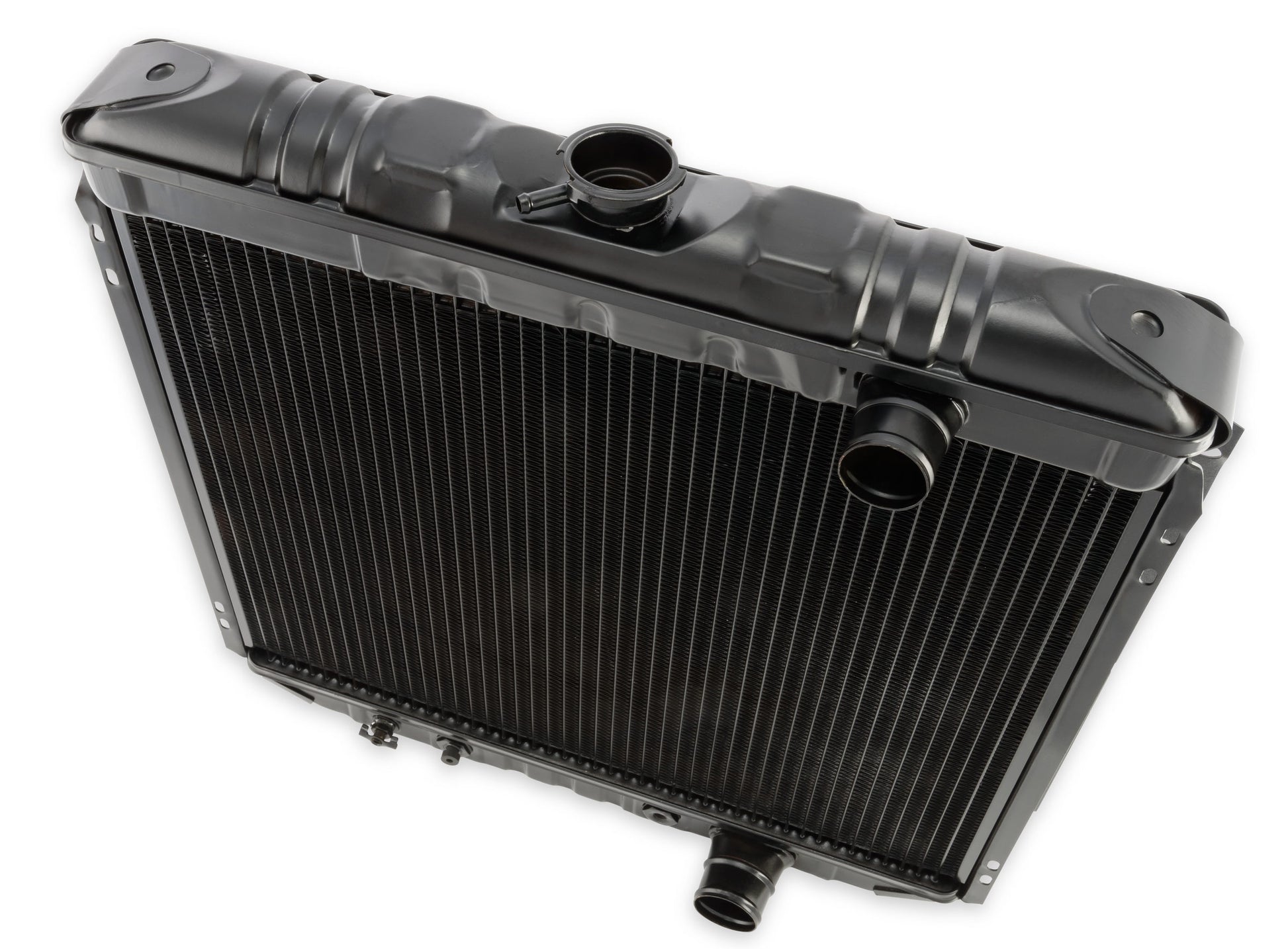

Scott Drake 3 Row Hi-Flow Radiator
1967-1969 Ford Mustang Small Block, automatic transmission without Air Conditioning 3 Row Hi-Flow Radiator
Copper/brass construction of this downflow radiator has 3 rows of 1/2" tubing is designed for maximum cooling. The larger tubing increases coolant flow while designed to prevent plugging of coolant passages. A painted black finish provides an attractive finish under the hood and the integrated transmission cooler aids in extending transmission life. Lower mounting insulators sold separately.
- Brass Or Copper Construction
- Fins Designed For Maximum Cooling
- Large 1/2 in. Tube Diameter Increases Cooling Flow And Prevents Plugging
- Includes Automatic Transmission Cooler
Brand: Scott Drake
Category: Belts and Cooling
Color: Black
Core Dimension: 16 3/8 x 20 1/4
Core Height: 16 1/2
Core Row Quantity: 3
Core Thickness: 2 1/2
Core Width: 20
Down Flow Or Cross Flow Type: Down Flow
Emission Code: 6
Fan Included: No
Finish: Painted
Hose Location Inlet: Passenger
Hose Location Outlet: Passenger
Inlet Diameter: 1 1/2
Inlet Location: Passenger
Material: Copper
Meets or Exceeds Original Equipment Manufacture Specifications: Yes
Mounting Hardware Included: No
Mounting Type: Flanged
Outlet Diameter: 1-3/4 in.
Outlet Location: Passenger
Outlet Size: 1-3/4 in.
Overall Height: 21 3/8
Overall Thickness: 3
Overall Width: 20 1/2
part type: Radiator
Product Type: Radiator
Radiator Cap Included: No
Sub Category: Radiators, Coolers and Related Components
Transcooler Provision: Yes
Transmission Oil Cooler Included: Yes
Tube Quantity: 44
Tubing Spacing: 11/32
Warning: California Proposition 65
