Scott Drake - 340-2AL
Radiator - 20.5 in W x 21.375 in H x 3 in D - Passenger Inlet - Passenger Outlet - Aluminum - Natural - Ford Mustang 1967-69 - Each

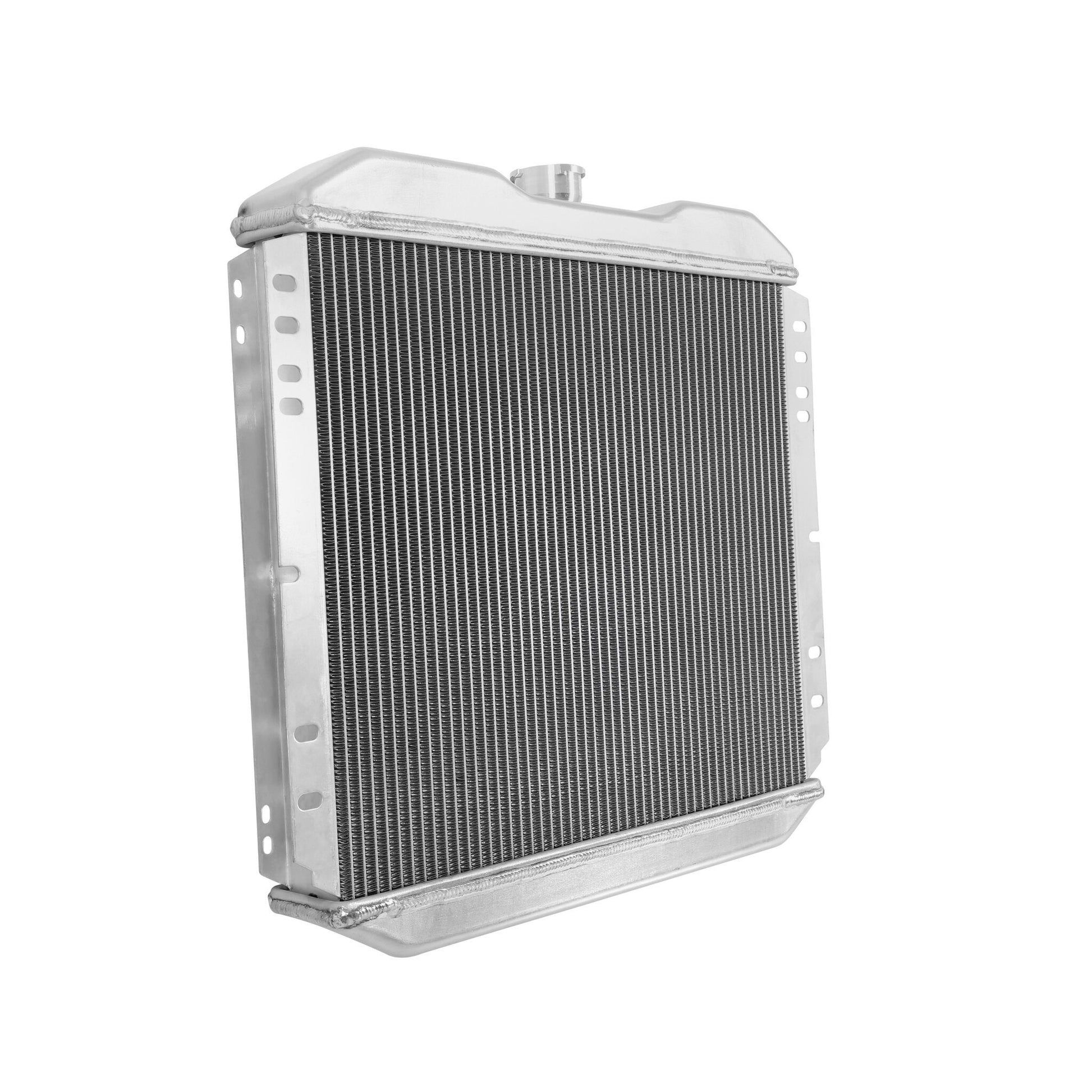

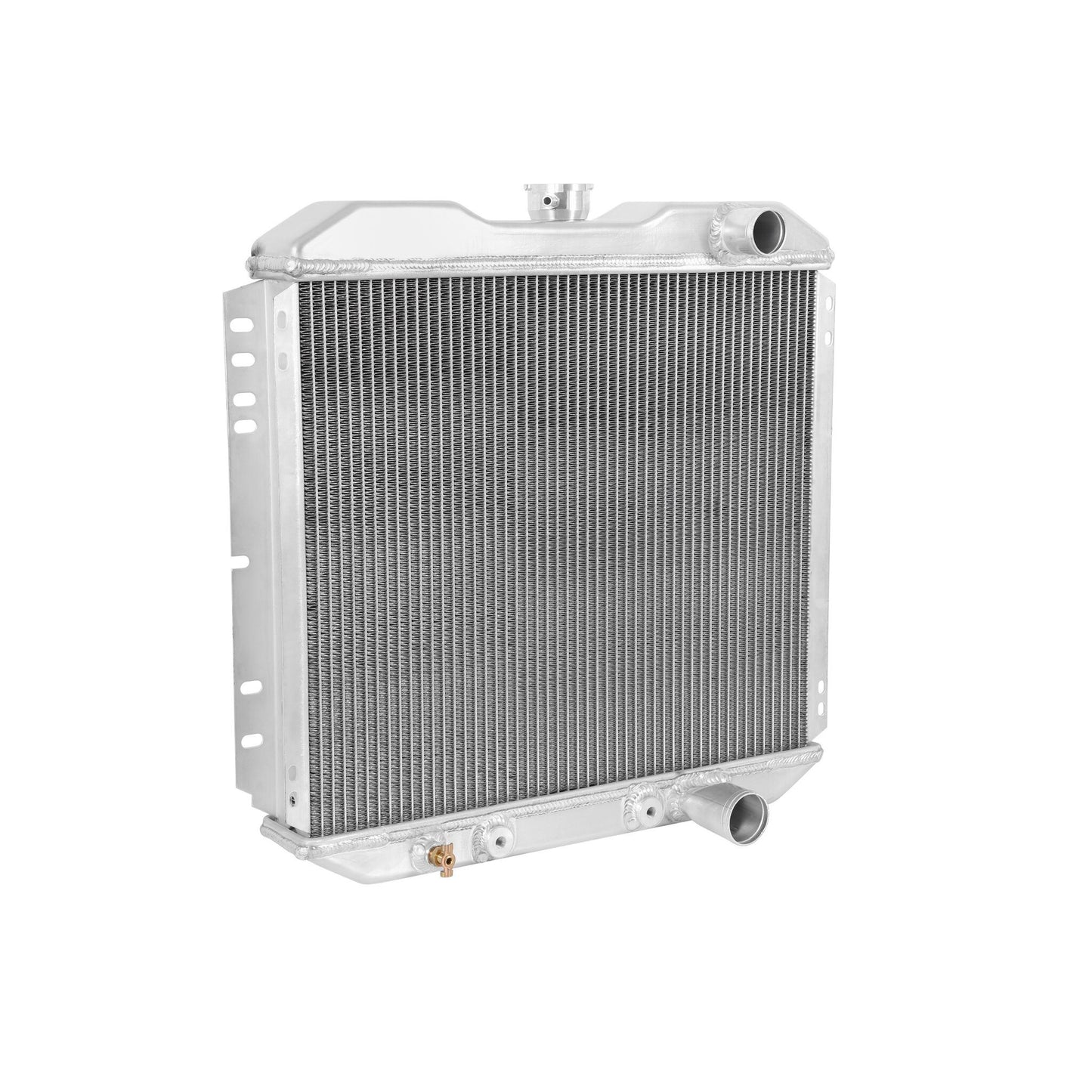

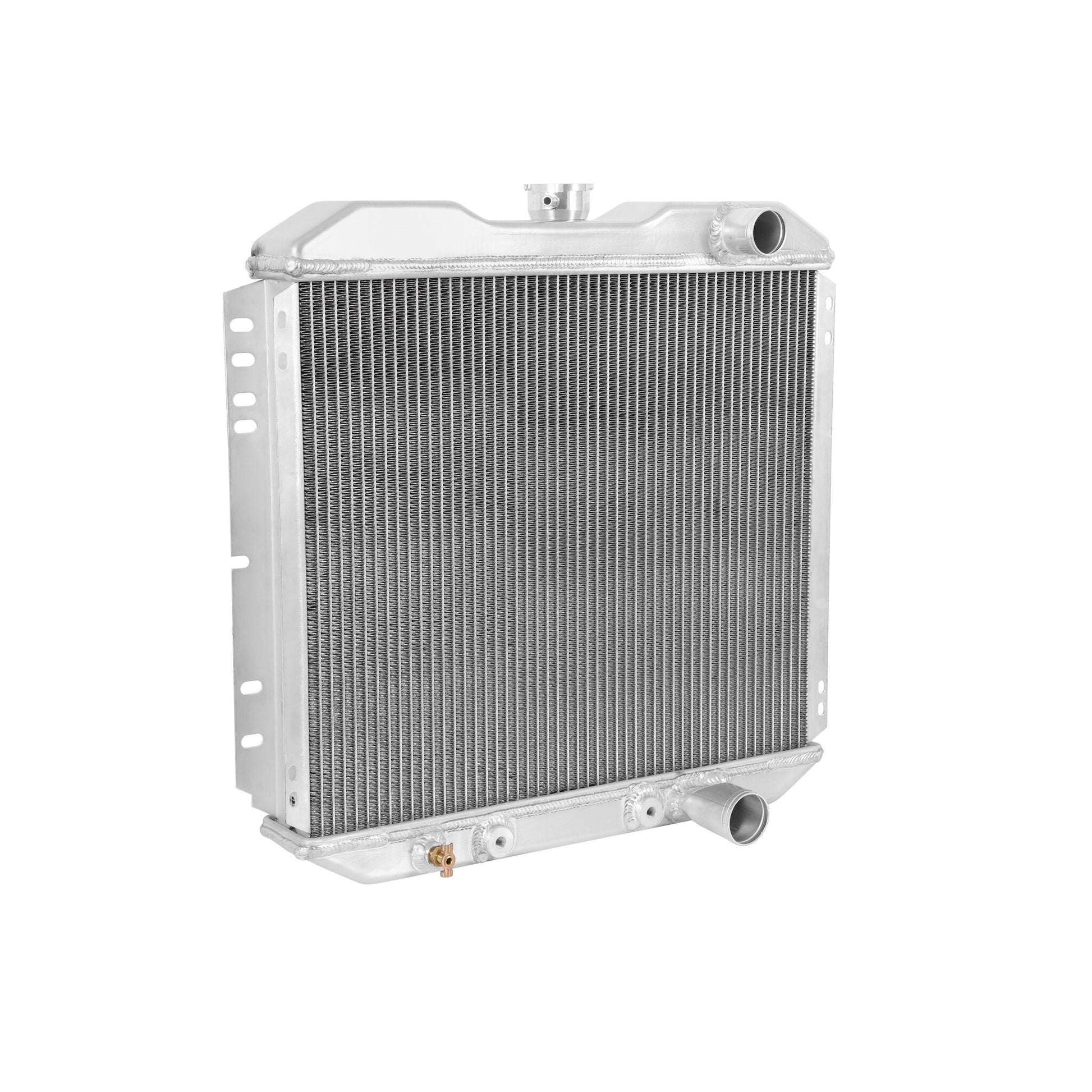

1967-1969 Ford Mustang Small Block 2 Row Down Flow Aluminum Radiator
This precisely designed aluminum downflow radiator is manufactured using 2 rows of extra-large 1" tubes which is equivalent to 4-row efficiency but weighing 5-7 lbs. less. Constructed using premium aluminum this radiator is built to last while providing durability for the road ahead. An automatic transmission cooler is included in this natural finish aluminum radiator and the direct fit install uses the existing factory holes. Will not fit late model water pumps.
- Premium Aluminum Construction
- Extra Large 1 in. Tubes Equals 4 Row Efficiency At 5-7 lbs.
- Includes Automatic Transmission Cooler
- Less Weight
- Direct Fit Install Uses Existing Factory Holes
- Durable
Brand: Scott Drake
Category: Cooling
Core Dimension: 16 3/8 x 20 1/4
Core Height: 16 1/2
Core Row Quantity: 2
Core Thickness: 2 5/8
Core Width: 20
Down Flow Or Cross Flow Type: Down Flow
Emission Code: 6
Fan Included: No
Finish: Bare
Hose Location Inlet: Passenger
Hose Location Outlet: Passenger
Inlet Diameter: 1 1/2
Inlet Location: Passenger
Material: Aluminum
Mounting Type: Flanged
Outlet Diameter: 1-3/4 in.
Outlet Location: Passenger
Outlet Size: 1-3/4 in.
Overall Height: 21 3/8
Overall Thickness: 3
Overall Width: 20 1/2
Product Type: Radiator
Radiator Cap Included: No
Transcooler Provision: Yes
Transmission Oil Cooler Included: Yes
Tube Quantity: 49
Tubing Spacing: 5/8
Warning: California Proposition 65
