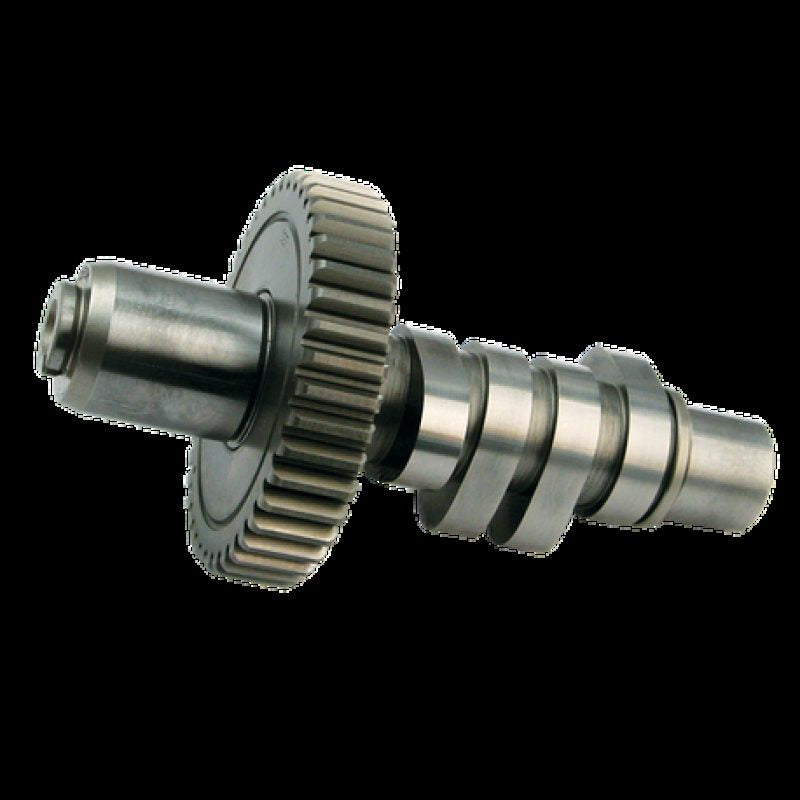

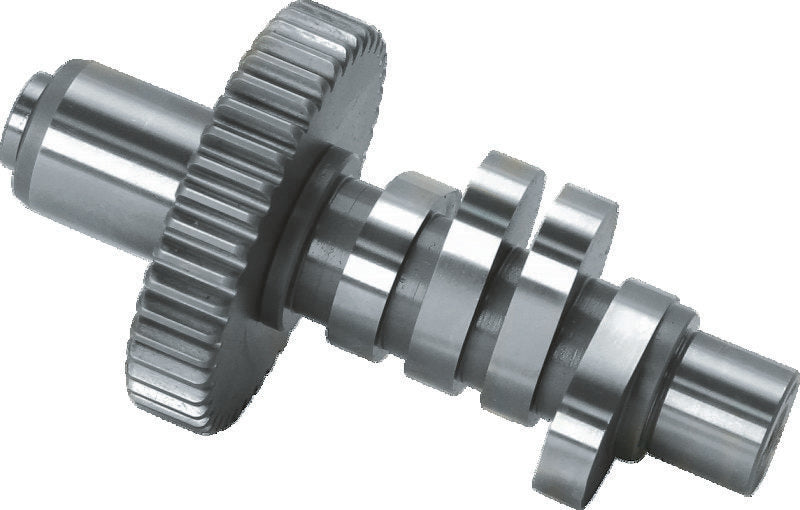

S&S Cycle 330-0166 - 78-84 BT H-Grind Camshaft
S&S Cycle 330-0166 - 78-84 BT H-Grind Camshaft
SKU: SSC-330-0166
Low stock: 1 left
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
S&S Cycle 330-0166 - 78-84 BT H-Grind Camshaft
Lift at TDC: .076º/.131º Front, .076º/.131º Rear; Lifters: Hydraulic; Spring Spacing Required: No Bolt-In; Timing Intake:0º/40º Front, 20º/33º Rear; Timing Exhaust: 53º/12º Front, 53º/12º Rear; Type: H-Grind; Valve Duration: 220º/245º Front, 233º/245º Rear; Valve Lift: .389º Front, .391º Rear
Service part for shovelhead engines. This grind is a dead-on reproduction of the stock cams used in 1978 to 1984 big twins. Perfect for repair and restoration of 74" and 80" engines. Available for generator engines with inner cam bushings or inner cam bearings, and for early and late alternator engines with different cam gear pitch diameters.
