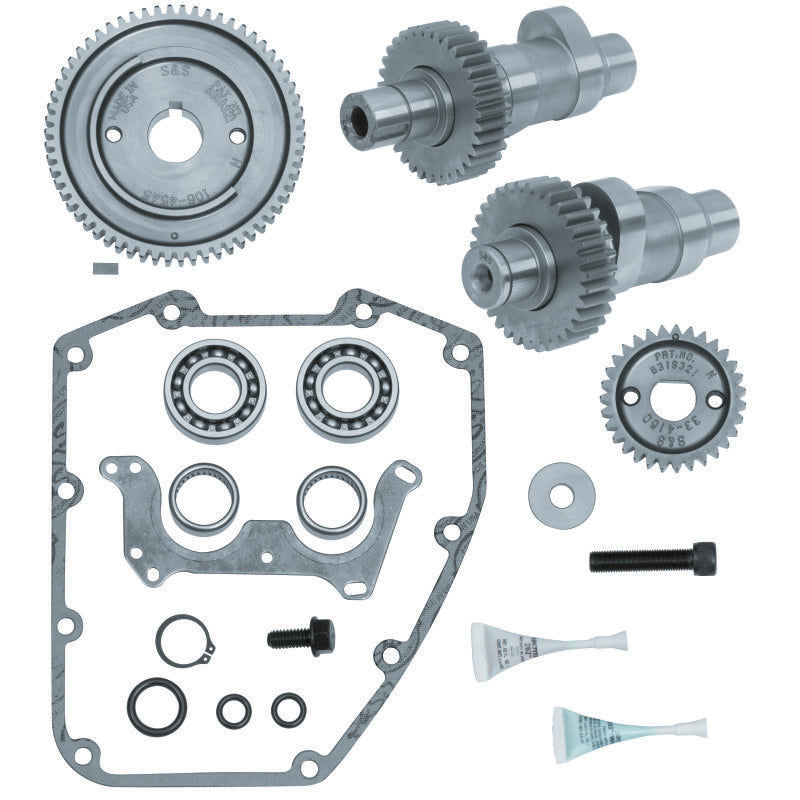

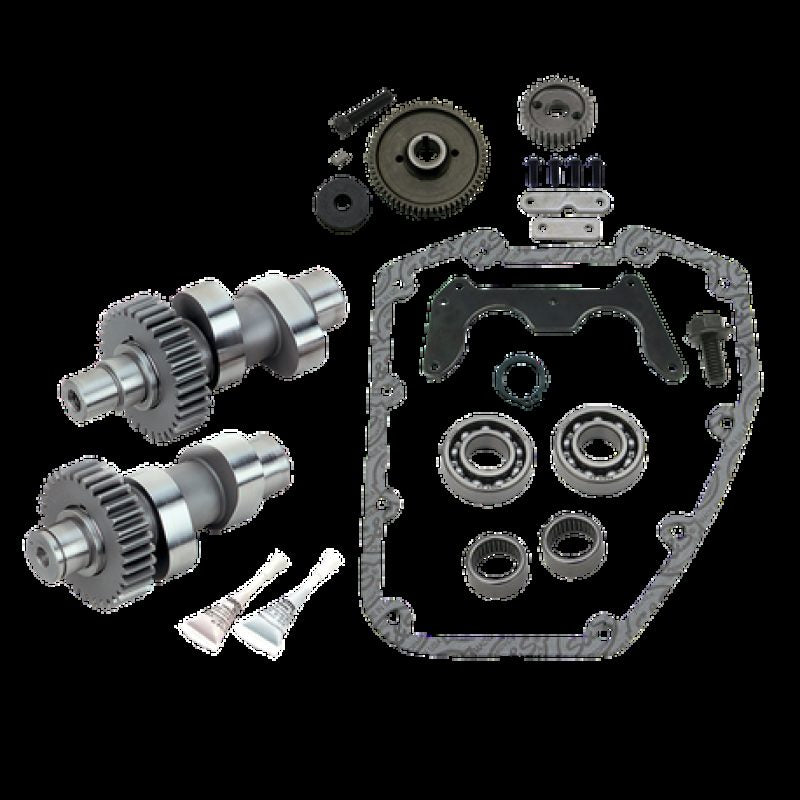

S&S Cycle - 330-0017
Type: 509G; Timing Open: Intake 18º/Exhaust 46º; Timing Closed: Intake 18º/Exhaust 11º; Duration at 0.053: Intake 216º/Exhaust 237º; Valve Lift : Intake 0.509"/Exhaust 0.509"; Lift at TDC: Intake 0.174"/Exhaust 0.140"
The 509 Touring Cam is designed as a bolt-in, high torque cam for 1999-'06 models, except 2006 HD® Dyna®. 180 psi cranking compression, no need for compression releases. For 88 CID engines with stock compression ratio. Idle-4500 rpm. The S&S 551 cams for Harley-Davidson® touring bikes are a favorite with late model bagger riders. The problem is that, due to the .550 in. lift, the 551 cams can't be installed in early (1999-'04) Twin Cam 88® engines without a set of high lift valve springs. That means that the heads have to come off just to install a cam. That's a lot of work and expense! S&S has come up with new 509 bolt-in torque cams that work with stock valve springs in 1999-'04 engines. 509 cams are great for low and midrange torque, but the lower lift allows them to be bolted into stock 1999-'04 engines with stock valve springs. That saves time and money on the installation.
