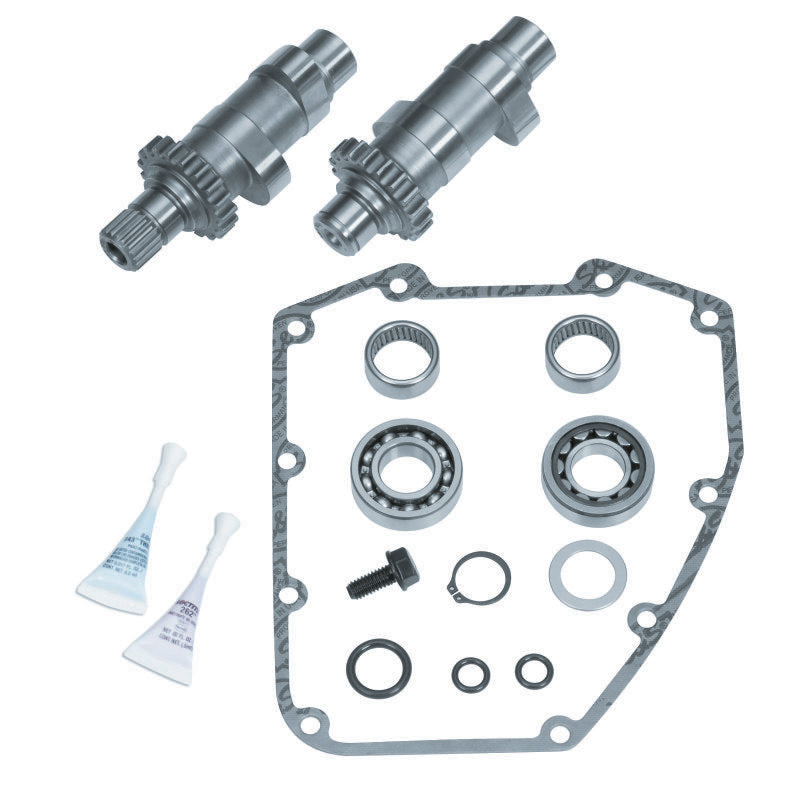

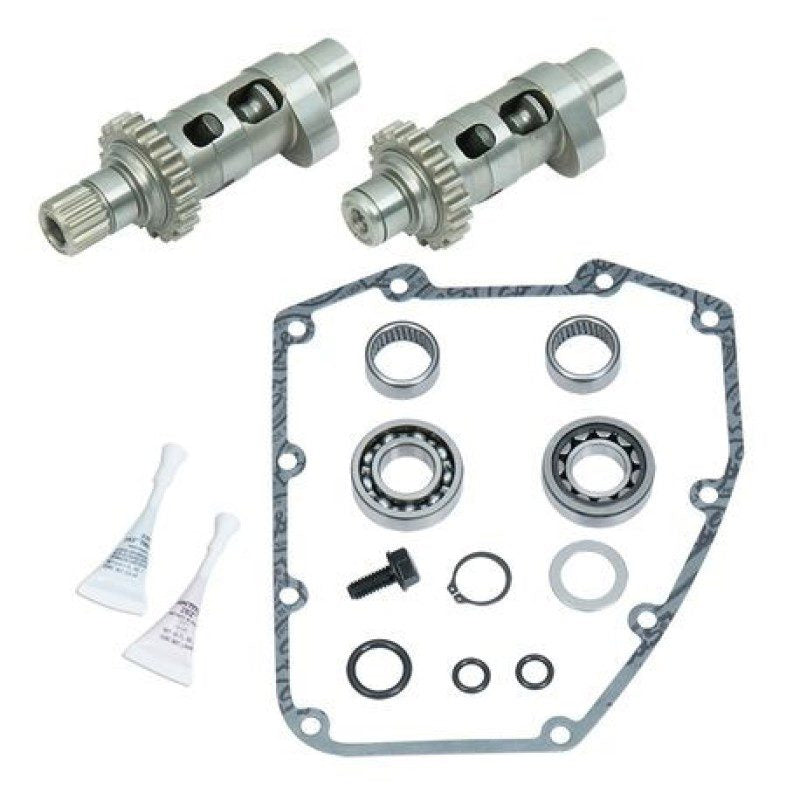

S&S Cycle - 33-5182A
Type: 510C; Timing Open: Intake 20º/Exhaust 52º; Timing Closed: Intake 38º/Exhaust 20º; Duration at 0.053: Intake 238º/Exhaust 252º; Valve Lift : Intake 0.510"/Exhaust 0.510"; Lift at TDC: Intake 0.187"/Exhaust 0.179"
Designed as a bolt-in cam for 88, 95, and 96 CID engines with compression ratios below 9.7:1, it is primarily intended for use with stock, un-ported heads. 3000-5500 rpm. The 510C chain drive camshafts for 1999-'06 use the stock Harley-Davidson® chain drive mechanism and offers an economical option for engines with mild performance upgrades.
