RockJock RJ-536202-2 - Threaded Bung 1 1/2 Inch-12 RH Thread 4x4

RockJock RJ-536202-2 - Threaded Bung 1 1/2 Inch-12 RH Thread 4x4

RockJock's Threaded Bungs have been a staple in our Johnny Joint product line since it's inception in 1996! These bungs are used in many applications where a custom vehicle builder has the facilities to fabricate his own arms.

All of our bungs are CNC machined from premium steel hex stock, in-house, on our own machines. Hex size is kept to a minimum and matching small hex jam nuts (as opposed to the large hex of commonly available jam nuts) are available, so that the hex sizes match.

Our bungs are designed for use with commonly available tubing sizes so that tubing can be sourced by the builder, cut, bungs installed and welded up! RH and LH thread bungs are available in all (larger) thread sizes, 3/4 in. - 1 1/2 in.

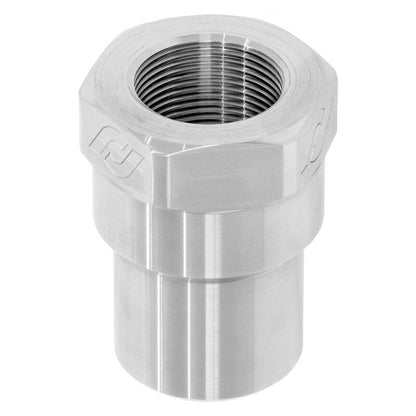

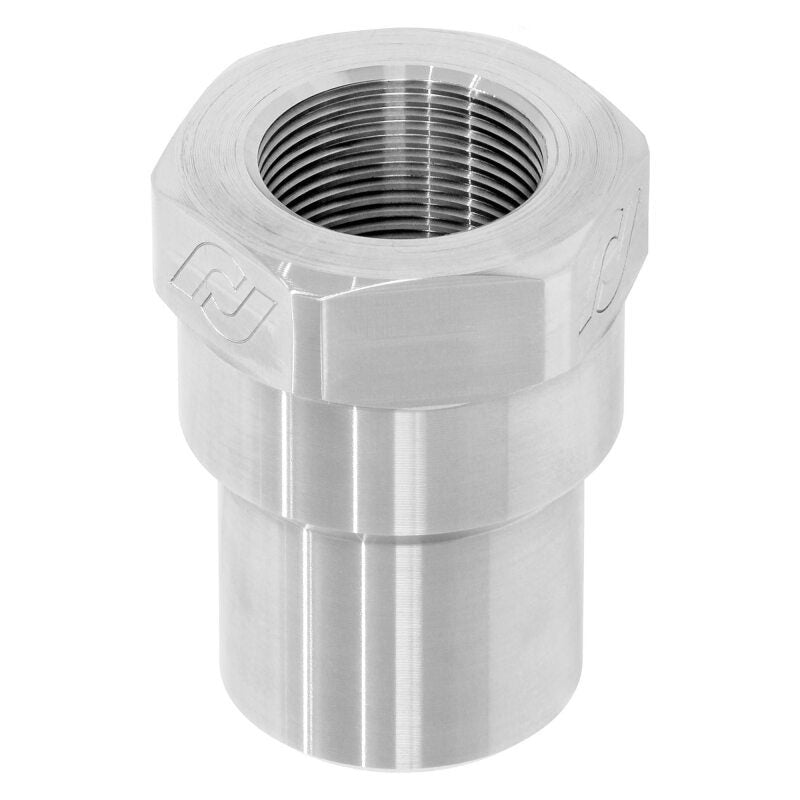

This Threaded Bung features a 1 1/2 in.-12 RH thread, a 2 1/4 in. hex, fits a 1 3/4 in. I.D. tube.

Threaded Bung Fits:

• Universal Application (1 3/4 in. I.D. tube)

Threaded Bung Includes:

• (1) 1 1/2 in.-12 RH thread bung

Threaded Bung Features:

• CNC machined steel construction
• 1 1/2 in.-12 RH threads
• 2 1/4 in. wrench hex size
• Intended for use with 2 1/4 in. x .188 in. wall tubing (1 3/4 in. I.D. tube)
• Raw steel finish, ready for welding

Notes:

• For use with any 1 1/2 in.-12 RH thread rod end
• See RJ-532200-2 for the matching jam nut for this bung.
