RockJock - RJ-430000-101
Currectlync® High Steer Kit; Incl. Knuckles/Drag Link/Tie Rod/Trac Bar Reloc/JL/JT Trac Bar/Ram Mount Axle Bracket/Tie Rod Clamp;

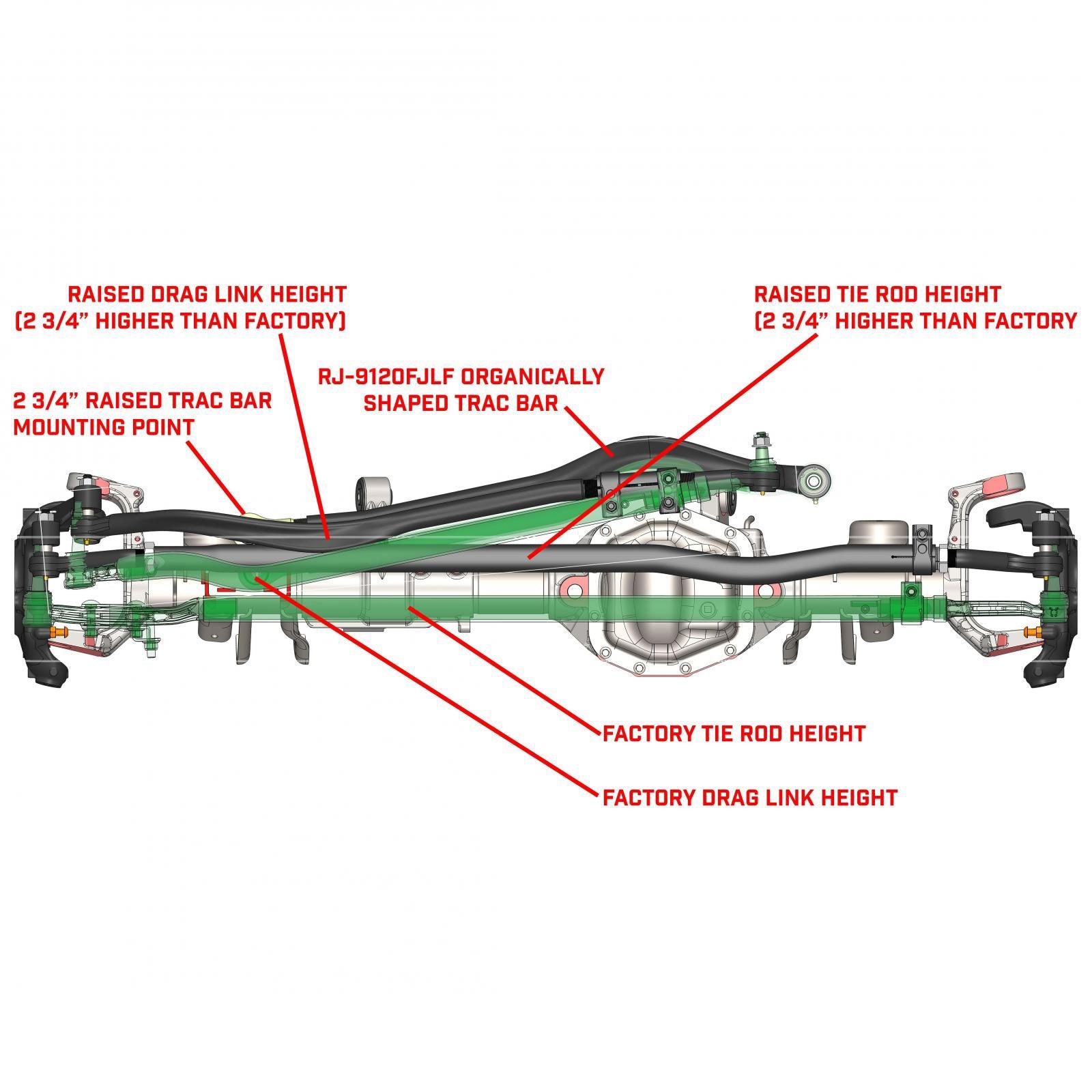

RockJocks Heavy Duty High Steer Knuckle Kit for JK Wrangler and Unlimited vehicles provides everything needed to do the job! The components in this kit are specifically engineered to modernize your JKs steering and trac bar geometry to the improved specs. of a JL/JT, dramatically improving drivability as well as off-road performance. The new knuckles raise both the tie rod and drag link 2 3/4 in. as well as pushing the tie rod outward, away from the axle slightly, allowing for tighter (JL/JT) steering angle over that of stock JK and 1 ton axles. Currectlync steering that is included in this kit features a forged, organically shaped drag link for maximum up-travel and rigidity and a 42mm tie rod. All steering rod ends are forged steel and comparable to those found on modern 1-ton trucks. The included forged, organically shaped JL/JT trac bars longer length pushes the trac bar adjuster joint outboard of the frame rail providing an additional 5/8 in. of up-travel! RockJocks fully integrated trac bar relocation and ram assist mounting bracket raises your trac bar mounting point 2 in. and corrects its geometry to prevent bump steer, as well as providing you with a solid mounting point for a JL/JT spec. hydraulic steering assist ram (allowing for more steering radius). The bottom of the bracket acts as a skid plate, protecting the ram from rocks. A forged chromoly tie rod clamp installs to provide an easy hook-up point for the other end of your ram. All other factory outer components are retained with the new knuckles including outer axles, unit bearings, dust shields and brakes. The use of RockJocks RJ-107101-101 adjustable front bump stop kit is strongly encouraged to allow for maximum up-travel, as engineered.

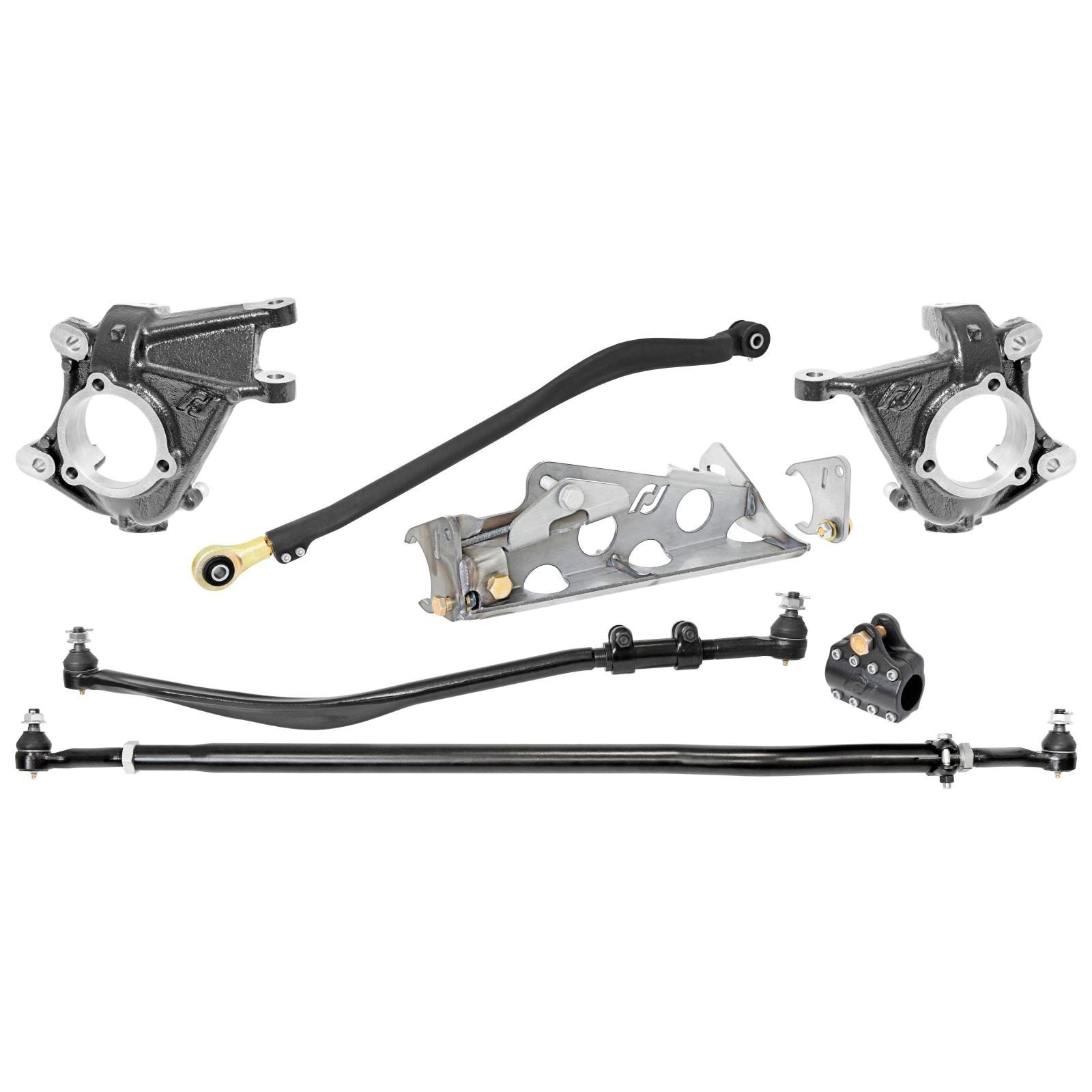

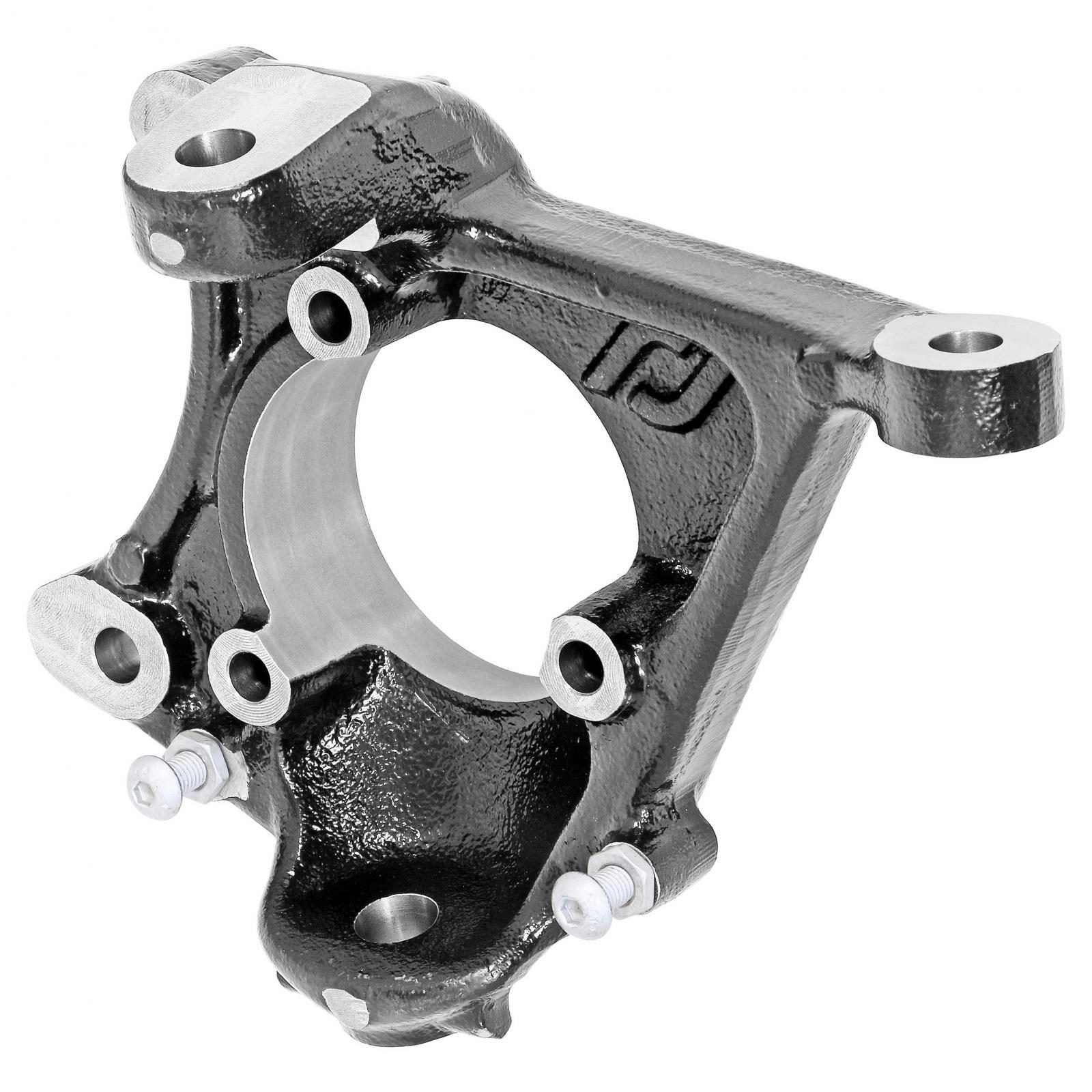

- LH High Steer Steering Knuckle

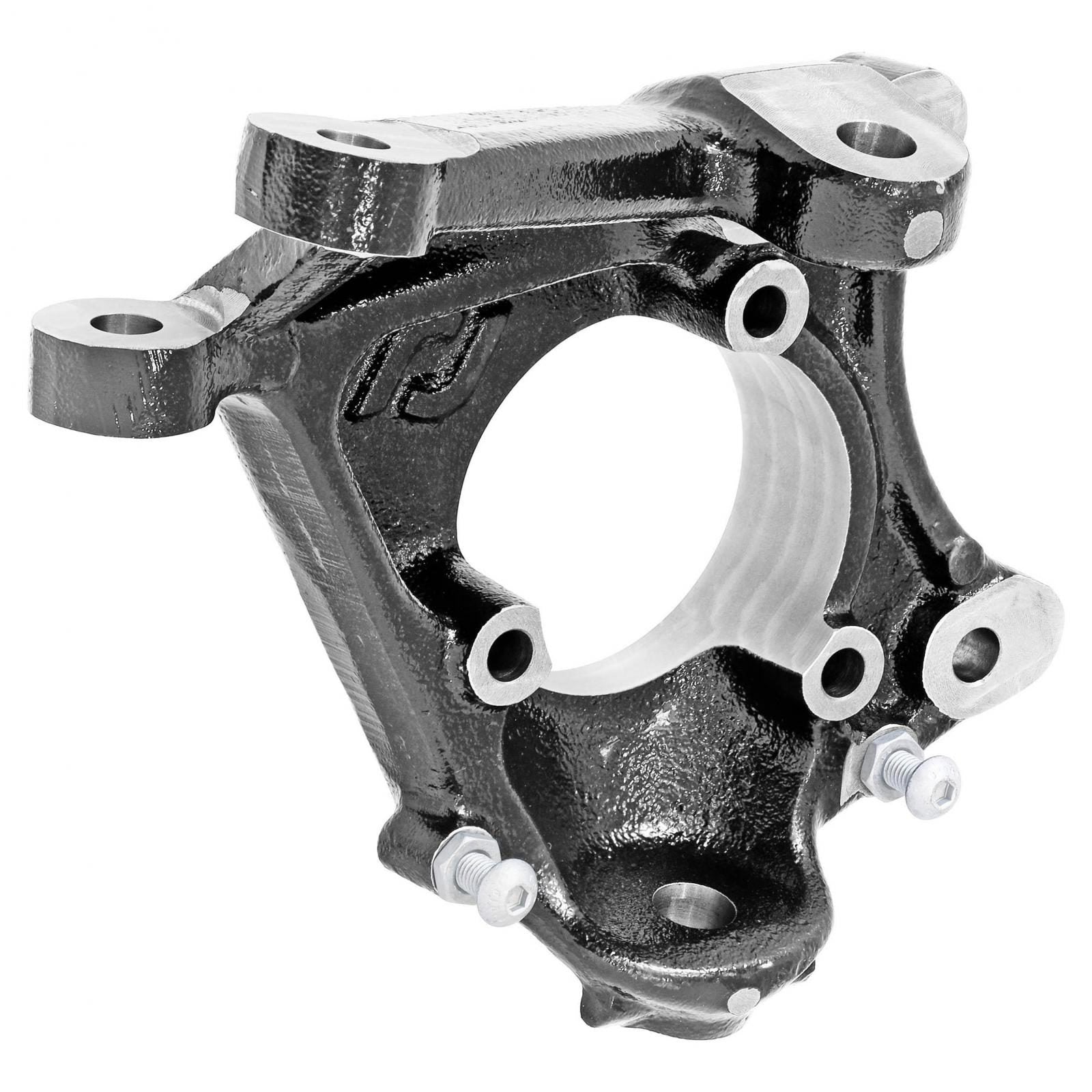

- RH High Steer Steering Knuckle

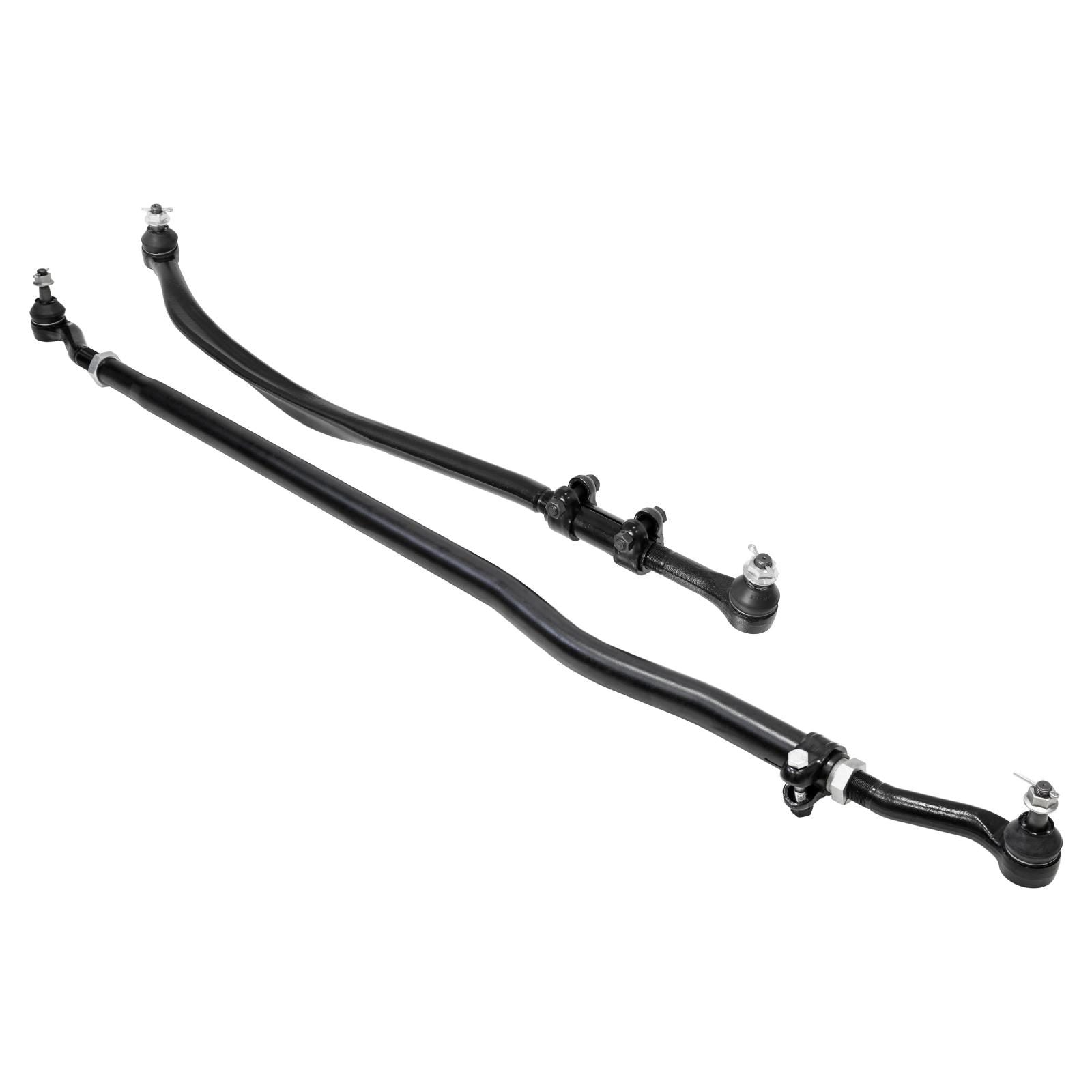

- Currectlync Drag Link
- Currectlync Tie Rod

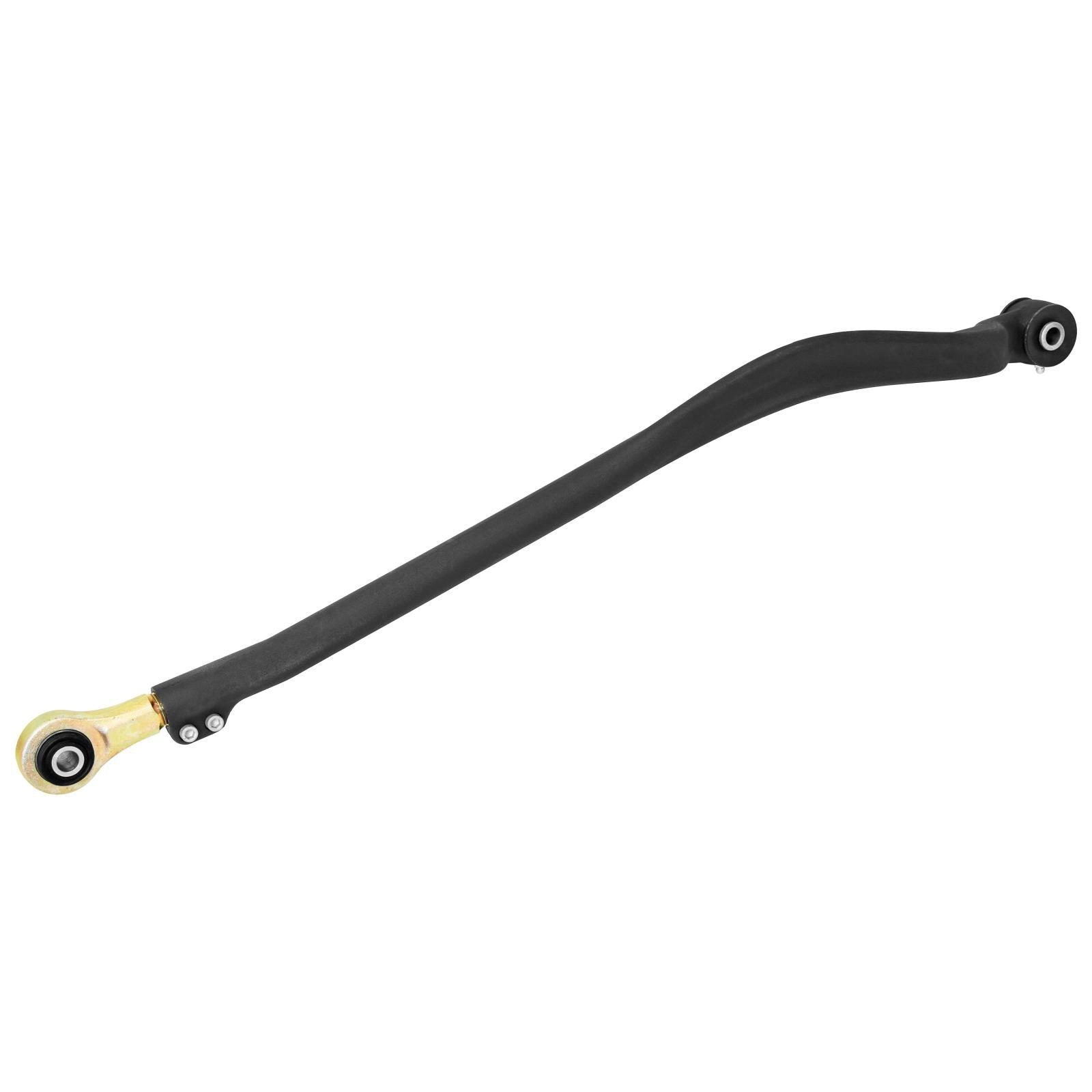

- Johnny Joint Trac Bar

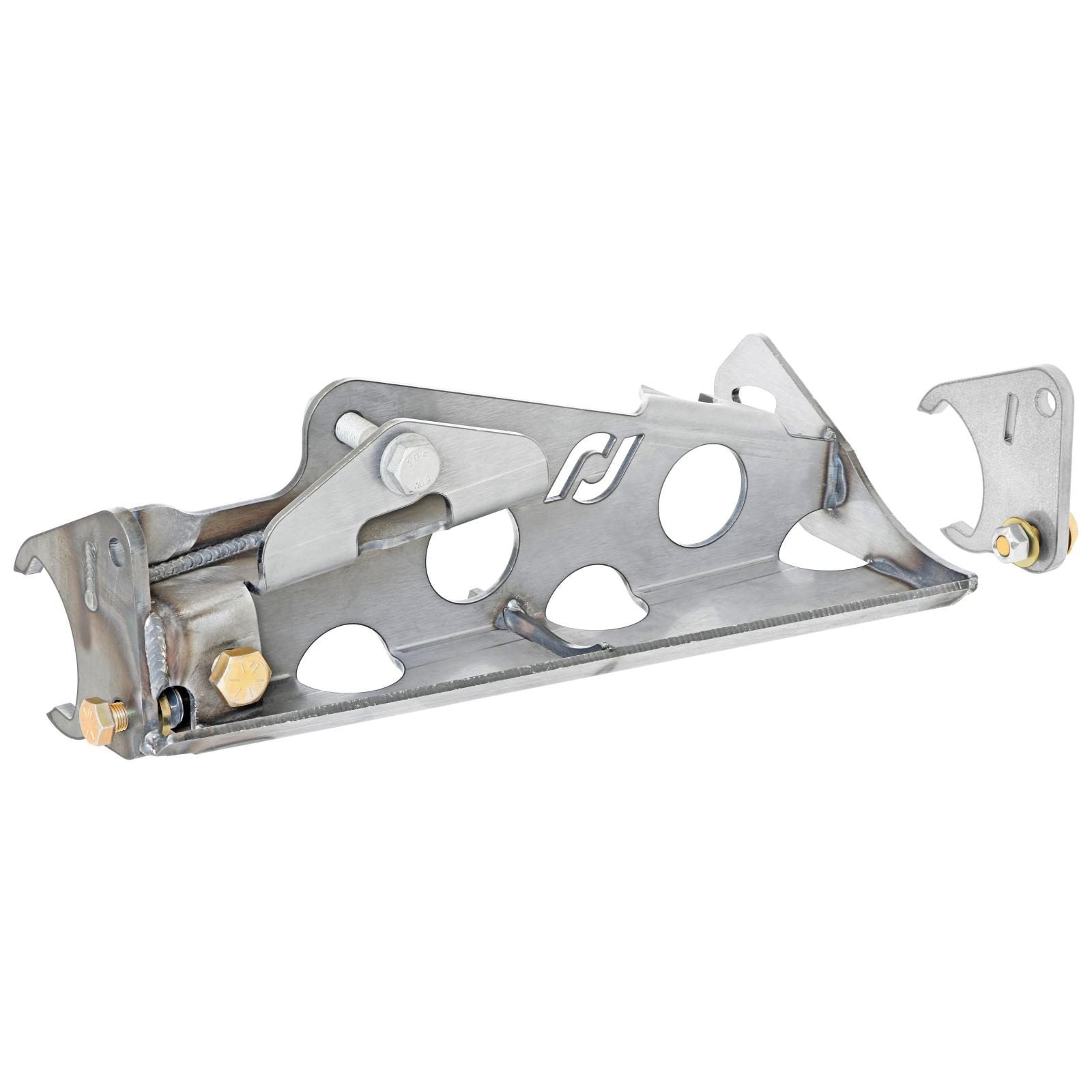

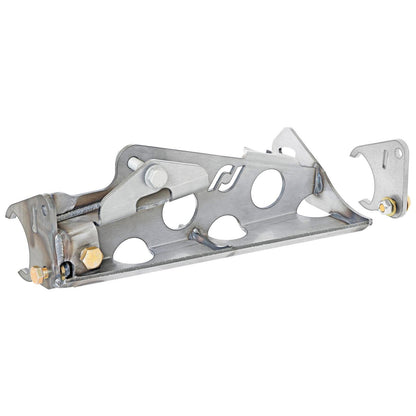

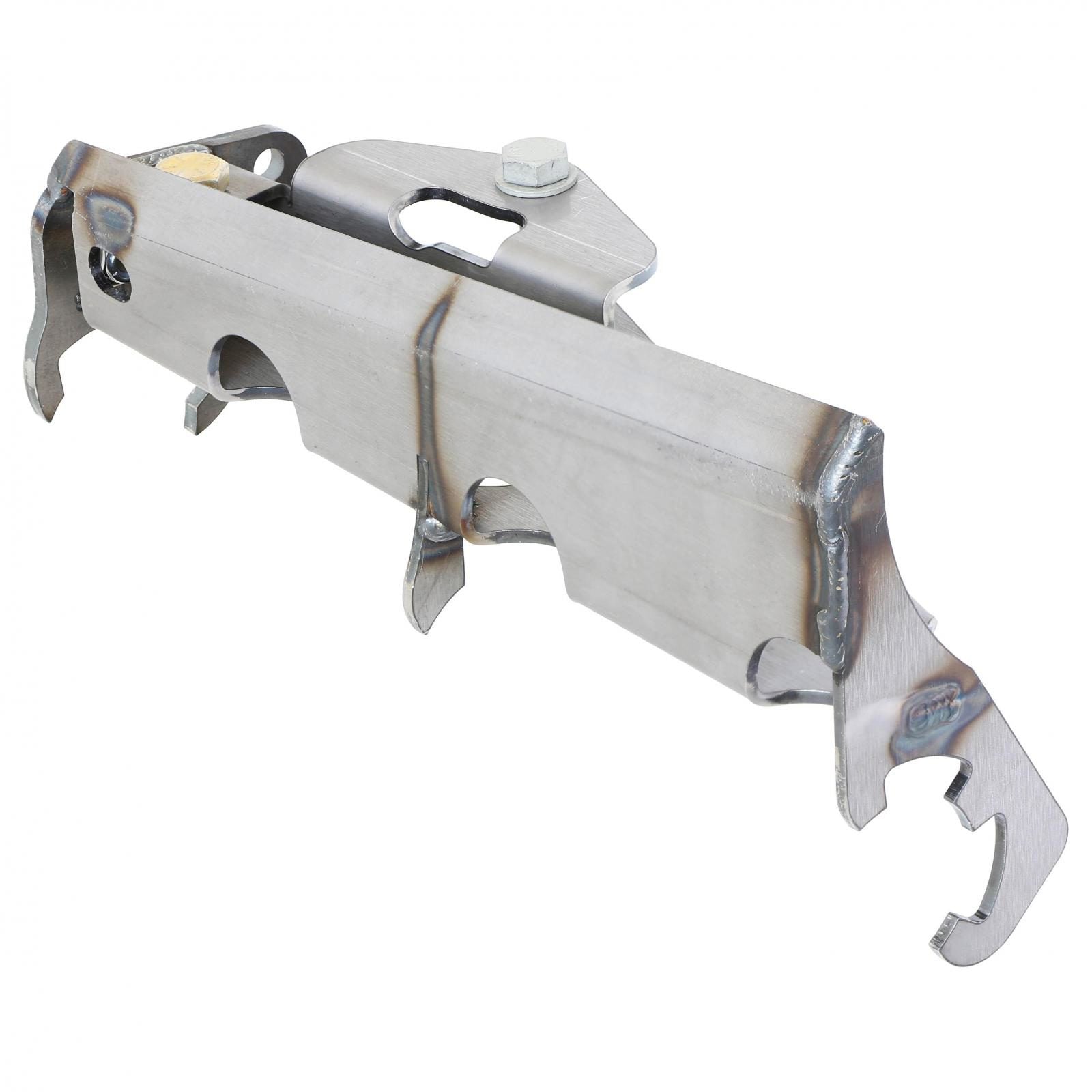

- Trac Bar Relocation And Ram Mount Axle Bracket
- Ram Assist Tie Rod Clamp
- All Required Hardware And Step-By-Step Instructions
- Engineered For Use With 2.5 in. Up To 6 in. Lift
- For Use On Any Factory JK Front Differential [Dana 30 Or Dana 44] Or Any Aftermarket JK Replacement Axle
- Retains Factory Ball Joints; Unit Bearings]; Outer Axles; Brakes And Dust Shields
- Provides New Sway Bar Link Mounting Holes That Are Raised 2 1/8 in. Higher Than Stock
