RockJock - RJ-330402-102
RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

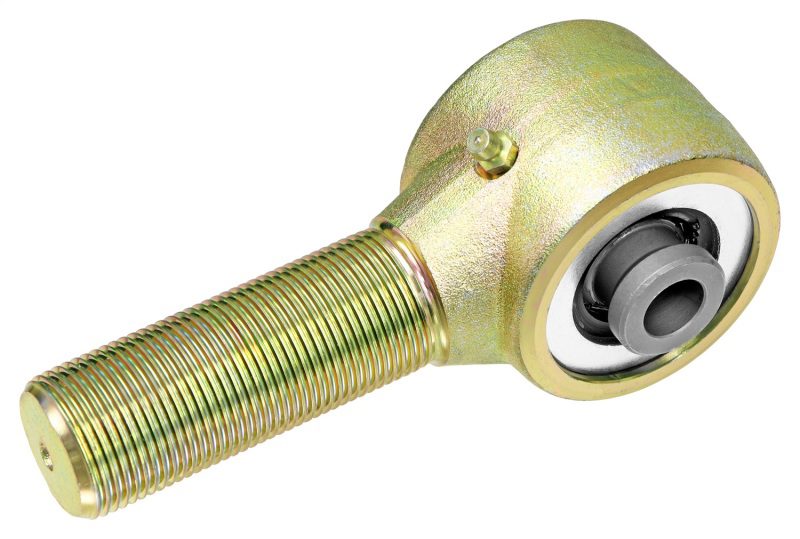

This specific joint is designed to fit the axle side of the 2021 and up Bronco's rear control arms and feature a 2 1/2 inch diameter joint body, fitted with a zerk fitting for greasing, 2.3 inch of 1 1/4 inch-12 right hand threads on the shank, and a 70mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
