RockJock RJ-301300-101 - Johnny Joint Rod End 2 Inch Narrow Forged 1 Inch-14 RH Threads 1.600 Inch x .510 Inch Ball 4X4
RockJock RJ-301300-101 - Johnny Joint Rod End 2 Inch Narrow Forged 1 Inch-14 RH Threads 1.600 Inch x .510 Inch Ball 4X4
SKU: HWSH-RJ-301300-101
22 in stock
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
RockJock RJ-301300-101 - Johnny Joint Rod End 2 Inch Narrow Forged 1 Inch-14 RH Threads 1.600 Inch x .510 Inch Ball 4X4
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

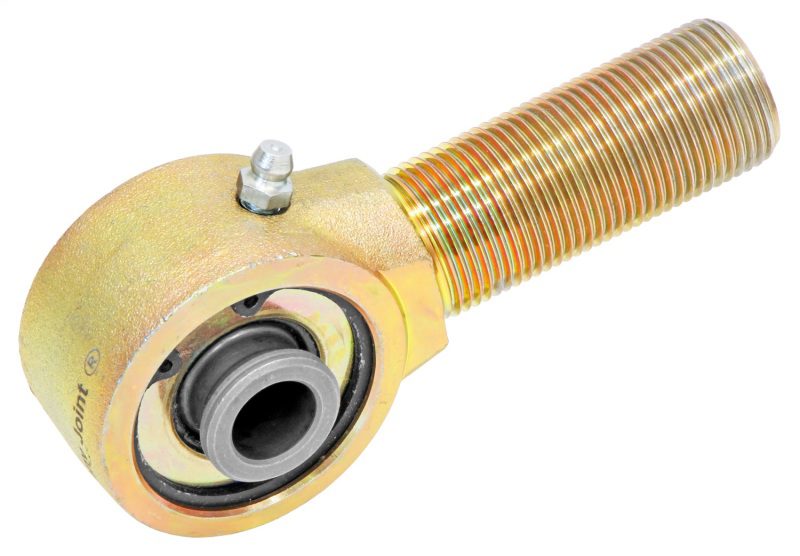

This specific joint features a narrow 2 inch diameter joint body, fitted with a zerk fitting for greasing, 2.3 inch of 1 inch-14 right hand threads on the shank, and a 1.600 inch mounting width ball with a .510 thru bolt hole. Finished in gold zinc plating.
