RockJock RJ-110000-1 - XJ Cherokee Rear Bump Stop Puck for use with XJ U-Bolt Plates 4x4

RockJock RJ-110000-1 - XJ Cherokee Rear Bump Stop Puck for use with XJ U-Bolt Plates 4x4

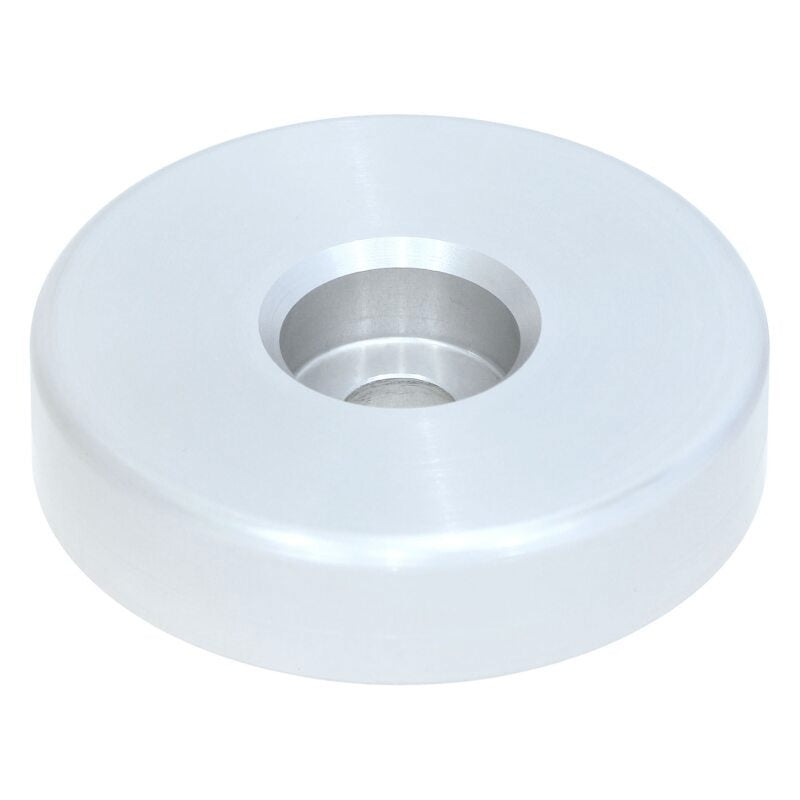

RockJock's 3/4 Inch Front Bump Stop Puck was specifically designed for mounting on onto our XJ Cherokee rear U-bolt plates and are included in our CE-9031XJ U-bolt plate kit. These CNC machined billet aluminum pucks are available separately for universal use, or so that you may add additional pucks to our XJ U-bolt plates, creating a stack, to adjust bump stop spacing per vehicle build.

Kit Fits:

• Universal Application
• Included component in our CE-9031XJ U-Bolt Plate Kit

Kit Includes:

• (1) Aluminum bump stop puck

Component Specs:

• Constructed from=CNC machined billet 6061-T6 aluminum
• OD=3 1/2 in.
• Height=3/4 in.
• Thru-Hole=.530 in. (to accept a 1/2 in. bolt)
• Countersunk Bore=1.060 in. ID x .500 deep
• Finish=clear anodize

Notes:

• In the application of our CE-9031XJ U-bolt plates, these pucks may be stacked of bump stop to adjust bump stop spacing per vehicle build.
• We use this bump stop in conjunction with our CE-9095XJ 3.5 in. lift XJ rear leaf springs that are included in our RJ-XJ0000-101 Suspension Systems.

Used With:

• 1/2 in.-13 Flanged Hex Bolt: CE-H0010
• XJ U-Bolt Plate: CE-9031XJ
