RockJock - CE-9114NL-28
RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

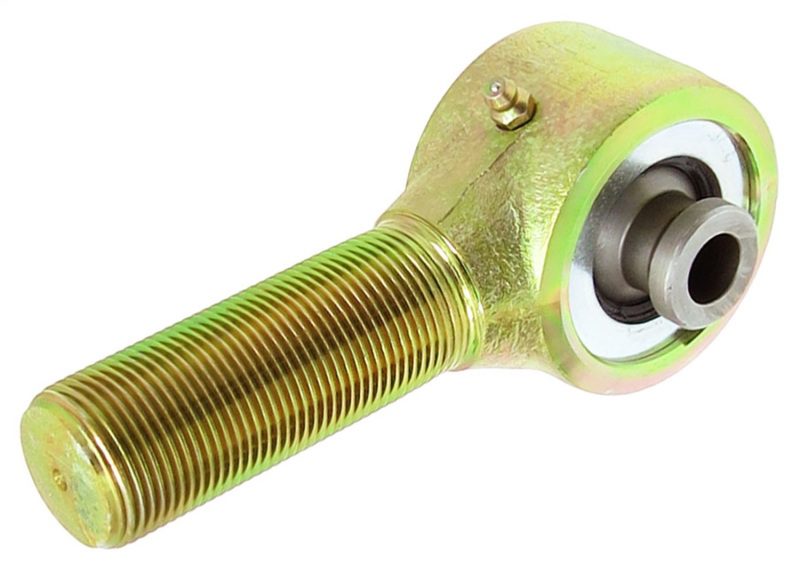

This specific joint is a 2 1/2 inch diameter, fitted with a zerk fitting for greasing, 2 1/4 inch of 1 1/4 inch-12 left hand threads on the shank, and a 2.625 inch mounting width offset ball with a .625 inch thru bolt hole. Finished in gold zinc plating.
