RockJock - CE-9112SPL-28
RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!
Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

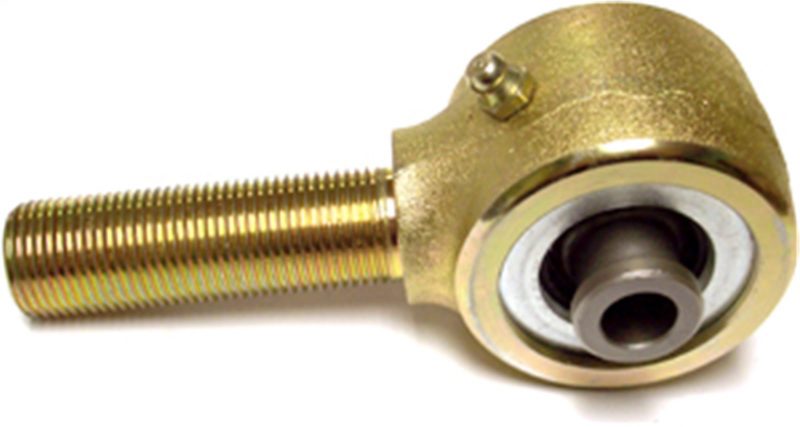

This specific joint is a 2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 3/4 Inch-16 left hand threads on the shank, and a 2.975 Inch mounting width ball with a .500 Inch thru bolt hole. Finished in gold zinc plating.
Details:
- Forged Johnny Joint
- 2 Inch
- 2.975 Inch X 0.500 Inch Ball
- 3/4 Inch-16 Left Hand Threaded Shank
- Externally Greased
- Zinc Plated Ball
- Each
