RockJock - CE-9112NP
RockJock's narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!
Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

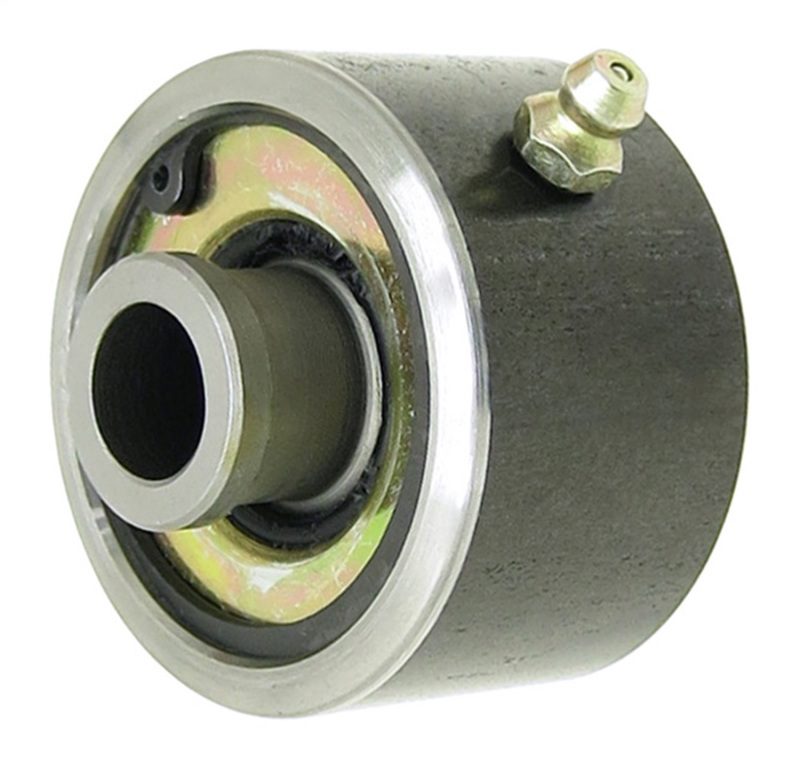

The outer shell is weldable .180 Inch wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 Inch o.d. narrow body and features a 1.600 Inch mounting width and a .480 Inch thru bolt hole.
Details:
- Narrow Johnny Joint
- 2 Inch
- Weld-On
- 1.600 Inch X 0.480 Inch Ball
- Externally Greased
- Each
