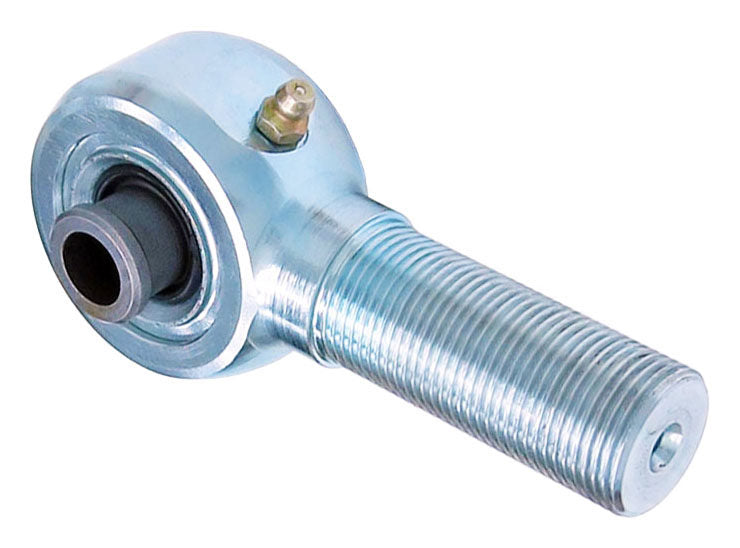

RockJock CE-9112NCML - Narrow Billet 4140 Johnny Joint 2 Inch 1.750 Inch X 0.500 Inch Ball 1 Inch-14 Left Hand Threaded Shank Externally Greased Each 4x4

RockJock CE-9112NCML - Narrow Billet 4140 Johnny Joint 2 Inch 1.750 Inch X 0.500 Inch Ball 1 Inch-14 Left Hand Threaded Shank Externally Greased Each 4x4

RockJock's billet 4140 chromoly narrow Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

This specific joint is a 2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 1 Inch-14 left hand threads on the shank, and a 1.750 Inch mounting width ball with a .500 Inch thru bolt hole. Finished in clear zinc plating.

Details:

• Narrow Billet 4140 Johnny Joint
• 2 Inch
• 1.750 Inch X 0.500 Inch Ball
• 1 Inch-14 Left Hand Threaded Shank
• Externally Greased
• Each
