RockJock CE-9110C - Johnny Joint Rod End 2 1/2 Inch Weld-On Chromoly Barrel 2.625 Inch X 0.562 Inch Ball Internally Greased Includes Greasable Bolt Each 4x4

RockJock CE-9110C - Johnny Joint Rod End 2 1/2 Inch Weld-On Chromoly Barrel 2.625 Inch X 0.562 Inch Ball Internally Greased Includes Greasable Bolt Each 4x4

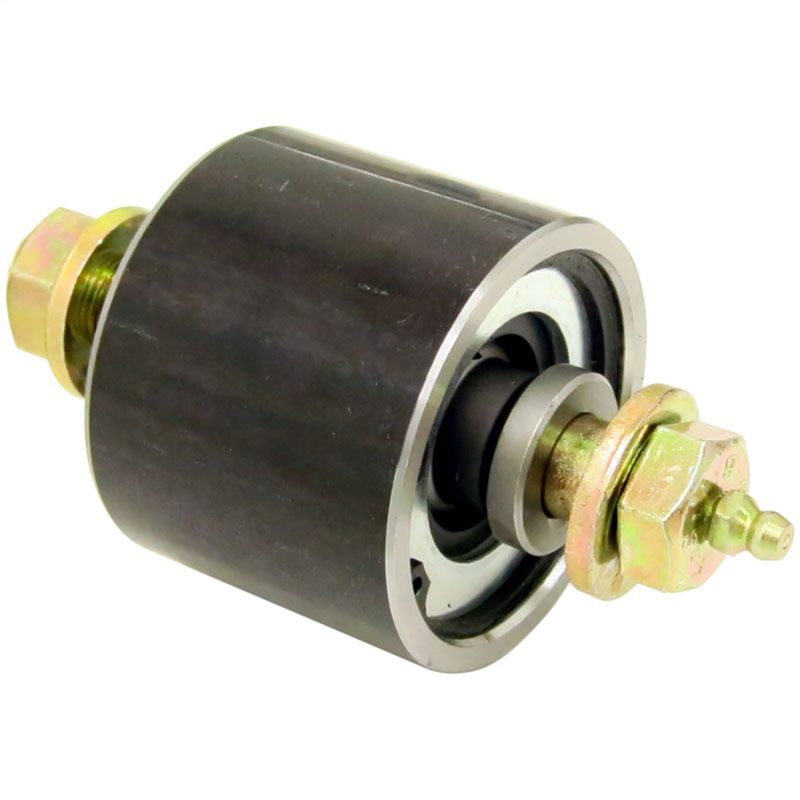

RockJock's weld-on chromoly Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

The outer shell is weldable .180 Inch wall machined chromoly tubing. This specific joint is a 2 1/2 Inch o.d. and features a 2.625 Inch mounting width and a .5625 Inch thru bolt hole. Grade 8 greasable bolt with nut and washers included.

Details:

• Johnny Joint Rod End
• 2 1/2 Inch
• Weld-On
• Chromoly Barrel
• 2.625 Inch X 0.562 Inch Ball
• Internally Greased
• Includes Greasable Bolt
• Each
