Ridetech - 90002107

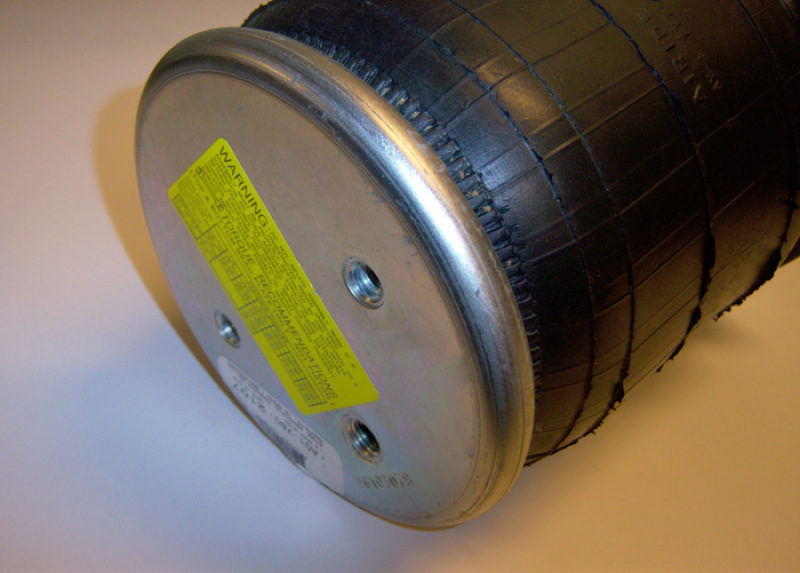

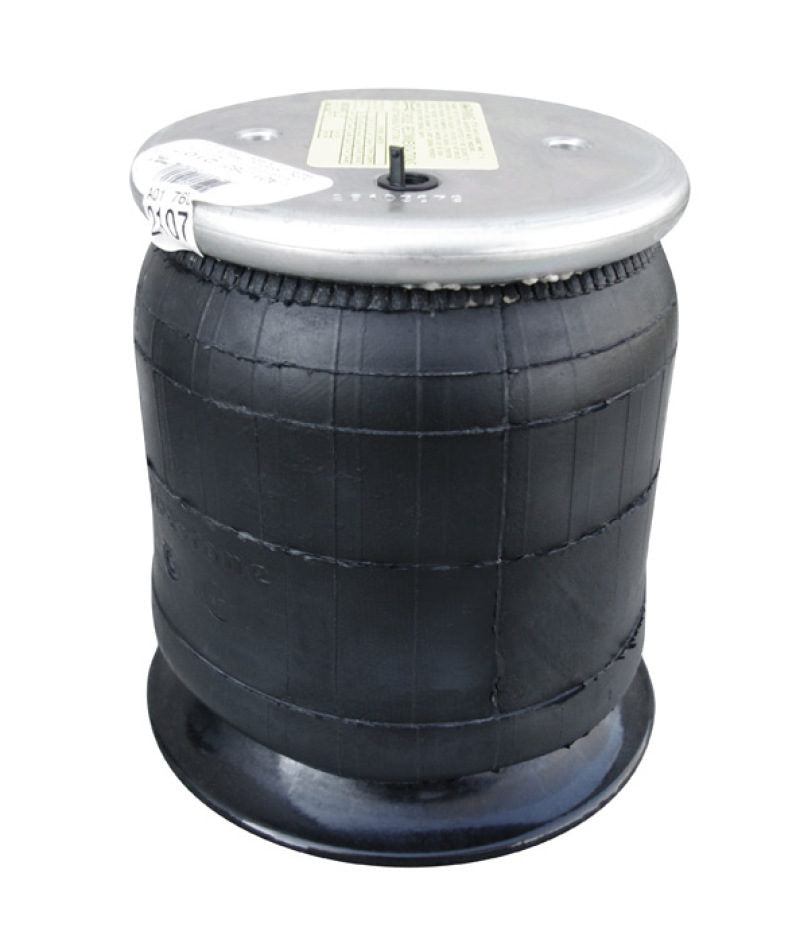

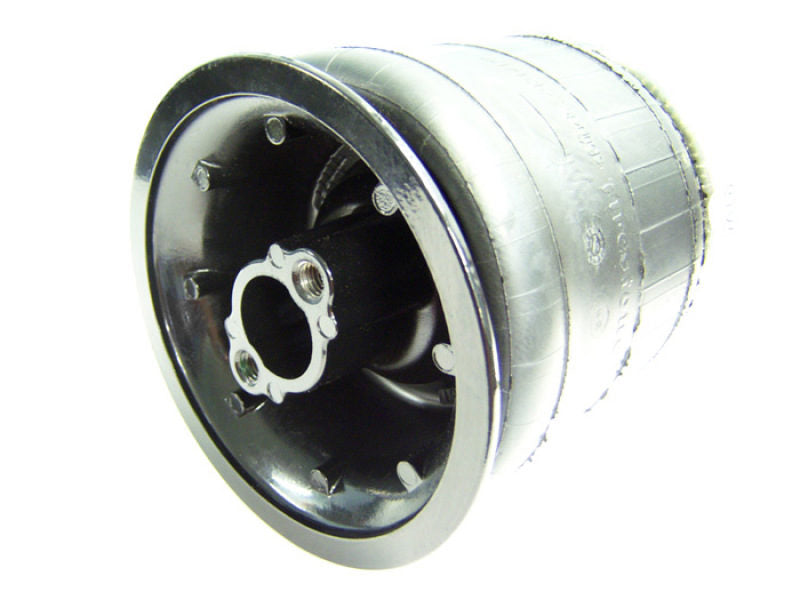

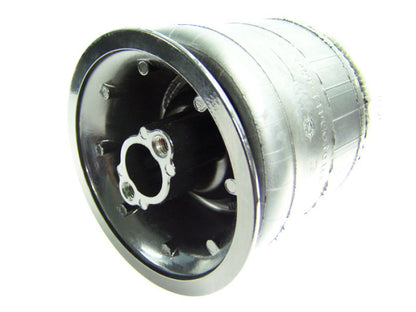

F2107 3500 Lb 1T Sleeve Air Spring Ridetech
- This airspring has a 3500lbs capacity at100PSI
- Min Height: 6.5 inch
- Ride height: 10.5 inch
- Max Height: 13 inch
- Bag Diameter: 9 inch
Air Fitting Port: 1/4 inch NPT
Note for all sleeve style airsprings:
An external bumpstop and an extension stop (limiting strap or the shock absorber) Must be used to prevent the airspring from exceeding the compressed or extended dimensions. If these dimensions are exceeded, severe damage to the airspring, and possibly the vehicle, will result.
