Ridetech - 31934001

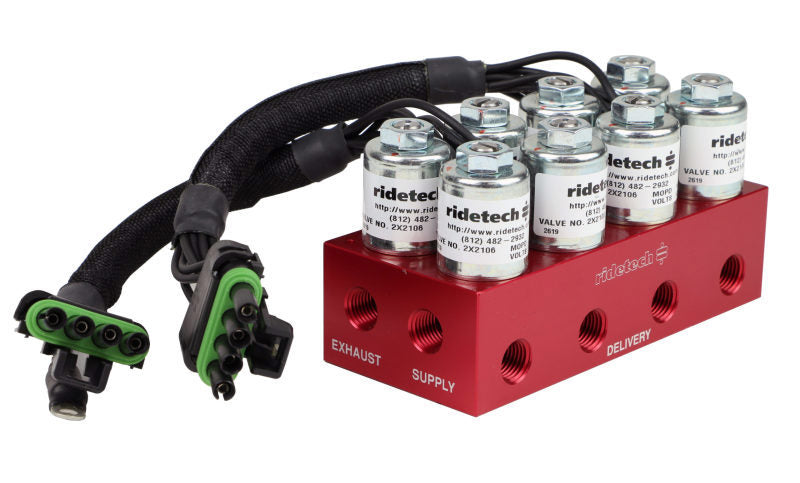

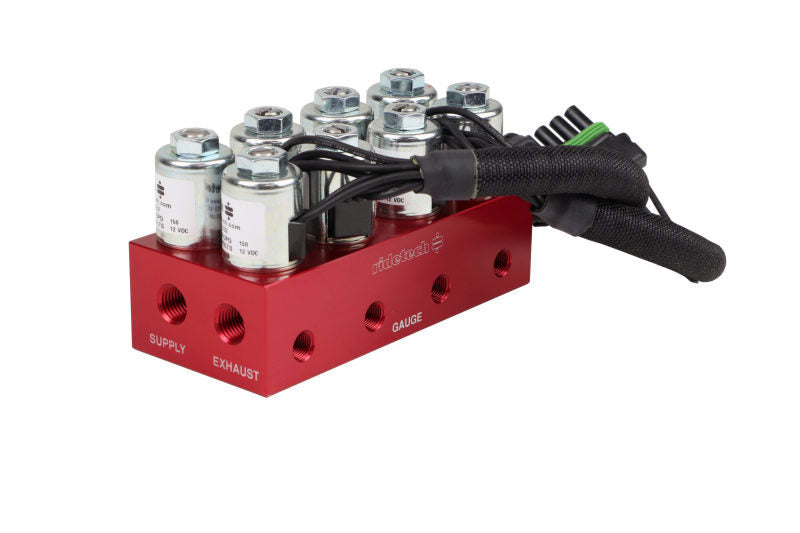

4-way RidePro valve designed to operate 4 airsprings (front and rear). The air valve has 8 actuators on top, 4 for inflate and 4 for deflate. The RidePro valve has 4- 1/4 inch npt delivery ports, 4-1/8 inch npt gauge ports, 2- 1/4 inch npt supply ports, and 2- 1/4 inch npt deflate ports.
When using this 4-way valve, use 2- 31900035 to connect to analog control panel 31194000.
Note also works with Digital control systems
- Dimensions: 5.5 inch long x 2.5 inch wide x 3 inch tall
