Ridetech 21120101 Air Suspension Kit

Ridetech 21120101 Air Suspension Kit

The ShockWave is very similar to a CoilOver spring/shock assembly. Our CoilOvers and ShockWaves both use the same great monotube shock cartridge and offer damping adjustment. Both offer ride height adjustments. In many cases, RideTech CoilOvers are interchangeable W/ RideTech ShockWaves.

The main distinction between CoilOvers and ShockWaves is that the metal coilspring is replaced W/ a pressure adjustable air spring. ShockWaves allow for electronic ride height adjustments at the push of a button.

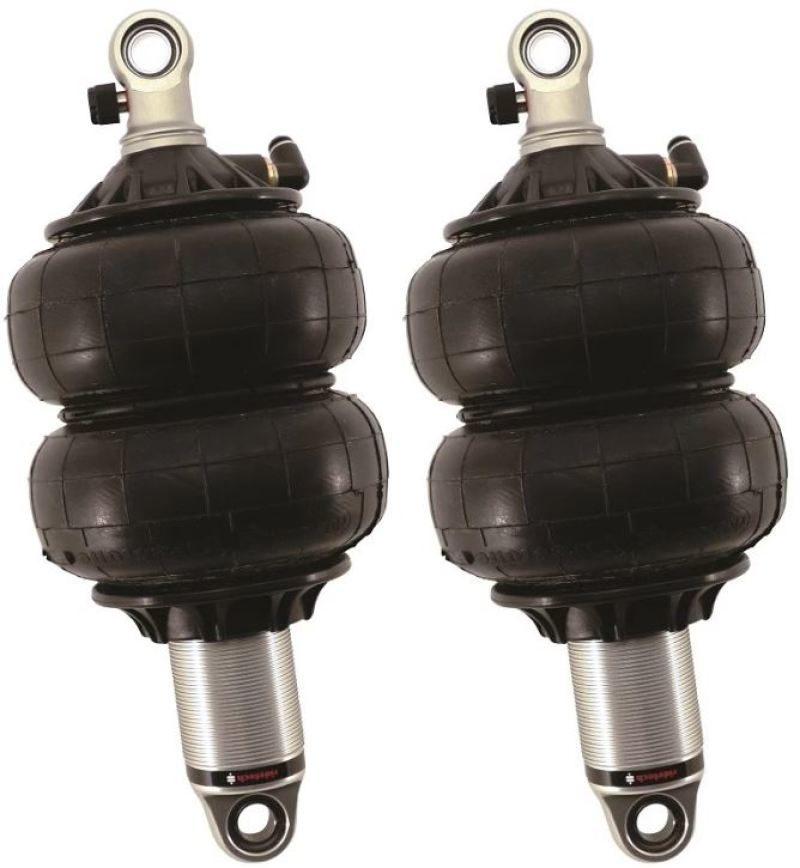

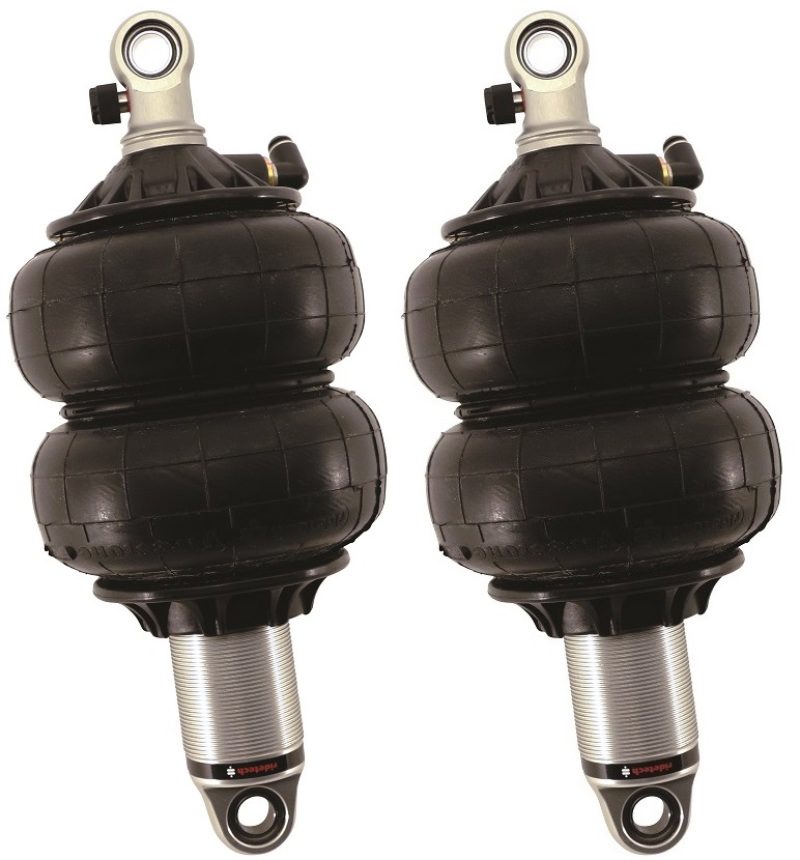

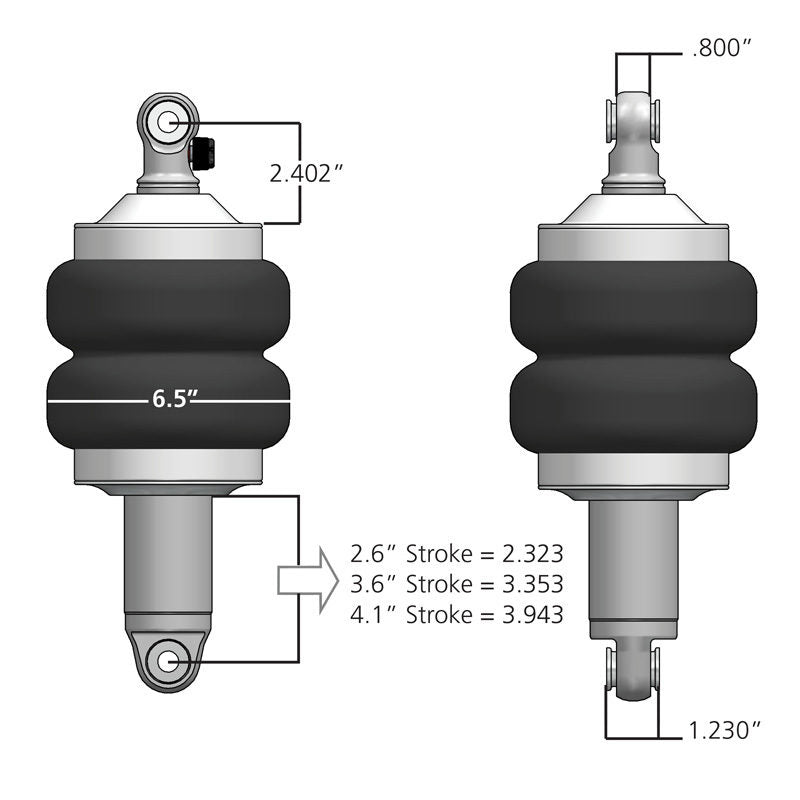

Front HQ Shockwaves 1000 Series W/ 2.9 Inch Stroke And 1.7 Inch Eye A Pair Of Rebound Adjustable Shockwaves 6.5 Inch Double Convoluted W/ 1/4 Inch Fittings And Bearing Spacers 1/2 Inch And 5/8 Inch. 9.3 Inch X 11.6 Inch W/ A 10.5 Inch-10.75 Inch Ride Height.

Recommended Applications:
Independent front and / or Independent rear installations on vehicles weighing 1,500-2,500 lbs. per axle.
Not recommended for solid axle rear applications … not enough travel, too much load capacity.

Load capacity: 2,140 lbs. at 100 psi

The Handling Quality (HQ) Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.

Features:

• Completely redesigned internal design
• Aluminum construction
• Single adjustable shock valving
• Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
• Impact forged body / mono-tube design for superior ride quality and durability
• Easy andamp; precise valve adjustment W/ 24 rebound clicks
