Rancho - RS999329

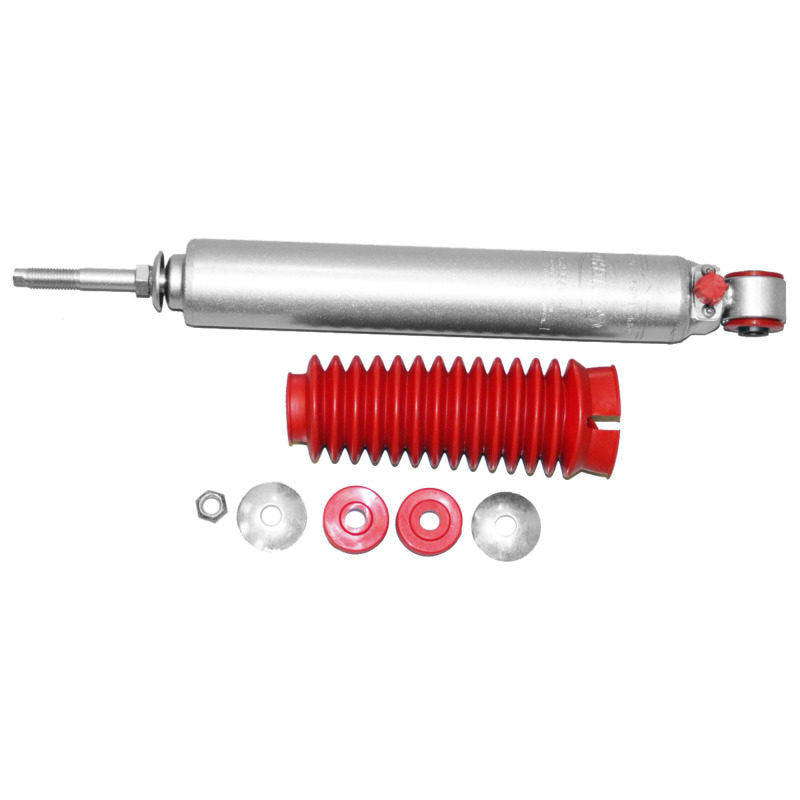

Rancho RS9000XL RS999329 Suspension Shock Absorber for Jeep Wrangler
Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

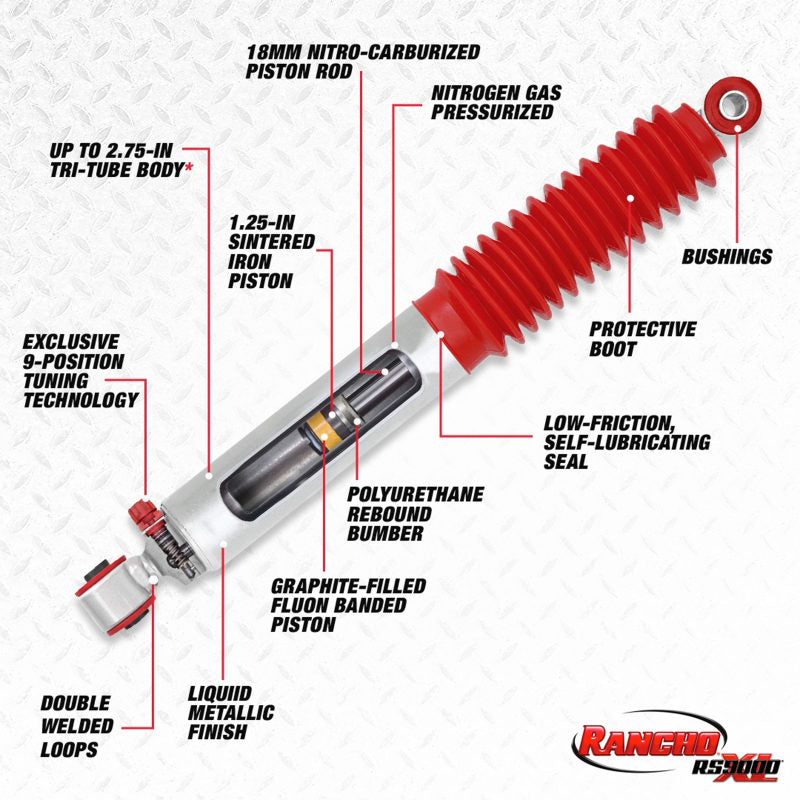

- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Absorber Body End Measuring Point: Base of Stem
Gas Charged: Yes
Mounting Hardware Included: Yes
Parts Pack(s): P01356
Body Diameter: 55.4
Body Diameter: 2.18
Cylinder Outside Diameter: 2.18
Cylinder Outside Diameter: 55.4
Body Material: Steel
Cylinder Material: Steel
Body Color: Silver
Cylinder Color: Silver
Color: Silver
Finish: Painted
Cylinder Finish: Painted
Boot Included: Yes
Dust Shield Included: Yes
Dust Shield Diameter: 75.9
Dust Shield Diameter: 2.99
Dust Shield Material: Rubber
Dust Shield Color: Red
Rod Diameter: 0.622
Rod Diameter: 15.8
Shaft Material: Nitrocarburized
Shock Absorber Bore Size: 32
Shock Absorber Bore Size: 1.26
Includes Bump Stop: No
Internal Rebound Bumper: No
Internal Rebound Spring: No
Hydraulic Lockout: No
Internal Construction Type: Tri Tube
Grade Type: Performance
Type: Telescopic
Adjustable Damping: Yes
Active or Passive Suspension: Passive
Adjustable Compression: Yes
Adjustable Rebound: Yes
Damping Adjustment Type: Manual
Valving Type: Progressive
Self-Leveling: No
Adjustable Ride Height: No
Maximum Ride Height Lowering Distance: 0
Maximum Ride Height Raising Distance: 0
Air Adjustable: No
Air Ride Suspension: No
Bladder(s) Included: No
Bladder Sleeve(s) Included: No
Bladder Heavy Duty Crimping Rings Included: No
New Or Remanufactured: New
Coil Over Springs Included: No
Bearing Plate Included: No
Spring Included: No
Coil Spring Insulator(s) Included: No
Spring Isolators Included: No
Spring Seat Included: No
Remote Reservoir: No
Strut Mount Insulator(s) Included: No
Compressed Length: 400.1
Compressed Length: 15.75
Extended Length: 636.5
Extended Length: 25.06
Travel Length: 236.5
Travel Length: 9.31
Shock Stroke: 236.5
Shock Stroke: 9.31
Lower Mount Type: Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL
Lower Mount Code: LS39
Upper Mount Type: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Upper Mount Code: S5
Year
Make
Model
Submodel
Engine
2011
Jeep
Wrangler
70th Anniversary
3.8L
2016
Jeep
Wrangler
75th Anniversary
3.6L
2010
Jeep
Wrangler
Islander
3.8L
2012 - 2017
Jeep
Wrangler
Rubicon
3.6L
2007 - 2011
Jeep
Wrangler
Rubicon
3.8L
2012 - 2017
Jeep
Wrangler
Sahara
3.6L
2007 - 2011
Jeep
Wrangler
Sahara
3.8L
2012 - 2017
Jeep
Wrangler
Sport
3.6L
2010 - 2011
Jeep
Wrangler
Sport
3.8L
2016
Jeep
Wrangler
Sport S
3.6L
2012
Jeep
Wrangler
Unlimited
3.6L
2011
Jeep
Wrangler
Unlimited 70th Anniversary
3.8L
2016
Jeep
Wrangler
Unlimited 75th Anniversary
3.6L
2012, 2015
Jeep
Wrangler
Unlimited Altitude
3.6L
2016
Jeep
Wrangler
Unlimited Black Bear
3.6L
2015
Jeep
Wrangler
Unlimited Hard Rock
3.6L
2012
Jeep
Wrangler
Unlimited Mountain
3.6L
2010
Jeep
Wrangler
Unlimited Mountain
3.8L
2012 - 2017
Jeep
Wrangler
Unlimited Rubicon
3.6L
2007 - 2011
Jeep
Wrangler
Unlimited Rubicon
3.8L
