Rancho - RS999012

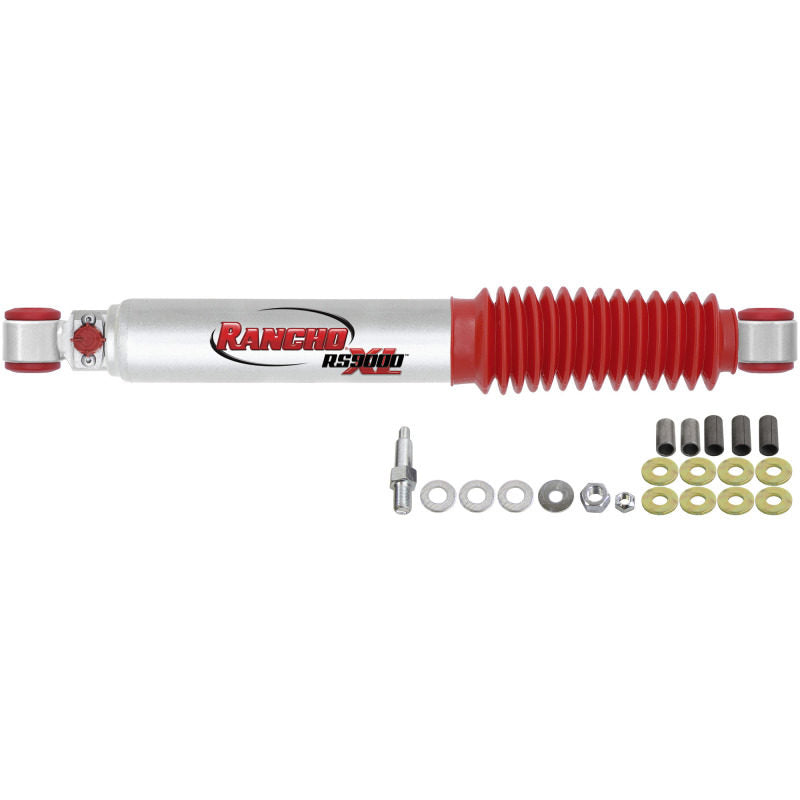

Rancho RS9000XL RS999012 Suspension Shock Absorber
Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

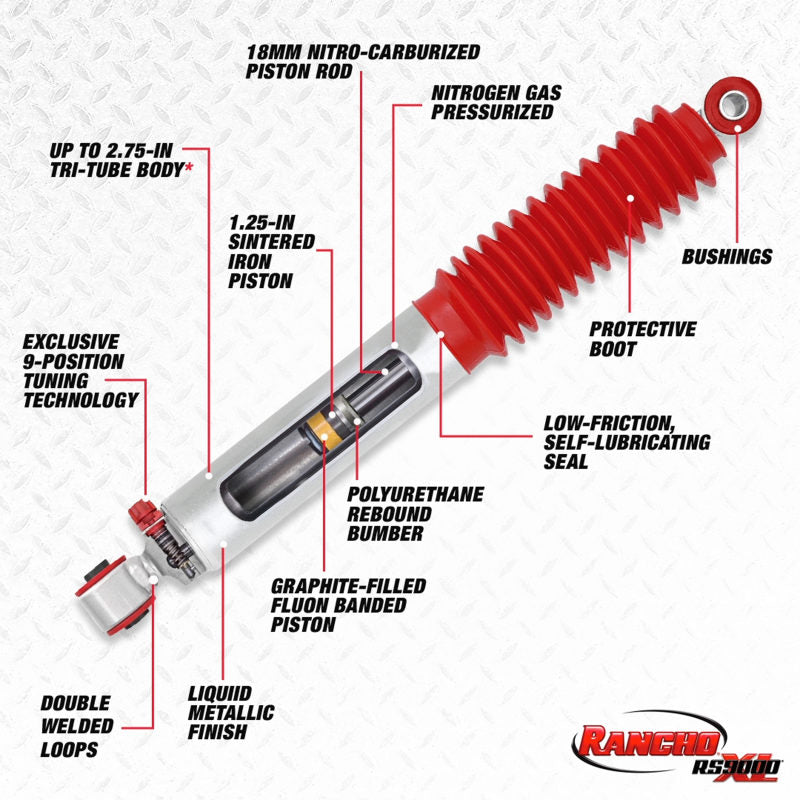

- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Compressed Length: 493
Compressed Length: 19.41
Extended Length: 32.29
Extended Length: 820.2
Travel Length: 12.88
Travel Length: 327.2
Shock Stroke: 327.2
Shock Stroke: 12.88
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mount Code: L1
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mount Code: L1
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Absorber Body End Measuring Point: Center of Loop
Gas Charged: Yes
Mounting Hardware Included: Yes
Parts Pack(s): P00934,P00915
Body Diameter: 69.9
Body Diameter: 2.75
Cylinder Outside Diameter: 69.9
Cylinder Outside Diameter: 2.75
Body Material: Steel
Cylinder Material: Steel
Body Color: Silver
Cylinder Color: Silver
Color: Silver
Finish: Painted
Cylinder Finish: Painted
Boot Included: Yes
Dust Shield Included: Yes
Dust Shield Diameter: 50.8
Dust Shield Diameter: 2
Dust Shield Material: Rubber
Dust Shield Color: Red
Rod Diameter: 18
Rod Diameter: 0.7086614173228346
Shaft Material: Chromed
Shock Absorber Bore Size: 32
Shock Absorber Bore Size: 1.2598425196850394
Includes Bump Stop: No
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Hydraulic Lockout: No
Internal Construction Type: Tri Tube
Grade Type: Performance
Type: Telescopic
Adjustable Damping: Yes
Active or Passive Suspension: Passive
Adjustable Compression: Yes
Adjustable Rebound: Yes
Damping Adjustment Type: Manual
Valving Type: Progressive
Self-Leveling: No
Adjustable Ride Height: No
Maximum Ride Height Lowering Distance: 0
Maximum Ride Height Raising Distance: 0
Air Adjustable: No
Air Ride Suspension: No
Bladder(s) Included: No
Bladder Sleeve(s) Included: No
Bladder Heavy Duty Crimping Rings Included: No
New Or Remanufactured: New
Coil Over Springs Included: No
Bearing Plate Included: No
Spring Included: No
Coil Spring Insulator(s) Included: No
Spring Isolators Included: No
Spring Seat Included: No
Remote Reservoir: No
Strut Mount Insulator(s) Included: No
