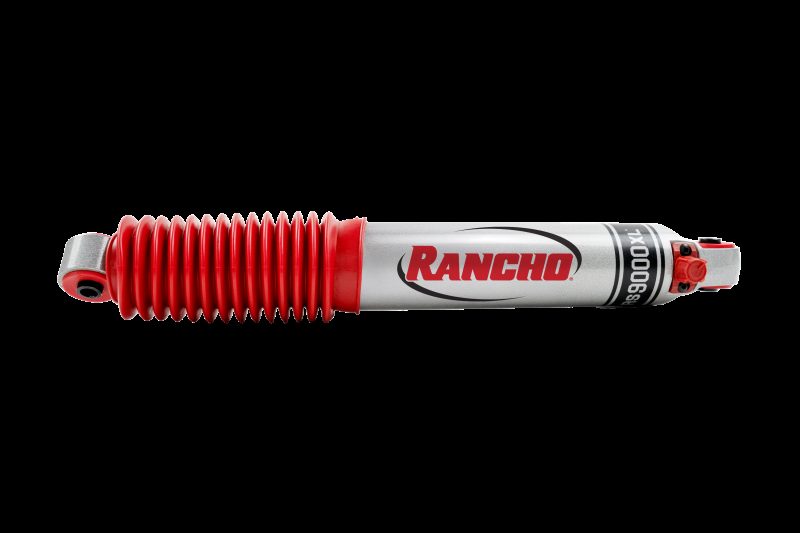

Rancho RS994012 - Universal Non-Application RS9000XL Shock Absorber
Rancho RS994012 - Universal Non-Application RS9000XL Shock Absorber
SKU: RCH-RS994012
Regular price
$126.99 USD
Regular price
$139.69 USD
Sale price
$126.99 USD
Shipping calculated at checkout.
7 in stock
Quantity
Couldn't load pickup availability
Rancho RS994012 - Universal Non-Application RS9000XL Shock Absorber
Rancho RS9000XL RS994012 Suspension Shock Absorber
With nine levels of adjustment, Rancho® RS9000®XL shocks provide premium control and performance. An easy-to-adjust knob enables customized damping and firmness for both on-road and off-road versatility. Now in its fourth generation, this cutting-edge shock boasts integrated bottom mounts for enhanced strength and a dual component 2K paint finish for superior chip resistance. Tougher and better-looking than ever, the RS9000XL sets a new standard in durability and design.
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- REDUCES FADE -- Nitrogen gas pressurized to 45 or 60 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.38-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BOLD NEW LOOK -- Sleek dual component 2K paint finish not only looks good but delivers superior chip resistance
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Shock Absorber Body End Measuring Point: Center of Loop
Gas Charged: Yes
Mounting Hardware Included: Yes
Parts Pack(s): P00934,P00915
Body Diameter: 2.37
Body Diameter: 60.3
Cylinder Outside Diameter: 2.37
Cylinder Outside Diameter: 60.3
Body Material: Steel
Cylinder Material: Steel
Body Color: Silver
Cylinder Color: Silver
Color: Silver
Finish: Painted
Cylinder Finish: Painted
Boot Included: Yes
Dust Shield Included: Yes
Dust Shield Diameter: 50.8
Dust Shield Diameter: 2
Dust Shield Material: Rubber
Dust Shield Color: Red
Rod Diameter: 18
Rod Diameter: 0.71
Shaft Material: Chrome Plated
Shock Absorber Bore Size: 32
Shock Absorber Bore Size: 1.26
Includes Bump Stop: No
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Hydraulic Lockout: No
Internal Construction Type: Tri Tube
Grade Type: Performance
Type: Telescopic
Adjustable Damping: Yes
Active or Passive Suspension: Passive
Adjustable Compression: Yes
Adjustable Rebound: Yes
Damping Adjustment Type: Manual
Valving Type: Progressive
Self-Leveling: No
Adjustable Ride Height: No
Maximum Ride Height Lowering Distance: 0
Maximum Ride Height Raising Distance: 0
Air Adjustable: No
Air Ride Suspension: No
Bladder(s) Included: No
Bladder Sleeve(s) Included: No
Bladder Heavy Duty Crimping Rings Included: No
New Or Remanufactured: New
Coil Over Springs Included: No
Bearing Plate Included: No
Spring Included: No
Coil Spring Insulator(s) Included: No
Spring Isolators Included: No
Spring Seat Included: No
Remote Reservoir: No
Strut Mount Insulator(s) Included: No
Compressed Length: 494.6
Compressed Length: 19.47
Extended Length: 32.31
Extended Length: 820.6
Travel Length: 12.83
Travel Length: 326
Shock Stroke: 326
Shock Stroke: 12.83
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mount Code: L1
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mount Code: L1
Shock Absorber Rod End Measuring Point: Center of Loop
