Rancho - RS55330

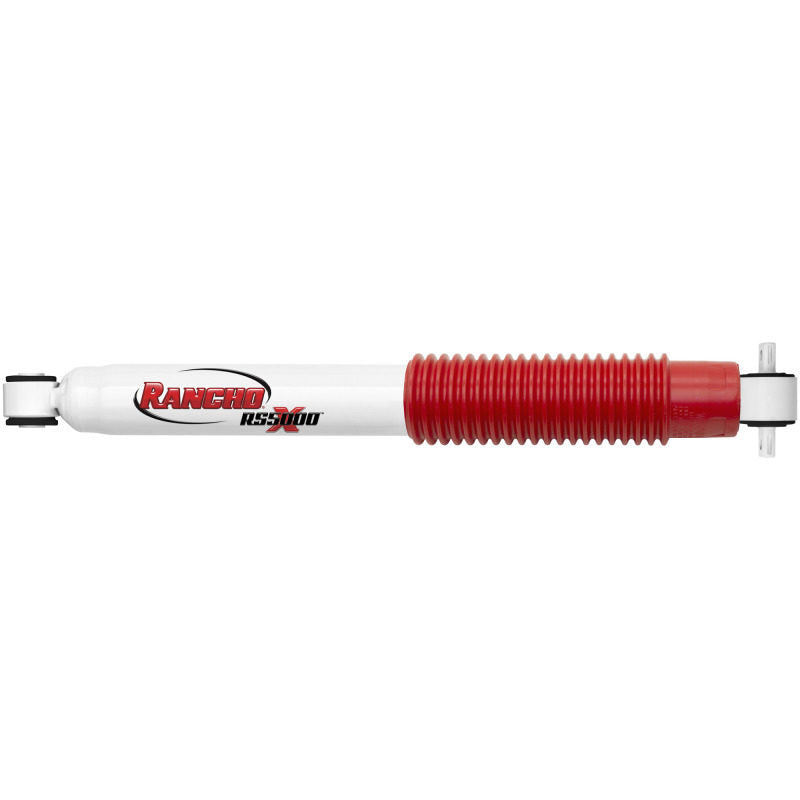

Rancho RS5000X RS55330 Suspension Shock Absorber for Jeep Wrangler
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.

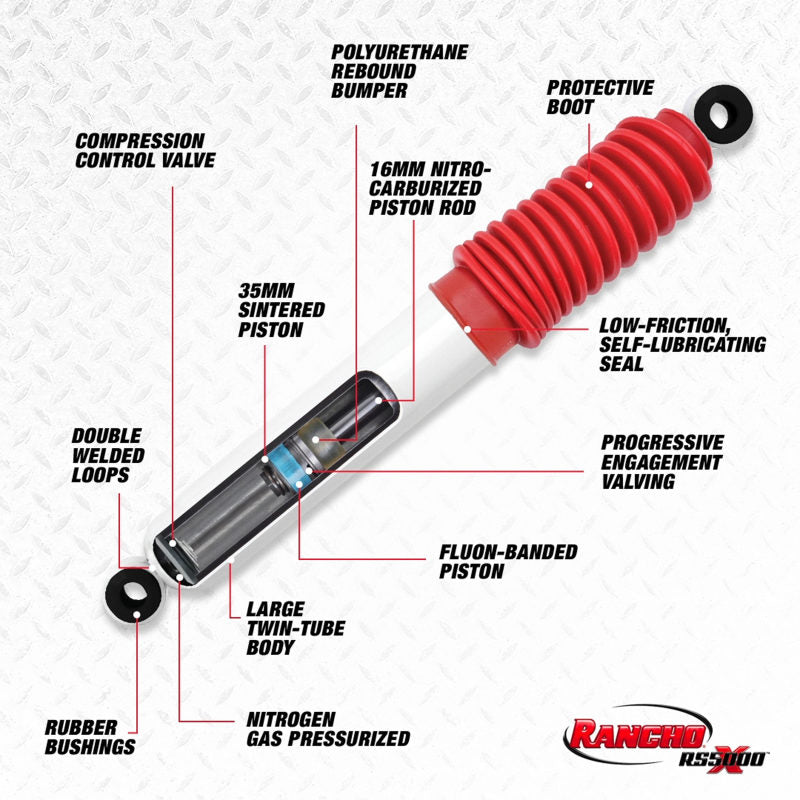

- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Compressed Length: 15.96
Compressed Length: 405.4
Extended Length: 25.75
Extended Length: 654.1
Travel Length: 9.79
Travel Length: 248.7
Shock Stroke: 9.79
Shock Stroke: 248.7
Lower Mount Type: Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Lower Mount Code: LS38
Upper Mount Type: Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center)
Upper Mount Code: XP12
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Absorber Body End Measuring Point: Center of Cross Pin
Gas Charged: Yes
Mounting Hardware Included: No
Parts Pack(s): None
Body Diameter: 2.25
Body Diameter: 57.2
Cylinder Outside Diameter: 2.25
Cylinder Outside Diameter: 57.2
Body Material: Steel
Cylinder Material: Steel
Body Color: White
Cylinder Color: White
Color: White
Finish: Painted
Cylinder Finish: Painted
Boot Included: Yes
Dust Shield Included: Yes
Dust Shield Diameter: 75.9
Dust Shield Diameter: 2.99
Dust Shield Material: Plastic
Dust Shield Color: Red
Rod Diameter: 0.622
Rod Diameter: 15.8
Shaft Material: Nitrocarburized
Shock Absorber Bore Size: 35
Shock Absorber Bore Size: 1.3779527559055118
Includes Bump Stop: No
Internal Rebound Bumper: No
Internal Rebound Spring: No
Hydraulic Lockout: No
Internal Construction Type: Twin Tube
Grade Type: Performance
Type: Telescopic
Adjustable Damping: No
Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Rebound: No
Valving Type: Progressive
Self-Leveling: No
Adjustable Ride Height: No
Maximum Ride Height Lowering Distance: 0
Maximum Ride Height Raising Distance: 0
Air Adjustable: No
Air Ride Suspension: No
Bladder(s) Included: No
Bladder Sleeve(s) Included: No
Bladder Heavy Duty Crimping Rings Included: No
New Or Remanufactured: New
Coil Over Springs Included: No
Bearing Plate Included: No
Spring Included: No
Coil Spring Insulator(s) Included: No
Spring Isolators Included: No
Spring Seat Included: No
Remote Reservoir: No
Strut Mount Insulator(s) Included: No
Year
Make
Model
Submodel
Engine
2011
Jeep
Wrangler
70th Anniversary
3.8L
2016
Jeep
Wrangler
75th Anniversary
3.6L
2010
Jeep
Wrangler
Islander
3.8L
2012 - 2017
Jeep
Wrangler
Rubicon
3.6L
2007 - 2011
Jeep
Wrangler
Rubicon
3.8L
2012 - 2017
Jeep
Wrangler
Sahara
3.6L
2007 - 2011
Jeep
Wrangler
Sahara
3.8L
2012 - 2017
Jeep
Wrangler
Sport
3.6L
2010 - 2011
Jeep
Wrangler
Sport
3.8L
2016
Jeep
Wrangler
Sport S
3.6L
2012
Jeep
Wrangler
Unlimited
3.6L
2011
Jeep
Wrangler
Unlimited 70th Anniversary
3.8L
2016
Jeep
Wrangler
Unlimited 75th Anniversary
3.6L
2012, 2015
Jeep
Wrangler
Unlimited Altitude
3.6L
2016
Jeep
Wrangler
Unlimited Black Bear
3.6L
2015
Jeep
Wrangler
Unlimited Hard Rock
3.6L
2012
Jeep
Wrangler
Unlimited Mountain
3.6L
2010
Jeep
Wrangler
Unlimited Mountain
3.8L
2012 - 2017
Jeep
Wrangler
Unlimited Rubicon
3.6L
2007 - 2011
Jeep
Wrangler
Unlimited Rubicon
3.8L
