Racepak 230-VM-EFIAEM - AEM EFI Interface Module

Racepak 230-VM-EFIAEM - AEM EFI Interface Module

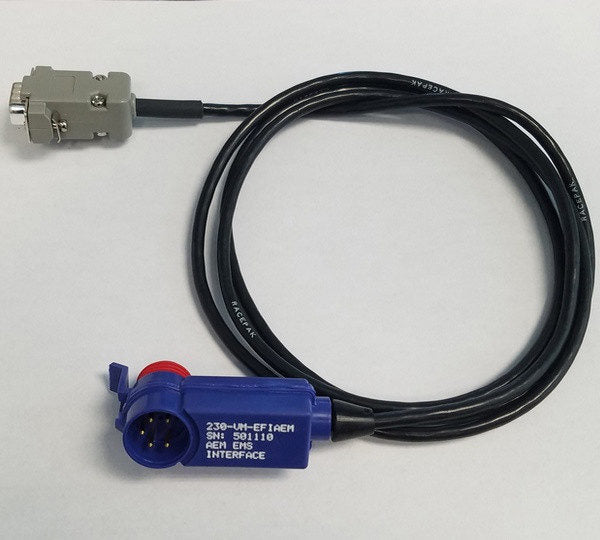

AEM EFI Interface Module

CLEARANCE ITEM / ALL SALES FINAL - This V-Net module is used to communicate the serial data stream from an AEM EMS unit into RacePak's V-Net System.

This interface module is used to convert the serial data stream for an AEM EMS unit into a CAN bus data stream compatible with the Racepak V-Net System. Data from the module is then available for use with the full range of Racepak V-Net devices including on board displays, real time telemetry, and data logging applications. The module also provides setup capability to accommodate selection of scaling units, data logging sample rates and even custom sensor calibration. Up to 17 different EMS data channels can be monitored and recorded as described above. Specifications: view and record up to 16 data channels, depending on ECU, without additional sensors / compatible with over 20 popular ECU systems / setup options include selection of scaling units, sample rates and sensor calibration.

• Converts The Serial Data Stream Into CAN Bus Data Stream
• Provides Capability To Accommodate Selection Of Scaling Units
• Monitors And Records Up To 17 Different EMS Data Channels
• Compatible w/AEM ECU systems
• Include Setup Options As Sample Rates / Sensor Calibration
