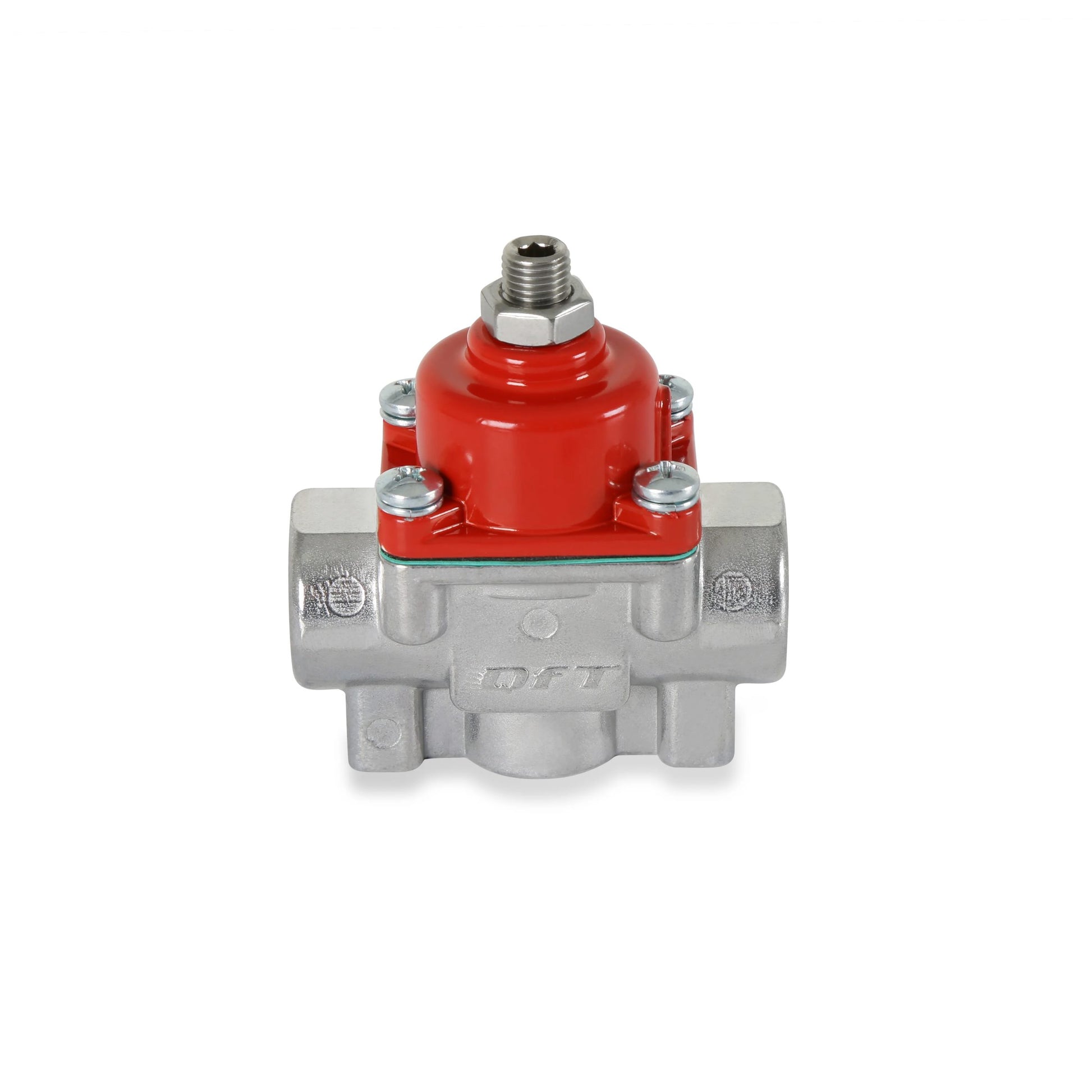

Quick Fuel Technology - 30-900QFT
Fuel Pressure Regulator - 4-1/2 to 9 psi - In-Line - 3/8 in NPT Female Inlet - 3/8 in NPT Female Outlet - 3/8 in NPT Female Return - Bypass - Aluminum - Red / Natural - E85 / Gas / Methanol - Each
Fuel Pressure Regulator; Bypass Regulator; 4.5-9 psi. 3/8 NPT Ports; Cast Body w/Red Top;

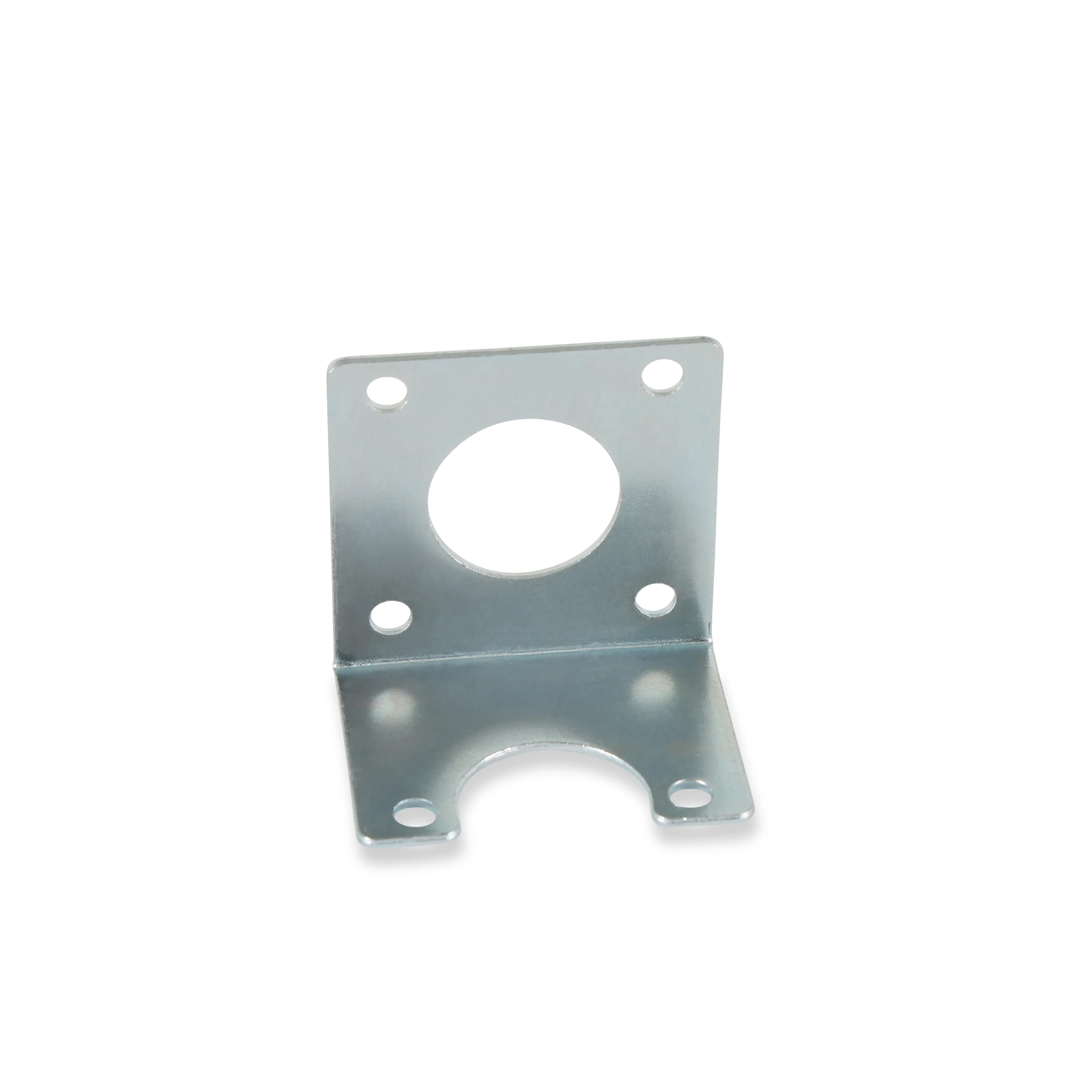

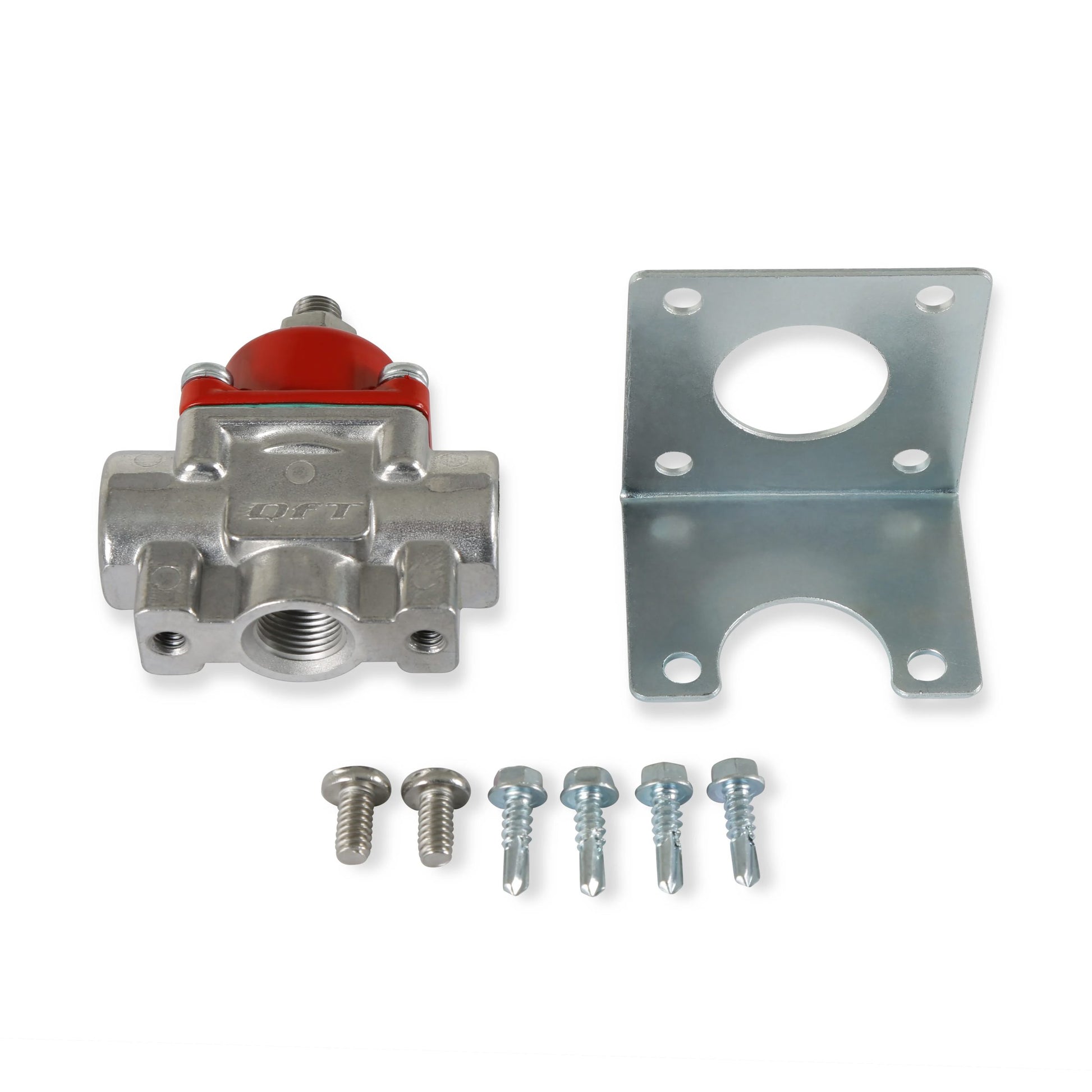

Bypass Regulator recommended for steady-state mechanical and electric fuel pumps. Comes with stainless mounting bracket. All thread are NPT. Eliminates creep at low RPM without affecting fuel flow Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI3/8 in. NPT ports.375 in. (3/8 in.) restriction Compatible for use with gas, alcohol and E85 fuels Includes an 1/8 in. NPT port for manifold reference Boost Reference 1-1
- Eliminates Creep At Low RPM Without Affecting Flue Flow
- Adjustable From 4.5-9 PSI
- Preset to 6.5 PSI
- .375 in. Restriction
- Compatible For Use With Gas - Alcohol - E85 Fuels
Adjustable: Yes
Brand: Quick Fuel Technology
Category: Air and Fuel Delivery
Color: Red
Emission Code: 5
Fuel Type: Gasoline
Gauge Included: No
Grade Type: Performance
Inlet Gender: Female
Inlet Port Diameter: 3/8
Inlet Port Quantity: 1
Inlet Type: NPT
Material: Aluminum
Maximum Pressure: 9
Minimum Pressure: 4.5
Mounting Bracket Included: Yes
Outlet Gender: Female
Outlet Port Diameter: 3/8
Outlet Port Quantity: 2
Outlet Type: NPT
part type: Fuel Pressure Regulator
Product Type: Fuel Pressure Regulator
Style: Bypass
Sub Category: Carburetion
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
