Quick Fuel Technology - 30-804QFT
Fuel Pressure Regulator - 1 to 4 psi - In-Line - 3/8 in NPT Inlet - 3/8 in NPT Outlet - Aluminum - Natural - Gas - Each
Fuel Pressure Regulator; Cast Body; 1-4 psi; 3/8 NPT Single Inlet And Dual Outlet;
Based on the same technology as our 30-803 fuel pressure regulator, our new low pressure regulator is built with premium components and designed to operate within the 1-4 PSI range. Includes mounting bracket and detailed instructions. 3/8 in. NPT ports. Supports 4-barrel gas engines up to 600 HP.250 in. (1/4 in.) restriction Includes mounting bracket Includes an 1/8 in. NPT port for manifold reference Boost Reference 1-1
- •Supports 4-barrel gas engines up to 600 HP
- •.250" (1/4") restriction

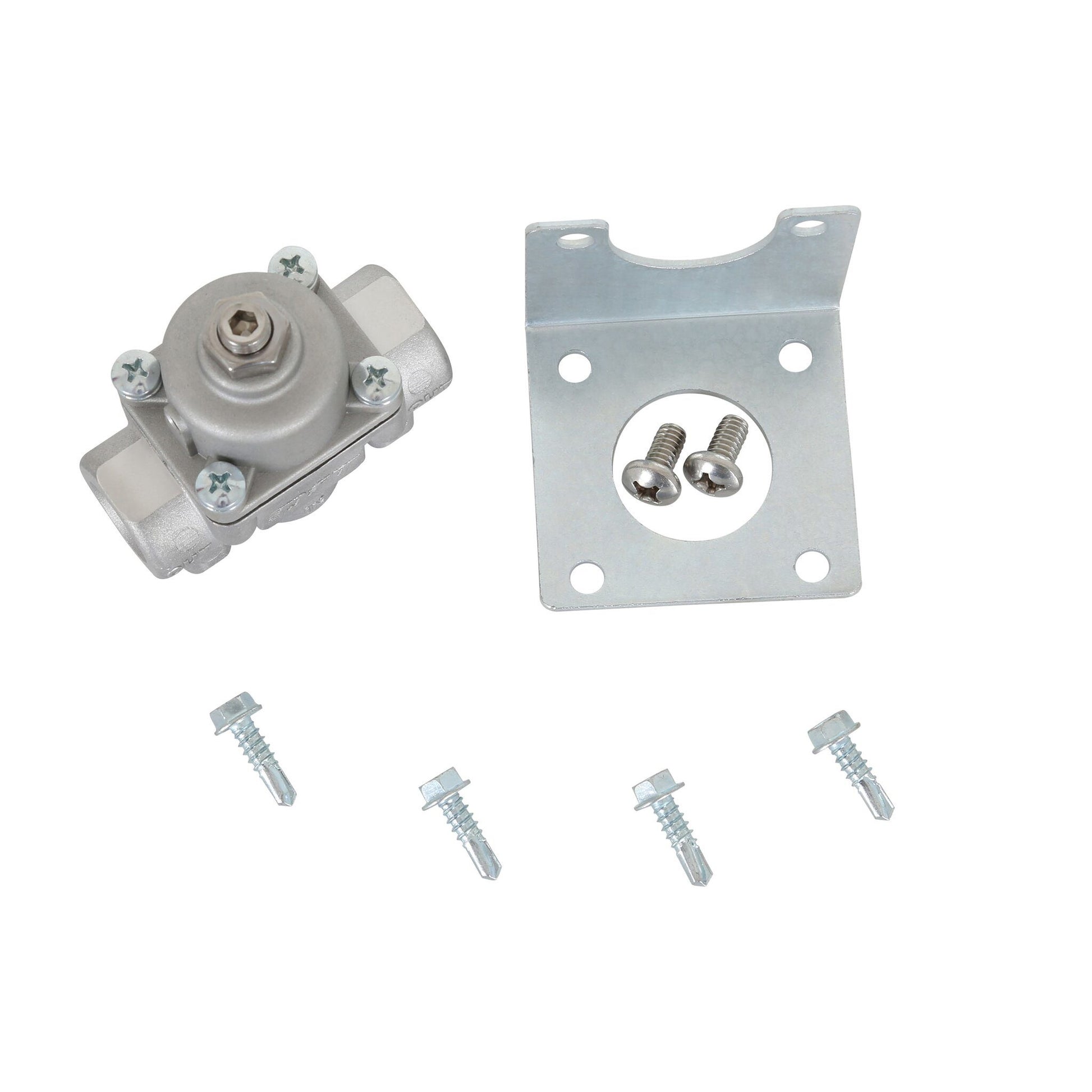

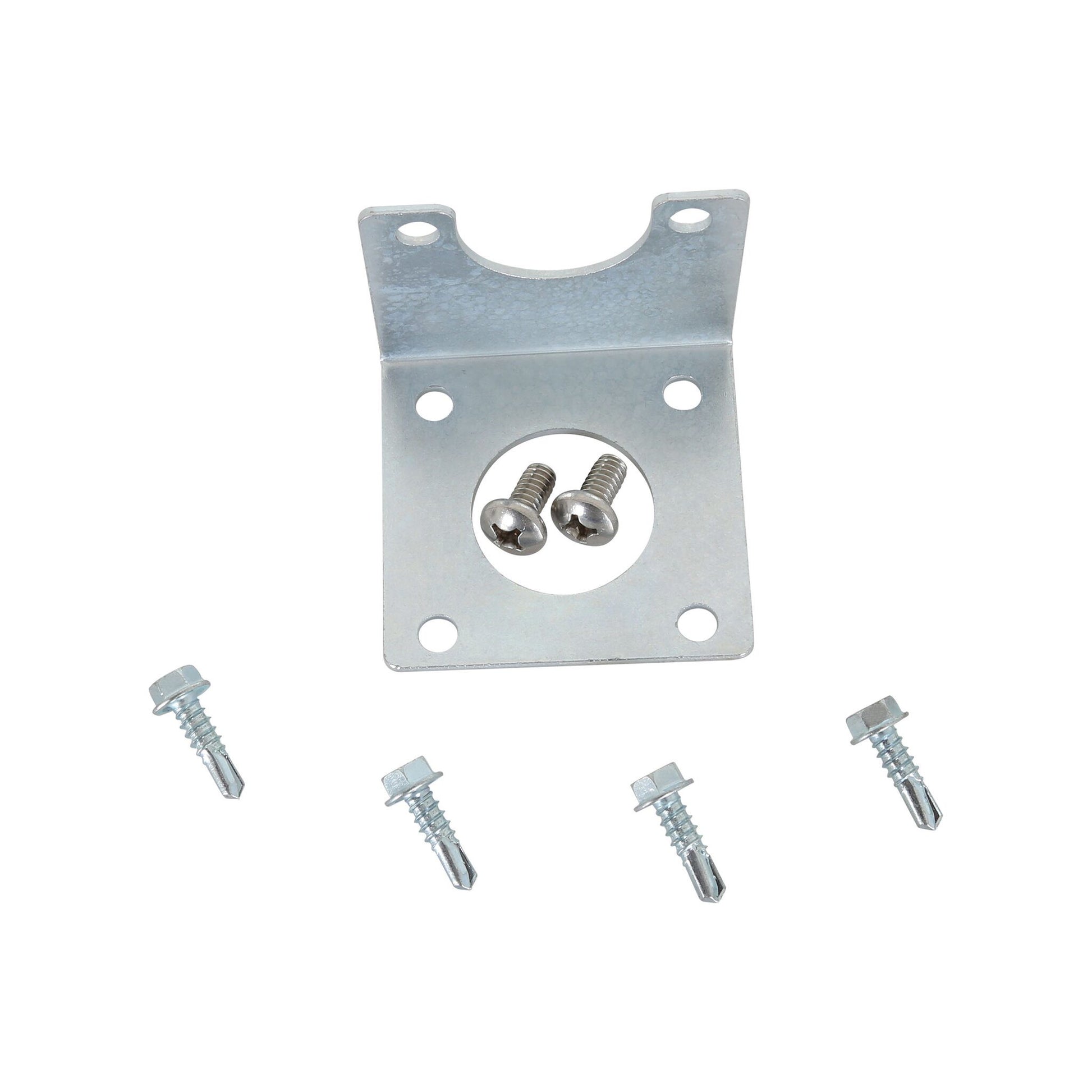

- •Includes mounting bracket
- •Includes an 1/8" NPT port for manifold reference
- Boost Reference 1-1
Adjustable: Yes
Brand: Quick Fuel Technology
Category: Air and Fuel Delivery
Color: Raw
Emission Code: 5
Fuel Type: Gasoline
Gauge Included: No
Grade Type: Performance
Inlet Gender: Female
Inlet Port Diameter: 3/8
Inlet Port Quantity: 1
Inlet Type: NPT
Material: Aluminum
Maximum Pressure: 4
Minimum Pressure: 1
Mounting Bracket Included: Yes
Outlet Gender: Female
Outlet Port Diameter: 3/8
Outlet Port Quantity: 2
Outlet Type: NPT
part type: Fuel Pressure Regulator
Product Type: Fuel Pressure Regulator
Sub Category: Carburetion
Warranty: Manufacturer's Limited 90 Day Warranty
