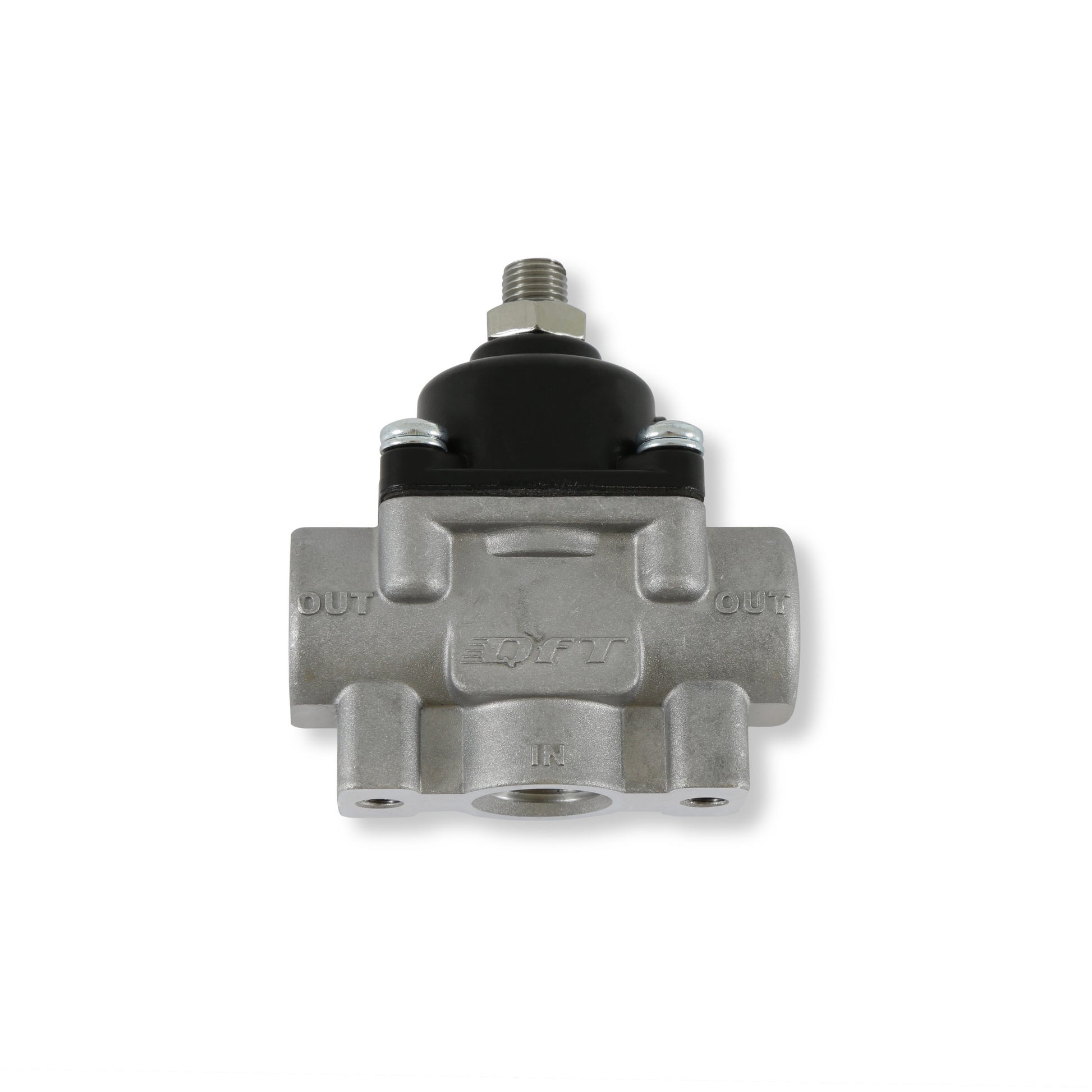

Quick Fuel Technology - 30-803QFT
Fuel Pressure Regulator - 4-1/2 to 9 psi - In-Line - 3/8 in NPT Inlet - 3/8 in NPT Outlet - Aluminum - Black / Natural - Gas - Each

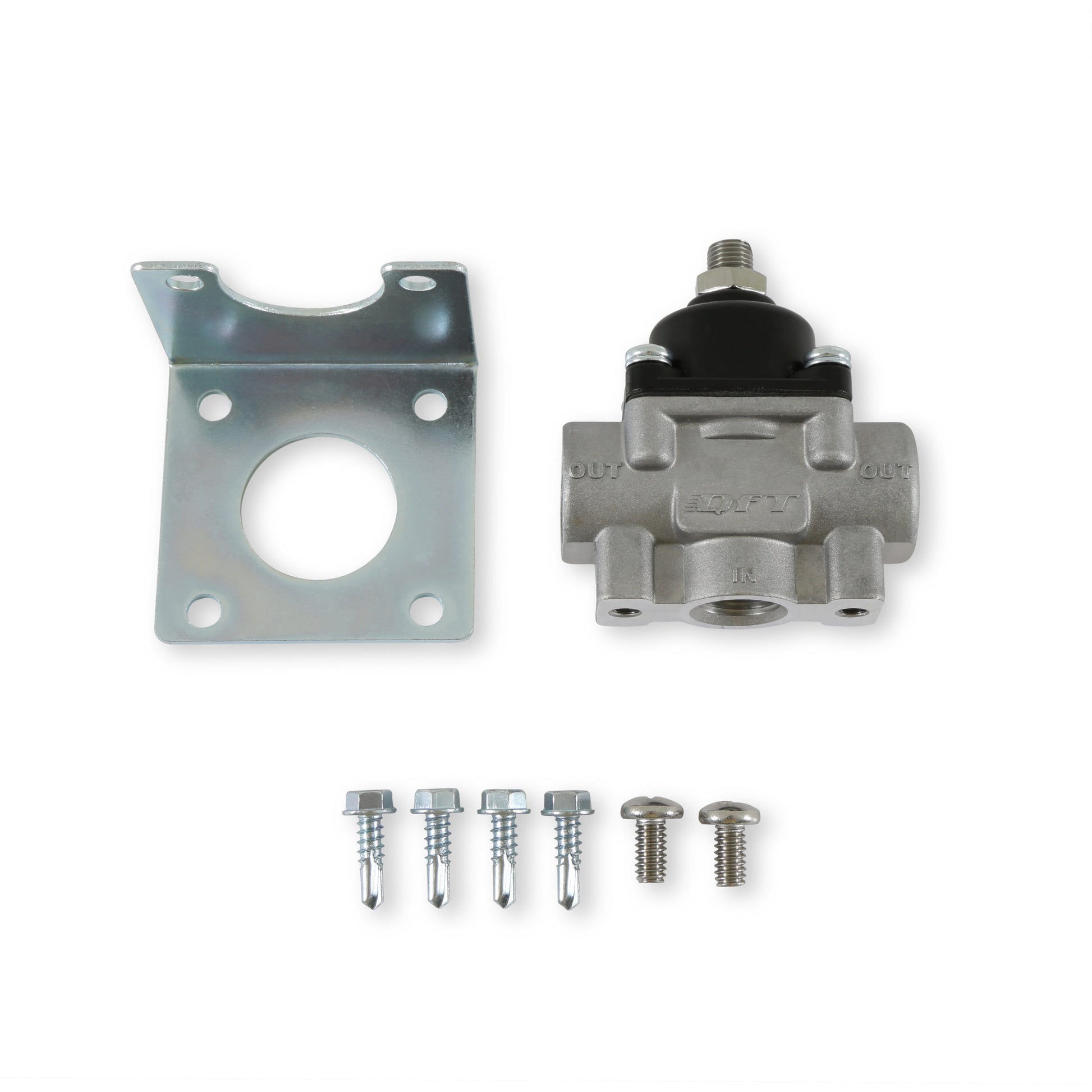

Fuel Pressure Regulator; Cast Body w/Black Top; 30cc Diaphragm; Mounting Bracket And Hardware Included; 3/8 NPT Single Inlet And Dual Outlet; 4.5-9 psi.;
Pressure Regulator - Cast body with powder coated black top. Features 30cc diaphragm and mounting bracket with hardware. 3/8 in. NPT ports (single inlet, dual outlet).Supports 4-barrel gas engines up to 600 HPDesigned to operate within 4.5 - 9 PSI range; Preset at 7 PSI.250 in. (1/4 in.) restriction Includes mounting bracket Includes an 1/8 in. NPT port for manifold reference Boost Reference 1-1
- •Supports 4-barrel gas engines up to 600 HP
- •Designed to operate within 4.5 - 9 PSI range; Preset at 7 PSI
- •.250" (1/4") restriction

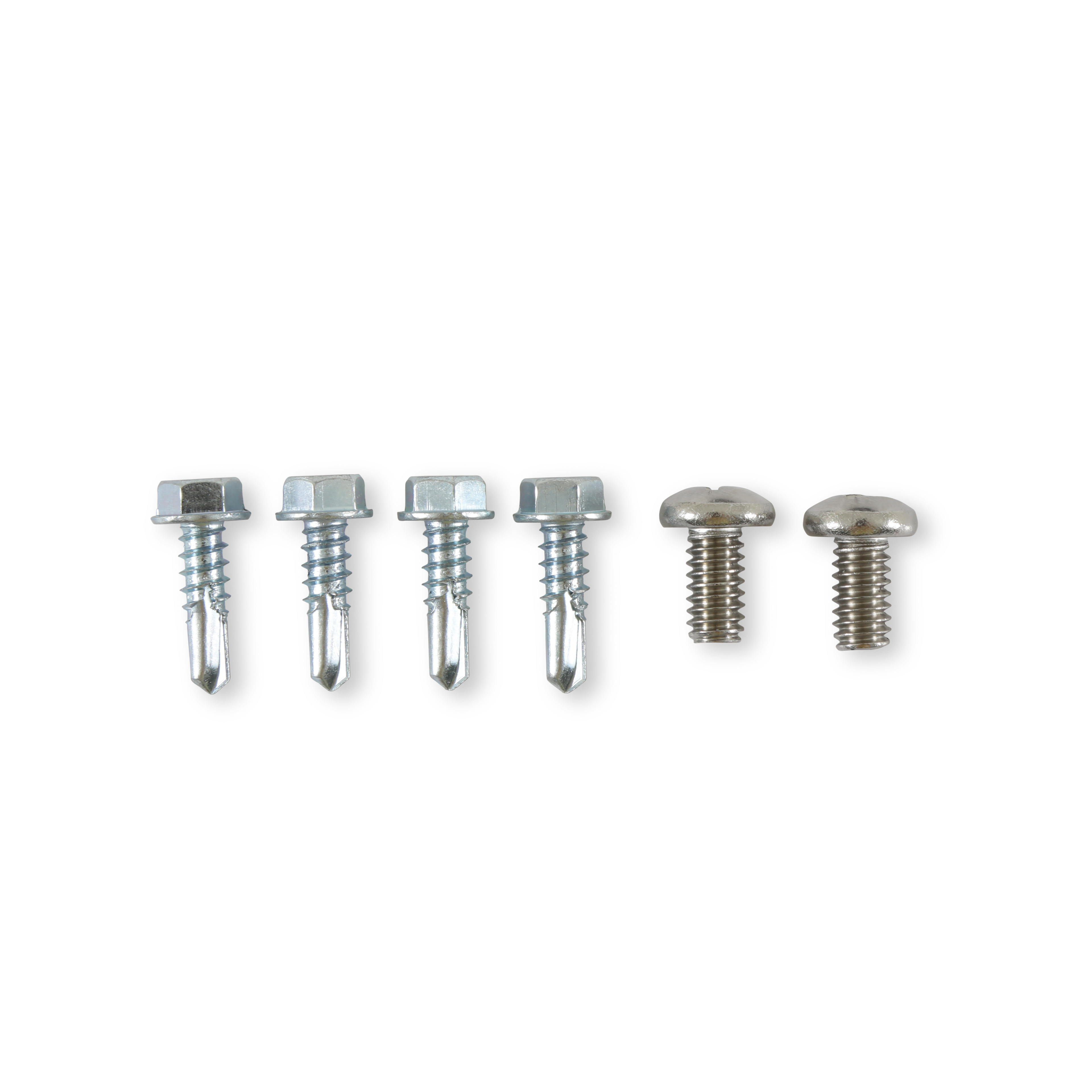

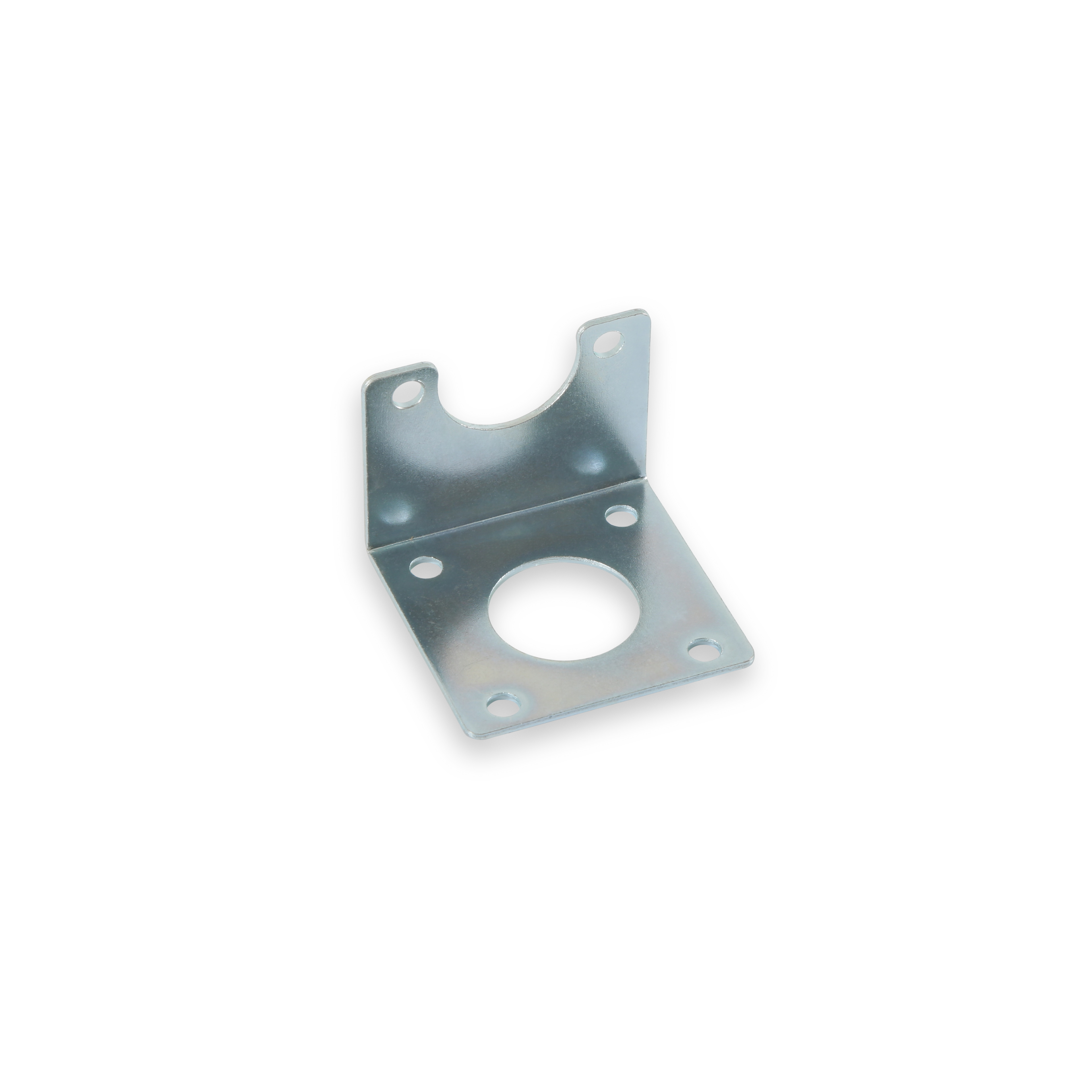

- •Includes mounting bracket
- •Includes an 1/8" NPT port for manifold reference
- Boost Reference 1-1
Adjustable: Yes
Brand: Quick Fuel Technology
Category: Air and Fuel Delivery
Color: Black
Emission Code: 5
Fuel Type: Gasoline
Gauge Included: No
Grade Type: Performance
Inlet Gender: Female
Inlet Port Diameter: 3/8
Inlet Port Quantity: 1
Inlet Type: NPT
Material: Aluminum
Maximum Pressure: 9
Minimum Pressure: 4.5
Mounting Bracket Included: Yes
Outlet Gender: Female
Outlet Port Diameter: 3/8
Outlet Port Quantity: 2
Outlet Type: NPT
part type: Fuel Pressure Regulator
Product Type: Fuel Pressure Regulator
Style: Carbureted
Sub Category: Carburetion
Warranty: Manufacturer's Limited 90 Day Warranty
