Quick Fuel Technology - 30-201QFT
Quick Fuel EFI Filter Regulator -8AN
EFI Filter Regulator Assembly; 175 GPH Flow Rate; 10 Micron Filter; 59.5 PSI Preset Regulator; -8AN Port Sizes; Add Billet Mounting Clamps PN[12-574/12-574S]; Red/Silver Alum.;

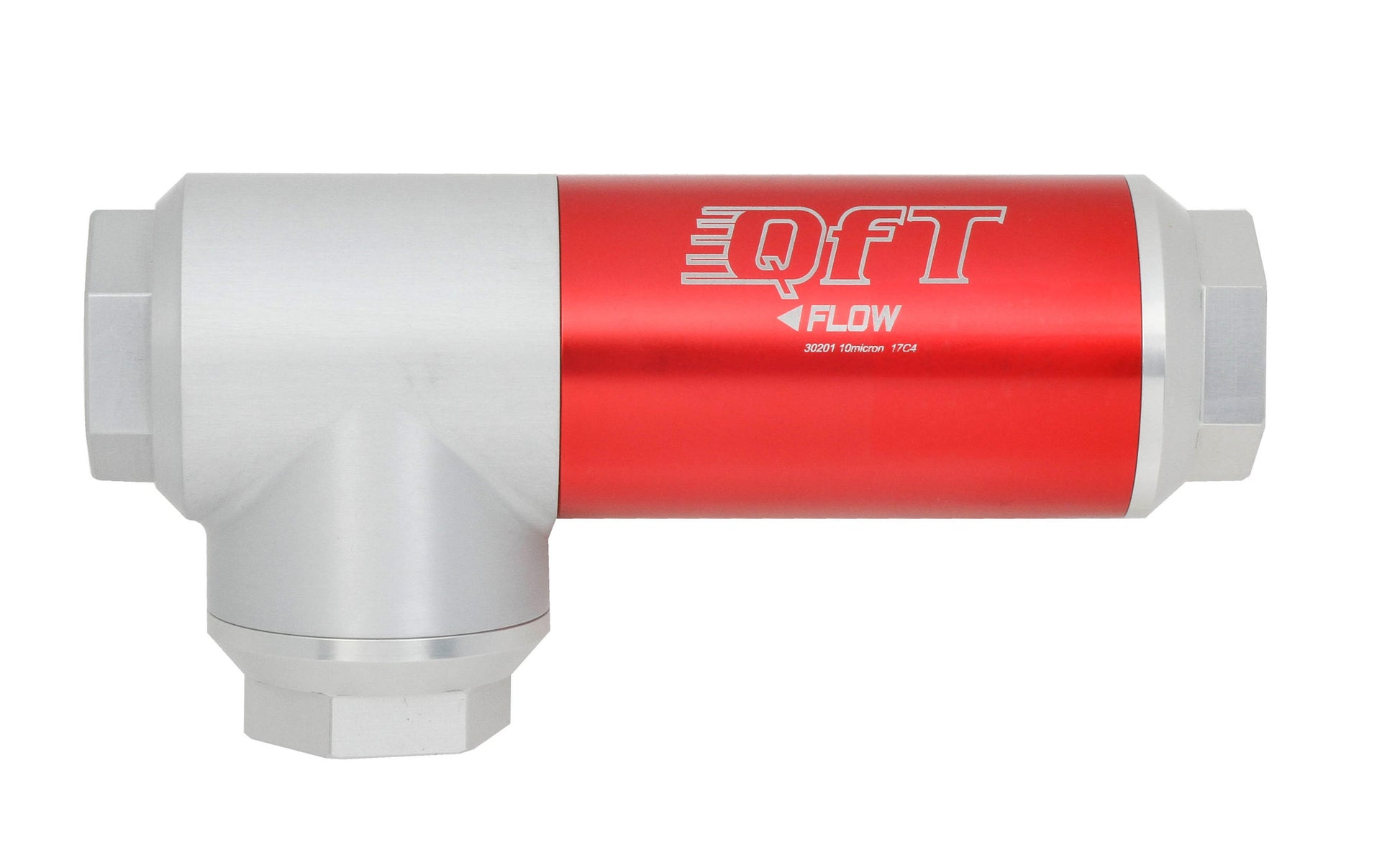

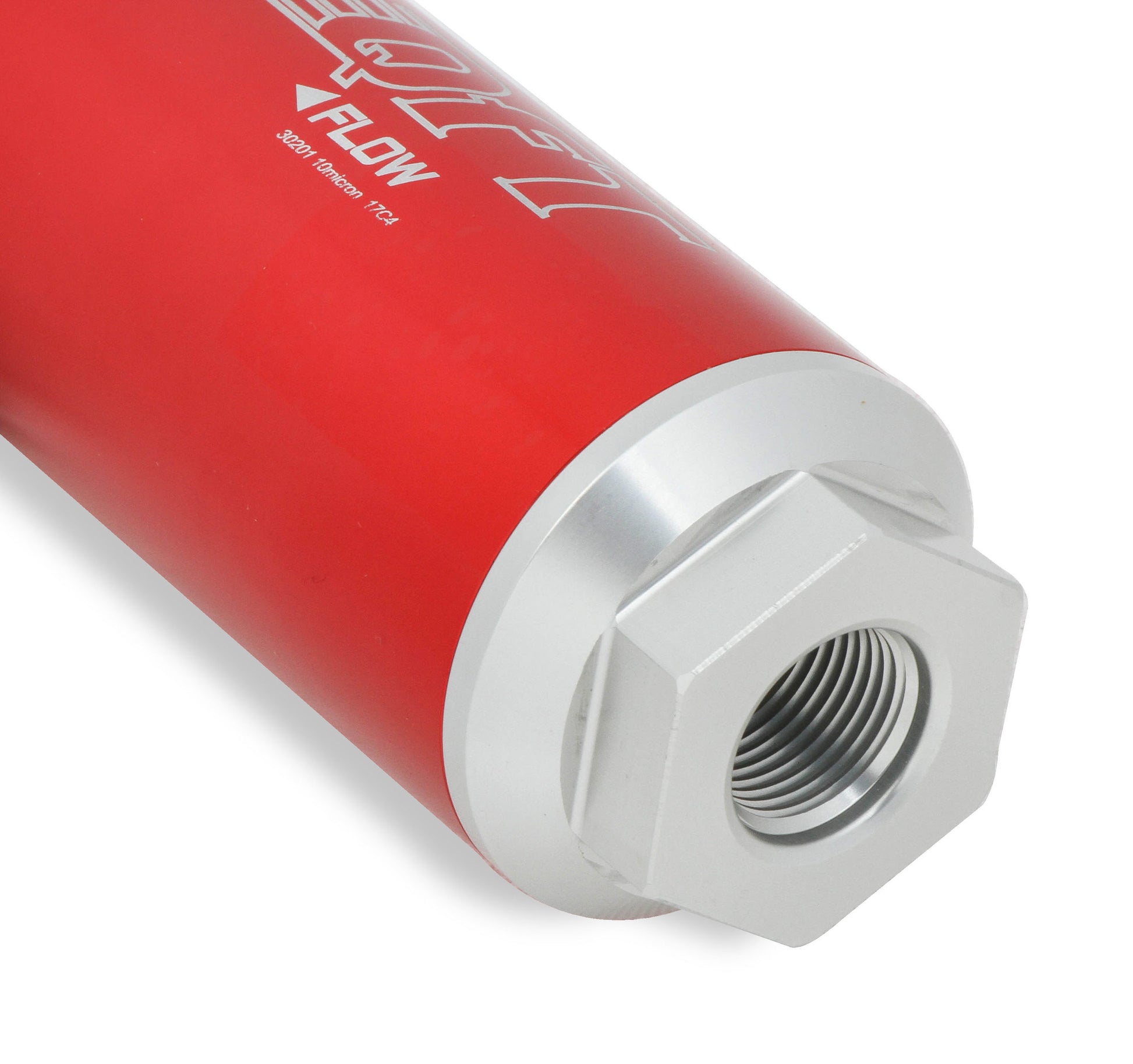

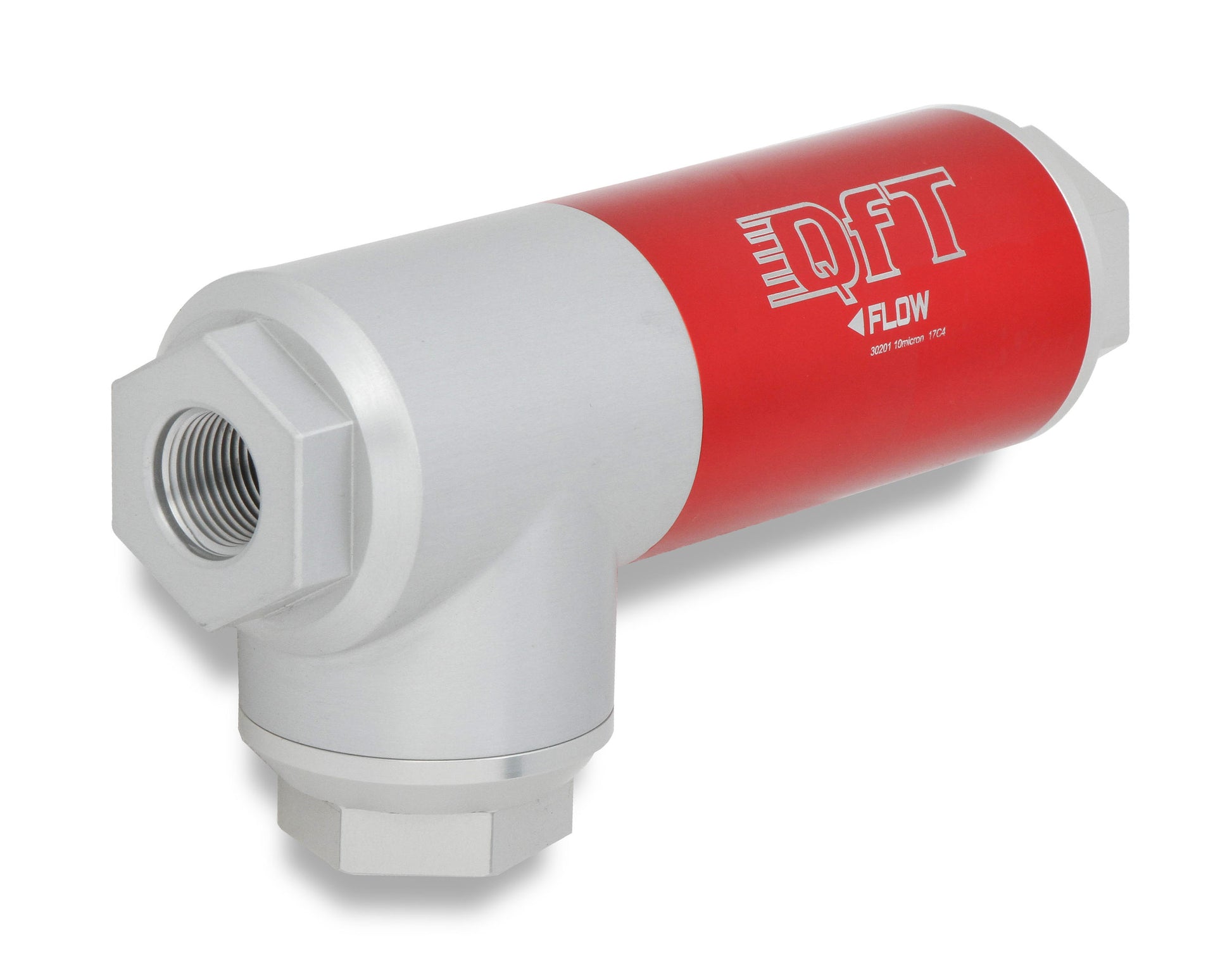

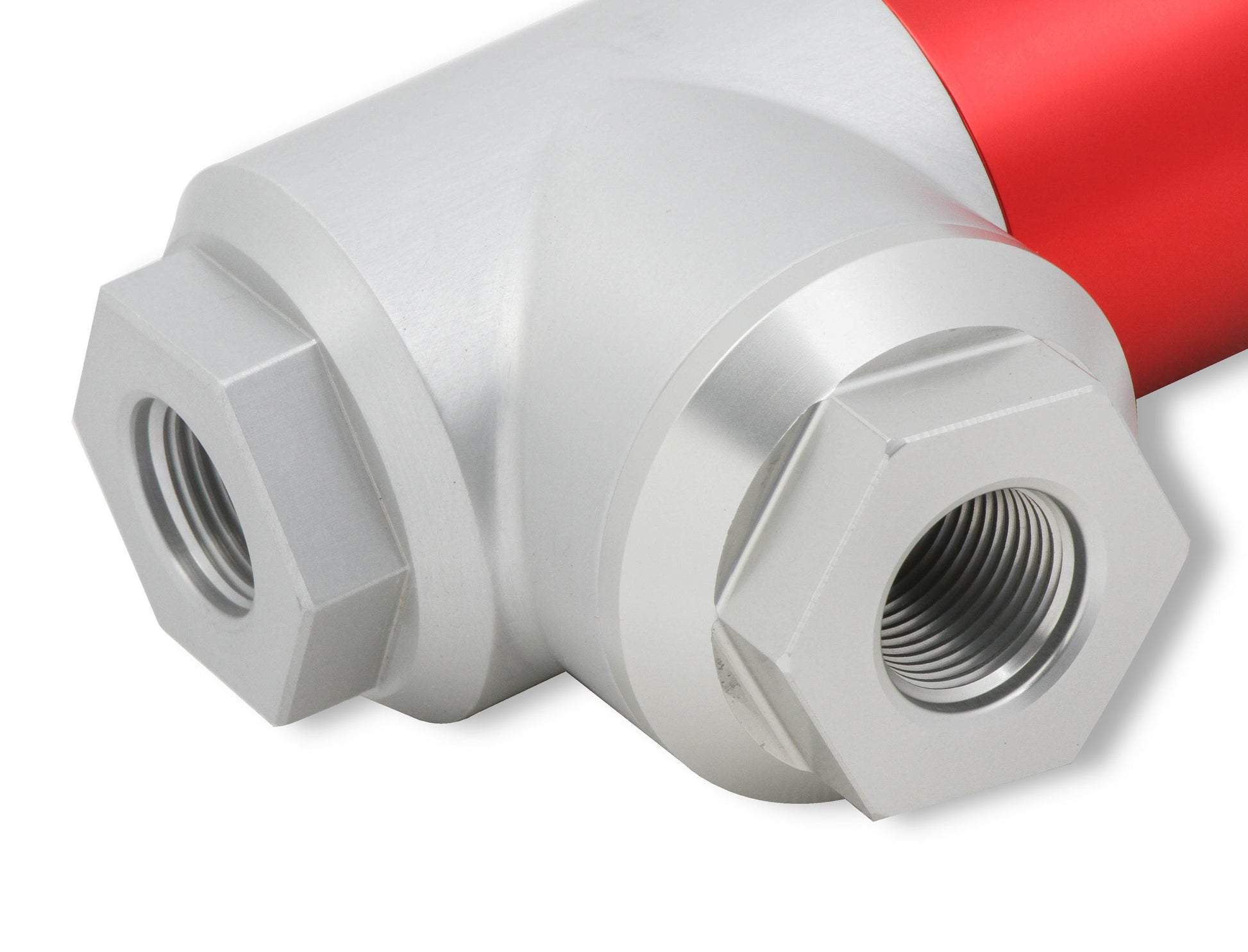

When converting your fuel system to a return style EFI setup, the biggest challenge can be plumbing the fuel lines. The new Quick Fuel EFI Filter Regulator assembly simplifies your installation by combining the fuel filter and regulator in one assembly that can be mounted in the rear of the vehicle. Thus making your return line much shorter. The aluminum assembly contains a 175 GPH 10 Micron filter and a regulator preset at 59.5 psi. The filter regulator comes with -8AN O-ring port sizes to match most EFI fuel systems. Add billet mounting clamps; 12-574 and 12-574S
- 175 GPH Flow Rate
- 10 Micron Cellulose Media
- Regulator Preset At 59.5 PSI
- -8AN Port Sizes
- Minimizes Fuel Line Plumbing When Installing EFI Conversion
- Uses Billet Mounting Clamps PN[12-574/12-574S]
