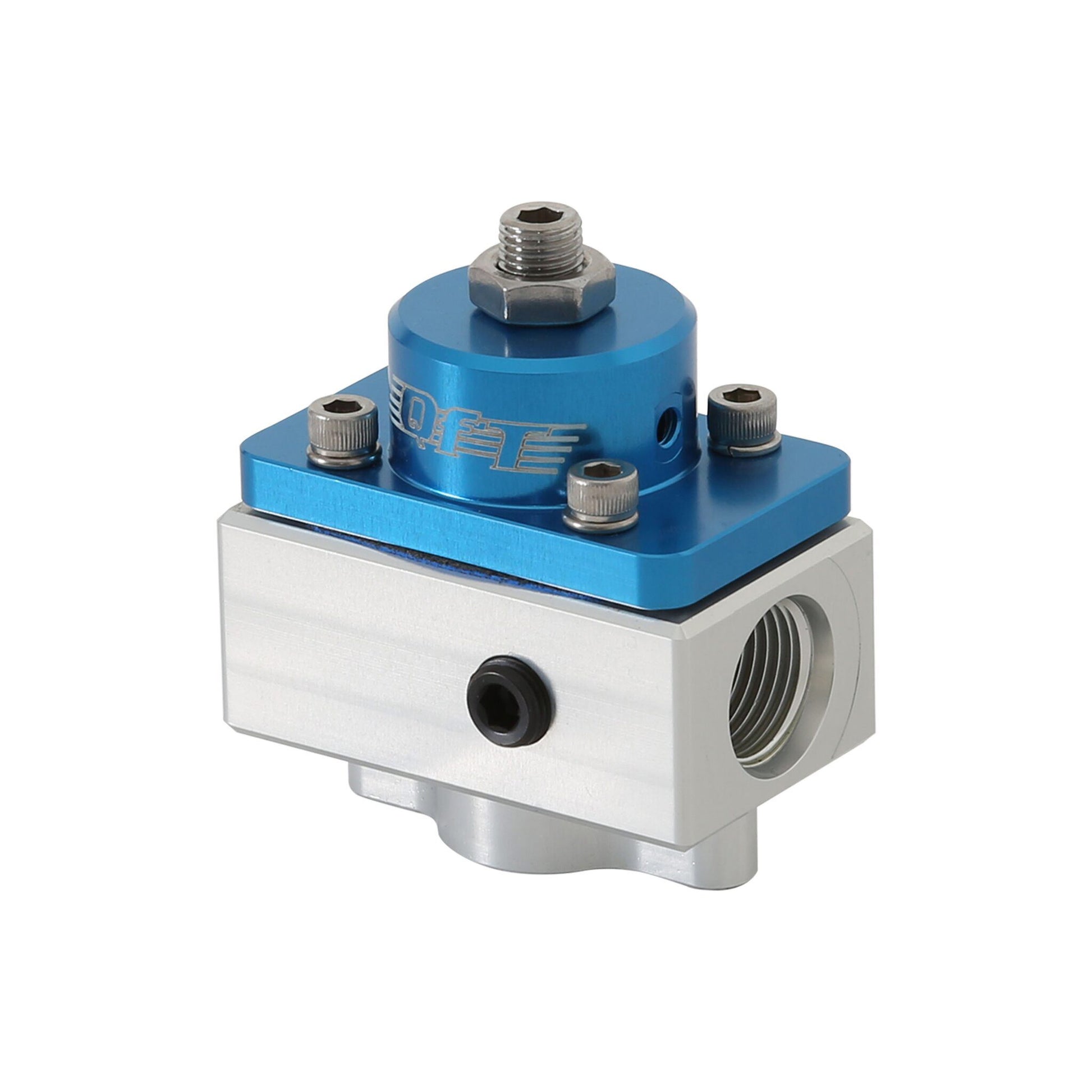

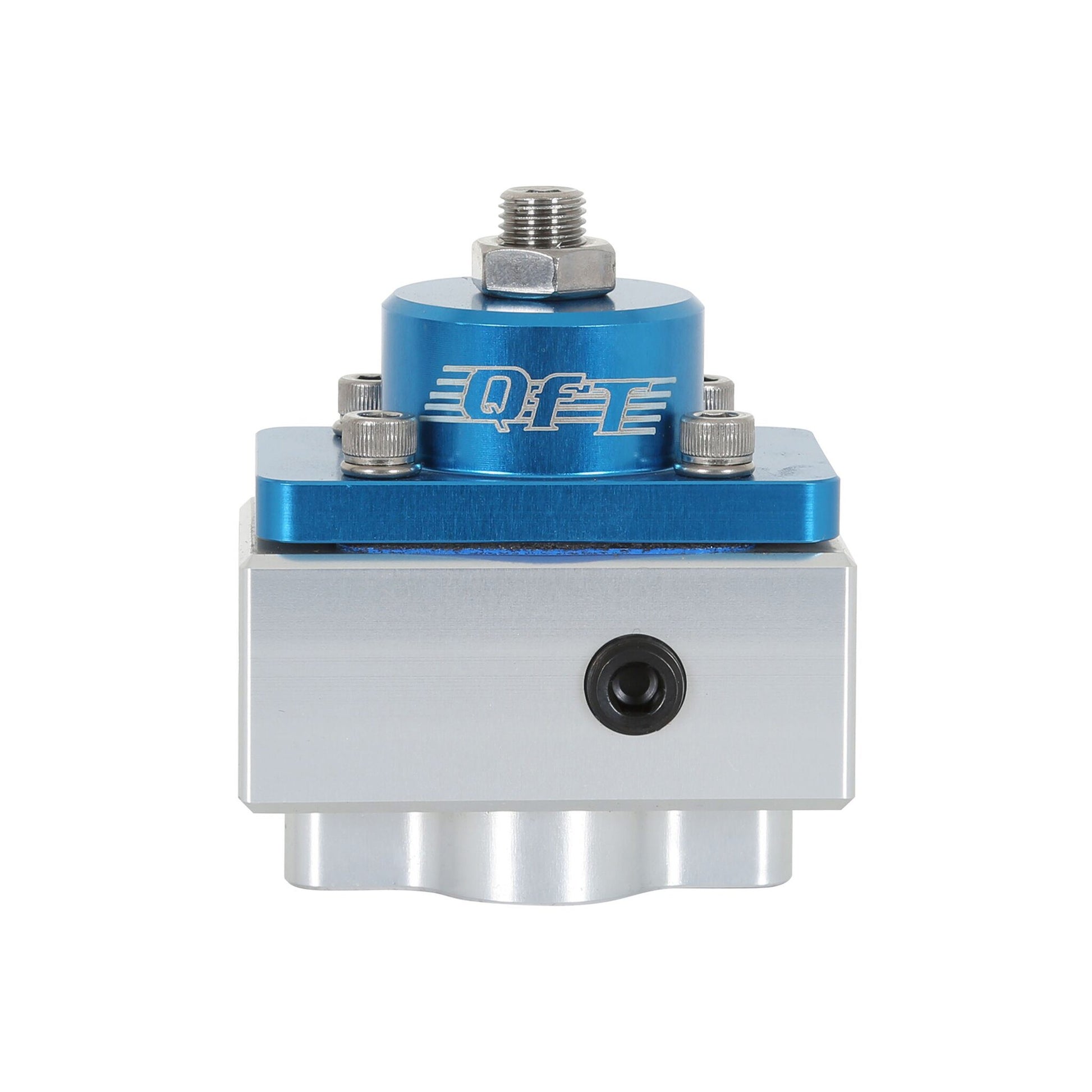

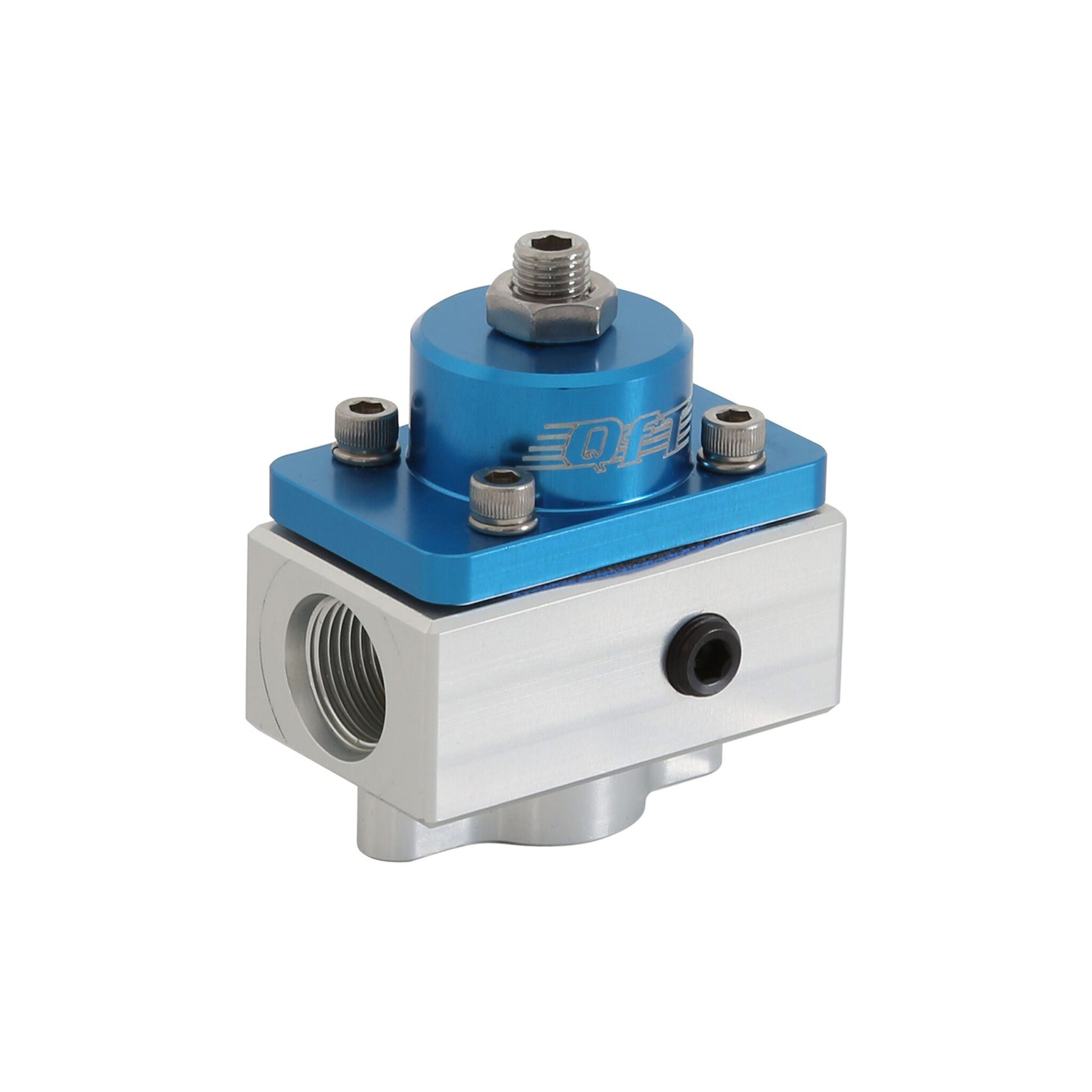

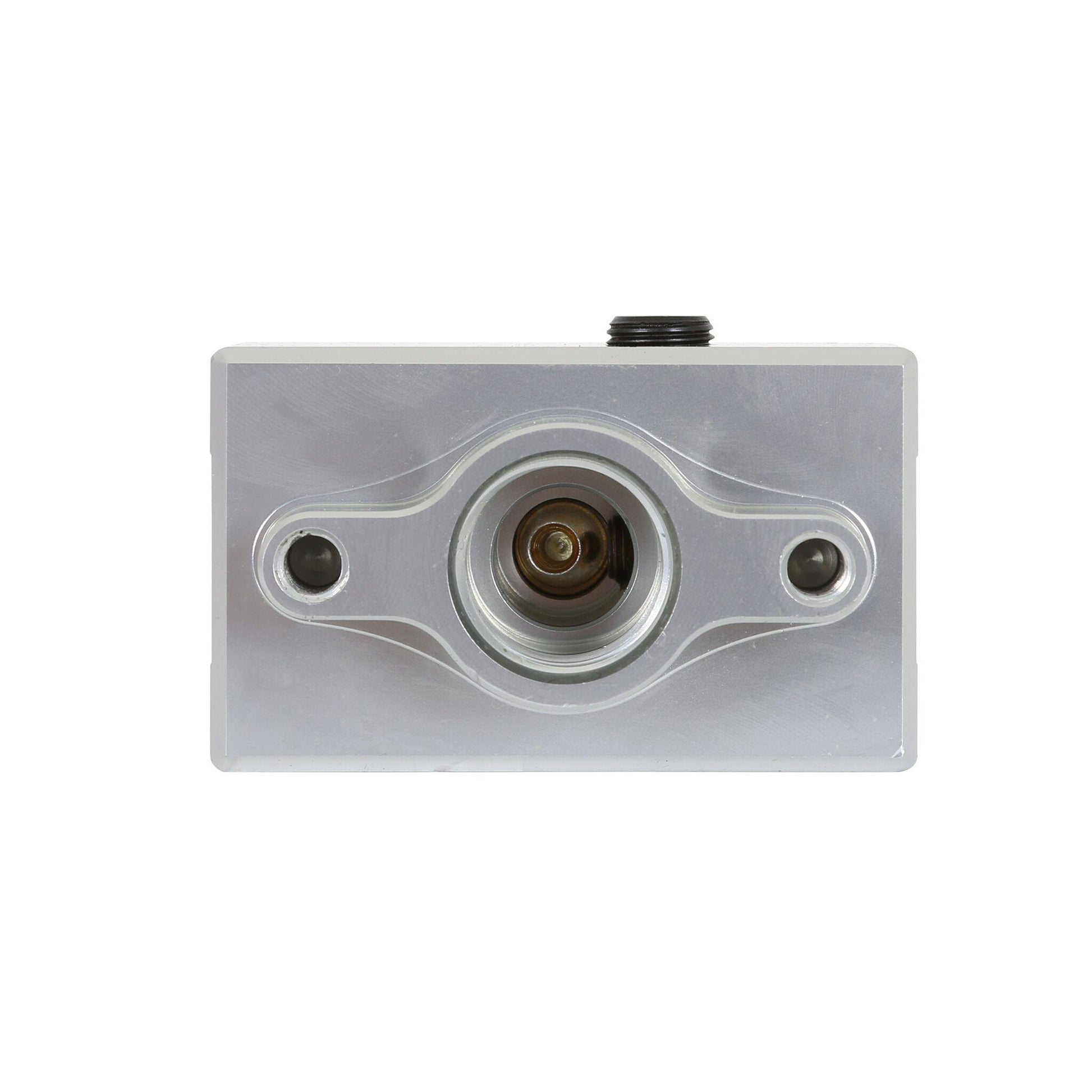

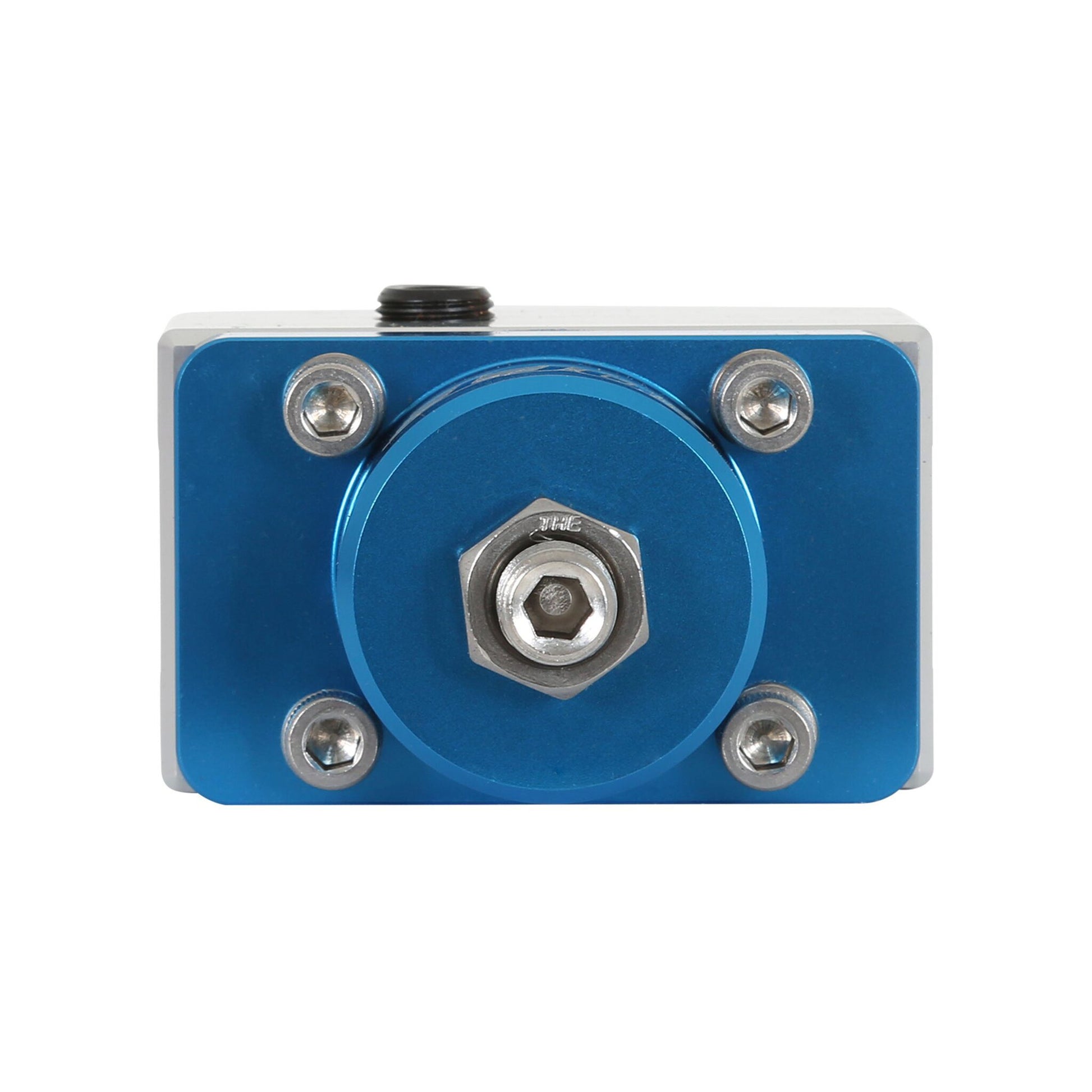

Quick Fuel Technology 30-1899QFT - Fuel Pressure Regulator

Quick Fuel Technology 30-1899QFT - Fuel Pressure Regulator

Fuel Pressure Regulator - 4-1/2 to 9 psi - In-Line - 8 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 8 AN Female O-Ring Return - Bypass - 1/8 in NPT Port - Aluminum - Blue / Clear Anodized - E85 / Gas / Methanol - Each

Fuel Pressure Regulator; Billet Aluminum; For Use w/Mechanical Fuel Pump w/Variable Pressure; By Pass Jet; Blue Anodized Top; 4.5-9 psi. -8AN Inlet/Outlet;

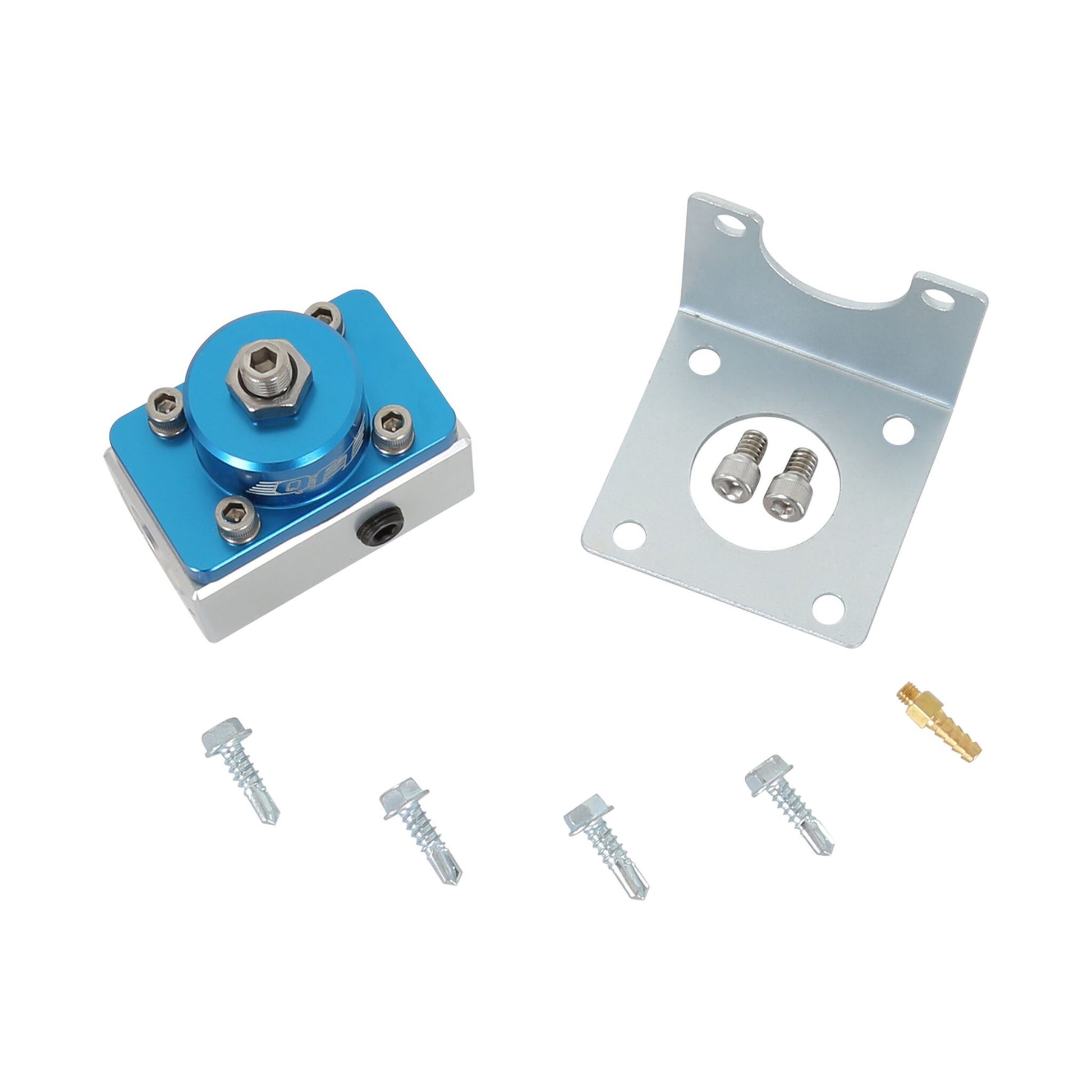

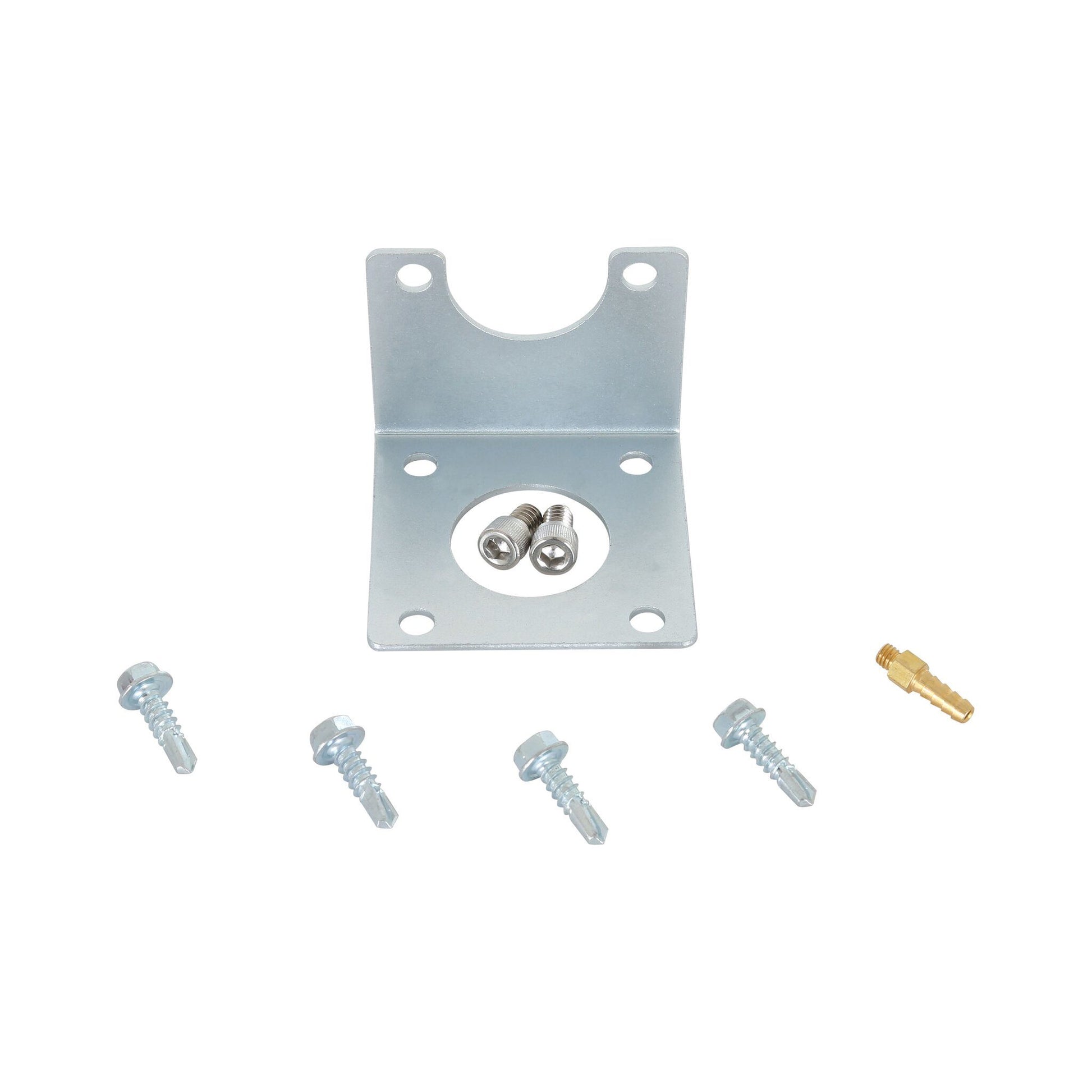

Billet Bypass Regulator W/JET - Designed for use with a mechanical fuel pump where fuel pressure is variable. By-Pass feature is restricted with a jet that can be adjusted to set your desired low-side fuel pressure. Blue anodized top has a fitting for boost referenced applications, comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required. Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI.350 in. (7/20 in.) restriction Designed for use with alcohol fuel Compatible with QFT„¢ billet fuel pressure regulator logs Includes an 1/8 in. NPT port for manifold reference Boost Reference 1-1

• Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI
• .350" (7/20") restriction
• Designed for use with alcohol fuel
• Compatible with QFT™ billet fuel pressure regulator logs
• Boost Reference 1-1
• Includes an 1/8" NPT port for manifold reference
