PRP's Kawasaki KRX Roll-Up Tool Kit provides everything you need to fix your Kawasaki Teryx KRX or KRX4 out on the trail.

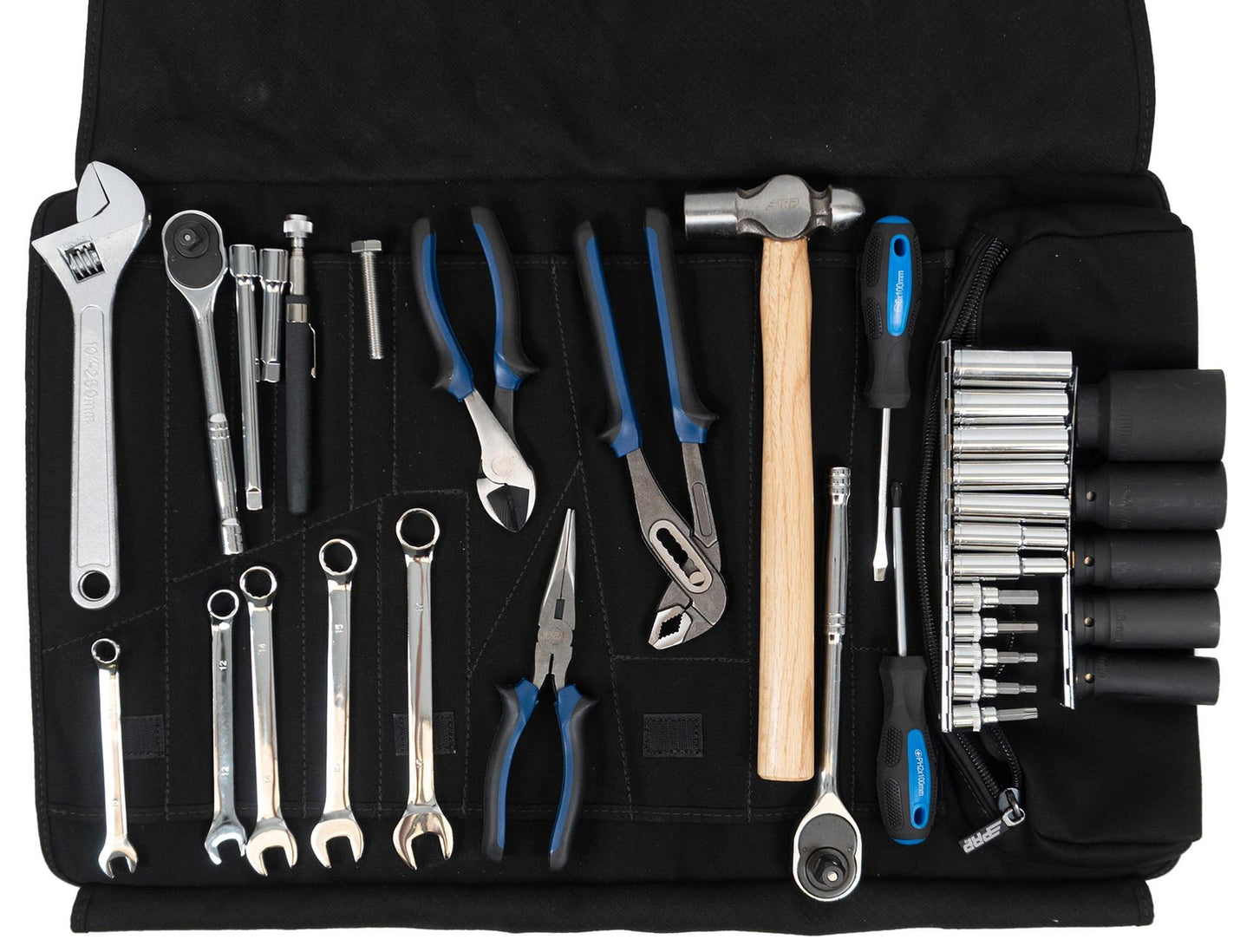

This 35 piece Kit Includes a selection of high-quality ratchets, sockets, wrenches, extension bars, pliers, and a ball peen hammer (for when things get really fun).
We've hand picked the exact tools that are needed most when working on a KRX - So you have only the essentials that you really need, without adding the extra weight of an entire tool box.
Below we have listed all the tools included, along with a handy guide to the most common uses for each tool. Each tool also includes a Limited Lifetime Warranty.

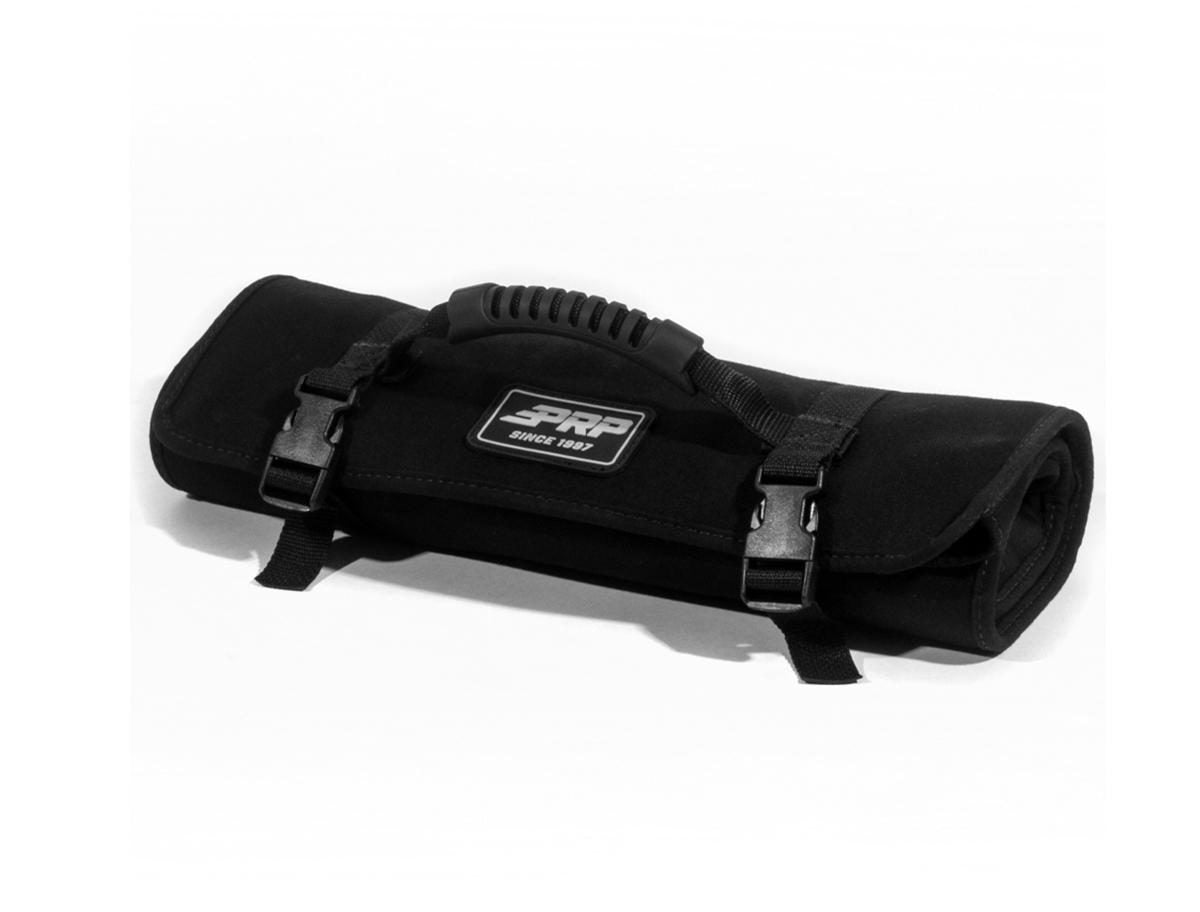

The Roll-Up Bag makes it easy to keep everything neat and organized. It features dedicated sleeves for all the tools included in the kit, as well as a zippered pocket to hold the sockets and any other tools you want to bring with you.
The bag is made from extremely durable twill material. It features heavy duty buckles, and an easy to carry grab handle. It can be mounted, or stored securely inside the vehicle. The roll-up style bag makes it quick and easy to grab out of the vehicle when you need it, and the tools inside don't make noise when bouncing around the trails.
Don't get caught out on the trail unprepared. PRP's Roll-Up Tool Kit has everything you need to get your Kawasaki Teryx KRX going!
Fitment: Kawasaki Teryx KRX and Kawasaki Teryx KRX4

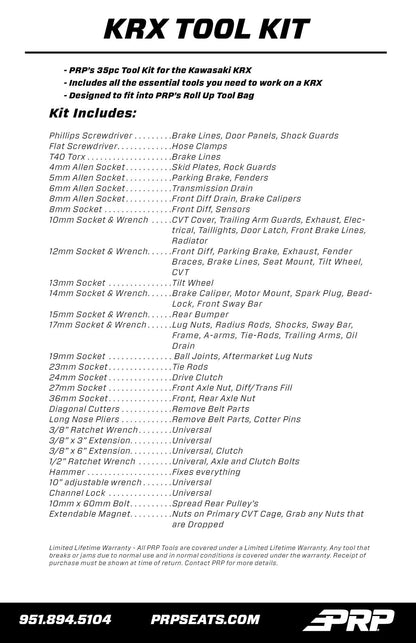

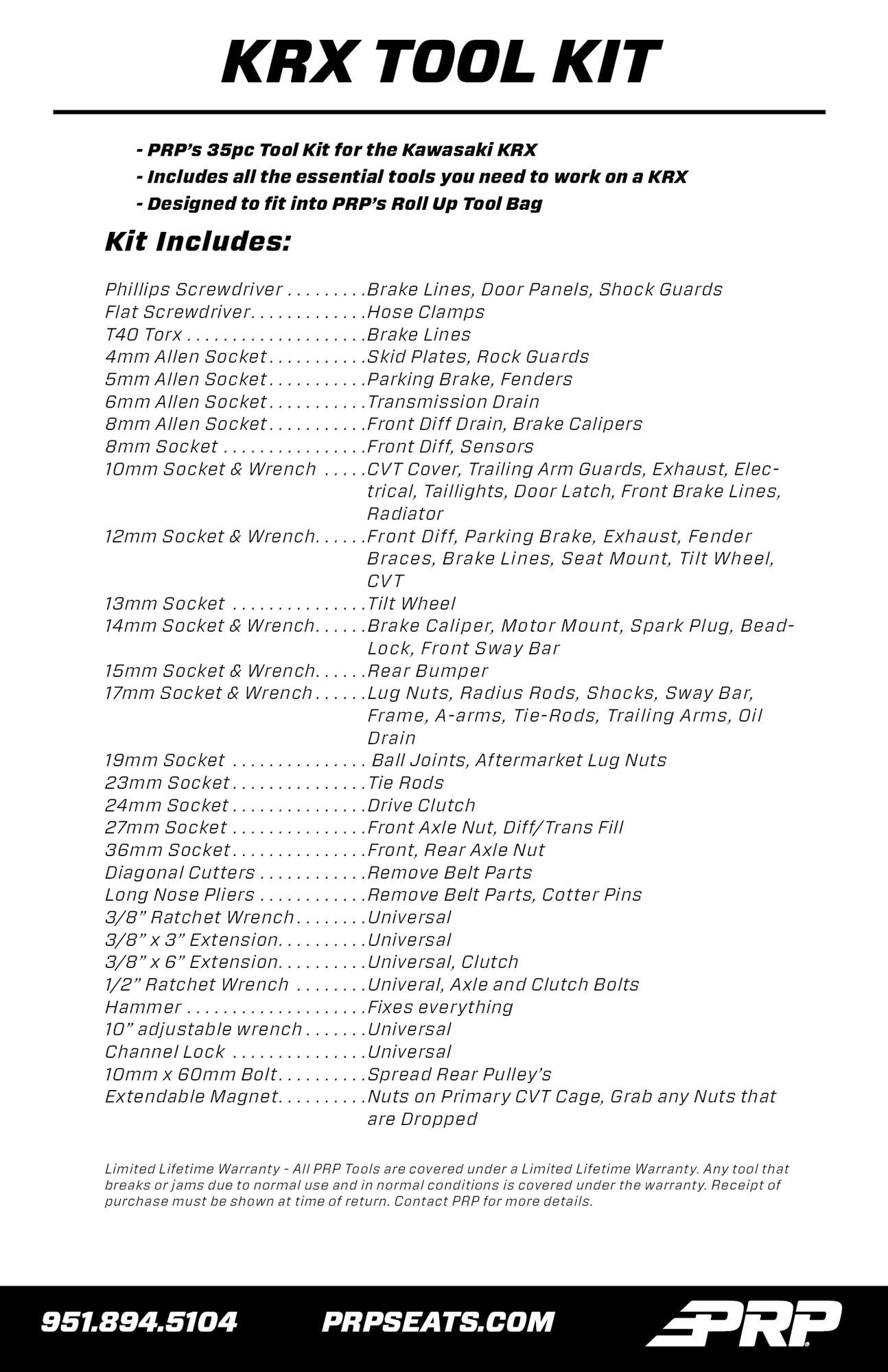

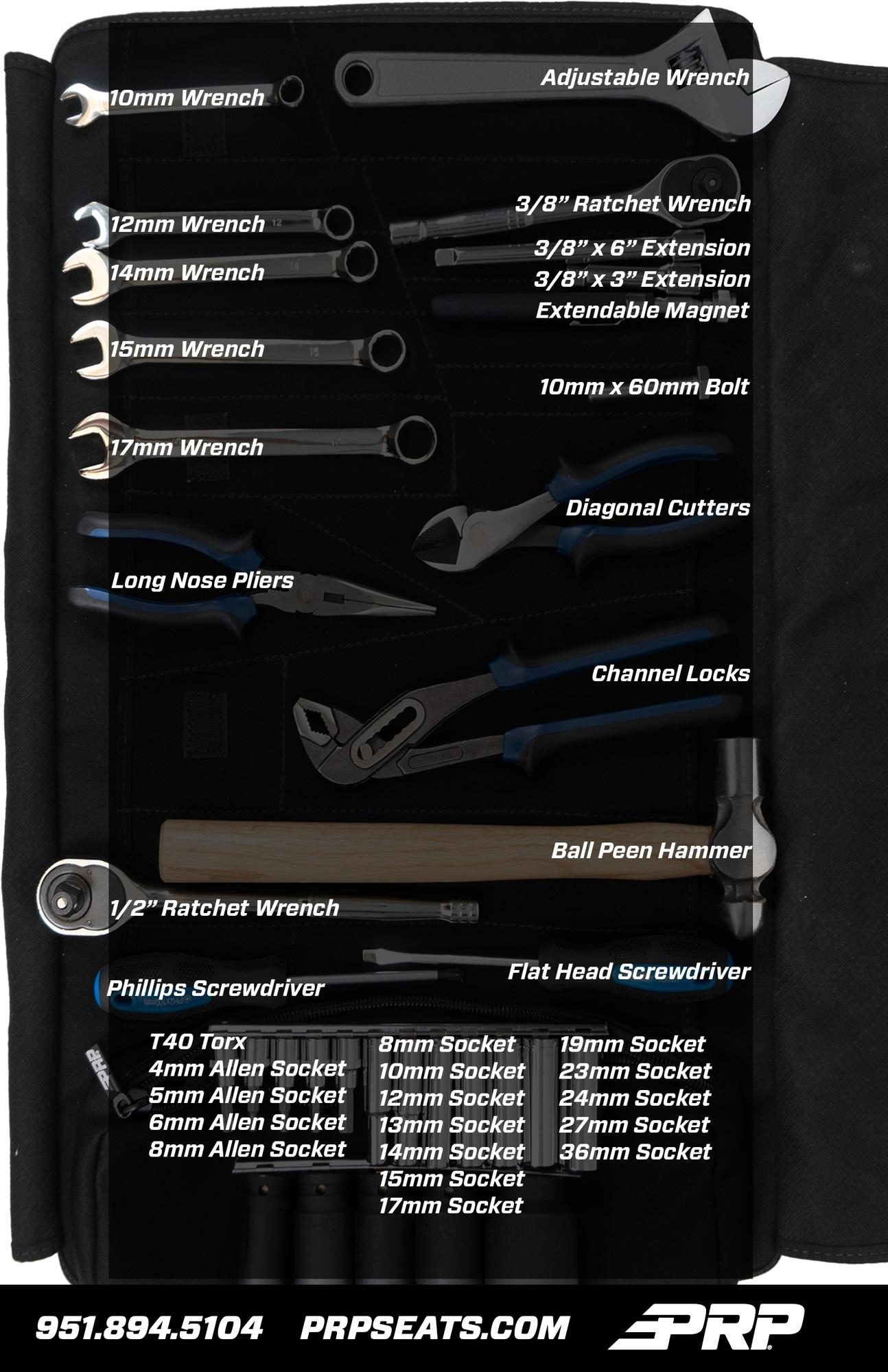

Kit Includes:
Allen Sockets
- 4mmx3/8 - Skid plate, rock guards
- 5mmx3/8 - Parking brake, fenders
- 6mmx3/8 - Transmission drain
- 8mmx3/8 - Front diff drain, brake caliper
Torx Bits- Sockets
- T40x3/8 - Brake lines
Sockets/Wrenches
- 8mmx3/8 - Front diff, sensors
- 10mmx3/8 - CVT cover, trailing-arm guards, exhaust, electrical grounds, taillights, door latch, front brake lines, radiator
- 10mm End Wrench
- 12mmx3/8 - Front diff, parking brake, exhaust, fender braces, brake lines, seat mount, tilt wheel, CVT
- 12mm End Wrench
- 13mmx3/8 - Tilt wheel
- 14mmx3/8 - Brake caliper, motor mount, spark plug, bead locks, front sway bar
- 14mm End Wrench
- 15mmx3/8 - Rear bumper
- 15mm End Wrench
- 17mmx3/8 - Deep Socket Lug nuts, radius rods, shocks, sway bar, frame, A-arms, tie-rods, trailing arms, oil drain
- 17mm End Wrench
- 19mmx1/2 - Deep socket Ball joints, aftermarket lug nuts
- 23mmx1/2 - Tie-rods
- 24mmx1/2 deep socket - drive clutch
- 27mmx1/2 - Front axle nut, diff/trans fill
- 36mmx1/2 - Front/Rear axle nut
Extras
- Phillips Screwdriver: Brake lines, door panels, shock guards, firewall
- Flat Screwdriver - Hose clamps

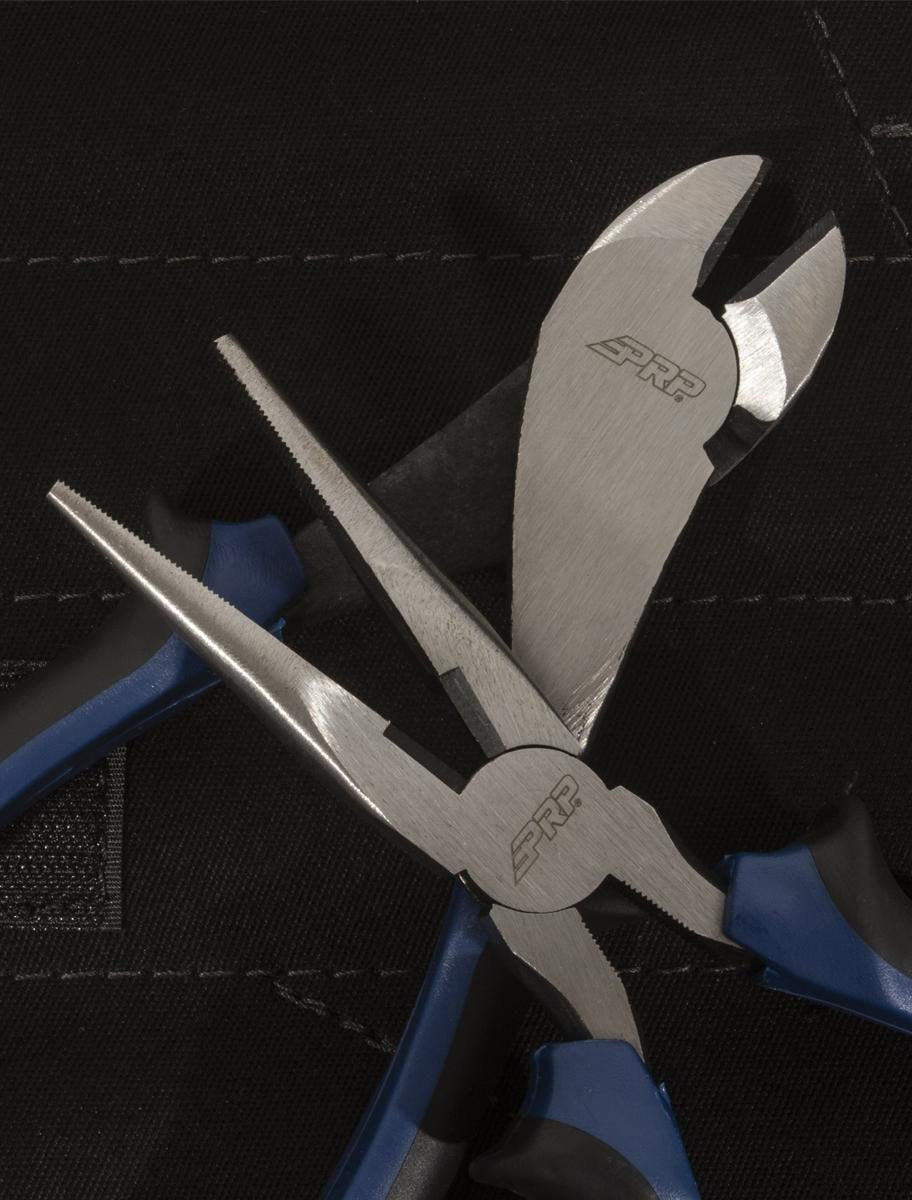

- Needle nose Pliers - Cotter pins, remove belt parts
- Channel Lock
- Diagonal cutter - Remove Belt Parts and open Amazon boxes
- Ballpeen Hammer - Fixes everything
- Adjustable wrench
- Extendable magnet - nuts for primary CVT cage, grab any nuts that you drop
- 3/8 drive ratchet
- 3/8 x 3 Inch short extension
- 3/8 x 6 Inch long extension - needed for clutch
- 1/2 drive ratchet - axle and clutch bolts
- 10mm x 60mm bolt - to spread rear pulleys
