Peterson Fluid - 09-0930

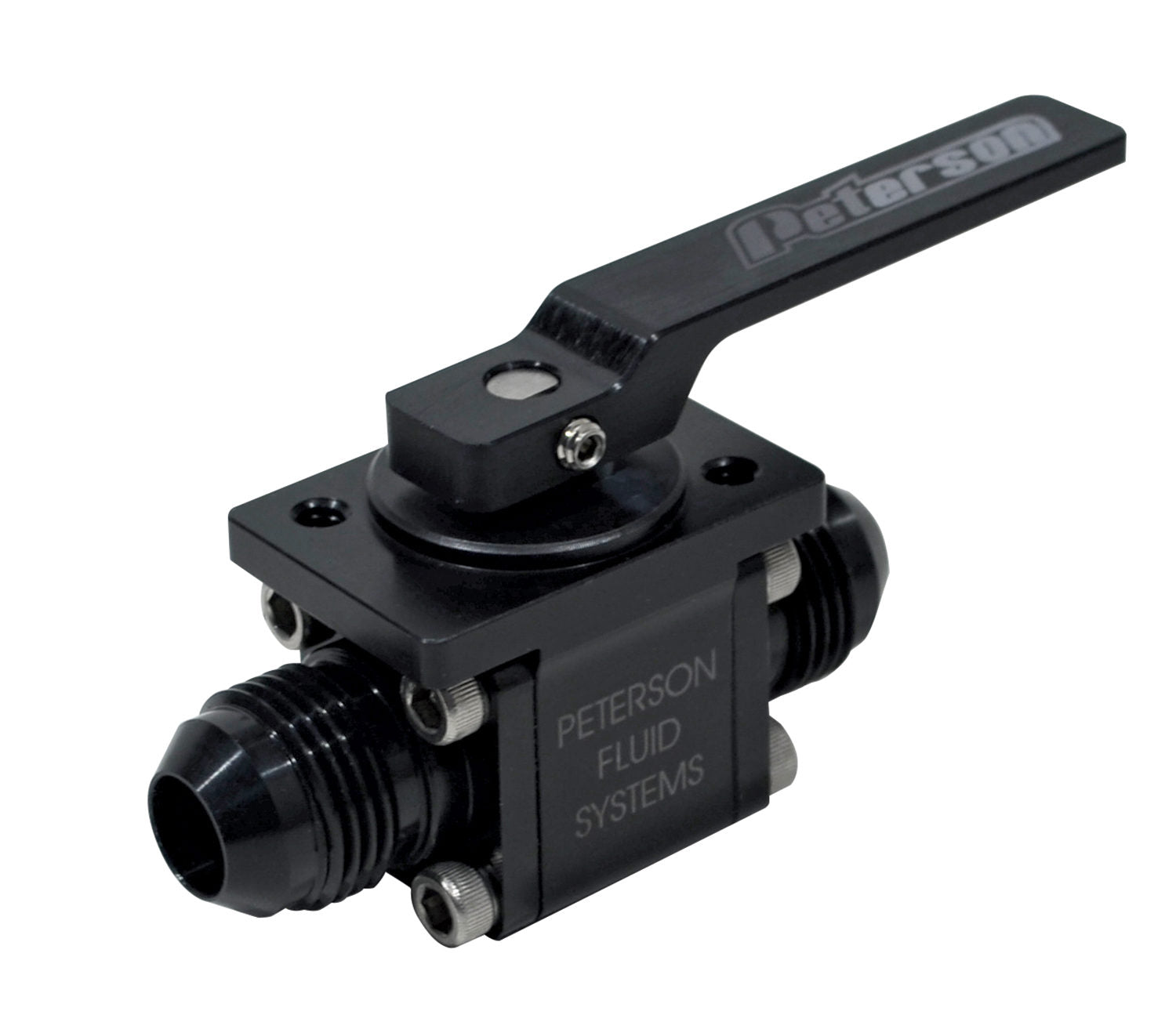

Shut Off Valve - Manual - Panel Mount - 8 AN Male to 8 AN Male - Aluminum - Black Anodized - Each
BALL VALVE FLANGE MT -8AN
Peterson's popular ball valve as a panel mount valve. Great for dash mounted fuel shutoff. Complete with offset handle. Mounting holes are 10-24 Thread.
- Panel Mount Ball Valve
- -8 AN Male Fittings
Color: Black
End 1 Type: -8 AN Male
End 2 Type: -8 AN Male
Finish: Anodized
Fuel Type: Petroleum and Alcohol Fuels
Fuel Type: Petroleum and Synthetic Motor Oils
Fuel Type: Engine coolants (ethylene glycol)
Material: Aluminum
Seal Material: PTFE
Mounting Plate: Yes
Mounting Plate Configuration: 2-hole panel mount
Max Working Pressure: 200 Psi / 13.8 Bar
Max Temperature: 250° F / 121.1° C
